Parent SKU : PPLEX750-3-BOY
SKU : PPLEX750-3-BOY-250

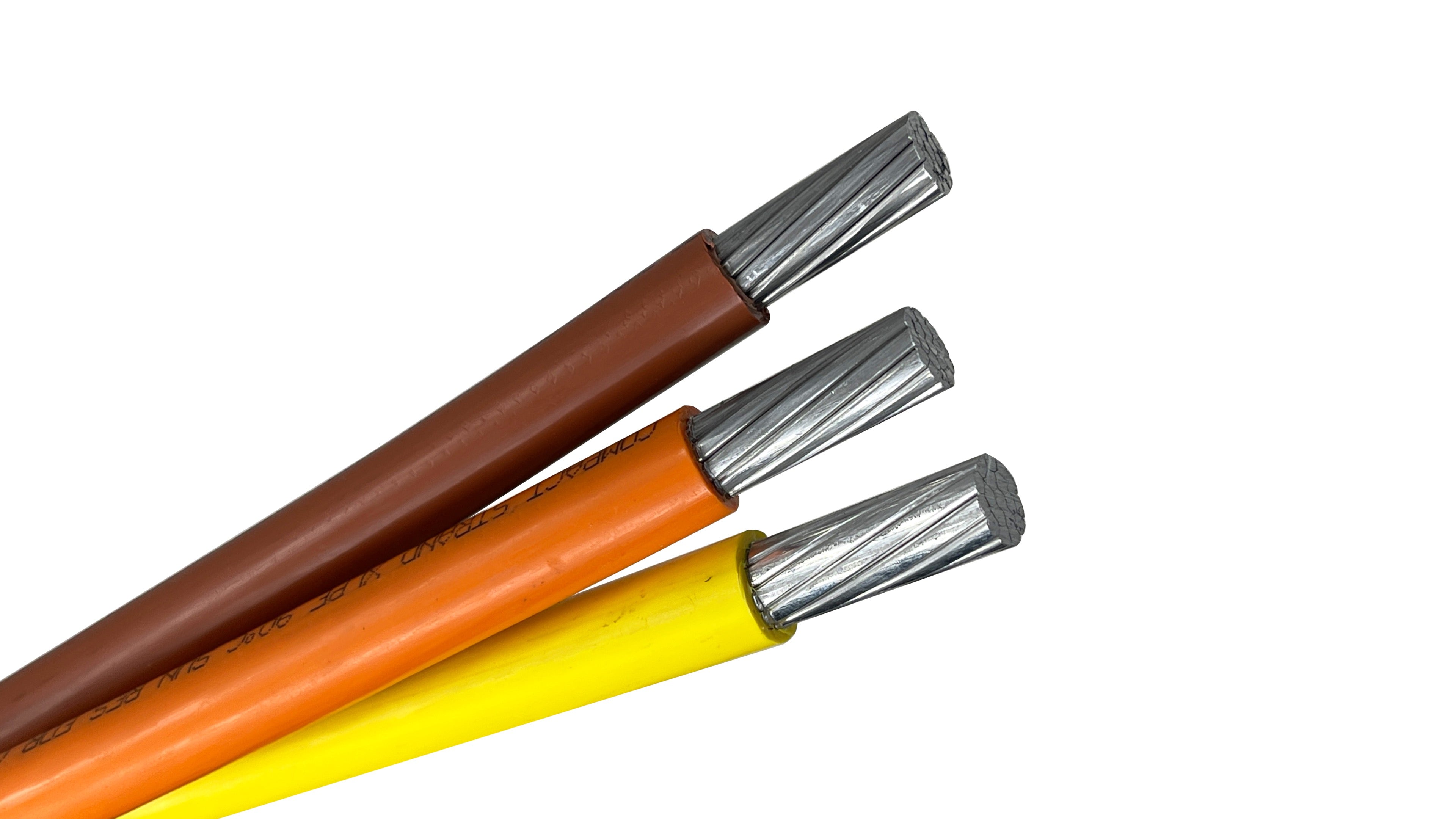

Specifically configured for 480V high-voltage commercial and industrial systems, this 750 MCM Priority-Plex® assembly is a massive-scale power solution that prioritizes installer safety and job site efficiency. By factory-twisting three high-capacity phase conductors into a single, cohesive unit, it eliminates the extreme physical burden of managing three separate 750 MCM reels and manual wire paralleling, ensuring a more controlled and synchronized installation.
At the 750 MCM level, traditional pulls are fraught with logistical risks, including uneven tension and excessive friction. The Priority-Plex® system utilizes a precision-twisted geometry to distribute pulling forces evenly across the entire bundle. This significantly reduces the sidewall pressure within the conduit, protecting the insulation from damage during high-stress turns in industrial raceways.
High-Voltage Phase Management: Features Brown, Orange, and Yellow conductors for immediate identification in 480/277V systems, streamlining termination in high-voltage switchgear.
Logistical Footprint Reduction: Consolidating three heavy-gauge leads onto a single reel drastically reduces the equipment overhead and setup time required for primary feeder pulls.
Superior XHHW-2 Durability: The cross-linked polyethylene (XLP) insulation is engineered for maximum heat dissipation and long-term resistance to environmental stress.
Optimized Weight-to-Ampacity Ratio: The AA-8000 series aluminum construction provides massive current-carrying capacity while remaining lighter and more flexible than copper equivalents, reducing the risk of rope snaps.
Conductor Size: 750 MCM (kcmil)
Number of Conductors: 3 (Twisted)
Color Code: Brown, Orange, Yellow
Ampacity: 385 Amps at 75°C / 435 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
480V Industrial Services: The primary choice for high-voltage power routing in manufacturing plants, refineries, and heavy industrial facilities.
Main Distribution Feeders: Ideal for connecting large-scale utility transformers to internal main distribution centers in commercial high-rises.
Heavy Infrastructure Pulls: Optimized for long-distance runs through 4-inch or 5-inch rigid conduit where reducing surface friction is critical for a successful pull.
Critical Facility Power: Frequently utilized in airports, hospital power cores, and data center primary distribution where high-amperage 3-phase reliability is required.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 750-03PPLEX-BOY
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 750 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 2.32 in. / 59.1 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 435 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 2.496 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX750-3-BOY
SKU : PPLEX750-3-BOY-250
Parent SKU : PPLEX750-3-BOY
SKU : PPLEX750-3-BOY-250
Specifically configured for 480V high-voltage commercial and industrial systems, this 750 MCM Priority-Plex® assembly is a massive-scale power solution that prioritizes installer safety and job site efficiency. By factory-twisting three high-capacity phase conductors into a single, cohesive unit, it eliminates the extreme physical burden of managing three separate 750 MCM reels and manual wire paralleling, ensuring a more controlled and synchronized installation.
At the 750 MCM level, traditional pulls are fraught with logistical risks, including uneven tension and excessive friction. The Priority-Plex® system utilizes a precision-twisted geometry to distribute pulling forces evenly across the entire bundle. This significantly reduces the sidewall pressure within the conduit, protecting the insulation from damage during high-stress turns in industrial raceways.
High-Voltage Phase Management: Features Brown, Orange, and Yellow conductors for immediate identification in 480/277V systems, streamlining termination in high-voltage switchgear.
Logistical Footprint Reduction: Consolidating three heavy-gauge leads onto a single reel drastically reduces the equipment overhead and setup time required for primary feeder pulls.
Superior XHHW-2 Durability: The cross-linked polyethylene (XLP) insulation is engineered for maximum heat dissipation and long-term resistance to environmental stress.
Optimized Weight-to-Ampacity Ratio: The AA-8000 series aluminum construction provides massive current-carrying capacity while remaining lighter and more flexible than copper equivalents, reducing the risk of rope snaps.
Conductor Size: 750 MCM (kcmil)
Number of Conductors: 3 (Twisted)
Color Code: Brown, Orange, Yellow
Ampacity: 385 Amps at 75°C / 435 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
480V Industrial Services: The primary choice for high-voltage power routing in manufacturing plants, refineries, and heavy industrial facilities.
Main Distribution Feeders: Ideal for connecting large-scale utility transformers to internal main distribution centers in commercial high-rises.
Heavy Infrastructure Pulls: Optimized for long-distance runs through 4-inch or 5-inch rigid conduit where reducing surface friction is critical for a successful pull.
Critical Facility Power: Frequently utilized in airports, hospital power cores, and data center primary distribution where high-amperage 3-phase reliability is required.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 750-03PPLEX-BOY
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 750 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 2.32 in. / 59.1 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 435 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 2.496 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This 750 MCM, 3-conductor assembly is specifically color-coded for high-voltage (277/480V) 3-phase systems. Unlike the standard residential Black/Red/White coding, the Brown, Orange, and Yellow phases are the industry standard for identifying high-leg or 480V industrial power. It is primarily used as a main feeder for heavy industrial equipment, large motor control centers, and commercial power distribution in facilities with massive electrical demands.
At the 750 MCM gauge, managing three separate conductors is a massive logistical challenge. Priority-Plex® factory-twists these conductors into a single, synchronized bundle.
In 480V systems carrying several hundred amps, heat management is the top priority. XHHW-2 uses Cross-Linked Polyethylene (XLPE), a thermoset material that offers several advantages over standard PVC:
Per NEC Table 310.16, the ampacity for 750 MCM Aluminum is determined by the temperature rating of the equipment terminations:
⚠️ PRO TIP: Because this is a 3-conductor "All Hot" phase assembly (un-grounded wye or delta system), all three conductors are current-carrying. If you are pulling more than three current-carrying conductors in a single conduit, you must apply adjustment factors per NEC 310.15(C)(1).
Due to the extreme weight and diameter of a 750 MCM 3-conductor bundle, specialized equipment is non-negotiable:
