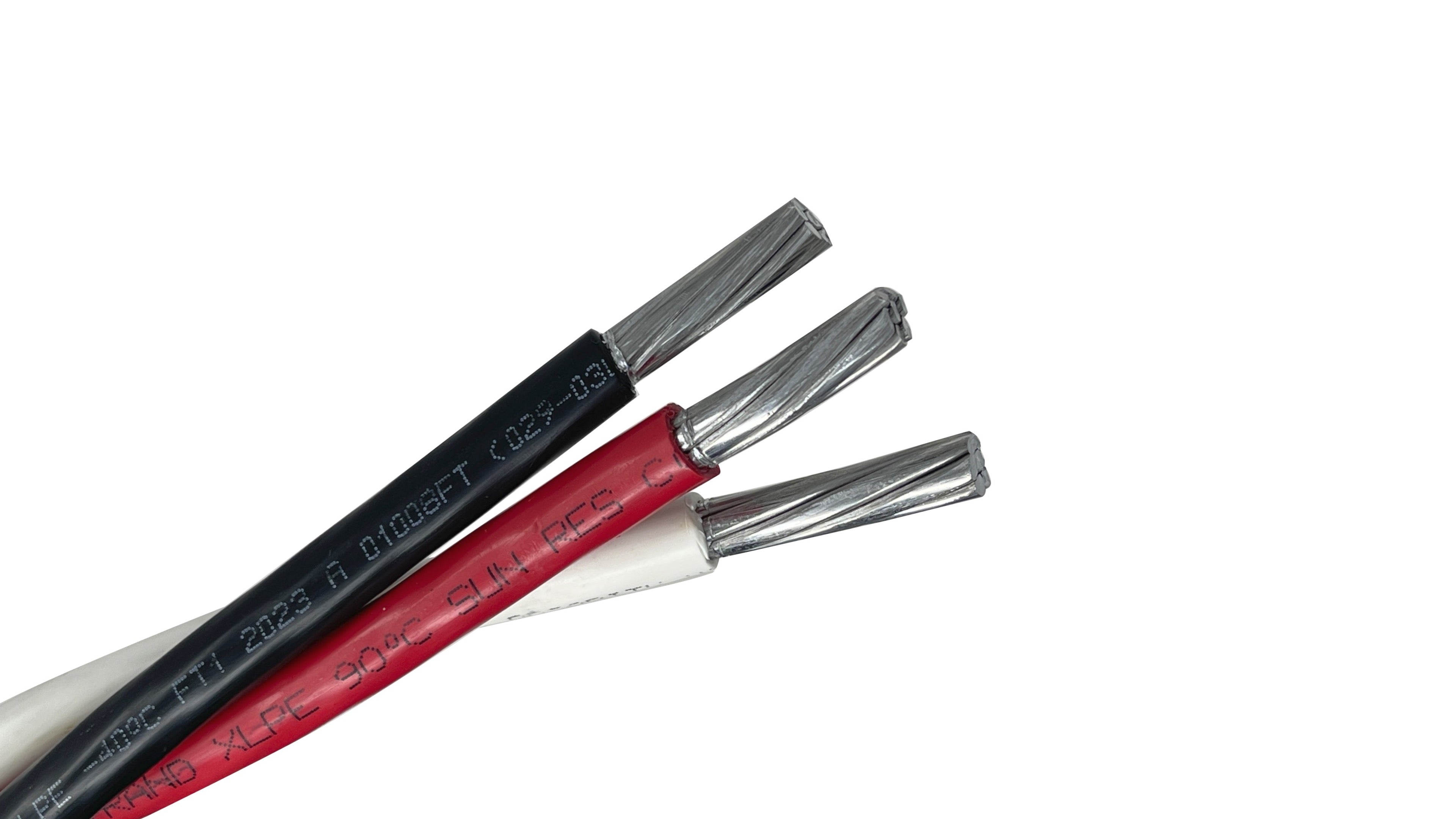

As the premier solution for ultra-high amperage infrastructure, this 750 MCM Priority-Plex® assembly represents the pinnacle of installation efficiency for massive power loads. By factory-twisting three of these substantial conductors into a single, synchronized unit, this cable effectively tames the logistical complexity and extreme physical resistance inherent in 750 MCM pulls, allowing for a safer, more predictable deployment in heavy industrial environments.
At this scale, manual paralleling is not just labor-intensive—it's a significant safety and equipment risk. The Priority-Plex® system eliminates the "sidewall pressure" and wedging issues that often occur when pulling loose 750 MCM leads. The pre-twisted architecture ensures that the weight is distributed evenly across the pulling head, protecting both your crew and the expensive conduit infrastructure.
Heavy-Infrastructure Command: Consolidation into a single twisted unit eliminates the need for massive multi-reel setups, drastically reducing the job site footprint.
Precision Phase Layout: Black and Red phase conductors paired with a dedicated White neutral allow for rapid, organized landing in high-voltage switchgear and massive termination cabinets.
Maximum Thermal Resilience: The XHHW-2 cross-linked polyethylene (XLP) insulation is engineered to withstand the intense thermal demands and magnetic stresses of 400+ Amp circuits.
Superior Weight-to-Conductivity Ratio: Utilizing AA-8000 aluminum makes these massive feeders manageable, offering a significant weight reduction over copper that can be the difference between a successful pull and a snapped rope.
Conductor Size: 750 MCM (kcmil)
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 385 Amps at 75°C / 435 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Utility-Scale Distribution: The primary choice for connecting utility transformers to massive industrial complexes and municipal pump stations.
Enterprise Data Centers: Designed for the extreme continuous current requirements of global data hubs and telecommunications switching centers.
Heavy Manufacturing: Ideal for supplying main power to large-scale assembly plants, refineries, and chemical processing facilities.
Critical Infrastructure: Frequently utilized in airports, large-scale stadium projects, and high-rise commercial cores where high-amperage reliability is paramount.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 750-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 750 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 2.32 in. / 59.10 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 435 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B802 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 2.496 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX750-3-BRW
SKU : PPLEX750-3-BRW-250
Parent SKU : PPLEX750-3-BRW
SKU : PPLEX750-3-BRW-250
As the premier solution for ultra-high amperage infrastructure, this 750 MCM Priority-Plex® assembly represents the pinnacle of installation efficiency for massive power loads. By factory-twisting three of these substantial conductors into a single, synchronized unit, this cable effectively tames the logistical complexity and extreme physical resistance inherent in 750 MCM pulls, allowing for a safer, more predictable deployment in heavy industrial environments.
At this scale, manual paralleling is not just labor-intensive—it's a significant safety and equipment risk. The Priority-Plex® system eliminates the "sidewall pressure" and wedging issues that often occur when pulling loose 750 MCM leads. The pre-twisted architecture ensures that the weight is distributed evenly across the pulling head, protecting both your crew and the expensive conduit infrastructure.
Heavy-Infrastructure Command: Consolidation into a single twisted unit eliminates the need for massive multi-reel setups, drastically reducing the job site footprint.
Precision Phase Layout: Black and Red phase conductors paired with a dedicated White neutral allow for rapid, organized landing in high-voltage switchgear and massive termination cabinets.
Maximum Thermal Resilience: The XHHW-2 cross-linked polyethylene (XLP) insulation is engineered to withstand the intense thermal demands and magnetic stresses of 400+ Amp circuits.
Superior Weight-to-Conductivity Ratio: Utilizing AA-8000 aluminum makes these massive feeders manageable, offering a significant weight reduction over copper that can be the difference between a successful pull and a snapped rope.
Conductor Size: 750 MCM (kcmil)
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 385 Amps at 75°C / 435 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Utility-Scale Distribution: The primary choice for connecting utility transformers to massive industrial complexes and municipal pump stations.
Enterprise Data Centers: Designed for the extreme continuous current requirements of global data hubs and telecommunications switching centers.
Heavy Manufacturing: Ideal for supplying main power to large-scale assembly plants, refineries, and chemical processing facilities.
Critical Infrastructure: Frequently utilized in airports, large-scale stadium projects, and high-rise commercial cores where high-amperage reliability is paramount.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 750-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 750 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 2.32 in. / 59.10 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 435 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B802 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 2.496 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
While many contractors prefer to parallel two sets of 350 MCM to achieve high ampacity, 750 MCM Aluminum is the superior choice when conduit space is limited. A single run of 750 MCM can carry significantly more power than a single smaller run, making it the standard for 500A–600A individual feeders. It is the go-to specification for main transformer-to-switchgear connections where high current density is required in a single trench or overhead tray.
A 1,000-foot reel of 750 MCM 3-conductor cable weighs over 2,300 lbs. Managing that much mass during a pull is dangerous if the wires are loose. The Priority-Plex® factory twist binds the three conductors into a single, structurally sound unit. This prevents the "crossover" effect where one heavy conductor slides over another in a bend, which can lead to a crushed jacket or a total blockage. The twist ensures the pulling tension is distributed evenly across the entire aluminum core.
Because 750 MCM is exceptionally thick, it cannot be bent sharply without damaging the internal strands or the XLPE insulation. According to the NEC, the minimum bending radius is typically 8 to 10 times the overall diameter of the cable. For a twisted 3-conductor 750 MCM bundle, this means your pull boxes and conduit elbows must be significantly larger than standard sizes. Using Priority-Plex® helps slightly with flexibility, but proper planning of "sweep" elbows is critical at this gauge.
In high-amperage applications, the skin effect and heat generation are substantial. XHHW-2 uses Cross-Linked Polyethylene (XLPE), which is a "thermoset" material. Unlike the "thermoplastic" PVC used in THHN, XLPE does not soften when heated. This is vital for 750 MCM because it ensures the insulation maintains its full thickness and protective properties even when the cable is running at its maximum 90°C thermal limit in a crowded industrial cable tray.
A 3-conductor 750 MCM twisted bundle has a diameter of roughly 2.4 inches. To stay within the 40% fill limit and ensure a successful pull:
