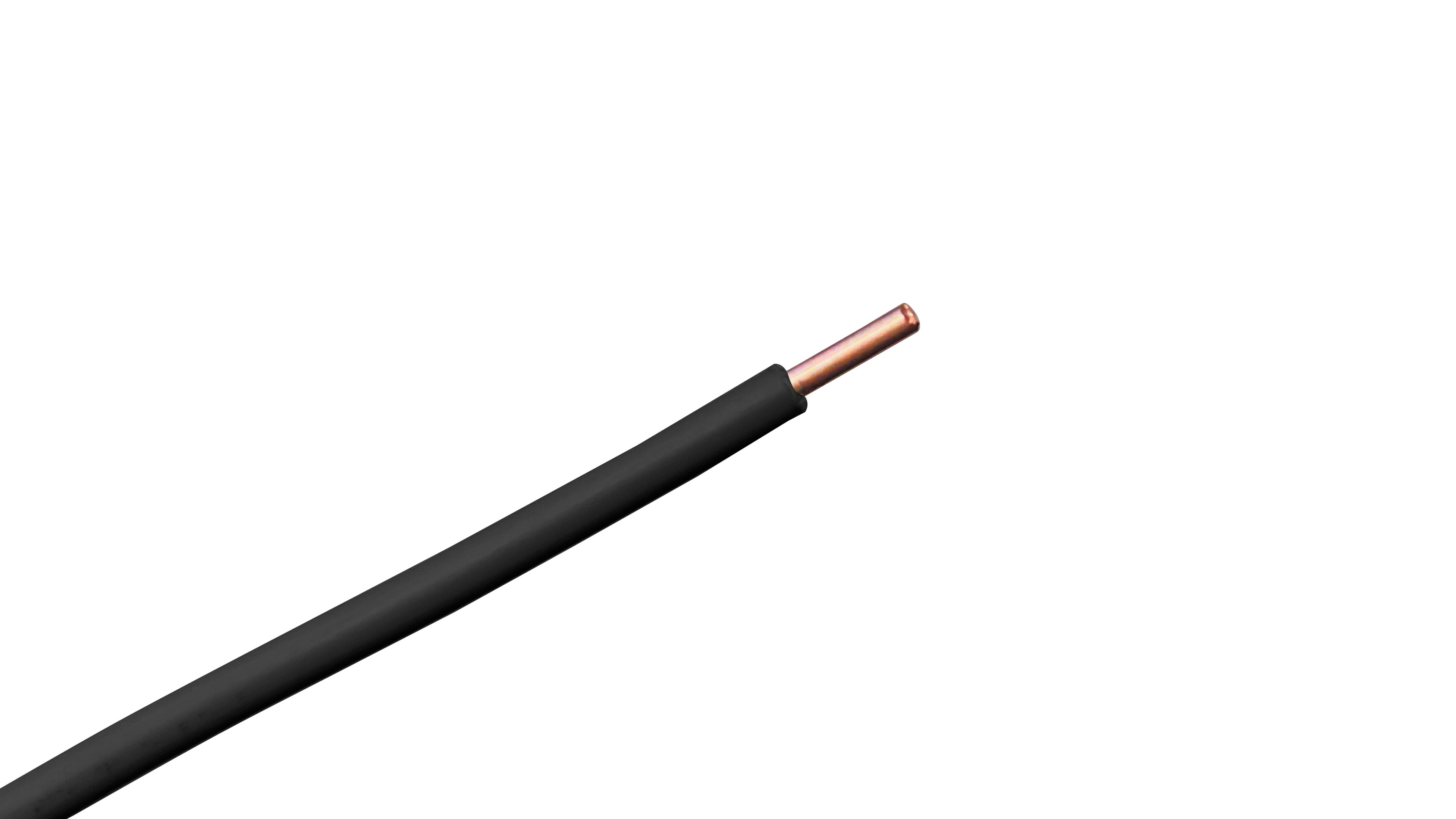

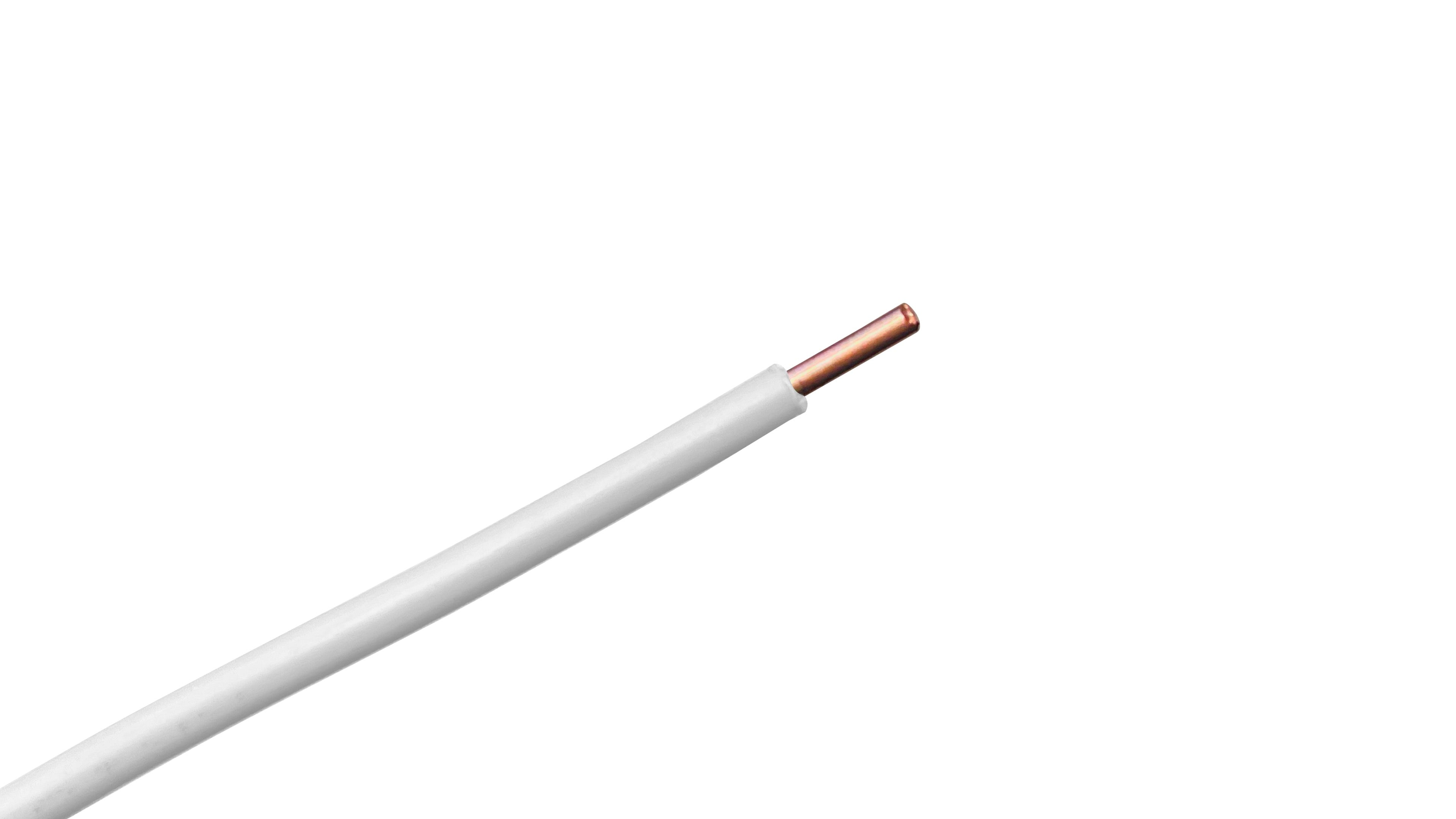

18 AWG High-Strength Copper Clad Steel Tracer Wire PE-30

18 AWG High Strength (HS) Copper Clad Steel (CCS) PE-30 Tracer Wire is a precision-engineered, light-gauge underground locating utility line optimized for localized gas service drops, residential water lateral connections, and telecommunication micro-duct tracing. Combining the mechanical durability of a solid steel core with the electrical conductivity of a concentric copper skin, this compact tracer wire features a 30-mil, high-density high-molecular-weight polyethylene (HDPE / HMWPE) insulation layer specifically designated under the industry standard PE-30 rating.

This asset is engineered specifically for applications where space inside conduits or tight open trenches is limited, but premium mechanical strength is still required over standard copper alternatives. The 30-mil insulation profile provides a more streamlined outer diameter than PE-45 alternatives, ensuring easier handling and maximizing space savings in tight conduit channels or terminal boxes. It provides an uninterrupted, highly localized electromagnetic path for utility line locating equipment to track non-metallic (PVC, HDPE, PE, fiberglass) underground pipes without breaking or stretching under installation and backfill stresses.

TENSILE BREAK LOAD PERFORMANCE

Unlike standard soft-drawn or hard-drawn pure copper wire, which stretches, narrows, and snaps under the mechanical settling forces of soil and backfill equipment, High Strength Copper Clad Steel is mechanically rated for excellent structural durability in a highly compact profile:

• High Strength (HS) Rating: 100 LBS minimum break load This represents the structural pulling threshold before mechanical failure occurs. While it is the lightest gauge in the high-strength family, the 100 lb rating provides roughly double the tensile strength of a standard 18 AWG solid copper wire. This allows the wire to easily handle standard soil compaction, settling, and trench backfill impact without risking internal core breaks.

Key Features

• High Strength (HS) Carbon Steel Core: Engineered using a specialized carbon steel center that provides superior structural tensile strength compared to standard copper wires, effectively preventing line snapping caused by soil settlement, stone impacts, or root intrusion.

• Metallurgically Bonded Copper Clad Layer: A continuous, concentric bare copper skin is molecularly bonded to the steel core. Because high-frequency utility locating signals travel strictly along the outer surface of a conductor (The Skin Effect), the copper skin provides identical signal transmission performance to a solid copper wire while maintaining a tough steel backbone.

• Streamlined 30-Mil PE-30 Insulation: Extruded with a high-density 30-mil polyethylene skin. This profile provides excellent resistance to sharp gravel scrapes, long-term water immersion, and chemical soil components while reducing the overall cable diameter for tighter conduit spaces.

• Optimal High-Frequency Traceability: Delivers excellent electrical conductivity at standard underground locating frequencies (such as 9.8 kHz, 33 kHz, and 83 kHz), ensuring clear signal paths for standard field receivers.

• Corrosion-Resistant Armor Skin: The non-degradable PE-30 jacket completely encapsulates the copper clad core, blocking moisture migration and preventing galvanic corrosion over the multi-decade lifespan of the buried pipe asset.

Common Applications

• Residential Gas Service Lines & Drops: Running down lateral gas paths connecting the main neighborhood distribution line to the property meter.

• Water Lateral Connections: Locating small-diameter water lines, irrigation lines, and residential supply pipes.

• Telecommunication Service Drops: Installed alongside or pulled through micro-ducts for tracking buried fiber optic lines and cable bundles.

• Light Open-Trench Excavation: Placed directly over shallow non-metallic utility lines inside standard backfill trenches to enable future top-side tracking.

Industry Standard APWA Color Code Guide

Tracer wire outer PE-30 insulation is color-coded to comply directly with the American Public Works Association (APWA) uniform color matrix for instant visual verification of the hidden asset below:

• Safety Precaution Blue: Designated strictly for Potable (Drinking) Water Systems.

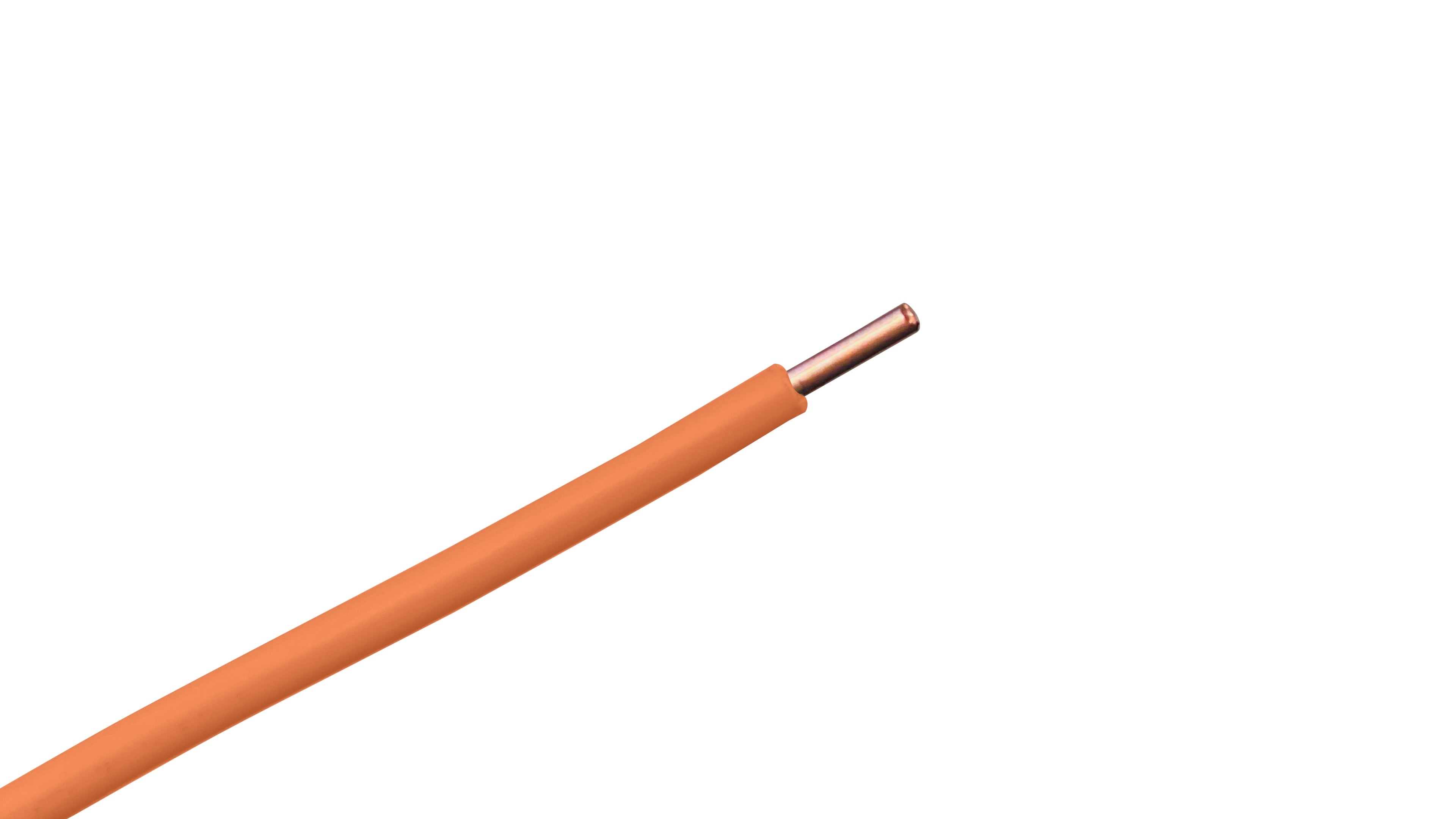

• Safety Alert Orange: Used for Telecommunications, Fiber Optic Networks, and Traffic Signal loops.

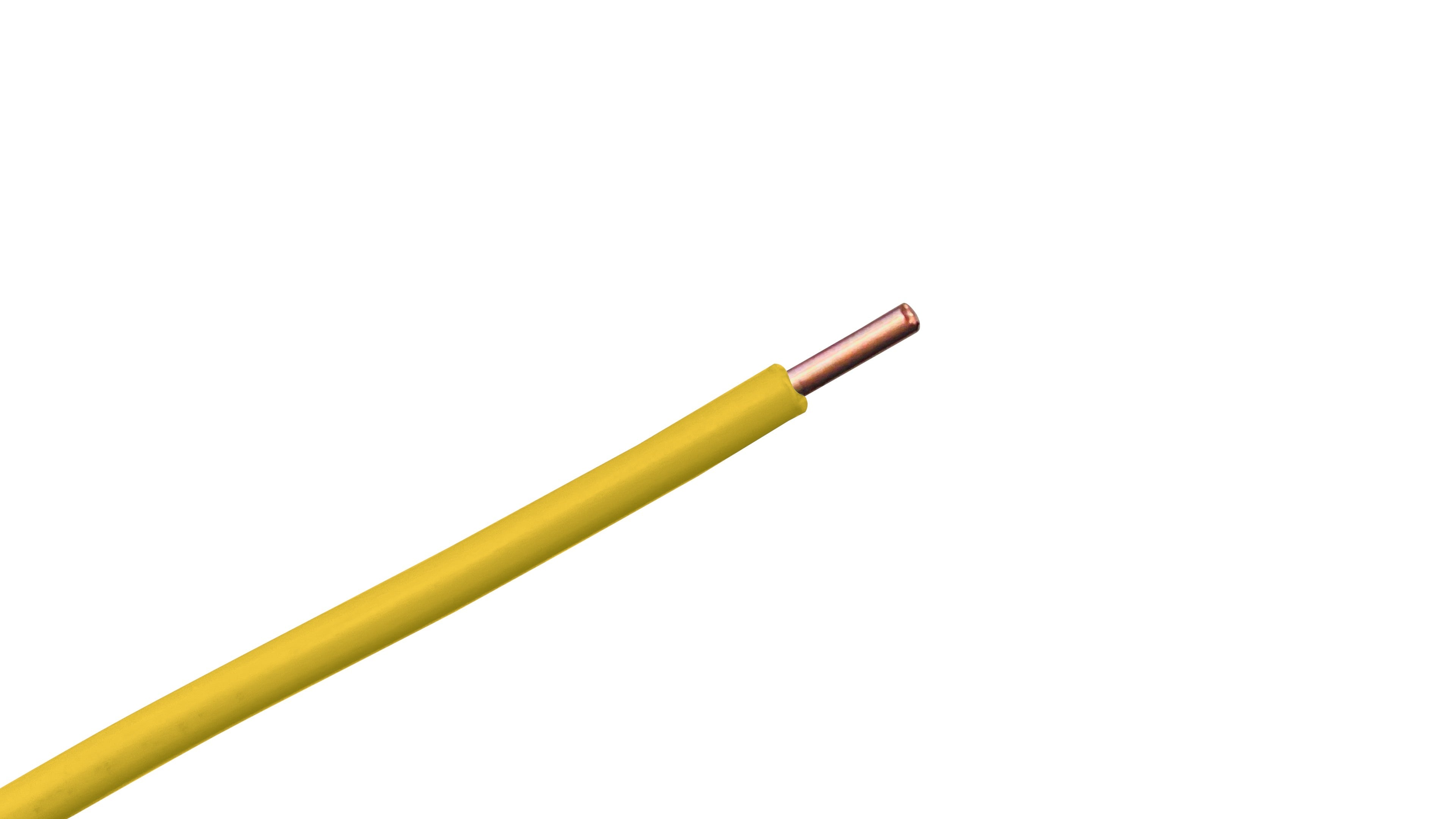

• High Visibility Yellow: Reserved exclusively for Natural Gas, Petroleum, and other Gaseous or Hazardous Materials.

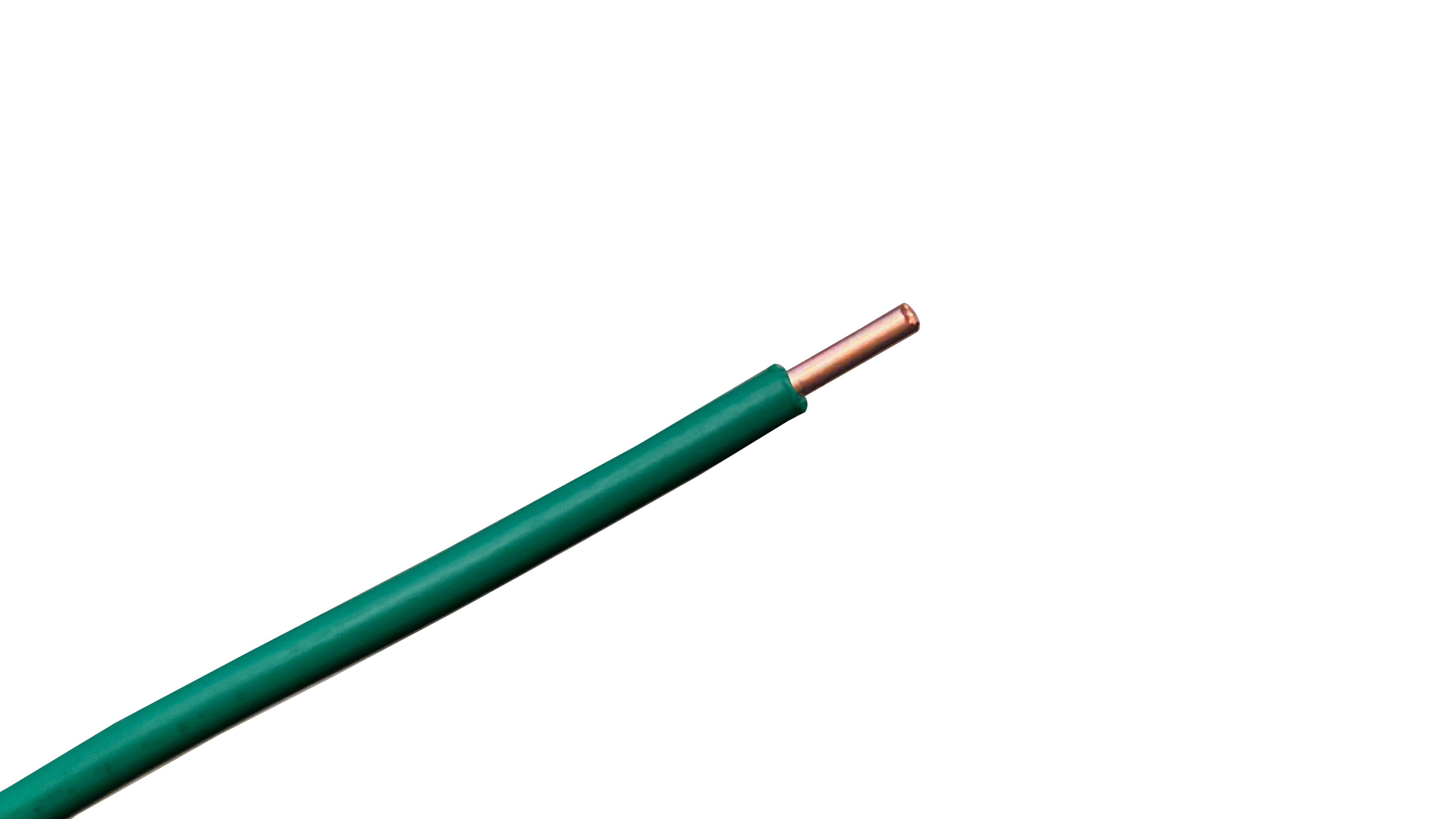

• Safety Public Works Green: Assigned to Sanitary Sewers, Force Mains, and Drain Lines.

• Safety Purple: Utilized for Reclaimed Water, Irrigation Systems, and Slurry Lines.

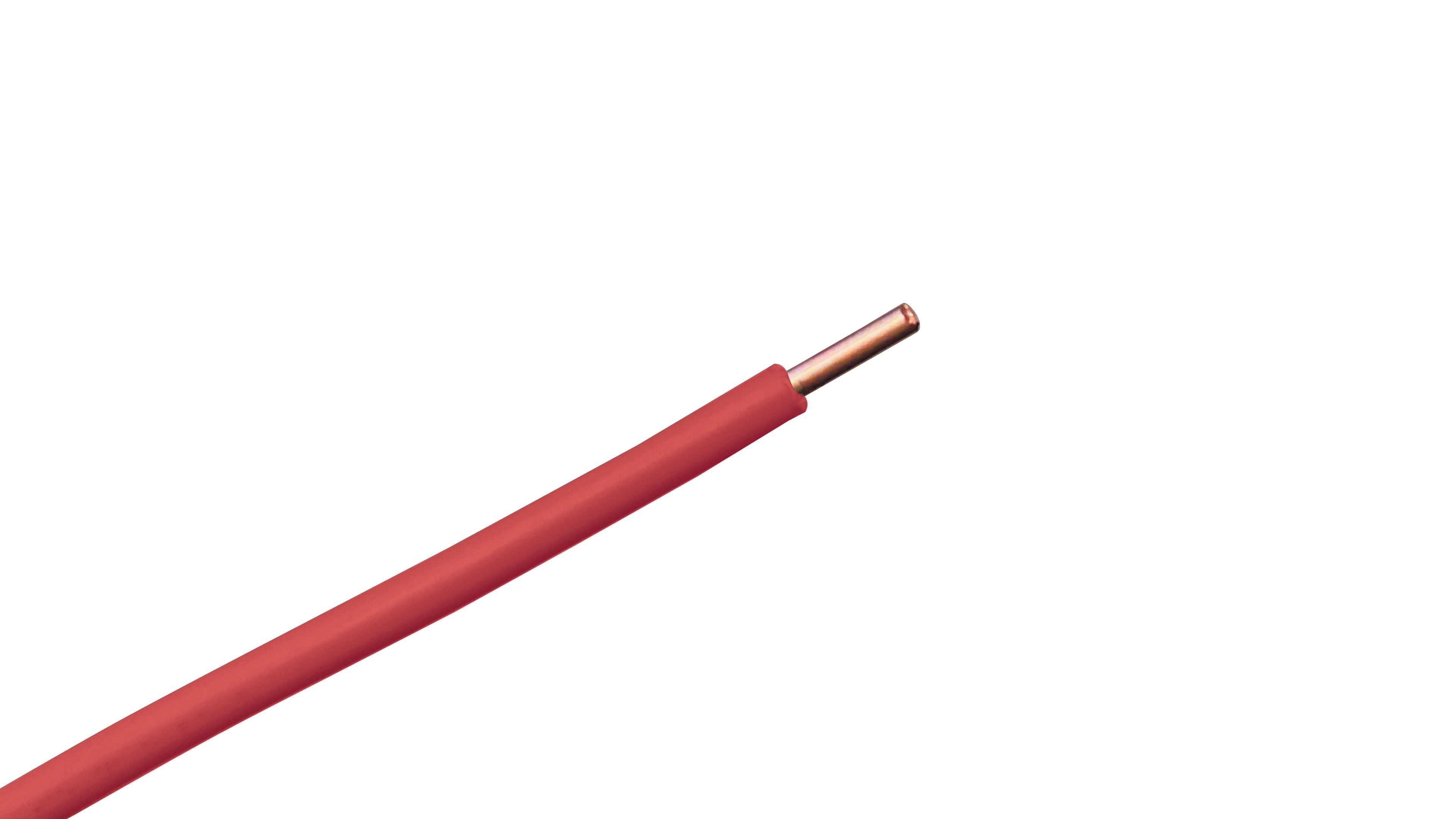

• Safety Alert Red: Deployed for Electric Power Distribution circuits and high-voltage Conduit Trunks.

Technical Specifications

• Conductor Size: 18 AWG

• Conductor Type: High Strength Copper Clad Steel (HS-CCS)

• Steel Core Type: Carbon Steel

• Copper Clad Volume: 21% Conductivity (Minimum thickness matches ASTM B910 specifications)

• Insulation Material: High-Density Polyethylene (HDPE / HMWPE - PE-30 Rating)

• Insulation Thickness: 30 Mils (0.76 mm)

• Tensile Strength: 100 lbs minimum break load

• Voltage Rating: 30 Volts (Locating signaling systems only)

• Operating Temperature: -40 degrees C to +80 degrees C Continuous Burial

• Compliance Standards: ASTM B910, ASTM D1248, APWA Color Code Compliant, Buy American Act Approved

Technical Note: To maintain an uninterrupted electromagnetic trace path, underground connections must never be wrapped with standard electrical tape or connected with non-watertight wire nuts. Because 18 AWG is a thinner gauge, it is even more susceptible to localized corrosion if left unprotected. All 18 AWG HS tracer wire splices must utilize fully sealed, moisture-proof connectors (such as silicone-filled outer locking lugs).

Exposing the copper clad core to direct soil moisture or chemical trace acids will lead to localized oxidation and galvanic cell breakdown, which breaks the signal continuity and renders the entire downstream section invisible to locator tracking rigs.

CABLE TYPE: 18 AWG Single-Conductor High Strength (HS) Copper Clad Steel Tracer Wire (30-Mil PE-30 Insulation)

DISCLAIMER: The technical information provided is for general reference only. Civil engineering profiles, underground excavation boundaries, and utility tracing loops must strictly adhere to the American Public Works Association (APWA) design parameters, National Utility Locating Contractors Association (NULCA) provisions, and local municipal utility regulations. Always cross-reference the official product submittal data sheet from the chosen manufacturer prior to finalizing underground infrastructure layouts or specifying mechanical pulling loads.
