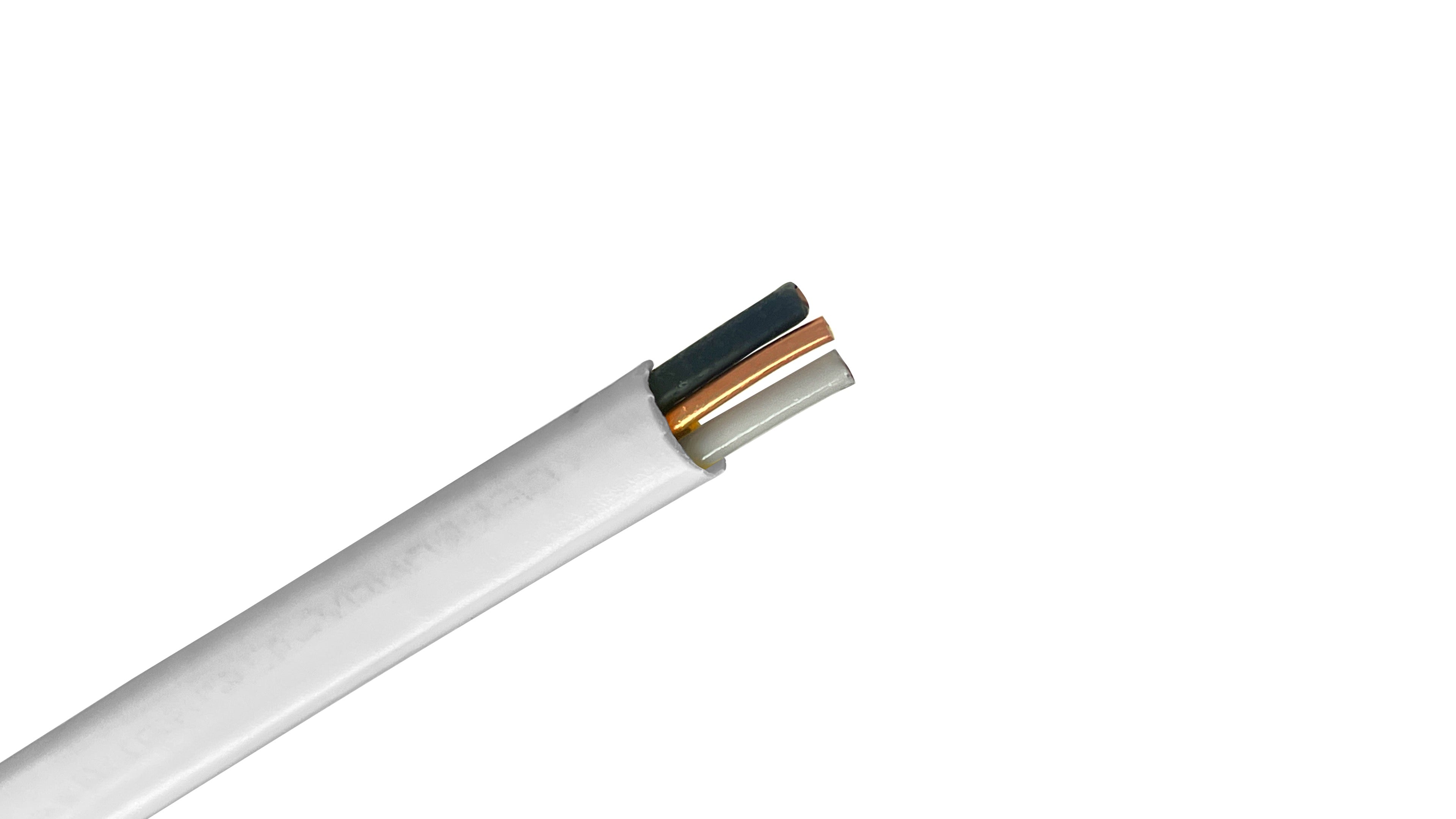

14/2 NM-B Copper Building Wire with Ground, 600V (White Jacket)

The foundational wire for residential electrical systems, this 14 AWG NM-B Copper Building Wire is the industry standard for 15-amp lighting and general-purpose circuits. Featuring two high-conductivity copper conductors and a dedicated bare ground, this cable is encased in a classic white jacket for immediate identification, providing a reliable and cost-effective solution for interior residential wiring.

Why Choose 14/2 NM-B Copper Building Wire?

This 2-conductor (with ground) configuration is designed for maximum ease of use in dry-location residential applications. The Type NM-B construction allows for direct routing through wooden framing members without the need for conduit, while the solid annealed copper ensures minimal voltage drop and superior electrical efficiency for standard household loads.

• Classic White Color Coding: The white PVC jacket serves as the universal visual indicator for 14 AWG circuits, ensuring code compliance and simplifying circuit management for installers and inspectors.

• High-Purity Copper Conductors: Soft-drawn copper provides excellent electrical throughput and remains flexible enough for easy termination in standard switch and outlet boxes.

• Streamlined Rough-In Geometry: The flat, low-friction jacket is optimized to glide through bored studs and joists, significantly reducing the physical effort required during the wiring phase.

• Advanced Insulation Shielding: Individual conductors are protected with heat-resistant PVC and a smooth nylon outer layer (THHN/THWN-2) to resist nicks and abrasions during installation.

Technical Specifications: 14/2 NM-B Copper

• Conductor Size: 14 AWG

• Number of Conductors: 2 (plus Ground)

• Color Code: Black, White, Bare Ground

• Jacket Color: White

• Ampacity: 15 Amps at 60°C (NEC Table 310.16)

• Voltage: 600V

• Insulation: Polyvinyl Chloride (PVC) with Nylon Covering (Type THHN)

• Max Temp: 90°C (Dry locations only)

• Conductor Material: Annealed (Soft) Copper

• Standards: UL Standard 83, UL Standard 719, ASTM B-3, B-8, Federal Spec A-A-59544

Common Applications

• General Purpose Lighting: The primary choice for overhead lights, recessed lighting, and chandelier circuits.

• Residential Receptacles: Ideal for standard outlets in bedrooms, living rooms, and home offices that do not require 20-amp capacity.

• Smoke and CO Detectors: The standard gauge for interconnecting life-safety alarm systems throughout the home.

• Ceiling Fans and Switches: Perfectly suited for wiring standard ceiling fan units and wall-mounted light switches.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes. NM-B is for dry, indoor use only.

*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) 60°C column for NM-B cable, regardless of the conductor temperature rating.
