12-2 Shielded VNTC Tray Cable Type TC-ER (THHN PVC 600V)

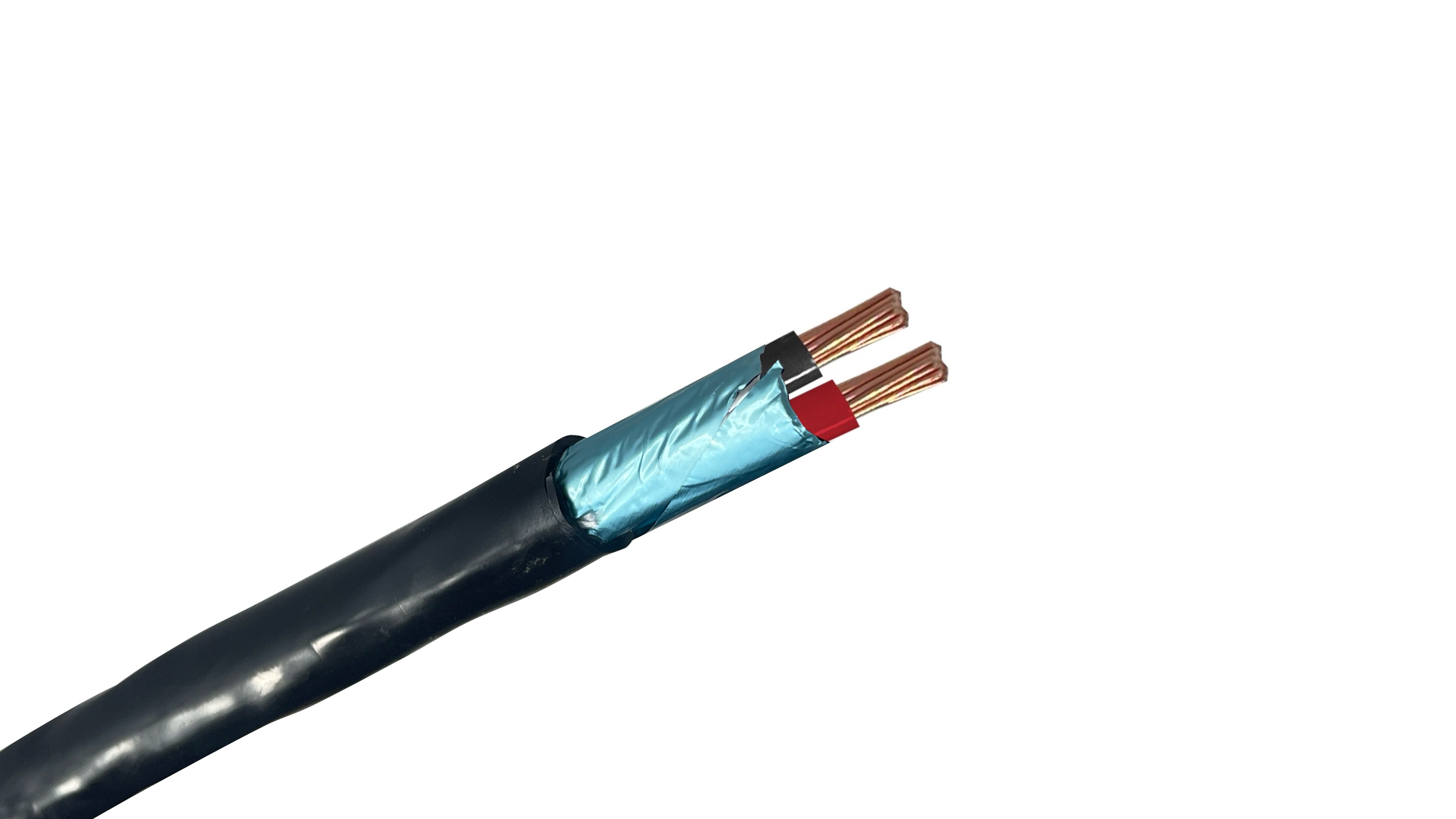

This 12 AWG, 2-conductor shielded VNTC (Vinyl Nylon Tray Cable) is a high-performance industrial cable designed for control and power applications that require reliable protection against electromagnetic interference (EMI). Featuring a 100% aluminum foil shield and heavy-duty 12 AWG copper conductors, it is ideal for circuits that need to maintain signal integrity while providing more current-carrying capacity than standard control wires.

Key Features of 12-2 Shielded VNTC

• High-Quality Signal Shielding: The overall aluminum foil-polyester tape shield provides 100% coverage, effectively blocking EMI and RFI from disrupting sensitive control loops or digital signals.

• Increased Ampacity: The 12 AWG copper conductors support a higher current load than 14 or 16 AWG cables, making it suitable for longer cable runs where minimizing voltage drop is critical.

• Rugged THHN/PVC Construction: Each conductor is insulated with PVC and a protective nylon skin (THHN/THWN), providing excellent resistance to heat, moisture, and oil.

• Industrial Grade Jacket: The outer PVC jacket is flame-retardant, sunlight-resistant, and moisture-resistant. It is approved for use in cable trays, raceways, and direct burial applications.

Common Applications

• Industrial Control Systems: Connecting PLCs to remote field devices such as sensors, switches, and high-draw solenoids.

• VFD Peripheral Wiring: Used for auxiliary control and monitoring circuits near Variable Frequency Drives to prevent electrical noise interference.

• Power Plant Telemetry: Reliable transmission of monitoring signals in utility and power generation environments.

• Wastewater Treatment Facilities: Durable enough for the chemical and moisture-heavy environments found in treatment plant raceways and trays.

Conductor Identification: E2 Color Code

• Conductor 1: Black

• Conductor 2: Red

Technical Specifications

• Conductor Size: 12 AWG

• Number of Conductors: 2

• Conductor Material: Bare Annealed Copper (Stranded)

• Insulation: THHN/THWN (PVC with Nylon Skin)

• Shielding: Aluminum Foil-Polyester Tape (100% coverage)

• Drain Wire: Tinned Copper

• Jacket: Flame-Retardant PVC (Black)

• Voltage Rating: 600V

• Temperature Rating: 90°C Dry / 75°C Wet

• Compliance: UL 1277 (Type TC), UL 1581, IEEE 1202, RoHS Compliant

Technical Note: To ensure proper shielding, the tinned copper drain wire should be connected to a ground bus at the power source end only. This prevents ground loops while allowing the shield to effectively drain electrical noise. Note that while this is a Tray Cable (Type TC), it may not be rated for Exposed Run (ER) unless specifically marked by the manufacturer.

CABLE TYPE: 12/2 Shielded VNTC (THHN/PVC)

COLOR CODE: E2 Standard

DISCLAIMER: The technical information, ampacity ratings, and color codes provided are for general reference only. Specifications may vary by manufacturer and are subject to change without notice. Always consult with a licensed electrical engineer or local building authorities to ensure compliance with the National Electrical Code (NEC) and all local safety regulations before installation.
