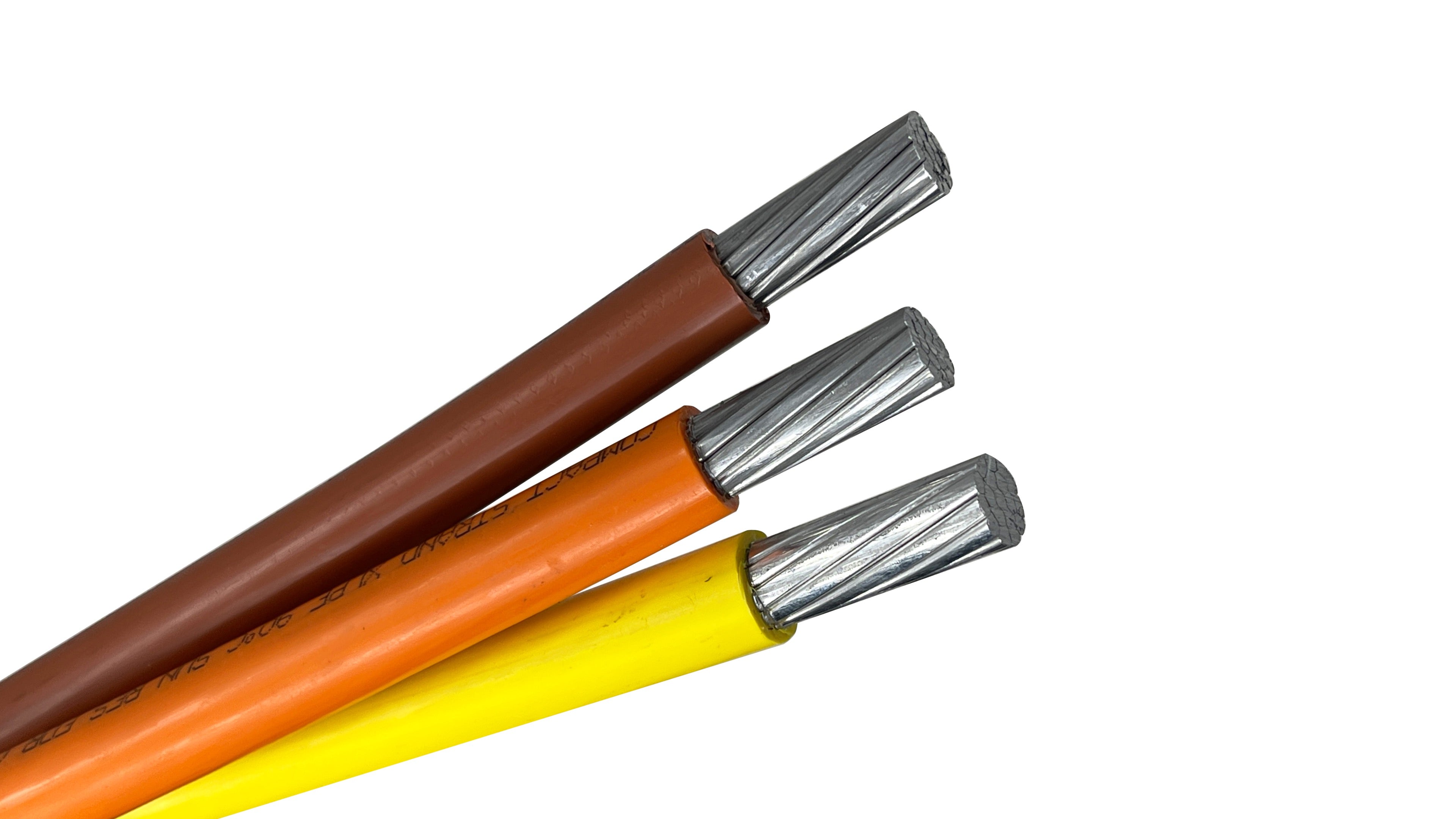

Engineered specifically for 480V high-voltage power distribution, this 500 MCM Priority-Plex® twisted assembly is the high-capacity solution for primary industrial feeders. By factory-bundling three massive phase conductors into a precision-twisted unit, this cable effectively resolves the logistical difficulties of handling individual 500 MCM reels, resulting in a drastically smaller job site footprint and a perfectly synchronized pull through heavy-duty conduit systems.
At the 500 MCM scale, friction and weight are the primary obstacles to a successful installation. The Priority-Plex® system is designed to minimize pulling tension by maintaining a stable geometry that prevents conductors from overlapping or "wedging" inside the raceway. This protects the insulation's integrity and ensures a balanced distribution of stress across the entire cable bundle during high-tension industrial pulls.
High-Voltage System Integration: Features Brown, Orange, and Yellow conductors for immediate identification in 480/277V systems, facilitating rapid and code-compliant terminations.
Logistical Performance: Consolidating three heavy-gauge leads into a single twisted unit means fewer reel stands, less setup time, and a more controlled payout for the installation crew.
Resilient XHHW-2 Shielding: The cross-linked polyethylene (XLP) insulation handles the extreme thermal demands of continuous high-load distribution while offering superior resistance to moisture and industrial chemicals.
Optimized Power-to-Weight Ratio: Utilizing AA-8000 aluminum allows for massive current-carrying capacity without the prohibitive weight and excessive cost of copper equivalents.
Conductor Size: 500 MCM (kcmil)
Number of Conductors: 3 (Twisted)
Color Code: Brown, Orange, Yellow
Ampacity: 310 Amps at 75°C / 350 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
Industrial High-Voltage Services: The definitive choice for connecting 480V transformers to massive industrial distribution centers and manufacturing plants.
Data Center Power Infrastructure: Ideal for the heavy, continuous power demands of server environments where high-ampacity phase leads are required for primary distribution.
Commercial Main Feeders: Frequently used in high-rise mechanical rooms and hospital power cores for reliable, high-volume energy routing.
Heavy-Wall Raceway Pulls: The twisted profile is specifically advantageous for long-distance pulls through 4-inch or larger conduit, where reducing surface friction is a critical safety and efficiency priority.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 500-03PPLEX-BOY
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 500 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.88 in. / 47.9 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 350 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 1.655 lb |
