Parent SKU : PPLEX4/0-3-BRW
SKU : PPLEX4/0-3-BRW-250

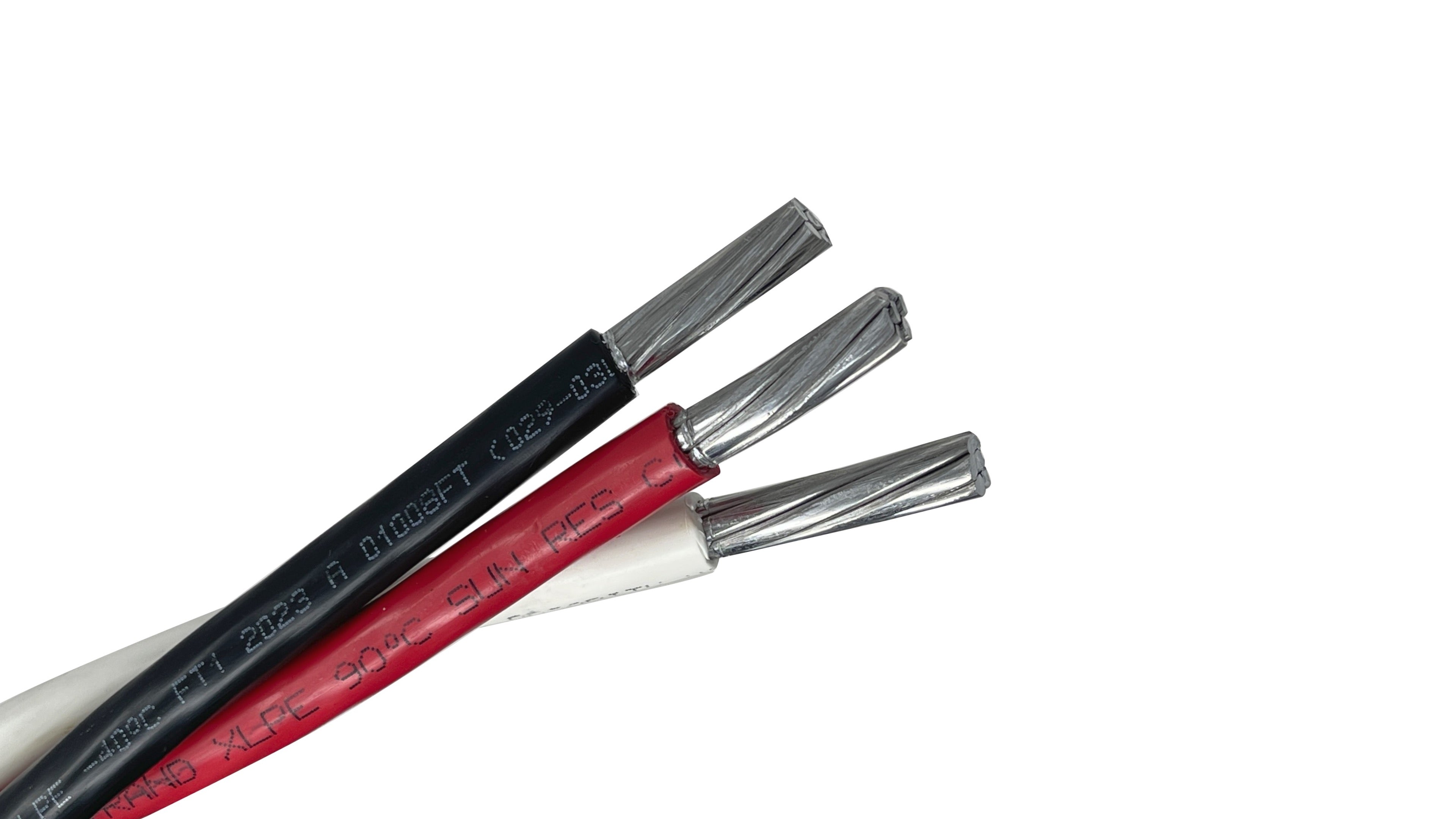

Engineered for maximum power delivery and streamlined installation, this Priority-Plex® twisted feeder cable is the ultimate solution for 200-Amp service applications. By pre-twisting two 4/0 AWG phase conductors and a dedicated neutral into a single, cohesive assembly, it eliminates the logistical challenges of managing multiple heavy reels and manual wire paralleling, resulting in superior job site efficiency.
This 3-conductor assembly (Black, Red, and White) is specifically designed for the high-demand requirements of modern electrical infrastructure. The Priority-Plex® configuration ensures the conductors remain securely bundled throughout the pull, providing a balanced distribution of tension and reducing the risk of insulation damage in high-stress conduit runs.
Priority-Plex® Design: The factory-twisted architecture allows for a single-reel setup, significantly reducing the labor force required for heavy-gauge pulls.
Instant Phase Recognition: Features high-visibility Black and Red phase conductors with a dedicated White neutral for rapid, code-compliant termination in any panelboard.
Industrial-Grade XHHW-2 Insulation: The cross-linked polyethylene (XLP) jacket is optimized for maximum heat dissipation, chemical resistance, and moisture protection.
High-Ampacity AA-8000 Aluminum: Provides the necessary 200-Amp capacity for main services while remaining much lighter and more flexible than equivalent copper conductors.
Conductor Size: 4/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 180 Amps at 75°C / 205 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
200-Amp Residential Services: The industry standard for main service entrance runs in modern single-family homes and large-scale residential developments.
Commercial Main Feeders: Ideal for connecting utility transformers to main distribution centers in commercial buildings and shopping centers.
Industrial Power Distribution: Used to feed heavy machinery and industrial sub-panels where a neutral is required for unbalanced loads.
Long-Distance Conduit Runs: The twisted geometry reduces surface friction, making it the preferred choice for long pulls through PVC, EMT, or rigid conduit.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 4/0-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 4/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.27 in. / 32.3 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 205 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.738 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX4/0-3-BRW
SKU : PPLEX4/0-3-BRW-250
Parent SKU : PPLEX4/0-3-BRW
SKU : PPLEX4/0-3-BRW-250
Engineered for maximum power delivery and streamlined installation, this Priority-Plex® twisted feeder cable is the ultimate solution for 200-Amp service applications. By pre-twisting two 4/0 AWG phase conductors and a dedicated neutral into a single, cohesive assembly, it eliminates the logistical challenges of managing multiple heavy reels and manual wire paralleling, resulting in superior job site efficiency.
This 3-conductor assembly (Black, Red, and White) is specifically designed for the high-demand requirements of modern electrical infrastructure. The Priority-Plex® configuration ensures the conductors remain securely bundled throughout the pull, providing a balanced distribution of tension and reducing the risk of insulation damage in high-stress conduit runs.
Priority-Plex® Design: The factory-twisted architecture allows for a single-reel setup, significantly reducing the labor force required for heavy-gauge pulls.
Instant Phase Recognition: Features high-visibility Black and Red phase conductors with a dedicated White neutral for rapid, code-compliant termination in any panelboard.
Industrial-Grade XHHW-2 Insulation: The cross-linked polyethylene (XLP) jacket is optimized for maximum heat dissipation, chemical resistance, and moisture protection.
High-Ampacity AA-8000 Aluminum: Provides the necessary 200-Amp capacity for main services while remaining much lighter and more flexible than equivalent copper conductors.
Conductor Size: 4/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 180 Amps at 75°C / 205 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
200-Amp Residential Services: The industry standard for main service entrance runs in modern single-family homes and large-scale residential developments.
Commercial Main Feeders: Ideal for connecting utility transformers to main distribution centers in commercial buildings and shopping centers.
Industrial Power Distribution: Used to feed heavy machinery and industrial sub-panels where a neutral is required for unbalanced loads.
Long-Distance Conduit Runs: The twisted geometry reduces surface friction, making it the preferred choice for long pulls through PVC, EMT, or rigid conduit.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 4/0-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 4/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.27 in. / 32.3 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2557 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 205 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.738 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This 4/0 AWG (pronounced "four-aught"), 3-conductor assembly is a heavy-capacity feeder cable commonly used for 200A to 225A residential and commercial services. It is the industry standard for main service laterals, underground feeders to sub-panels, and large HVAC equipment loads. The XHHW-2 rating allows for installation in conduit in both wet and dry locations, making it exceptionally reliable for burial in outdoor environments.
Priority-Plex® is a specialized manufacturing process where the three conductors are pre-twisted (cabled) together at the factory.
At this size, aluminum is the most cost-effective choice for heavy power distribution. Copper at 4/0 gauge is extremely heavy and significantly more expensive.
According to NEC Table 310.16, the ampacity for 4/0 Aluminum depends on the temperature rating of your equipment terminations:
⚠️ PRO TIP: Most modern main breakers and panels are rated for 75°C. Therefore, in most commercial applications, this cable is treated as a 180 Amp feeder. However, for residential service entrance applications (120/240V, single-phase), NEC 310.12 allows this gauge to be used for 225A services (using the 83% rule), provided it carries the entire load of the dwelling.
This assembly follows the standard 120/240V or 120/208V color code:
The colors are either fully impregnated into the XLPE insulation or clearly striped for permanent, high-visibility identification that won't rub off during a long or difficult pull.
Yes we offer XHHW-2 Aluminum Wire in a single conductor from 14 AWG to 1000 MCM in multiple colors by the foot. Shop our single conductor XHHW-2 Collection here.
