Parent SKU : PVAL6
SKU : PVAL6-250-BK

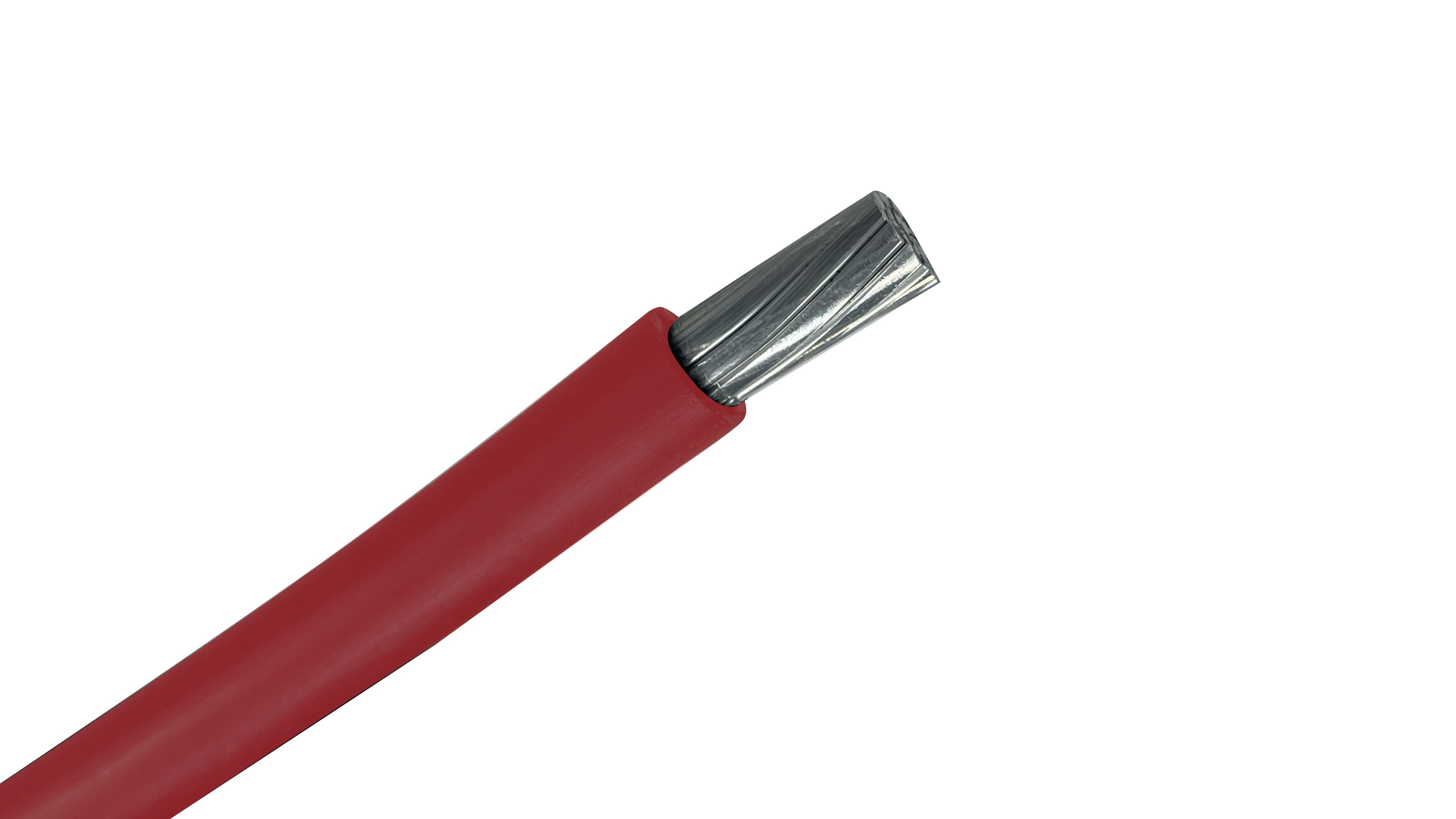

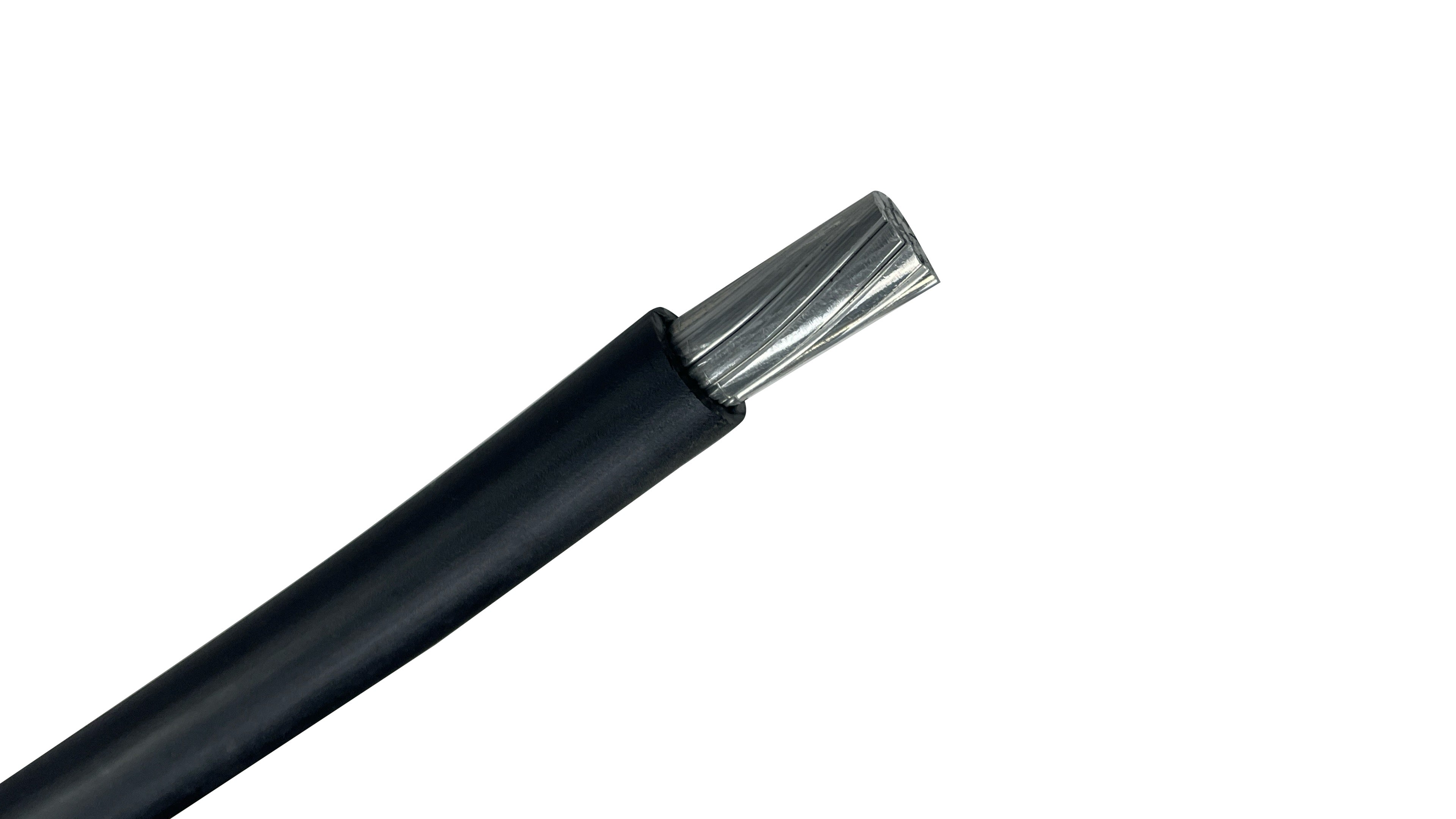

"An advanced, high-voltage single-conductor solution engineered for the critical interconnection wiring of both grounded and ungrounded solar power systems. Built to withstand high-capacity energy generation, this 6 AWG aluminum PV wire provides a lighter, exceptionally cost-effective alternative to copper for commercial utility arrays, field distribution blocks, and renewable energy grids."
Outdoor solar setups require components that stand up to the elements. This 6 AWG solar pv cable delivers dependable service by surrounding a high-grade, 7-strand compact AA-8000 aluminum core with a rugged cross-linked polyethylene (XLPE) insulating barrier. The thick insulation shield is specifically designed to brave severe outdoor exposure, resisting intense solar UV rays, seasonal frost, shifting soil conditions, and common field chemicals without snapping or wearing down.
High-Capacity 2000V Threshold: Engineered safely for systems running up to 2000 Volts to easily accommodate modern, high-output commercial solar configurations.
Code-Approved Tray Placement: Meets all requirements under NEC Article 690.31(C)(2) for open, unprotected routing inside exterior cable trays.
Direct Burial & Outdoor Utility: Waterproof and UV-blocking XLPE jacket allows for direct underground burial trenches and long-term open-air exposure.
Extreme Weather Performance: Engineered to stay structurally stable and completely flexible in temperatures from -40°C up to +90°C.
ENGINEERING OVERVIEW
Conductor Size: 6 AWG
Conductor Type: Compact Stranded 8000 Series Aluminum Alloy (7 Strands)
Insulation Shield: Cross-Linked Polyethylene (XLPE)
Insulation Thickness: 0.085 Inches
Total Outer Diameter: 0.34 Inches
Maximum Voltage: 2000 Volts (2KV)
Ampacity: 55 Amps (@ 90°C Wet or Dry)
Cable Weight: 56 lbs per 1,000 feet
DC Resistance at 20°C : 0.6610 Ω//kft
Certifications & Standard Listings: UL 4703 (PV Wire), UL 44 (RHH/RHW-2), UL 854 (USE-2), CSA RPVU90 Listed.
Safety Tests: VW-1 Flame Test Compliant, Direct Burial Approved, Sunlight Resistant, RoHS Compliant.
Solar Panel Interconnections: Used as the primary trunk wire to run power from individual solar module strings over to central combiner enclosures.
DC Power Feeders: Perfect for long outdoor pathways carrying generated direct current (DC) from field collectors to power inversion stations.
Exposed Cable Trays: Fully approved to sit unprotected inside rooftop or ground-mount open metal cable tray paths.
Direct Subsurface Trenching: Certified to be laid straight into underground trenches without requiring protective plastic or metal conduit piping.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
*Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC.
| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.34 in. / 8.63 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 854, UL 4703 |
| Voltage Rating | 2000V |
| Ampacity Rating | 55 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B800, B801, B836, B901 UL 44 RHH RHW-2, UL 854 USE-2, UL 4703 PV Wire CSA listed RPVU90 per CSA C22.2 No. 271 ANSI/ICEA S-95-658/NEMA WC 70 VW-1 flame test, Sunlight Resistant, Direct Burial |
| Miscellaneous Information | All values are nominal and subject to correction *Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC. |
| RoHS Compliance | Yes |
| Primary Applications | Interconnection Wiring for Solar Arrays, Large-Scale Solar Farms, Commercial and Industrial Solar Projects, Feeder Cables (AC and DC Sides) |
| Common Uses |
|
| Weight per Foot | 0.056 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PVAL6
SKU : PVAL6-250-BK
Parent SKU : PVAL6
SKU : PVAL6-250-BK
"An advanced, high-voltage single-conductor solution engineered for the critical interconnection wiring of both grounded and ungrounded solar power systems. Built to withstand high-capacity energy generation, this 6 AWG aluminum PV wire provides a lighter, exceptionally cost-effective alternative to copper for commercial utility arrays, field distribution blocks, and renewable energy grids."
Outdoor solar setups require components that stand up to the elements. This 6 AWG solar pv cable delivers dependable service by surrounding a high-grade, 7-strand compact AA-8000 aluminum core with a rugged cross-linked polyethylene (XLPE) insulating barrier. The thick insulation shield is specifically designed to brave severe outdoor exposure, resisting intense solar UV rays, seasonal frost, shifting soil conditions, and common field chemicals without snapping or wearing down.
High-Capacity 2000V Threshold: Engineered safely for systems running up to 2000 Volts to easily accommodate modern, high-output commercial solar configurations.
Code-Approved Tray Placement: Meets all requirements under NEC Article 690.31(C)(2) for open, unprotected routing inside exterior cable trays.
Direct Burial & Outdoor Utility: Waterproof and UV-blocking XLPE jacket allows for direct underground burial trenches and long-term open-air exposure.
Extreme Weather Performance: Engineered to stay structurally stable and completely flexible in temperatures from -40°C up to +90°C.
ENGINEERING OVERVIEW
Conductor Size: 6 AWG
Conductor Type: Compact Stranded 8000 Series Aluminum Alloy (7 Strands)
Insulation Shield: Cross-Linked Polyethylene (XLPE)
Insulation Thickness: 0.085 Inches
Total Outer Diameter: 0.34 Inches
Maximum Voltage: 2000 Volts (2KV)
Ampacity: 55 Amps (@ 90°C Wet or Dry)
Cable Weight: 56 lbs per 1,000 feet
DC Resistance at 20°C : 0.6610 Ω//kft
Certifications & Standard Listings: UL 4703 (PV Wire), UL 44 (RHH/RHW-2), UL 854 (USE-2), CSA RPVU90 Listed.
Safety Tests: VW-1 Flame Test Compliant, Direct Burial Approved, Sunlight Resistant, RoHS Compliant.
Solar Panel Interconnections: Used as the primary trunk wire to run power from individual solar module strings over to central combiner enclosures.
DC Power Feeders: Perfect for long outdoor pathways carrying generated direct current (DC) from field collectors to power inversion stations.
Exposed Cable Trays: Fully approved to sit unprotected inside rooftop or ground-mount open metal cable tray paths.
Direct Subsurface Trenching: Certified to be laid straight into underground trenches without requiring protective plastic or metal conduit piping.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
*Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC.
| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.34 in. / 8.63 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 854, UL 4703 |
| Voltage Rating | 2000V |
| Ampacity Rating | 55 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B800, B801, B836, B901 UL 44 RHH RHW-2, UL 854 USE-2, UL 4703 PV Wire CSA listed RPVU90 per CSA C22.2 No. 271 ANSI/ICEA S-95-658/NEMA WC 70 VW-1 flame test, Sunlight Resistant, Direct Burial |
| Miscellaneous Information | All values are nominal and subject to correction *Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC. |
| RoHS Compliance | Yes |
| Primary Applications | Interconnection Wiring for Solar Arrays, Large-Scale Solar Farms, Commercial and Industrial Solar Projects, Feeder Cables (AC and DC Sides) |
| Common Uses |
|
| Weight per Foot | 0.056 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
Yes, absolutely. Under National Electrical Code (NEC) guidelines, aluminum wire is fully code-compliant and approved for solar PV source and output circuits. While smaller residential setups traditionally utilize copper for micro-inverter runs, commercial, utility-scale, and larger ground-mount residential arrays heavily rely on heavy-gauge aluminum wire to drastically reduce upfront material costs without sacrificing system power or performance.
Aluminum has a slightly lower electrical conductivity than copper, meaning you typically need to scale up the wire size by one or two gauges to carry the exact same electrical load (ampacity). For example, if a solar blueprint calls for a 6 AWG copper feeder run, an aluminum alternative will generally require a 4 AWG size. Even with the slightly larger wire gauge and conduit size requirements, switching to aluminum frequently reduces the raw material cable cost by 50% to 60% on long structural runs.
Yes. Premium aluminum solar wires are dual-rated as Type USE-2 (Underground Service Entrance) and RHW-2. Outfitted with a heavy-duty, chemically cross-linked polyethylene (XLPE) outer insulation jacket, the cable is explicitly engineered to handle continuous moisture, direct soil contact, and harsh underground chemical environments. It can be laid straight into clean earth trenches or slid through protective PVC conduit per standard NEC burial depth guidelines.
To guarantee a flawless, corrosion-free lifespan, aluminum terminations must be handled using standard professional trade practice:
Yes. The rugged XLPE insulation layer features advanced ultraviolet stabilizers. It carries an official Sunlight Resistant (Sun-Res) certification stamped directly onto the cable jacket print legend, allowing it to be safely strapped to open racking networks, exposed metal frames, or vertical poles without cracking, degrading, or drying out over decades of direct solar exposure.
Wire America fulfills and ships our complete inventory of Copper and Aluminum Solar PV Wire directly from our strategically located national distribution hubs across the United States. We prioritize shipping pv cables from the warehouse nearest to your job site to keep transit times minimal. Orders typically arrive within 2-4 business days. Expedited shipping options are available at checkout for time-sensitive contractor deadlines.
UL 4703 is the definitive industry standard governing Photovoltaic (PV) Wire. It covers three distinct voltage classes — 600V, 1000V, and 2000V—making it compatible with everything from residential rooftop systems to massive utility-scale arrays. Unlike standard building wire, cables certified under UL 4703 feature advanced cross-linked polyethylene (XLPE) insulation specifically engineered to endure extreme outdoor weathering. This standard mandates strict testing for superior UV resistance (Sun-Res), optional direct burial routing, moisture defenses, and a wide thermal range (typically-40°C to 90°C wet/dry).
.
