Parent SKU : TC18-1T-STOS
SKU : TC18-1T-STOS-250
APPLICATION:

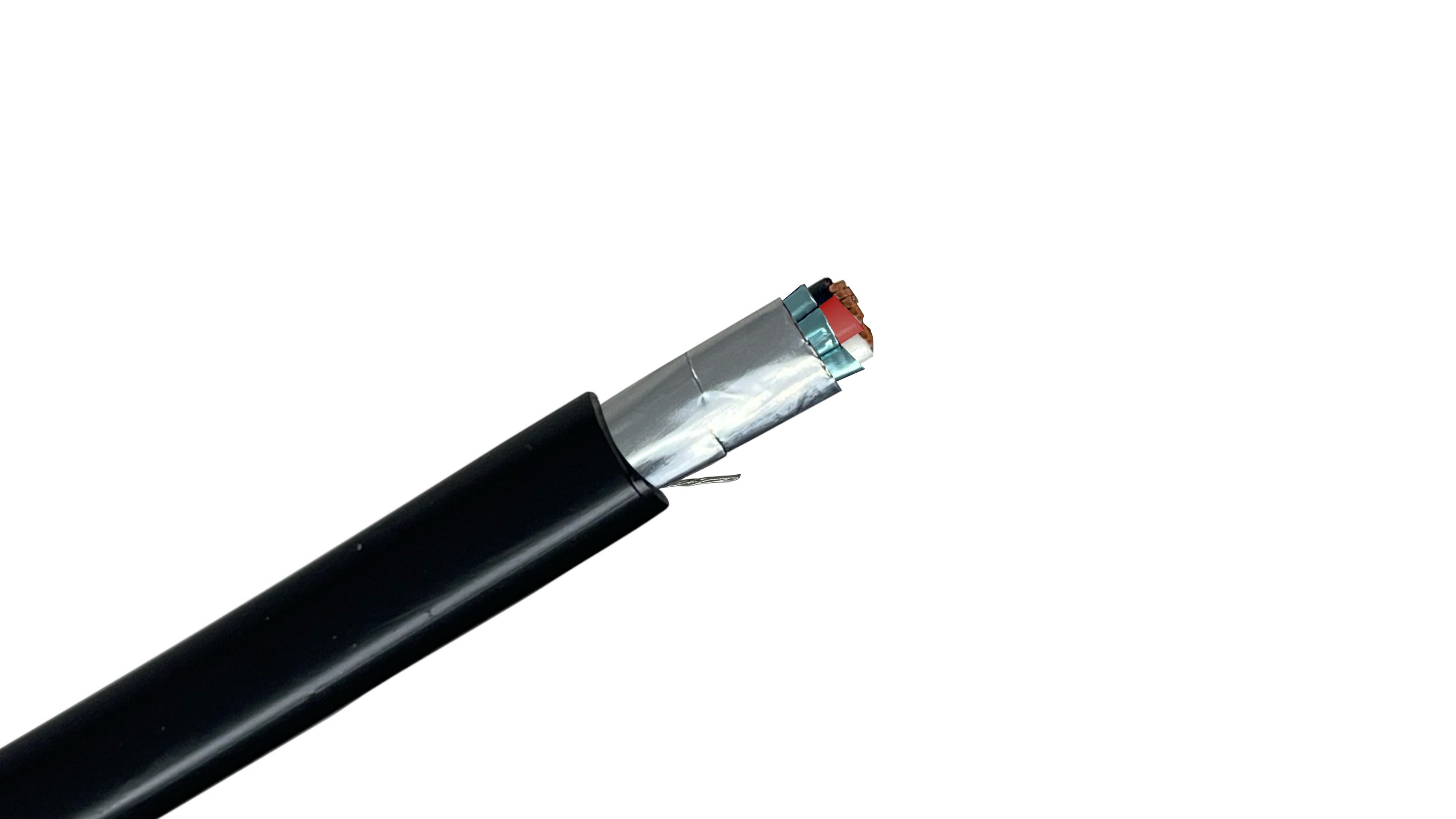

Our 18-1 Triad (3C) Tray Cable Exposed Run Instrumentation Cables (TC-ER) are suitable for control, instrumentation and process control circuits, where protection against electrostatic interference from both outside of the cable and from pair to pair is needed. TC-ER Shielded Triad with Overall Shield (STOS) cables are suitable for wet or dry applications, direct burial, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits and for applications up to 600 volt and temperatures up to 90°C. TC-ER SPOS Instrumentation Cables are suitable for use in Class 1 Division 2 Hazardous locations per NEC.
CONDUCTORS:
Stranded soft drawn bare copper conductor, per ASTM B3 & B-8
INSULATION:
Polyvinyl Chloride (PVC) insulation with a nylon overcoat
JACKET:
Polyvinyl Chloride (PVC) jacket, which is water, chemical, sunlight and abrasion resistant
COLOR CODE:
Triads: Black, White and Red Numbered
SHIELD:
Aluminum polyester foil with 100% coverage on each pair, with an overall aluminum polyester foil with 100% coverage with a tinned copper drain wire in contact with all shields
"The ultimate interference-free signal cable—engineered with a 100% foil shield and a rugged TC-ER jacket to survive harsh industrial environments without the need for conduit."
This heavy-duty Exposed Run (TC-ER) instrumentation cable is designed for high-precision process control where data integrity is non-negotiable. Whether you are wiring a PLC in a factory or a sensor in a hazardous oil and gas facility, this triad provides the ultimate protection against electromagnetic noise.
Noise Cancellation: Featuring 100% aluminum polyester foil shielding on the triad plus an overall shield, this cable kills "crosstalk" and outside electrical interference for a clean, reliable signal.
Labor-Saving "ER" Rating: UL-listed for Exposed Run (ER), meaning you can install this cable without a raceway or conduit in many industrial settings, drastically reducing your material and labor costs.
Extreme Durability: The sunlight-resistant PVC jacket is engineered for direct burial and is fully resistant to water, chemicals, and abrasion—perfect for wet or dry 90°C environments.
Industrial Automation: PLC/DCS interconnects and remote monitoring.
Petrochemical & Refining: Data transmission in high-vibration and chemical-heavy zones.
Power Generation: Critical signal wiring for turbines and control rooms.
Water Treatment: Reliable performance in "wash-down" and high-moisture areas.
All values are nominal and subject to correction
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.283 in. / 7.19 mm |
| Jacket Type | (PVC) Polyvinyl Chloride |
| Conductor Count | 3 |
| Shield Coverage % | 100 |
| Shield Type | Aluminum Polyester Foil |
| Shield | Individual and Overall Shield |
| Insulation Type | (PVC) Polyvinyl Chloride |
| UL Listing Numbers | TC-ER, UL 62, UL 83, UL 1277, UL 1581 |
| Voltage Rating | 600V |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL type TC-ER UL 62, 83, 1277, 1581, IEEE 383 70,000 BTU flame test NEC Article 336, 392, 501, 725 |
| Miscellaneous Information | All values are nominal and subject to correction |
| Primary Applications | Industrial Process Control & Automation, Oil & Gas (Refineries, Offshore Rigs), Chemical and Petrochemical Plants, Power Generation Facilities, Water and Wastewater Treatment Plants, Motor Control Circuits (Sensitive Feedback). |
| Common Uses |
|
| Weight per Foot | 0.051 lb |
