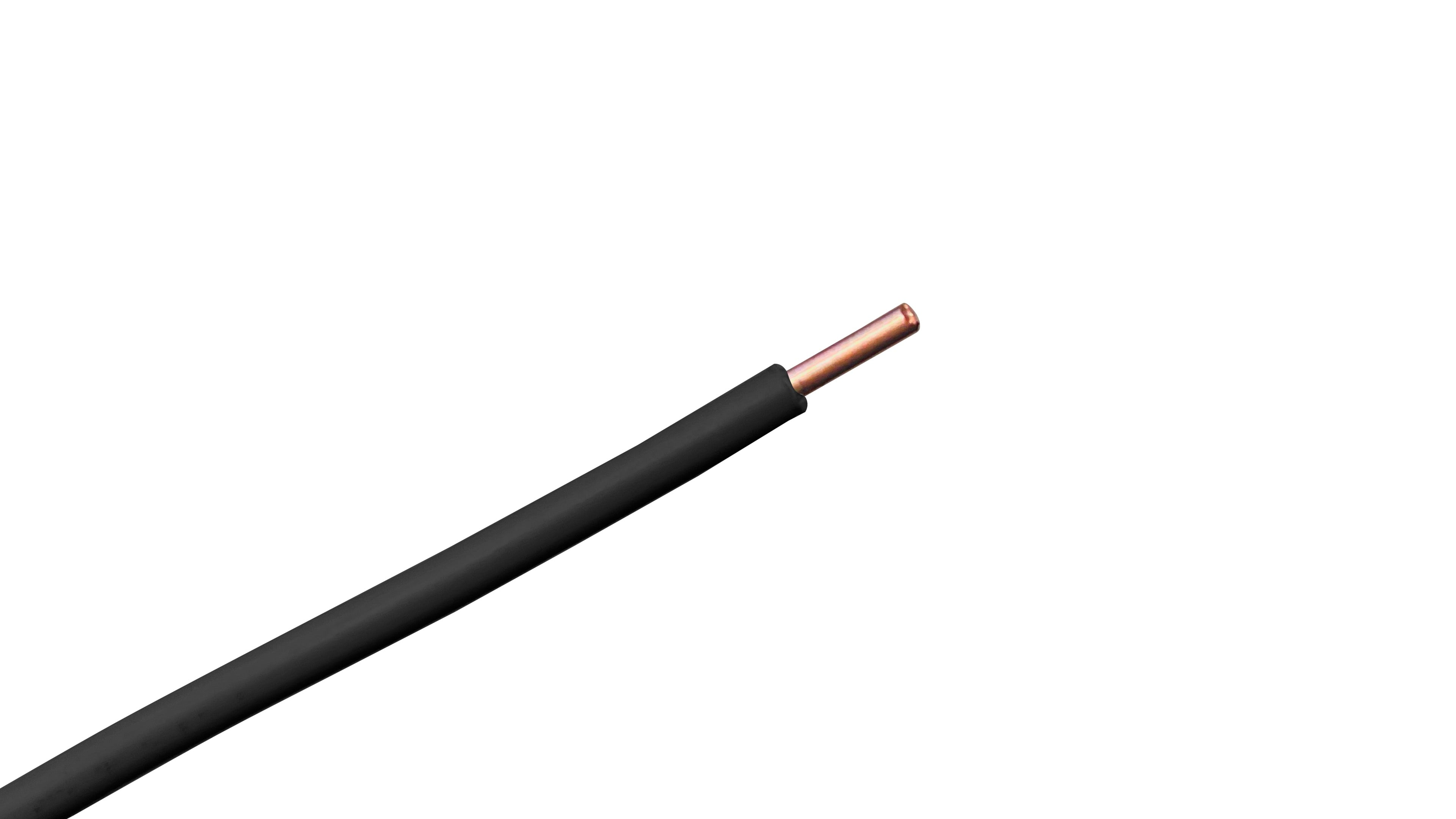

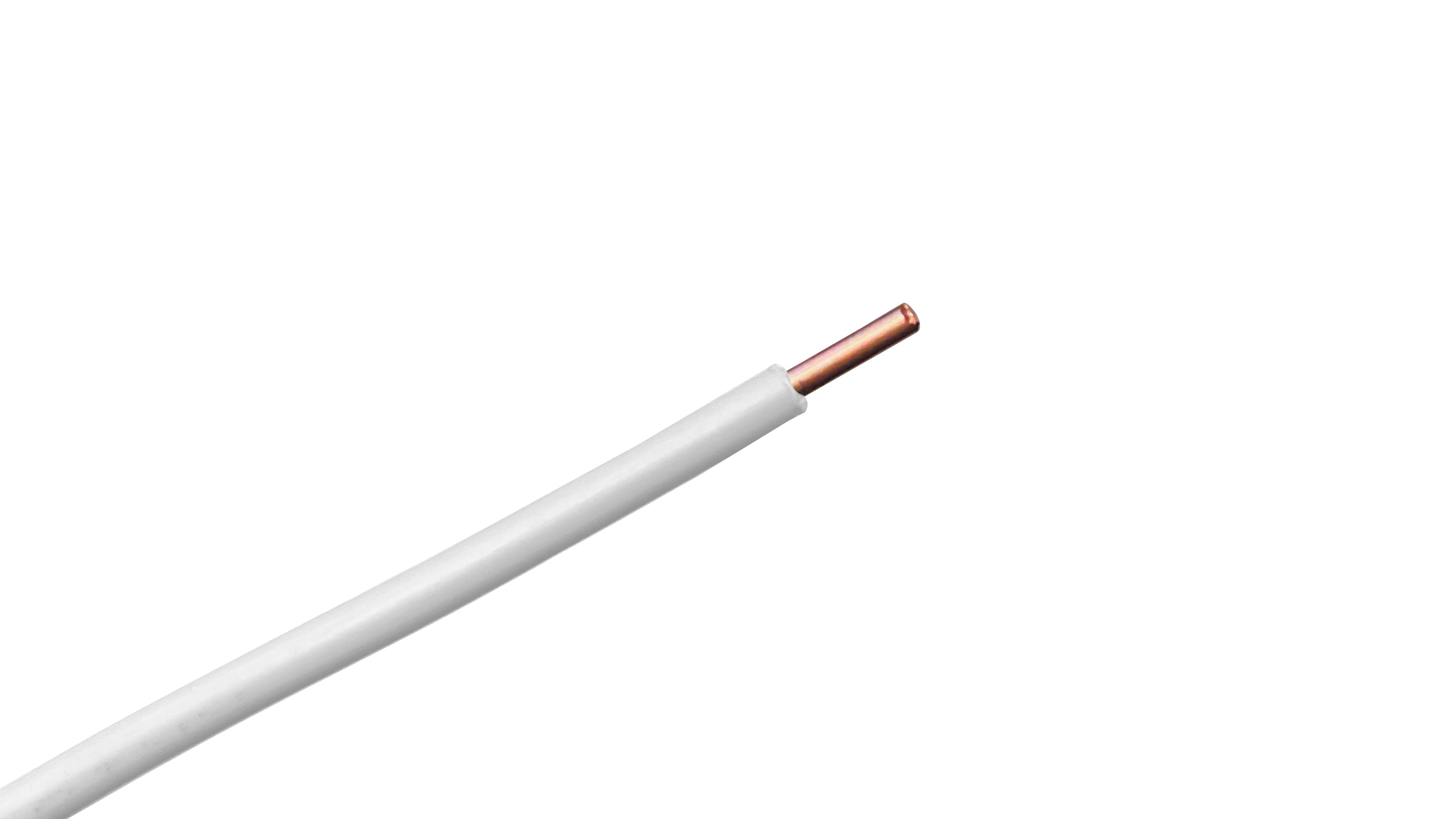

16 AWG High-Strength Copper Clad Steel Tracer Wire PE-45

16 AWG High Strength (HS) Copper Clad Steel (CCS) PE-45 Tracer Wire is a precision-engineered, solid core underground locating utility line optimized for open-trench excavations and standard municipal service line connections. Combining the mechanical durability of a solid steel core with the electrical conductivity of a concentric copper skin, this light-to-mid gauge tracer wire features a 45-mil, high-density high-molecular-weight polyethylene (HDPE / HMWPE) insulation layer specifically designated under the industry standard PE-45 rating.

This asset is optimized for gas service drops, water lateral connections, and localized telecommunication conduit tracing. It provides an uninterrupted, highly localized electromagnetic path for utility line locating equipment to track non-metallic (PVC, HDPE, PE, fiberglass) underground pipes without breaking or stretching under installation and backfill stresses.

TENSILE BREAK LOAD PERFORMANCE

Unlike standard soft-drawn or hard-drawn pure copper wire, which stretches, narrows, and snaps under the mechanical settling forces of soil and backfill equipment, High Strength Copper Clad Steel is mechanically rated for excellent structural durability in a compact profile:

• High Strength (HS) Rating: 118 LBS minimum break load This represents the structural pulling threshold before mechanical failure occurs. While lower than its larger 10 AWG or 8 AWG counterparts, the 118 lb rating provides roughly double the tensile strength of a standard solid copper wire of the same gauge. This allows this 16 AWG tracer wire to handle severe soil compaction, settling, and backfill impact without risking internal core breaks.

Key Features

• High Strength (HS) Carbon Steel Core: Engineered using a specialized carbon steel center that provides superior structural tensile strength compared to standard copper wires, effectively preventing line snapping caused by soil settlement, stone impacts, or root intrusion.

• Metallurgically Bonded Copper Clad Layer: A continuous, concentric bare copper skin is molecularly bonded to the steel core. Because high-frequency utility locating signals travel strictly along the outer surface of a conductor (The Skin Effect), the copper skin provides identical signal transmission performance to a solid copper wire while maintaining a tough steel backbone.

• Heavy-Duty 45-Mil PE-45 Insulation: Extruded with a thick 45-mil coating of high-density polyethylene. This specialized formulation provides exceptional resistance to sharp gravel scrapes, long-term water immersion, acid or alkaline soil chemistry, and voltage tracking failures.

• Optimal High-Frequency Traceability: Delivers excellent electrical conductivity at standard underground locating frequencies (such as 9.8 kHz, 33 kHz, and 83 kHz), ensuring clear signal paths for standard field receivers.

• Corrosion-Resistant Armor Skin: The non-degradable PE-45 jacket completely encapsulates the copper clad core, blocking moisture migration and preventing galvanic corrosion over the multi-decade lifespan of the buried pipe asset.

Common Applications

• Standard Open-Trench Excavation: Placed directly over non-metallic utility pipes inside gravel or rocky backfill trenches to enable future top-side tracking.

• Gas Service Lines & Drops: Ideal for running down lateral residential or commercial service lines connecting main distribution lines to the property meter.

• Municipal Infrastructure Laterals: Tracing localized PVC water lines, sewer connections, and electrical conduit lines.

• Telecommunication Service Drops: Installed as a continuous locator line alongside buried fiber optic micro-ducts and service lines.

Industry Standard APWA Color Code Guide

Tracer wire outer PE-45 insulation is color-coded to comply directly with the American Public Works Association (APWA) uniform color matrix for instant visual verification of the hidden asset below:

• Safety Precaution Blue: Designated strictly for Potable (Drinking) Water Systems.

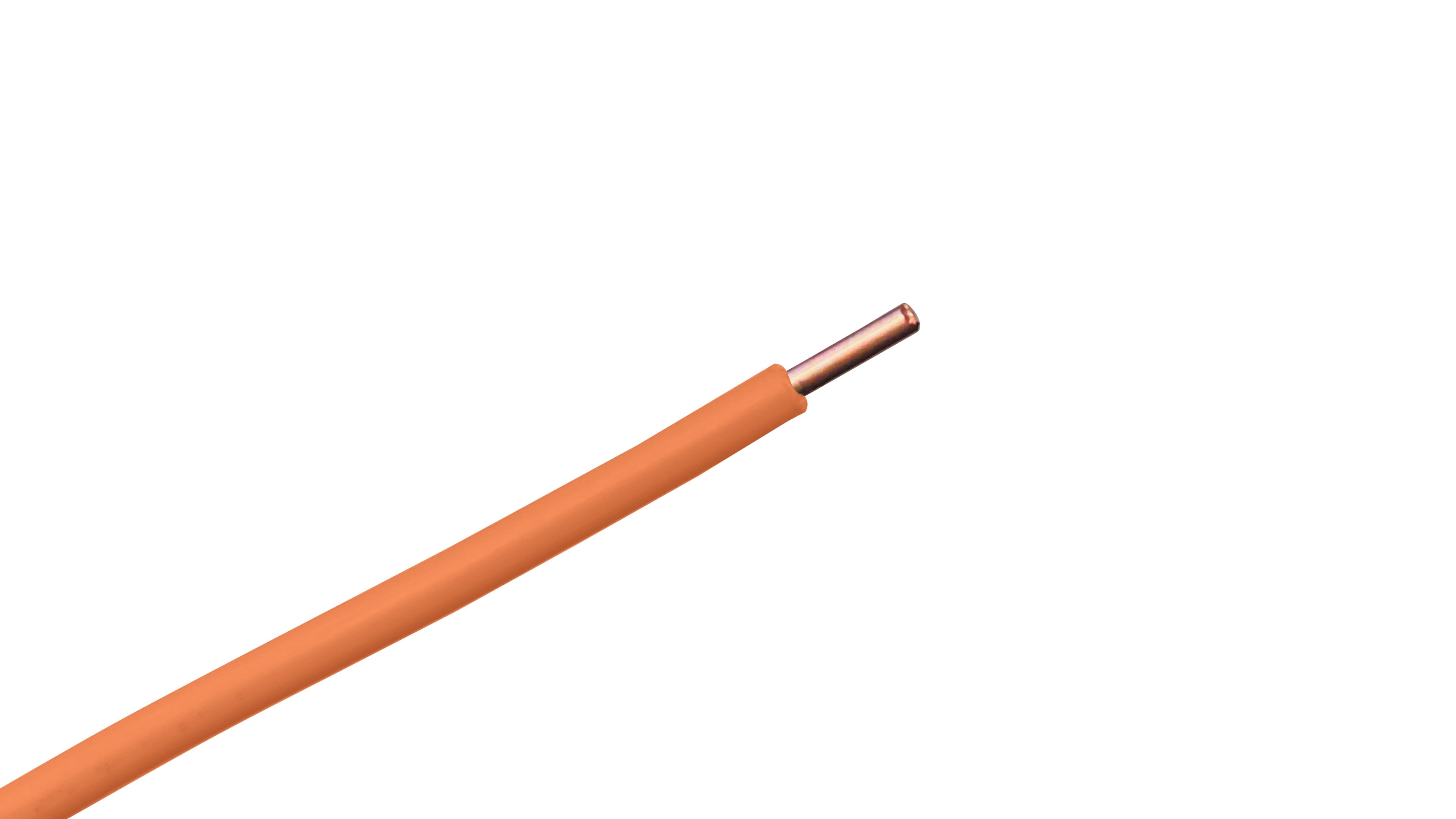

• Safety Alert Orange: Used for Telecommunications, Fiber Optic Networks, and Traffic Signal loops.

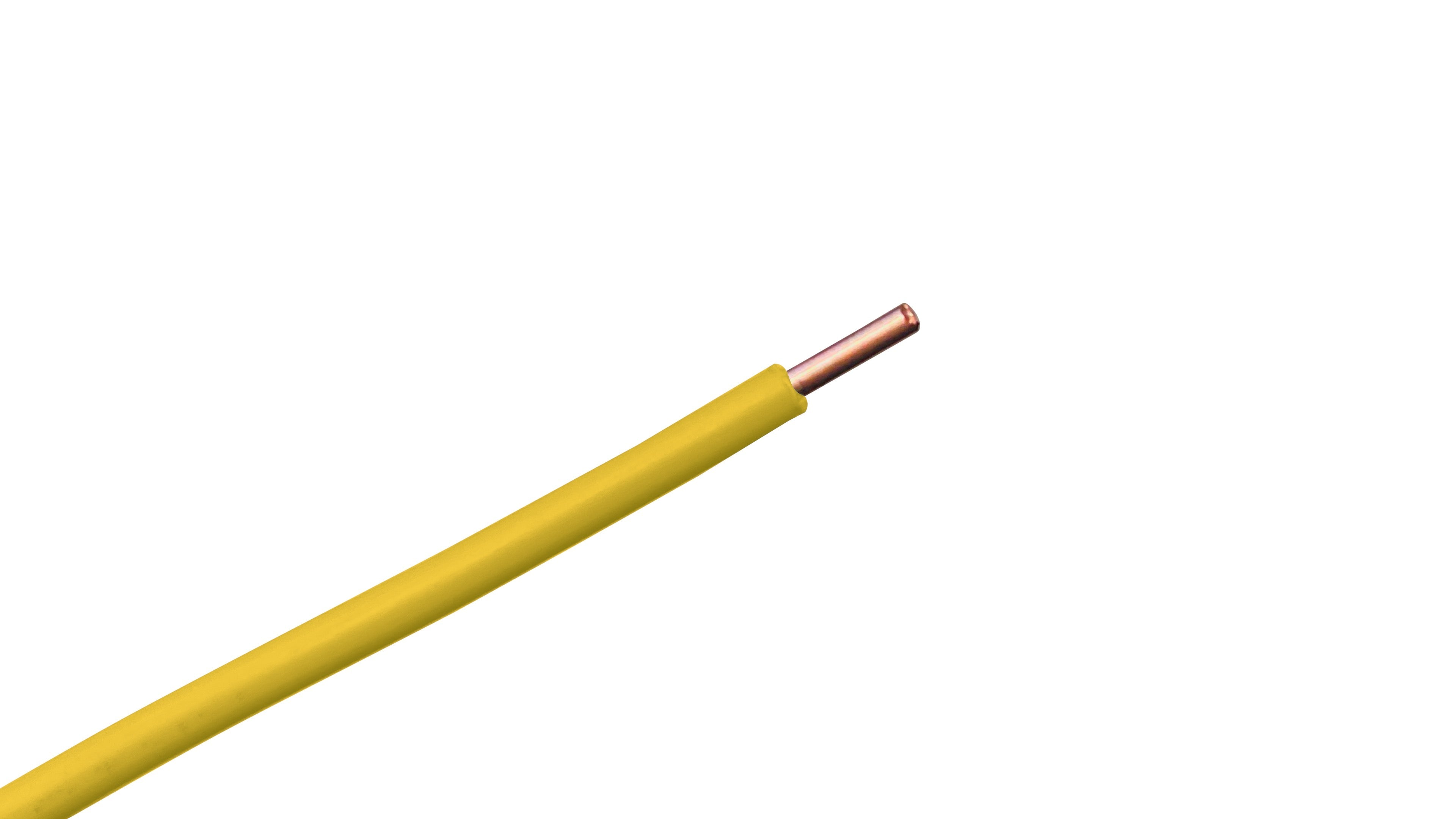

• High Visibility Yellow: Reserved exclusively for Natural Gas, Petroleum, and other Gaseous or Hazardous Materials.

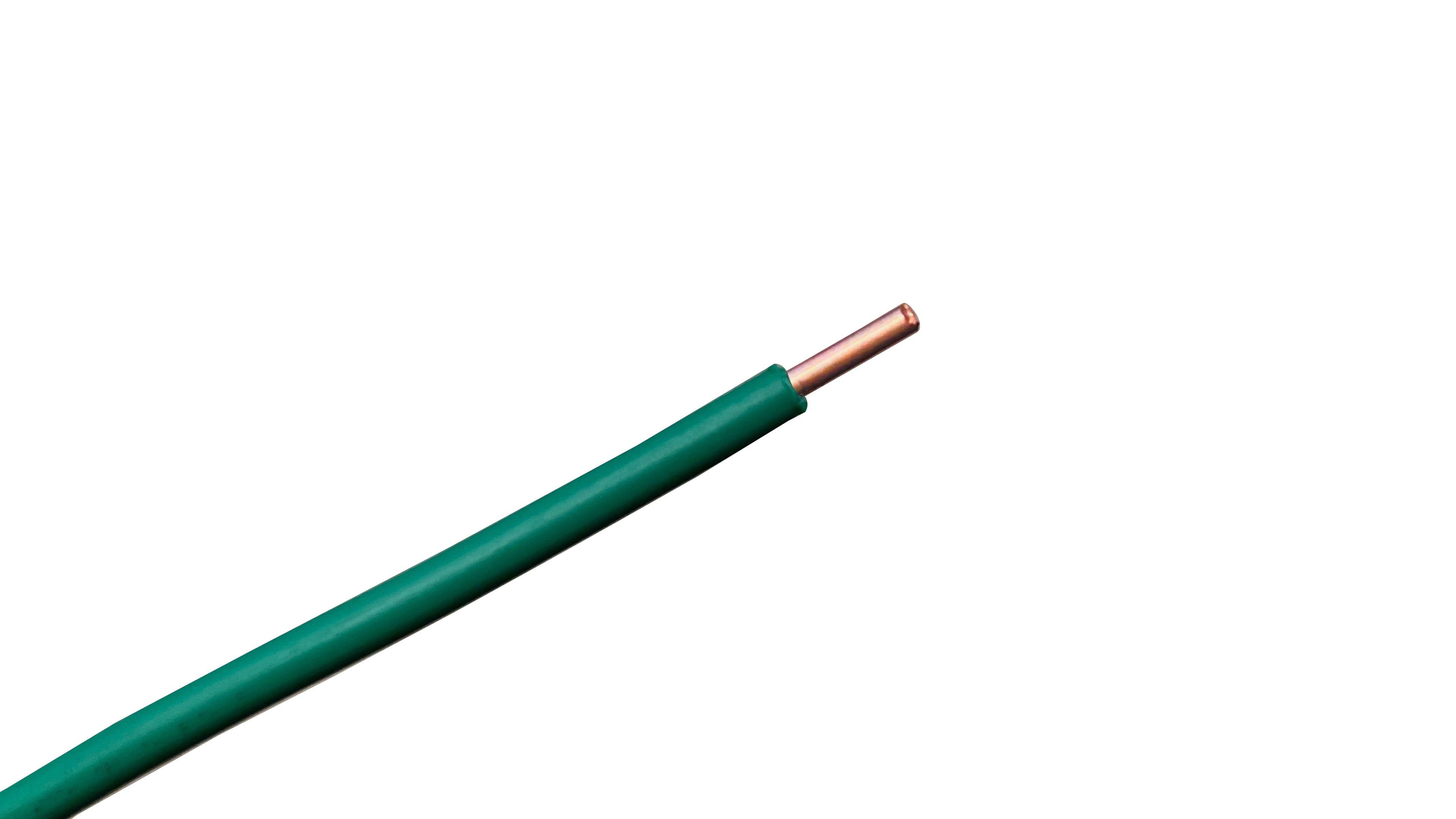

• Safety Public Works Green: Assigned to Sanitary Sewers, Force Mains, and Drain Lines.

• Safety Purple: Utilized for Reclaimed Water, Irrigation Systems, and Slurry Lines.

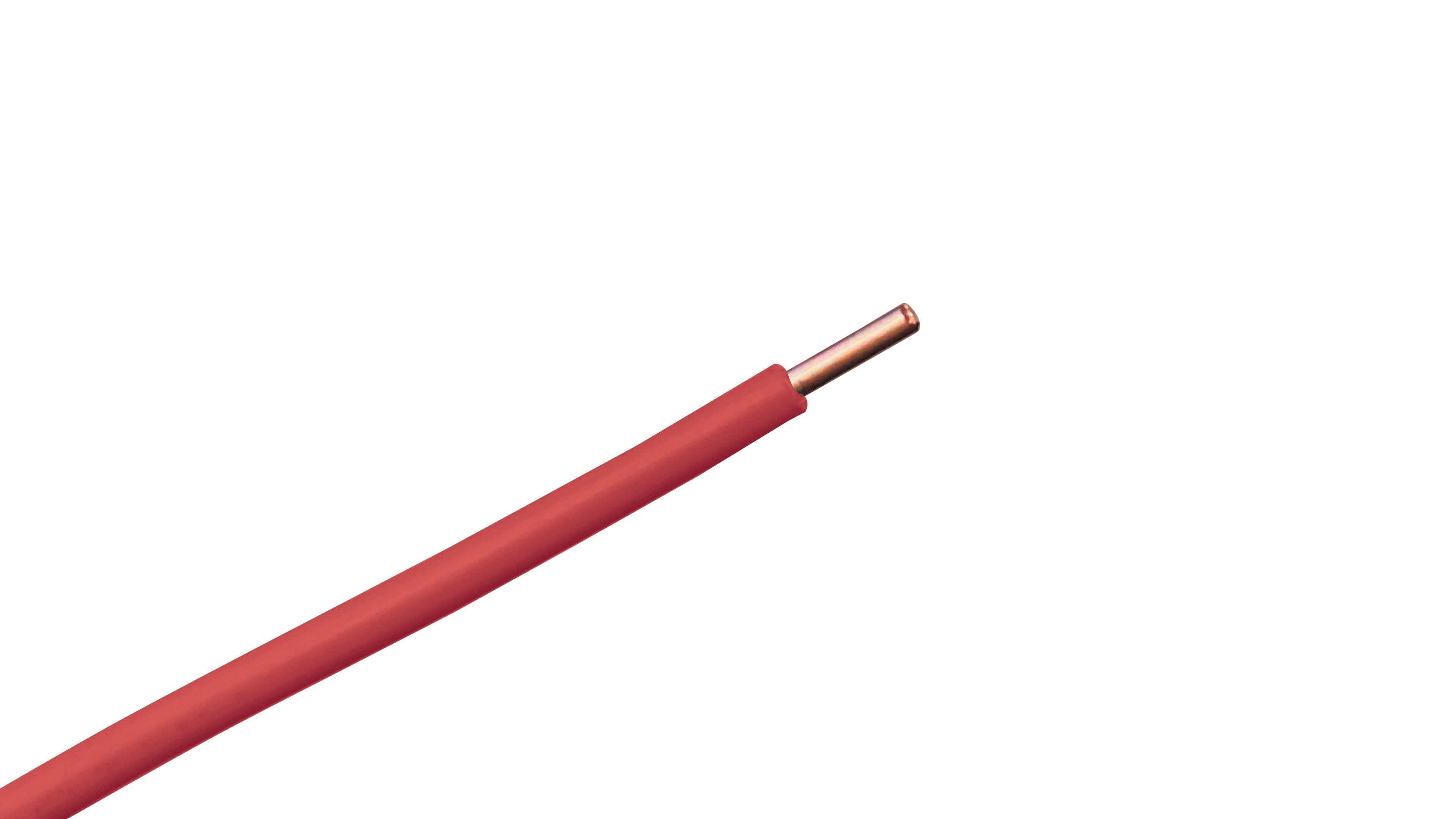

• Safety Alert Red: Deployed for Electric Power Distribution circuits and high-voltage Conduit Trunks.

Technical Specifications

• Conductor Size: 16 AWG

• Conductor Type: High Strength Copper Clad Steel (HS-CCS)

• Steel Core Type: Carbon Steel

• Copper Clad Volume: 21% Conductivity (Minimum thickness matches ASTM B910 specifications)

• Insulation Material: High-Density Polyethylene (HDPE / HMWPE - PE-45 Rating)

• Insulation Thickness: 45 Mils (1.14 mm)

• Tensile Strength: 118 lbs minimum break load

• Voltage Rating: 30 Volts (Locating signaling systems only)

• Operating Temperature: -40 degrees C to +80 degrees C Continuous Burial

• Compliance Standards: ASTM B910, ASTM D1248, APWA Color Code Compliant, Buy American Act Approved

Technical Note: To maintain an uninterrupted electromagnetic trace path, underground connections must never be wrapped with standard electrical tape or connected with non-watertight wire nuts. All 16 AWG HS tracer wire splices must utilize fully sealed, moisture-proof connectors (such as silicone-filled outer locking lugs).

Exposing the copper clad core to direct soil moisture or chemical trace acids will lead to localized oxidation and galvanic cell breakdown, which breaks the signal continuity and renders the entire downstream section invisible to locator tracking rigs.

CABLE TYPE: 16 AWG Single-Conductor High Strength (HS) Copper Clad Steel Tracer Wire (45-Mil PE-45 Insulation)

DISCLAIMER: The technical information provided is for general reference only. Civil engineering profiles, underground excavation boundaries, and utility tracing loops must strictly adhere to the American Public Works Association (APWA) design parameters, National Utility Locating Contractors Association (NULCA) provisions, and local municipal utility regulations. Always cross-reference the official product submittal data sheet from the chosen manufacturer prior to finalizing underground infrastructure layouts or specifying mechanical pulling loads.

⚠️ The applications listed below are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the National Electrical Code (NEC®) for your specific project before purchasing or installing cable.

Common 16 AWG HS-CCS PE-45 Use Cases Heavy-Duty Open-Trench Utility Tracking: Installed alongside buried non-metallic pipelines during traditional open-cut excavations where a thicker gauge is required to survive rougher backfilling and rocky soil conditions.

Municipal Water Main & Sewer Mapping: Placed directly adjacent to underground PVC water distribution pipes, force mains, sanitary sewers, and storm drainage systems to ensure lifelong surface locate accuracy.

Natural Gas & Petroleum Pipeline Locating: Deployed alongside polyethylene gas mains and service lines to provide an uninterrupted, highly conductive path for low-frequency locating signals.

Micro-Trenching & Utility Plowing Installations: Pulled directly into narrow slots or plowed directly into the earth alongside fiber optic ducts, telecom lines, and traffic signal conduits.

Long-Distance Signal Transmission: Utilized on expansive utility runs where a larger conductor size (16 AWG vs 18 AWG) helps maintain signal integrity and strength over miles of continuous tracking.

Extreme Ground Settling & Freeze-Thaw Protection: Features an advanced high-carbon steel core with a 155-pound break load that stretches without snapping during severe ground shifts, landslides, or deep frost heaving.

Who Relies on 16 AWG HS-CCS PE-45? Target Industries Municipal Public Works & Utilities: Mandated by city engineers to manage municipal infrastructure assets and prevent costly, dangerous third-party line strikes.

Telecommunications & Broadband Infrastructure: Integrated into major fiber-optic buildouts to guarantee empty or populated plastic conduits can be mapped out before future construction.

Civil Highway & Roadway Construction: Used heavily by highway contractors to protect and trace deep-buried drainage, water, and power lines beneath upcoming roadways.

Commercial Utility Contracting: Selected for large-scale industrial park developments requiring heavy-duty, direct-burial infrastructure solutions.

Core Professionals & Buyers Underground Utility Contractors: Field crews who select 16 AWG copper-clad steel (CCS) because it offers nearly 50% more tensile strength than 18 AWG CCS, virtually eliminating accidental breaks during heavy backfill tamping.

Locating Specialists & Subsurface Utility Engineers (SUE): Diagnostic professionals who rely on the uniform copper cladding to transmit sharp, undistorted electromagnetic signals to the surface.

Procurement Officers & Utility Estimators: Buyers looking to control project budgets by swapping out expensive solid copper wire for an equally conductive, theft-resistant steel-core alternative.

Civil Site Inspectors: Project managers who require rugged 45-mil high-density polyethylene (PE-45) insulation to satisfy strict regulations for moisture, chemical, and abrasion resistance in harsh environments.
