Solid THHN/THWN-2 WireFrom $0.20/ft -
Solid THHN/THWN-2 WireFrom $0.20/ft - Solid THHN/THWN-2 WireFrom $0.20/ft
- Solid THHN/THWN-2 WireFrom $0.20/ft
Parent SKU : THN1/0CST
SKU : THN1/0CST-250-BK
"The professional standard for 150-amp feeders and main service entrances—engineered with dual-rated THHN/THWN-2 insulation and a friction-reducing nylon jacket for maximum reliability in 600V applications."

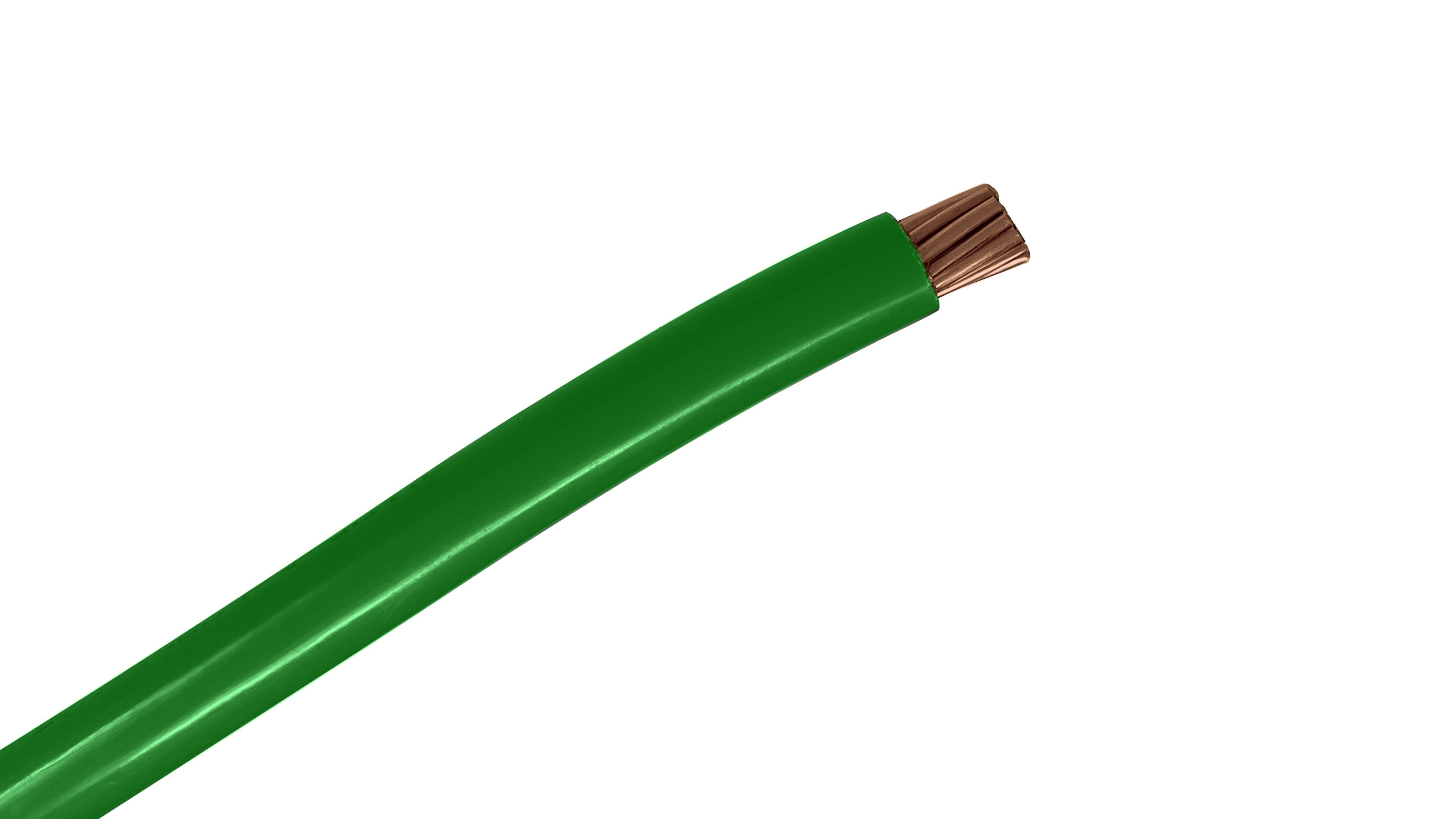

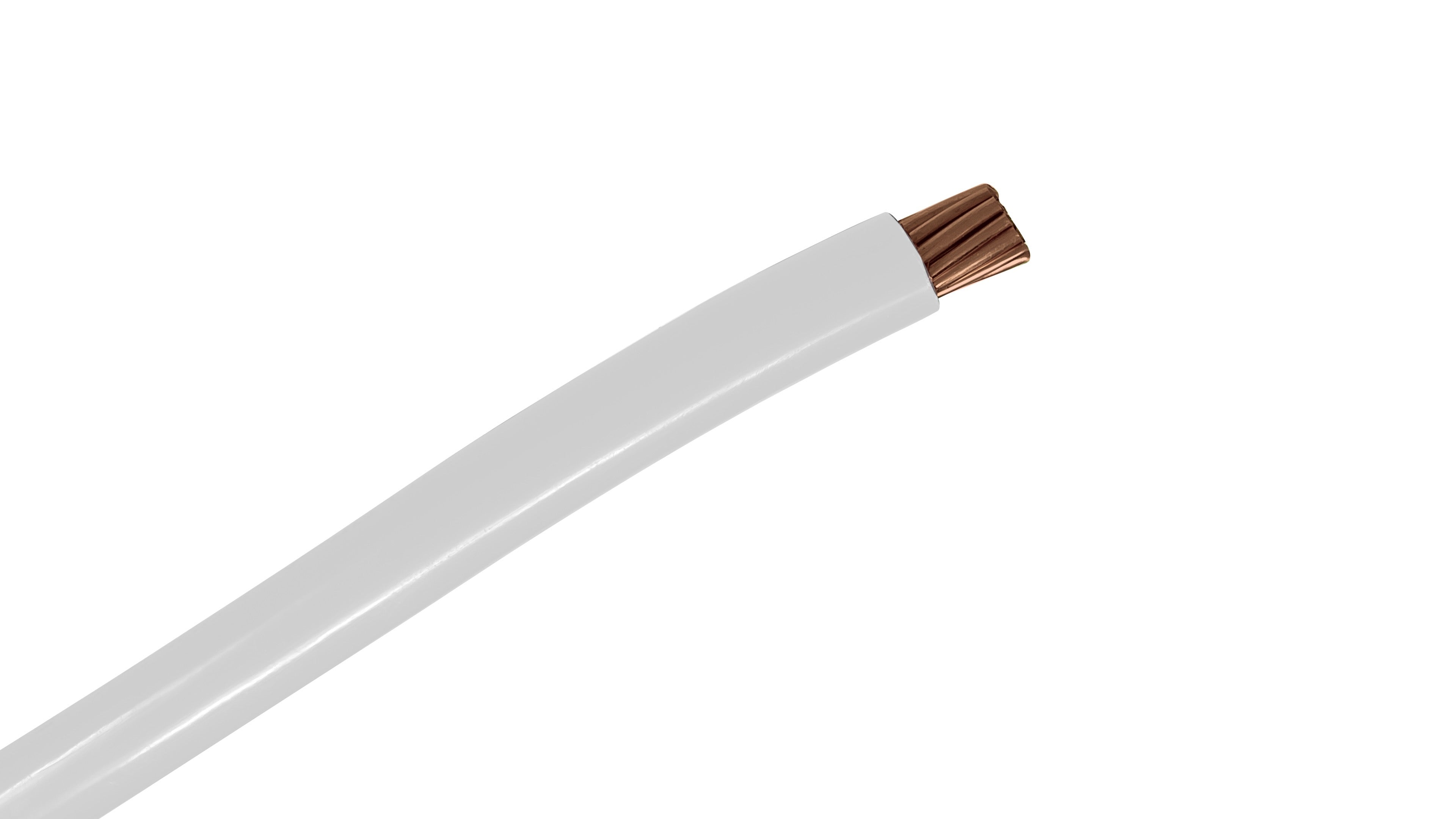

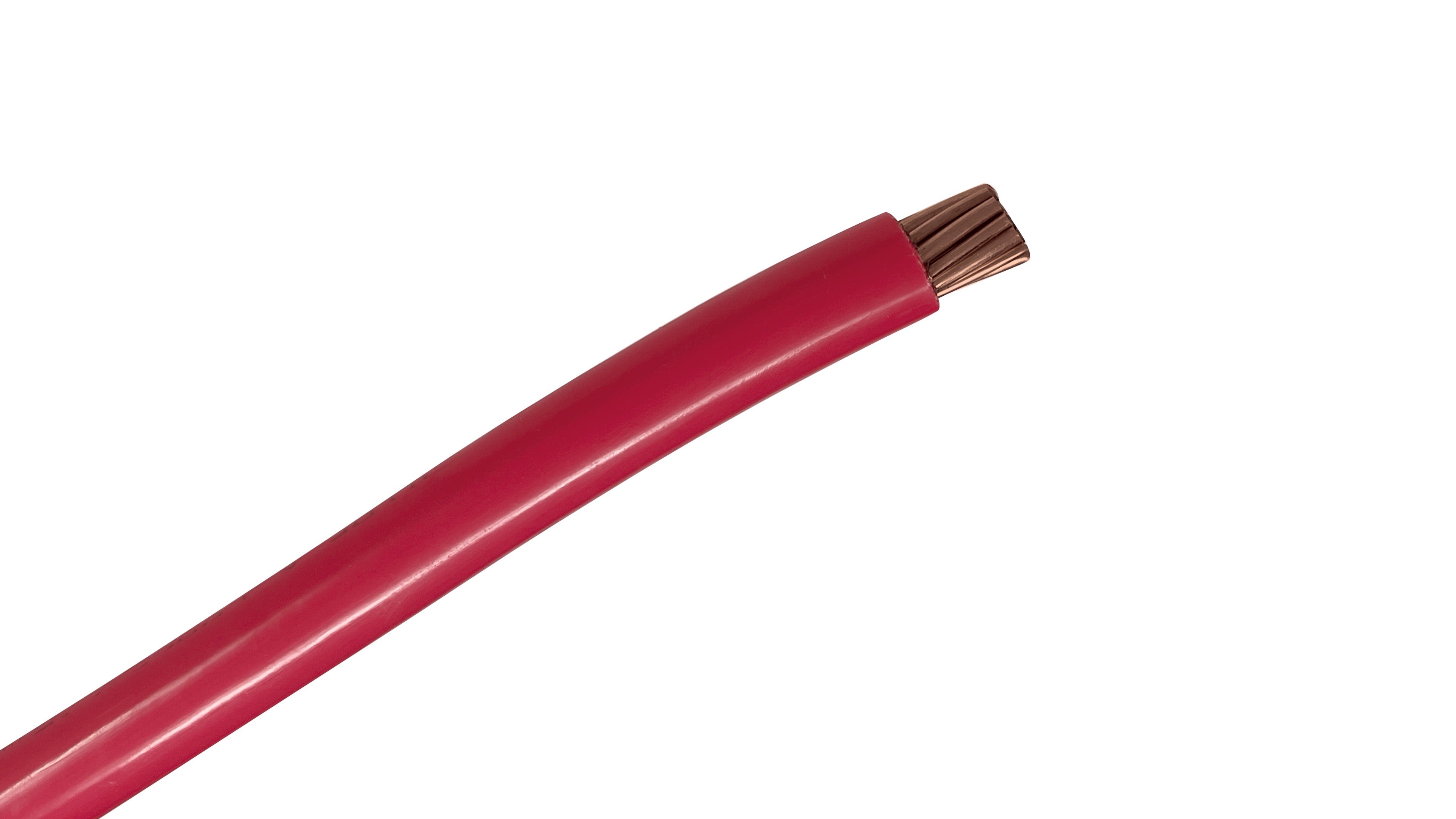

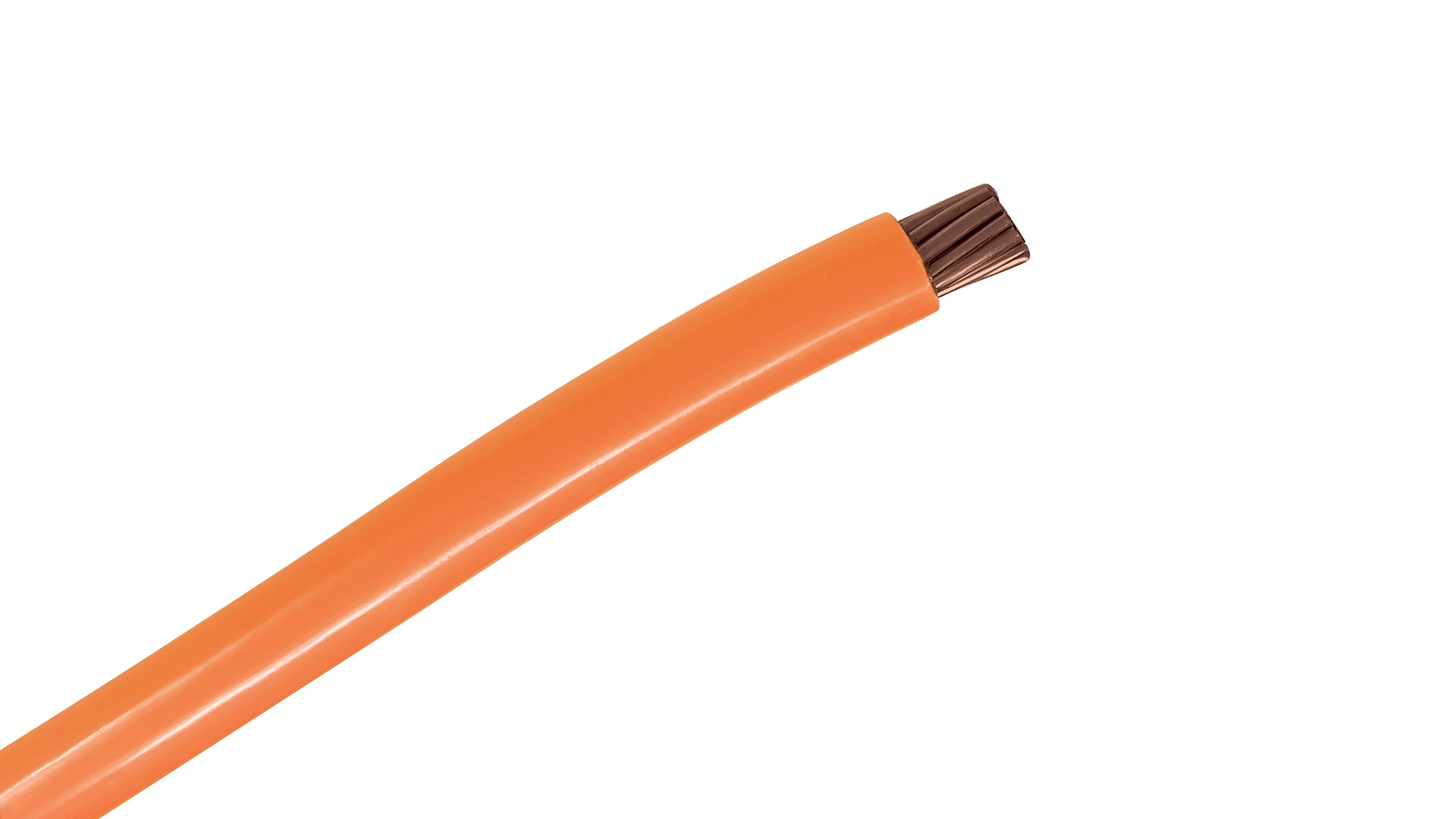

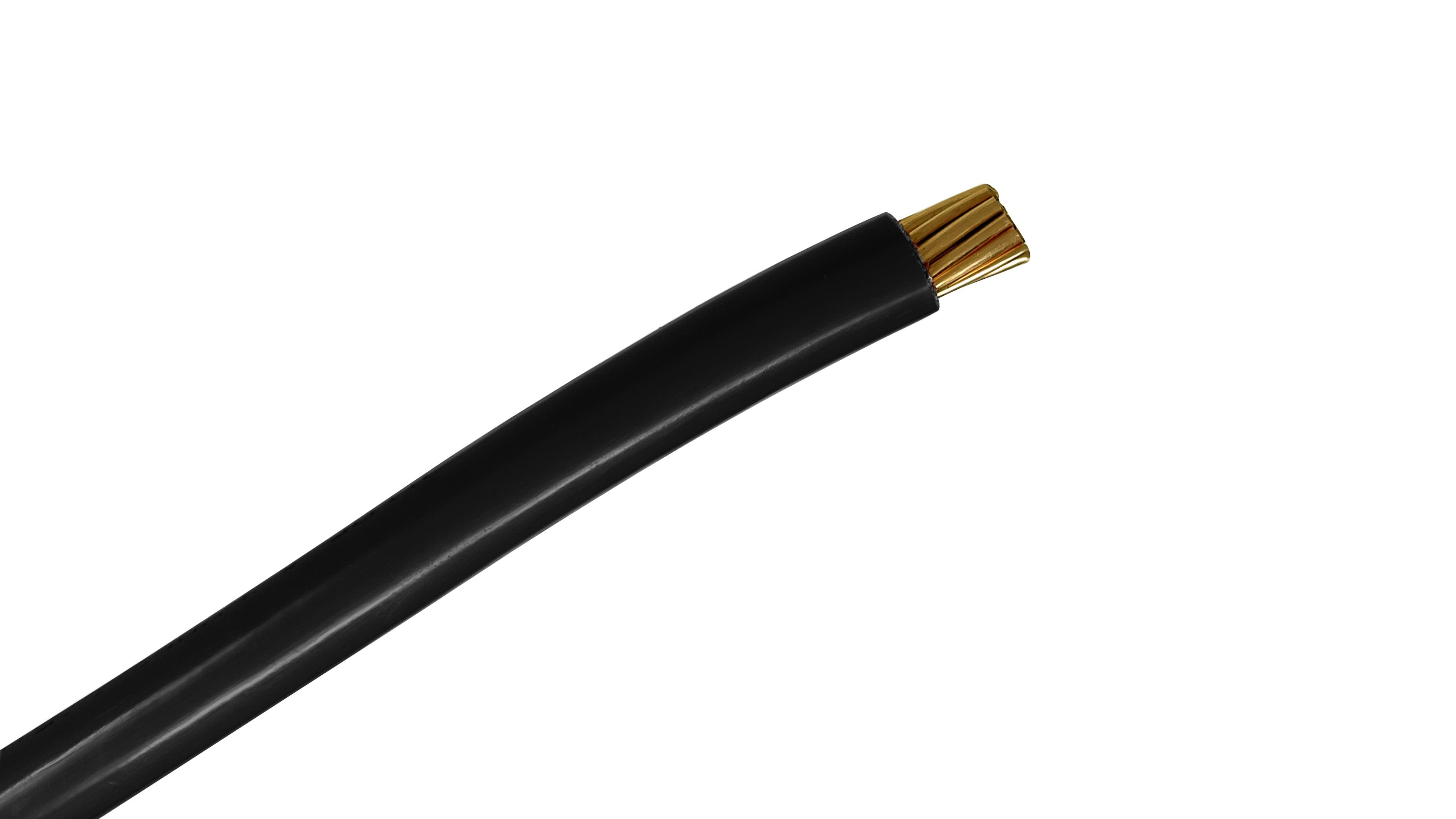

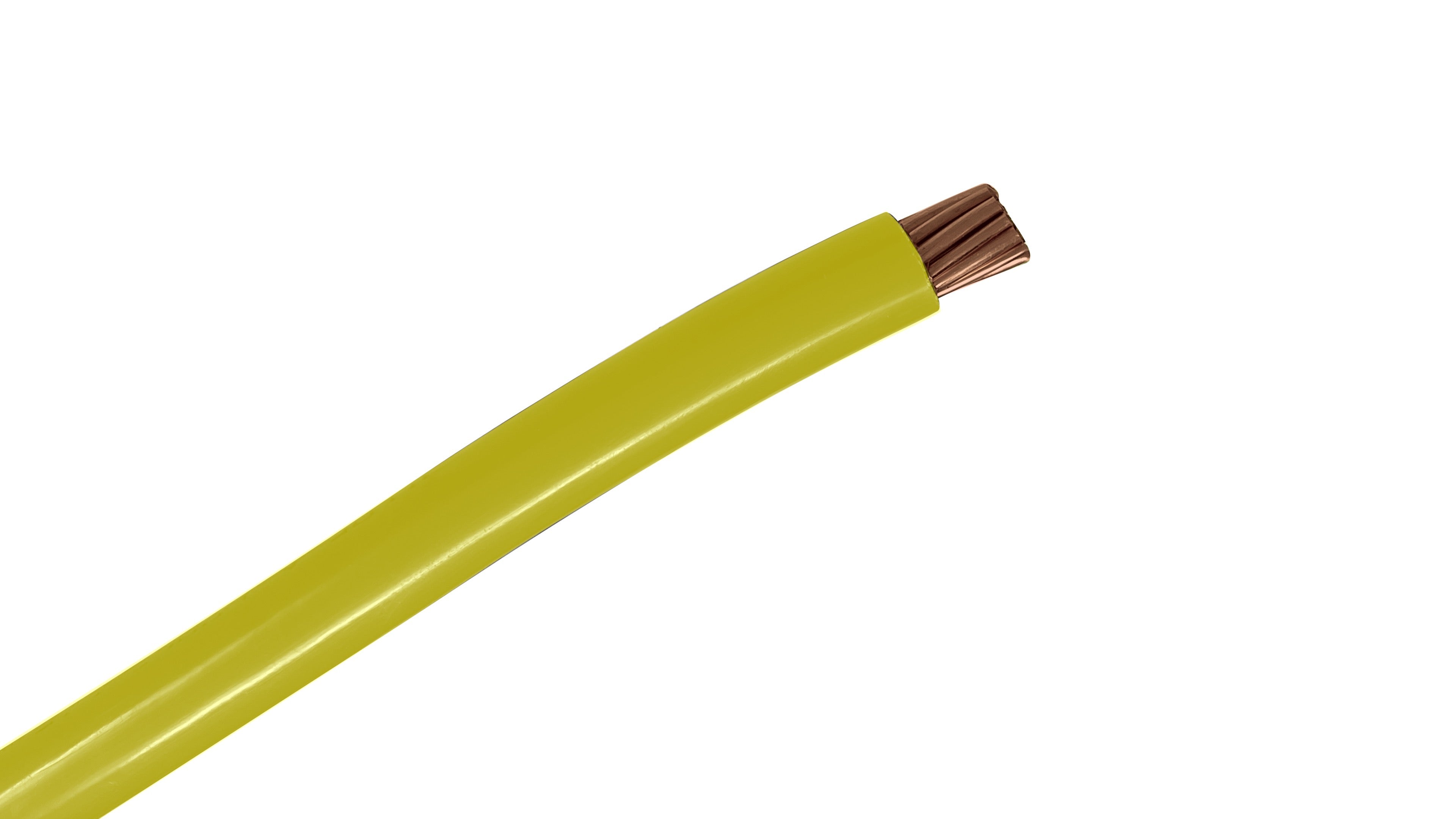

The 1/0 AWG copper building wire is a high-amperage conductor designed for demanding electrical environments. It is the primary choice for 150-amp residential services, commercial HVAC chillers, and industrial power distribution. The stranded construction is non-negotiable at this size, providing the flexibility required to navigate the large radius bends of 2-inch conduits and land securely in heavy-duty mechanical lugs.
Dual Rated (THHN/THWN-2): Engineered for dry locations up to 90°C (THHN) and wet locations (THWN-2), providing maximum versatility for indoor and outdoor conduits.
Tough PVC/Nylon Jacket: The high-heat and moisture-resistant PVC insulation is protected by a tough, friction-reducing Nylon outer sheath, making for easier pulls through tight bends.
High-Conductivity Copper: Manufactured with soft-annealed stranded copper to provide maximum flexibility and superior electrical conductivity for branch circuits and feeders.
Oil & Gasoline Resistant: The specialized jacket is designed to resist chemical degradation, making it ideal for industrial environments and service station wiring.
150-Amp Sub-Panels: The definitive choice for 150A feeders in large residential estates and commercial buildings.
Commercial Main Services: Used in parallel sets for high-amperage commercial service entrances.
Data Center Power: Providing high-conductivity feeders for server rack power distribution units (PDUs).
Industrial Weld Stations: Ideal for high-duty cycle industrial welding equipment.
Large EV Charging Hubs: Powering multi-car Level 2 charging banks or DC fast-charging stations.
ENGINEERING OVERVIEW: 1/0 AWG STR 600V
APPLICATION: Main service entrance conductors, large feeders, and industrial power distribution.
VOLTAGE: Rated for 600 Volts.
CONDUCTORS: Stranded soft-annealed copper.
INSULATION: Heat and moisture-resistant PVC (Polyvinyl Chloride).
JACKET: Tough, abrasion-resistant Nylon.
TEMPERATURE: 90°C Dry (THHN), 90°C Wet (THWN-2).
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
| Wire Size (AWG/MCM) | 1/0 |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.500 in. / 12.7 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (THHN) Thermoplastic High Heat-Resistant Nylon-coated |
| UL Listing Numbers | UL 83, UL 1063, UL 758 |
| Voltage Rating | 600V |
| Ampacity Rating | 170 |
| Submersible | No |
| Standards | UL 83 UL VW-1 Size 1/0 & larger suitable for cable tray use MTW per UL 1063 ASTM B1, B3, B8 Federal Spec A-A-59555 |
| Miscellaneous Information | All values are nominal and subject to correction. *90°C Wet/Dry Per NEC Table 310.15 (B)(16) for not more than three conductors in raceway based on 30°C ambient temperature. |
| Primary Applications | General-purpose electrical wiring in commercial, industrial, and residential structures. It's widely used to supply power to outlets, switches, lighting fixtures, and other electrical loads throughout a building |
| Weight per Foot | 0.37 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||
1/0 THHN copper is rated for 170 Amps at 90°C. At the standard 75°C terminal rating used by most breakers, it is rated for 150 Amps. This makes it the industry-standard conductor for 150-amp feeders and services. We always recommend confirming wire size with a licensed electrician before purchasing.
For a standard 4-wire run, a 2-inch conduit is highly recommended. While it can technically fit in a 1.5-inch pipe, the 2-inch size provides the necessary clearance for a safe pull, especially when navigating 90-degree bends in heavy commercial or underground runs.
Note on Conduit Sizing: These recommendations are based on standard NEC 40% fill guidelines for general informational purposes. Always consult with a licensed electrician or project engineer to verify final conduit specifications and gauge size.
Yes. 1/0 Copper is the standard for 150-amp sub-panels. It provides the full 150-amp capacity at the 75°C rating, ensuring your installation is fully code-compliant and runs cool under heavy loads. There will be voltage drops when runs are longer than 100ft.
No. Like all THHN/THWN-2 products, 1/0 must be installed in conduit for all underground applications. For direct burial without conduit, you must use Type USE-2 or Aluminum URD.
Both are code-compliant choices for 150-amp applications, but the best choice depends on your project’s priorities:
Yes. Per NEC 310.10(G), 1/0 AWG is the smallest size permitted to be run in parallel. This allows engineers to combine two or more conductors per phase to achieve much higher ampacities (e.g., 300A or 400A) while keeping the wire manageable for the installation team.
