Parent SKU : PPLEX1/0-3-BRW
SKU : PPLEX1/0-3-BRW-250
Specifically engineered for high-amperage power distribution, this Priority-Plex® twisted feeder cable streamlines installations in demanding residential and commercial environments. By pre-twisting two phase conductors and a dedicated neutral into a cohesive unit, this 1/0 AWG assembly removes the logistical headache of managing multiple reels and manual wire paralleling, resulting in significant labor savings and increased job site safety.

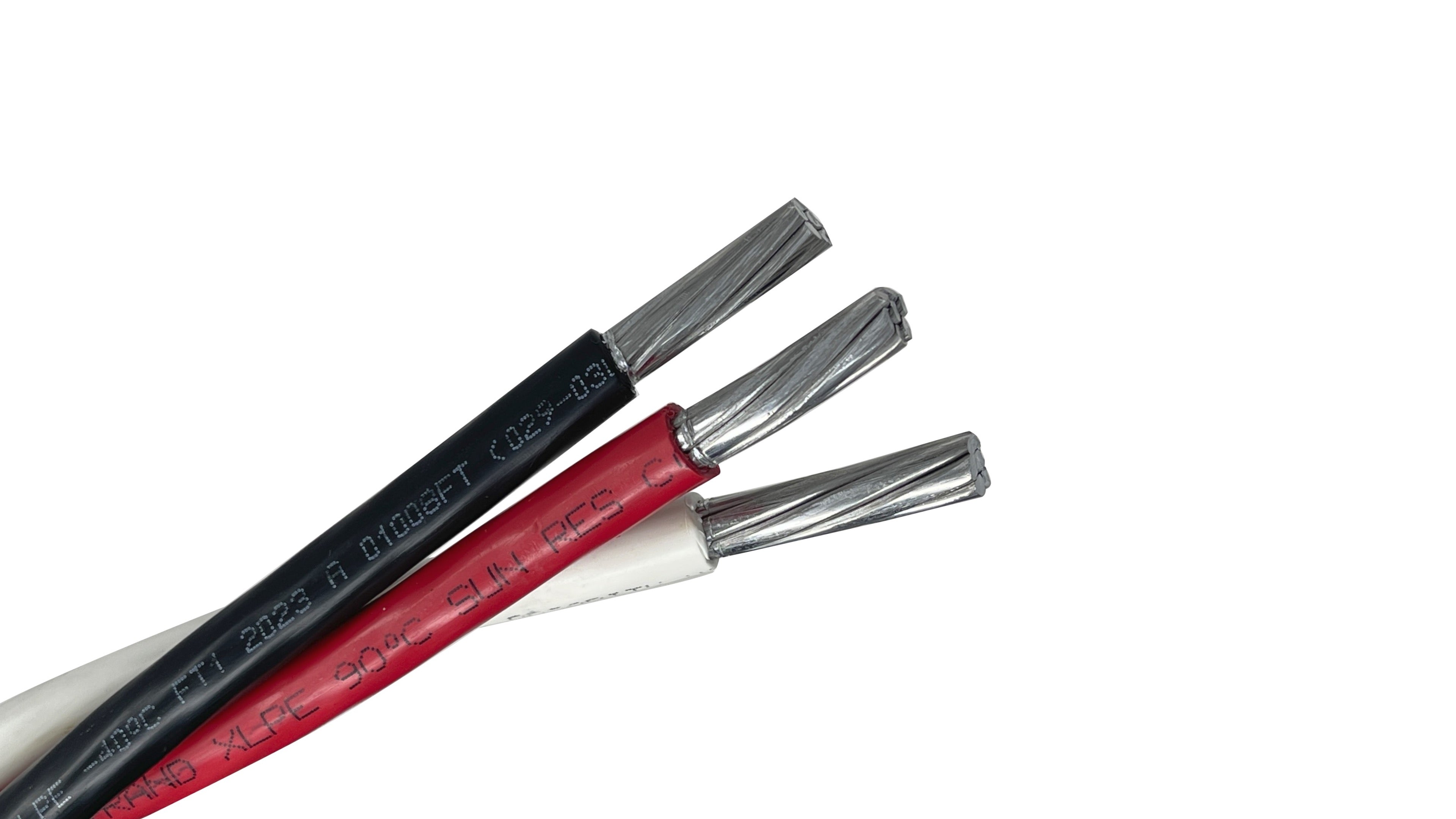

This 3-conductor assembly (Black, Red, and White) is a robust solution for medium-to-large secondary service entries. The Priority-Plex® technology ensures that the conductors remain tightly bundled during the pull, reducing the risk of individual conductor damage and simplifying cable management in enclosures.
Priority-Plex® Design: Eliminates the "bird-caging" and tangling common with loose conductors, allowing for a smooth, single-operator pull.
Streamlined Identification: Includes Black and Red phase conductors with a dedicated White neutral for rapid identification and compliance with electrical standards.
Resilient XHHW-2 Insulation: The cross-linked polyethylene (XLP) coating provides exceptional protection against heat, moisture, and chemical exposure.
Lightweight 8000 Series Alloy: Provides the necessary conductivity for high-load circuits while remaining much easier to handle and install than copper equivalents.
Conductor Size: 1/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 120 Amps at 75°C / 135 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
High-Capacity Sub-Panels: The go-to choice for 125-Amp to 150-Amp sub-panel feeds in commercial buildings and large residential estates.
Service Entrance Conductors: Ideal for routing power from the meter socket to the main service disconnect in underground or conduit-based runs.
Industrial Branch Circuits: Used in industrial facilities for heavy machinery power feeds where a neutral conductor is required.
Efficiency-Driven Projects: Perfect for contractors looking to reduce set-up time and footprint on the job site by pulling from a single reel.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 1/0-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 1/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.00 in. / 25.4 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2556 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 135 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.41 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PPLEX1/0-3-BRW
SKU : PPLEX1/0-3-BRW-250
Parent SKU : PPLEX1/0-3-BRW
SKU : PPLEX1/0-3-BRW-250
Specifically engineered for high-amperage power distribution, this Priority-Plex® twisted feeder cable streamlines installations in demanding residential and commercial environments. By pre-twisting two phase conductors and a dedicated neutral into a cohesive unit, this 1/0 AWG assembly removes the logistical headache of managing multiple reels and manual wire paralleling, resulting in significant labor savings and increased job site safety.
This 3-conductor assembly (Black, Red, and White) is a robust solution for medium-to-large secondary service entries. The Priority-Plex® technology ensures that the conductors remain tightly bundled during the pull, reducing the risk of individual conductor damage and simplifying cable management in enclosures.
Priority-Plex® Design: Eliminates the "bird-caging" and tangling common with loose conductors, allowing for a smooth, single-operator pull.
Streamlined Identification: Includes Black and Red phase conductors with a dedicated White neutral for rapid identification and compliance with electrical standards.
Resilient XHHW-2 Insulation: The cross-linked polyethylene (XLP) coating provides exceptional protection against heat, moisture, and chemical exposure.
Lightweight 8000 Series Alloy: Provides the necessary conductivity for high-load circuits while remaining much easier to handle and install than copper equivalents.
Conductor Size: 1/0 AWG
Number of Conductors: 3 (Twisted)
Color Code: Black, Red, White
Ampacity: 120 Amps at 75°C / 135 Amps at 90°C (NEC Table 310.16)
Voltage: 600V
Insulation: Cross-linked Polyethylene (XLP), Type XHHW-2
Max Temp: 90°C (Wet/Dry)
Conductor Material: AA-8000 Series Aluminum Alloy
Standards: UL 44, UL 854, ASTM B800, B801, Federal Spec A-A-59544
High-Capacity Sub-Panels: The go-to choice for 125-Amp to 150-Amp sub-panel feeds in commercial buildings and large residential estates.
Service Entrance Conductors: Ideal for routing power from the meter socket to the main service disconnect in underground or conduit-based runs.
Industrial Branch Circuits: Used in industrial facilities for heavy machinery power feeds where a neutral conductor is required.
Efficiency-Driven Projects: Perfect for contractors looking to reduce set-up time and footprint on the job site by pulling from a single reel.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
PRIORITY PART#: 1/0-03PPLEX-BRW
*All values are nominal and subject to correction. Ampacity is based on the National Electrical Code (NEC) for conductors in raceway or earth, adjusted for specific ambient conditions and fill factors as applicable.
| Wire Size (AWG/MCM) | 1/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.00 in. / 25.4 mm |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | XLPE |
| UL Listing Numbers | UL 44, UL 1685, UL 2556 |
| Voltage Rating | 600/1000V |
| Ampacity Rating | 135 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL44/C22.2 No.38 UL 1685 UL 2556 ASTM B800 ASTM B801 |
| Miscellaneous Information | All values are nominal and subject to correction. Ampacities for aluminum conductors in raceway or cable based on an ambient temperature of 30°C per NEC Table 310.16 for 3 current carrying conductors |
| Primary Applications | Power Distribution, Feeder and Branch Circuits |
| Common Uses |
|
| Weight per Foot | 0.41 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||
This 1/0 AWG (pronounced "one-aught"), 3-conductor assembly is a heavy-duty feeder cable designed for high-amperage residential and commercial power distribution. It is most frequently used for 125A to 150A residential service entrances and main sub-panel feeds. The XHHW-2 rating ensures it can be installed in conduit in both wet and dry locations, making it ideal for underground service laterals.
Priority-Plex® is a specialized manufacturing process where the conductors are pre-twisted (cabled) together at the factory.
At the 1/0 gauge, aluminum offers an optimal balance of high ampacity and low cost compared to copper.
According to NEC Table 310.16, the ampacity for 1/0 Aluminum depends on the temperature rating of the equipment terminations:
⚠️ PRO TIP: Most modern main breakers and distribution panels are rated for 75°C. Therefore, in most commercial/industrial applications, this cable is treated as a 120 Amp feeder. However, for residential service entrance applications, NEC 310.12 may allow higher ratings (often up to 150A) depending on the total load of the dwelling.
This assembly follows the standard 120/240V or 120/208V color code for easy identification:
The colors are typically embedded in the XLPE insulation or clearly striped, ensuring permanent identification that won't rub off during a difficult pull.
Yes we offer XHHW-2 Aluminum Wire in a single conductor from 14 AWG to 1000 MCM in multiple colors by the foot. Shop our single conductor XHHW-2 Collection here.
