Belden 9546 24 AWG 50-Conductor Shielded Computer Cable | 300V

Parent SKU :  BDN9546

SKU :  BDN9546-250

RS232, #24-50C, SR-PVC, O/A FOIL, PVC JKT, CMG
Download Spec Sheet

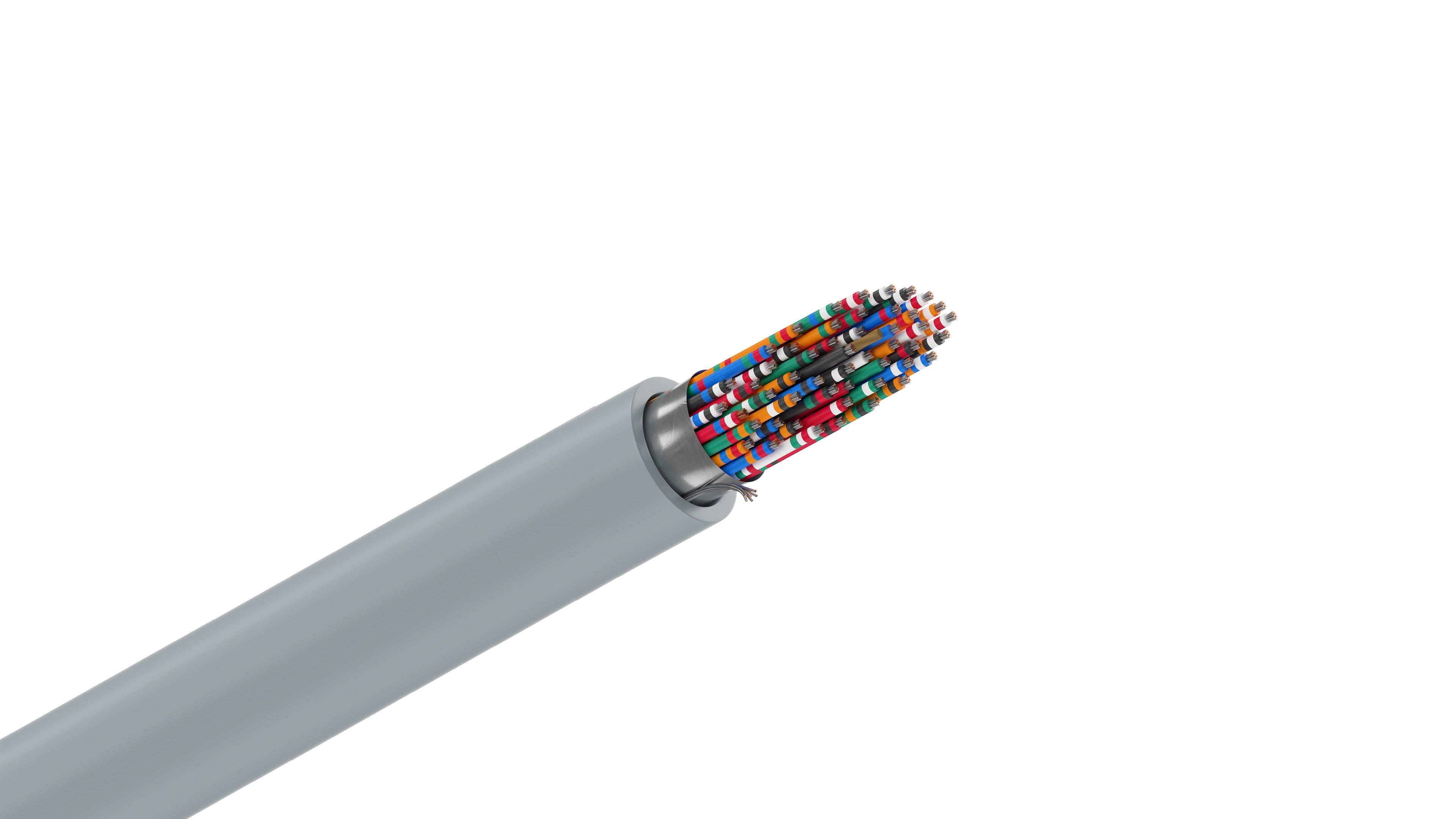

Belden 9546 Cable, 24 AWG 50-Conductor Shielded, 100% Beldfoil Coverage, Chrome PVC Jacket, RS-232 Computer Trunk Cable.
Wire Size 24 AWG
Conductor Material Tinned Copper
Outer Diameter 0.490 in.
Conductor Count 50
Voltage Rating 300V
Ampacity Rating 1.1
Weight per Foot 0.168 lb
Download Spec Sheet

Get Product Details

Get Product Details
BELDEN 9546
Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

SIZE:
24 AWG

CONDUCTOR COUNT:
50 Conductors

COLOR CODE:
Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes, Green/White/Blue Stripes, Orange/Red/Green Stripes, Blue/Red/Green Stripes, Black/White/Blue Stripes, White/Black/Blue Stripes, Red/White/Blue Stripes, Green/Orange/Red Stripes, Orange/Red/Blue Stripes, Blue/Orange/Red Stripes, Black/Orange/Red Stripes

CONDUCTOR MATERIAL:
Tinned Copper

STRANDING:
7x32

INSULATION:
SR-PVC - Polyvinyl Chloride (Semi-Rigid)

SHIELD TYPE:
Tape

SHIELD MATERIAL:
Bi-Laminate (Alum+Poly)

DRAIN WIRE:
24 AWG Tinned Copper

JACKET MATERIAL:
PVC - Polyvinyl Chloride

JACKET COLOR:
Chrome

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 24 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 7
Outer Diameter (OD) (in/mm) 0.490 in.
Jacket Type PVC
Conductor Count 50
Shield Coverage % 1
Shield Type Bi-Laminate (Alum+Poly)
Shield Shielded
Insulation Type SR-PVC
UL Listing Numbers UL1685

Technical Specifications

Voltage Rating 300V
Ampacity Rating 1.1
Submersible No
Flexibility Rating Good
Temperature Rating -30°C to +80°C
Standards Indoor
UL 1685 FT4 Loading, FT4, IEC 60332-1-2
CPR Euroclass: Eca; CPR UKCA Class: Eca
Article 800, CMG
AWM 2464, AWM I/II A
CMG, LL7874
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UKCA Mark
China RoHS II (GB/T 26572-2011)
Miscellaneous Information Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsRS-232 Applications; Computer Communications; Low Voltage Analog Signals; Low Voltage Digital Control; Line Level Audio; Panel Wiring

Packaging & Dimensions:

Weight per Foot 0.168 lb
