Belden 83553 22 AWG 3-Conductor Foil + Braid Shield Plenum Cable | 200°C

Parent SKU :  BDN83553

SKU :  BDN83553-250

ELECTRONIC, #22 3C STR TC, FEP INS, OS+TC BRD, FEP JKT, CMP
Download Spec Sheet

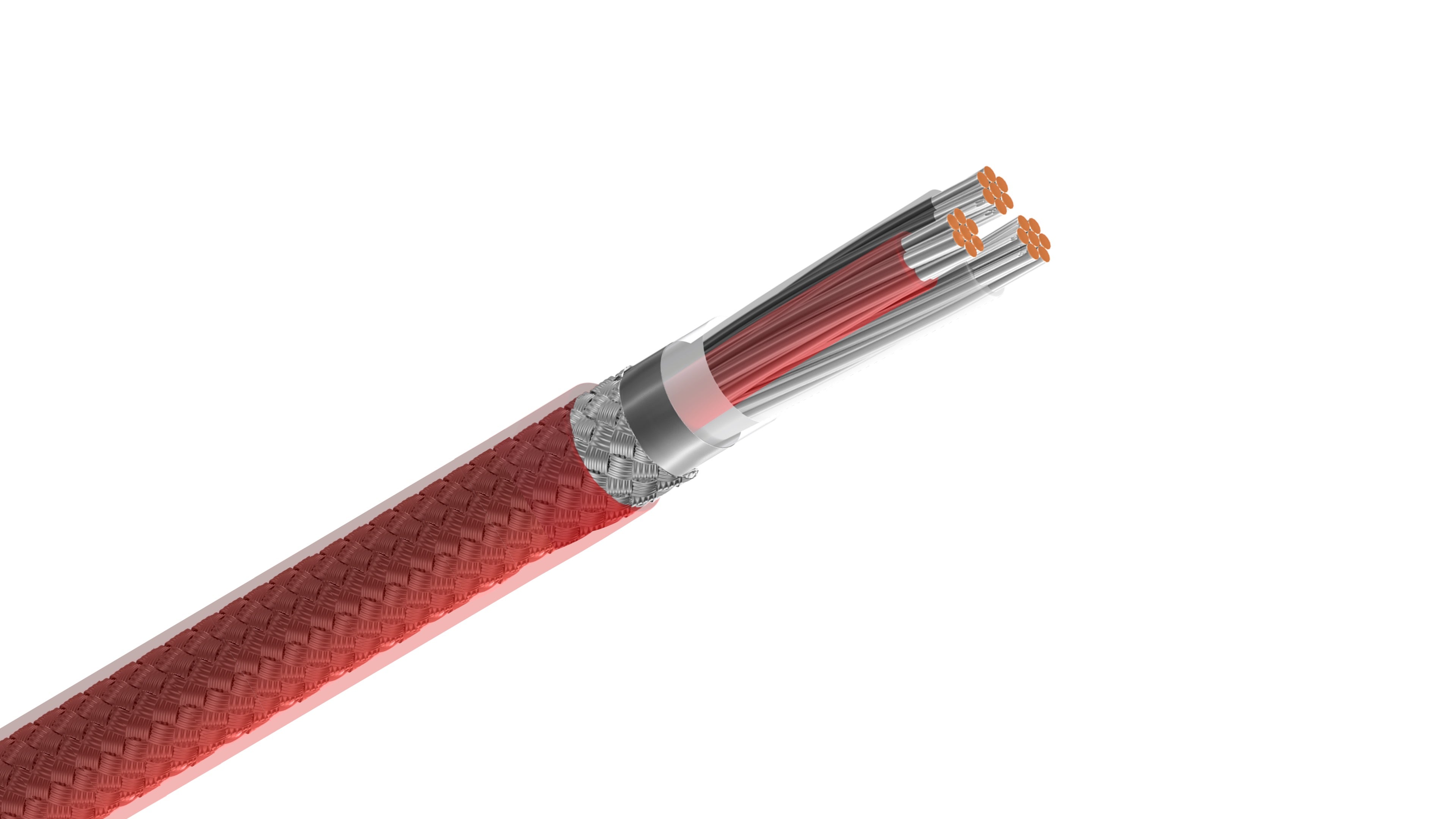

Belden 83553 Cable, 22 AWG 3-Conductor Shielded Wire, FEP Insulation and Jacket, 200°C High-Temp Instrumentation Cable.
Wire Size 22 AWG
Conductor Material Tinned Copper
Outer Diameter 0.150 in.
Conductor Count 3
Voltage Rating 300V
Ampacity Rating 2.8
Weight per Foot 0.022 lb
Download Spec Sheet

Product Details

Product Details

BELDEN 83553
High Temperature Electronic, 3 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

SIZE:
22 AWG

CONDUCTOR COUNT:
3 Conductor

COLOR CODE:
Black, White, and Red

CONDUCTOR MATERIAL:
Tinned Copper

STRANDING:
7x30

INSULATION:
FEP - Fluorinated Ethylene Propylene

SHIELD TYPE:
Tape and Braid

SHIELD MATERIAL:
Tape - Bi-Laminate (Alum+Poly) 100%
Braid - Tinned Copper (TC) 85%

JACKET MATERIAL:
FEP - Fluorinated Ethylene Propylene

JACKET COLOR:
Red

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 22 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 7
Outer Diameter (OD) (in/mm) 0.150 in.
Jacket Type FEP - Fluorinated Ethylene Propylene
Conductor Count 3
Shield Type Foil + Braid
Shield Shielded
Insulation Type FEP
UL Listing Numbers UL910
Plenum Rating true

Technical Specifications

Voltage Rating 300V
Ampacity Rating 2.8
Direct Burial Rating Yes
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating -70°C to +200°C
Standards Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
CA Prop 65
NFPA 262, UL 910 (Plenum), FT6
Article 800, CMP
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
China RoHS II (GB/T 26572-2011)
Miscellaneous Information Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsExtreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …);line level audio; voice communications; panel wiring

Packaging & Dimensions:

Weight per Foot 0.022 lb
