Belden 6320UL 18-2 Solid Unshielded Fire Alarm Cable | FPLP Plenum Rated

Parent SKU :  BDN6320UL

SKU :  BDN6320UL-250

SOLID COPPER CONDUCTORS • PVC JACKET • PLENUM RATED
Download Spec Sheet

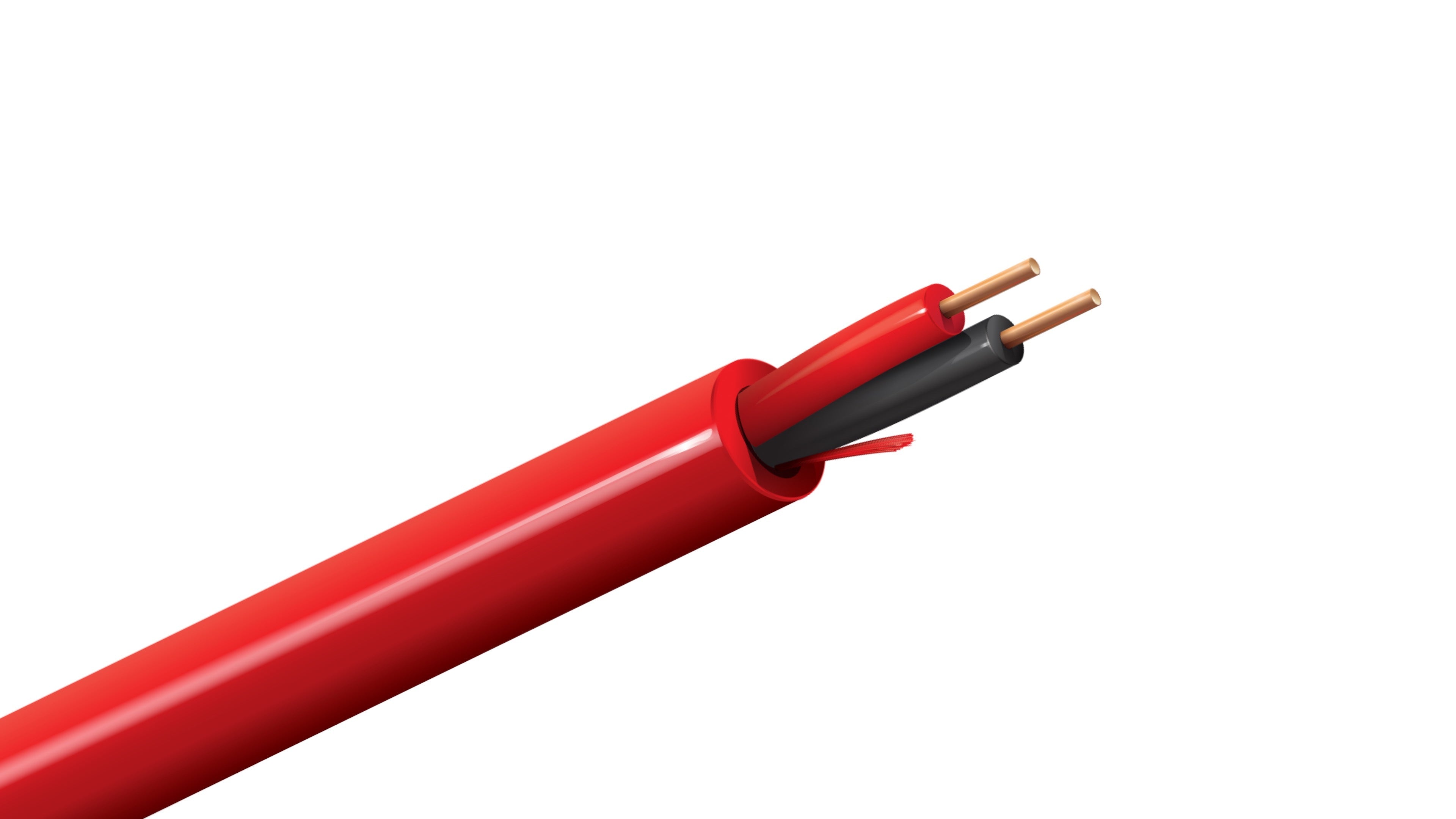

Belden 6320UL Cable, 18 AWG 2-Conductor Stranded BC, FPLP Plenum Rated, Red Flamarrest Jacket, Fire Alarm Control Wire.
Wire Size 18 AWG
Conductor Material Bare Copper
Outer Diameter 0.144 in.
Conductor Count 2
Voltage Rating 300V
Ampacity Rating 14
Weight per Foot 0.018 lb
Download Spec Sheet

Product Details

Product Details
BELDEN 6320UL
Fire Alarm Cable, Plenum-FPLP, solid bare copper conductors with Flamarrest® insulation, unshielded, Flamarrest® jacket with ripcord.

SIZE:
18 AWG

CONDUCTOR COUNT:
2 Conductor

COLOR CODE:
Black and Red

CONDUCTOR MATERIAL:
Solid Bare Copper

INSULATION:
LS PVC - Low Smoke Polyvinyl Chloride (Flamarrest®)

SHIELD TYPE:
Unshielded

JACKET MATERIAL:
LS PVC - Low Smoke Polyvinyl Chloride (Flamarrest®)

JACKET COLOR:
Red

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 18 AWG
Conductor Material Bare Copper
Conductor Type Solid
Strand Count 1
Outer Diameter (OD) (in/mm) 0.144 in.
Jacket Type PVC
Conductor Count 2
Shield Unshielded
Insulation Type PVC
UL Listing Numbers UL910
Plenum Rating true

Technical Specifications

Voltage Rating 300V
Ampacity Rating 14
Submersible No
Temperature Rating 0°C to +75°C
Standards Indoor - Plenum, Indoor
NFPA 262, UL 910 (Plenum)
Article 760, FPLP
EU CE Mark
California State Fire Marshall
RoHS Compliance Yes

Usage & Installation

Common Uses
  • General Fire Alarm Signaling
  • Notification Appliance Circuits (NAC)
  • Emergency Lighting Control
  • Commercial Office Space
  • Retail Centers & Malls
  • Educational Facilities

Packaging & Dimensions:

Weight per Foot 0.018 lb
