Belden 5508FE 22 AWG 10 Conductor Shielded Sound & Security Cable | CMR Riser Rated

Parent SKU :  BDN5508FE

SKU :  BDN5508FE-500

STRANDED BARE COPPER • 300V RATED • PVC JACKET
Download Spec Sheet

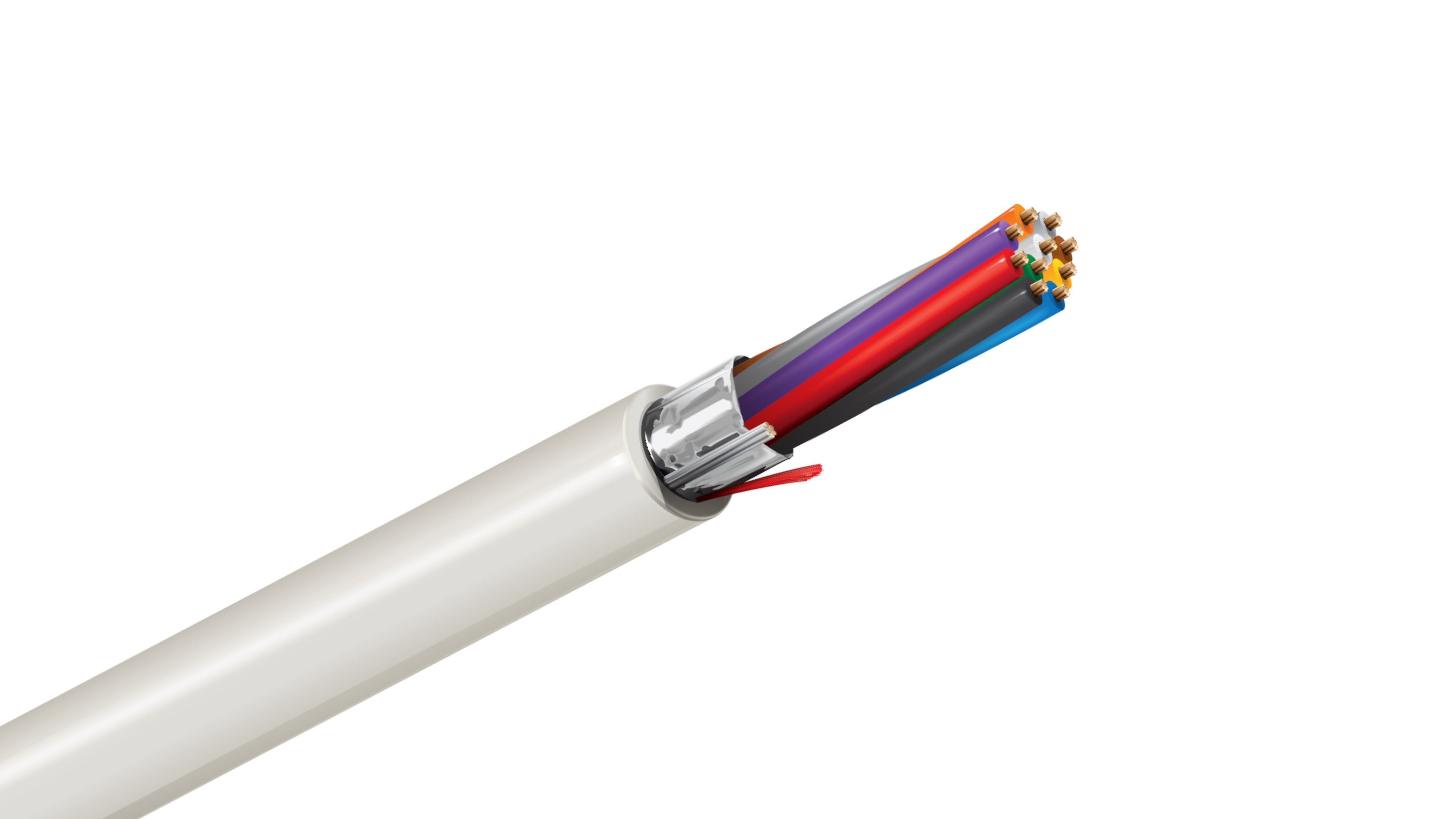

Belden 5508FE Cable, 22 AWG 10-Conductor Shielded, CMR Riser Rated, PVC Jacket, Security and Control Wire.
Wire Size 22 AWG
Conductor Material Bare Copper
Outer Diameter 0.217 in.
Conductor Count 10
Voltage Rating 300V
Ampacity Rating 2
Weight per Foot 0.036 lb
Download Spec Sheet

Get Product Details

Get Product Details
BELDEN 5508FE
Commercial Audio Cable, Riser-CMR, bare copper conductors with polypropylene insulation, overall Beldfoil® shield, PVC jacket with ripcord.

SIZE:
22 AWG

CONDUCTOR COUNT:
12 Conductor

COLOR CODE:
Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, and Tan

CONDUCTOR MATERIAL:
Stranded Bare Copper (7x30)

INSULATION:
PP - Polypropylene

SHIELD TYPE:
Overall Beldfoil® Shield (Foil side out)

SHIELD MATERIAL:
Tape - Bi-Laminate (Alum+Poly) 100% with 24 AWG Stranded Tinned Copper Drain Wire

JACKET MATERIAL:
PVC - Polyvinyl Chloride

JACKET COLOR:
Gray (Standard)

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 22 AWG
Conductor Material Bare Copper
Conductor Type Stranded
Strand Count 7
Outer Diameter (OD) (in/mm) 0.217 in.
Jacket Type PVC
Conductor Count 10
Shield Coverage % 1
Shield Type Bi-Laminate (Alum+Poly)
Shield Shielded
Riser Rating true
Insulation Type PP - Polypropylene
UL Listing Numbers UL1666

Technical Specifications

Voltage Rating 300V
Ampacity Rating 2
Submersible No
Flexibility Rating Very Good
Temperature Rating -20°C To +75°C
Standards Outdoor
UL1666 Riser
Article 800, CMR
CMG
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
China RoHS II (GB/T 26572-2011)
Miscellaneous Information Because pricing for the Belden 5508FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsCommercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring.
Common Uses
  • Door contacts
  • motion sensors
  • glass-break detectors
  • security control panels
  • two-way communication systems
  • card readers
  • keypad data lines
  • security sensors.

Packaging & Dimensions:

Weight per Foot 0.036 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Belden 5508FE 22 AWG 10 Conductor Shielded Sound & Security Cable | CMR Riser Rated

Parent SKU :  BDN5508FE

SKU :  BDN5508FE-500

STRANDED BARE COPPER • 300V RATED • PVC JACKET
In Stock
Ships in 1-2 days

Parent SKU :  BDN5508FE

SKU :  BDN5508FE-500

$236/ea.
$468/ea.
Please select an option
Min: 500 ft., Max: 10,000 ft.
Spool (500 ft.)
$236.00
Please select an option
Maximum reached, contact us for custom orders
Contact Us
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Get Product Details

Get Product Details
BELDEN 5508FE
Commercial Audio Cable, Riser-CMR, bare copper conductors with polypropylene insulation, overall Beldfoil® shield, PVC jacket with ripcord.

SIZE:
22 AWG

CONDUCTOR COUNT:
12 Conductor

COLOR CODE:
Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, and Tan

CONDUCTOR MATERIAL:
Stranded Bare Copper (7x30)

INSULATION:
PP - Polypropylene

SHIELD TYPE:
Overall Beldfoil® Shield (Foil side out)

SHIELD MATERIAL:
Tape - Bi-Laminate (Alum+Poly) 100% with 24 AWG Stranded Tinned Copper Drain Wire

JACKET MATERIAL:
PVC - Polyvinyl Chloride

JACKET COLOR:
Gray (Standard)

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 22 AWG
Conductor Material Bare Copper
Conductor Type Stranded
Strand Count 7
Outer Diameter (OD) (in/mm) 0.217 in.
Jacket Type PVC
Conductor Count 10
Shield Coverage % 1
Shield Type Bi-Laminate (Alum+Poly)
Shield Shielded
Riser Rating true
Insulation Type PP - Polypropylene
UL Listing Numbers UL1666

Technical Specifications

Voltage Rating 300V
Ampacity Rating 2
Submersible No
Flexibility Rating Very Good
Temperature Rating -20°C To +75°C
Standards Outdoor
UL1666 Riser
Article 800, CMR
CMG
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
China RoHS II (GB/T 26572-2011)
Miscellaneous Information Because pricing for the Belden 5508FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsCommercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring.
Common Uses
  • Door contacts
  • motion sensors
  • glass-break detectors
  • security control panels
  • two-way communication systems
  • card readers
  • keypad data lines
  • security sensors.

Packaging & Dimensions:

Weight per Foot 0.036 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Belden 5508FE 22 AWG 10 Conductor Shielded Sound & Security Cable | CMR Riser Rated
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 22 AWG
Conductor Material Bare Copper
Conductor Type Stranded
Strand Count 7
Outer Diameter (OD) (in/mm) 0.217 in.
Jacket Type PVC
Conductor Count 10
Shield Coverage % 1
Shield Type Bi-Laminate (Alum+Poly)
Shield Shielded
Riser Rating true
Insulation Type PP - Polypropylene
UL Listing Numbers UL1666

Technical Specifications

Voltage Rating 300V
Ampacity Rating 2
Submersible No
Flexibility Rating Very Good
Temperature Rating -20°C To +75°C
Standards Outdoor
UL1666 Riser
Article 800, CMR
CMG
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
China RoHS II (GB/T 26572-2011)
Miscellaneous Information Because pricing for the Belden 5508FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate.
RoHS Compliance Yes

Usage & Installation:

Primary ApplicationsCommercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring.
Common Uses
  • Door contacts
  • motion sensors
  • glass-break detectors
  • security control panels
  • two-way communication systems
  • card readers
  • keypad data lines
  • security sensors.

Packaging & Dimensions:

Weight per Foot 0.036 lb
