Parent SKU : BDN5501FE
SKU : BDN5501FE-500
| Wire Size (AWG/MCM) | 22 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.127 in. |
| Jacket Type | PVC |
| Conductor Count | 3 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 6 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 CPR Euroclass: Eca; CPR UKCA Class: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5501FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.015 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The 5501FE is designed specifically for commercial use in security systems, intercom/PA systems, and sound/audio applications. Because it features a foil shield, it is ideal for environments where electromagnetic interference (EMI) might disrupt the signal.
No. The 5501FE is CMR (Riser) rated. This means it is suitable for vertical runs between floors (risers) but cannot be used in environmental air spaces (plenums). If your project requires a plenum-rated version, you would typically look for the Belden 6501FE.
The 5501FE utilizes Belden’s patented Beldfoil® shield (an aluminum foil-polyester tape).

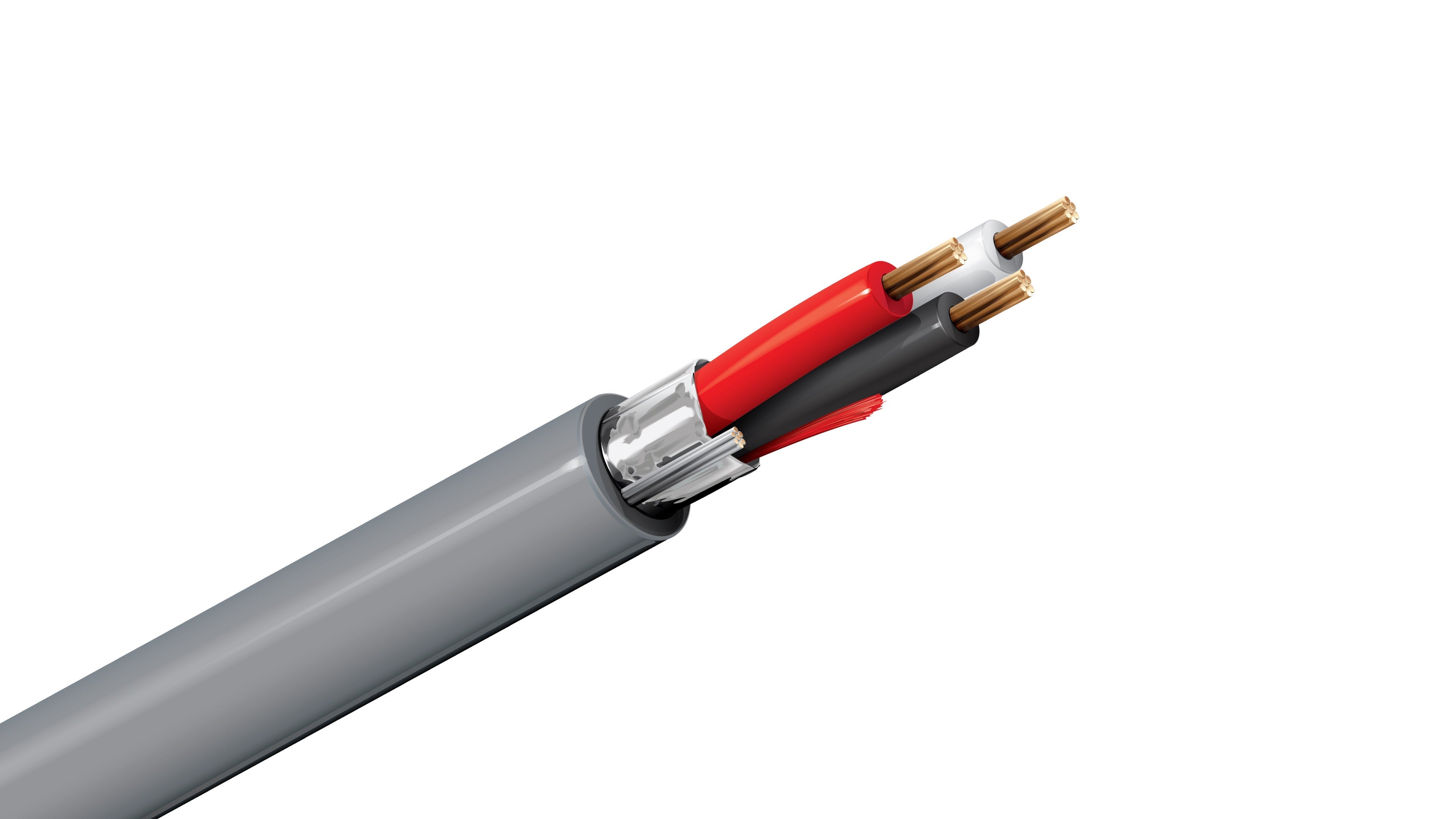

The 5501FE consists of 3 conductors made of stranded bare copper. It uses 22 AWG (American Wire Gauge) wire, which is the standard "sweet spot" for signal and control applications, balancing flexibility with signal integrity over distance.
The cable is wrapped in a Gray PVC (Polyvinyl Chloride) jacket. The nominal outside diameter is approximately 0.142 inches (3.61 mm), making it relatively thin and easy to pull through conduit or tight spaces.
