Parent SKU : BDN5500FH
SKU : BDN5500FH-500
| Wire Size (AWG/MCM) | 22 AWG |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.126 in. |
| Jacket Type | PVC |
| Conductor Count | 2 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 2.8 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL1666 Riser, FT4 Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5500FH fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.011 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5500FH is a specialized 22 AWG cable designed for commercial sound and security systems. Because of its smaller gauge and shielding, it is the industry standard for low-current applications like door contacts, motion sensors, keypad wiring, and line-level audio signals. The "FH" designation indicates a specific construction style—often featuring a tinned copper (TC) shield or conductors for enhanced corrosion resistance.
No. The 5500FH carries a CMR (Riser) rating, which means it is designed for vertical installations in building shafts (risers) and general-purpose in-wall use. It is not approved for use in environmental air plenums. If your project requires the cable to be run in plenum-rated ceilings or HVAC ducts, you must use the plenum-rated equivalent, Belden 6500FH.
This cable features an overall Beldfoil® shield supplemented by tinned copper elements.
The 22 AWG (American Wire Gauge) size is the "go-to" for data-heavy or low-power security components. It is thinner and more flexible than 18 AWG, making it much easier to pull through tight spaces and terminate into small, dense terminal blocks found on control boards and keypads. While it has higher resistance than thicker gauges, it is perfectly adequate for signal-level transmissions and low-voltage sensors over moderate distances.

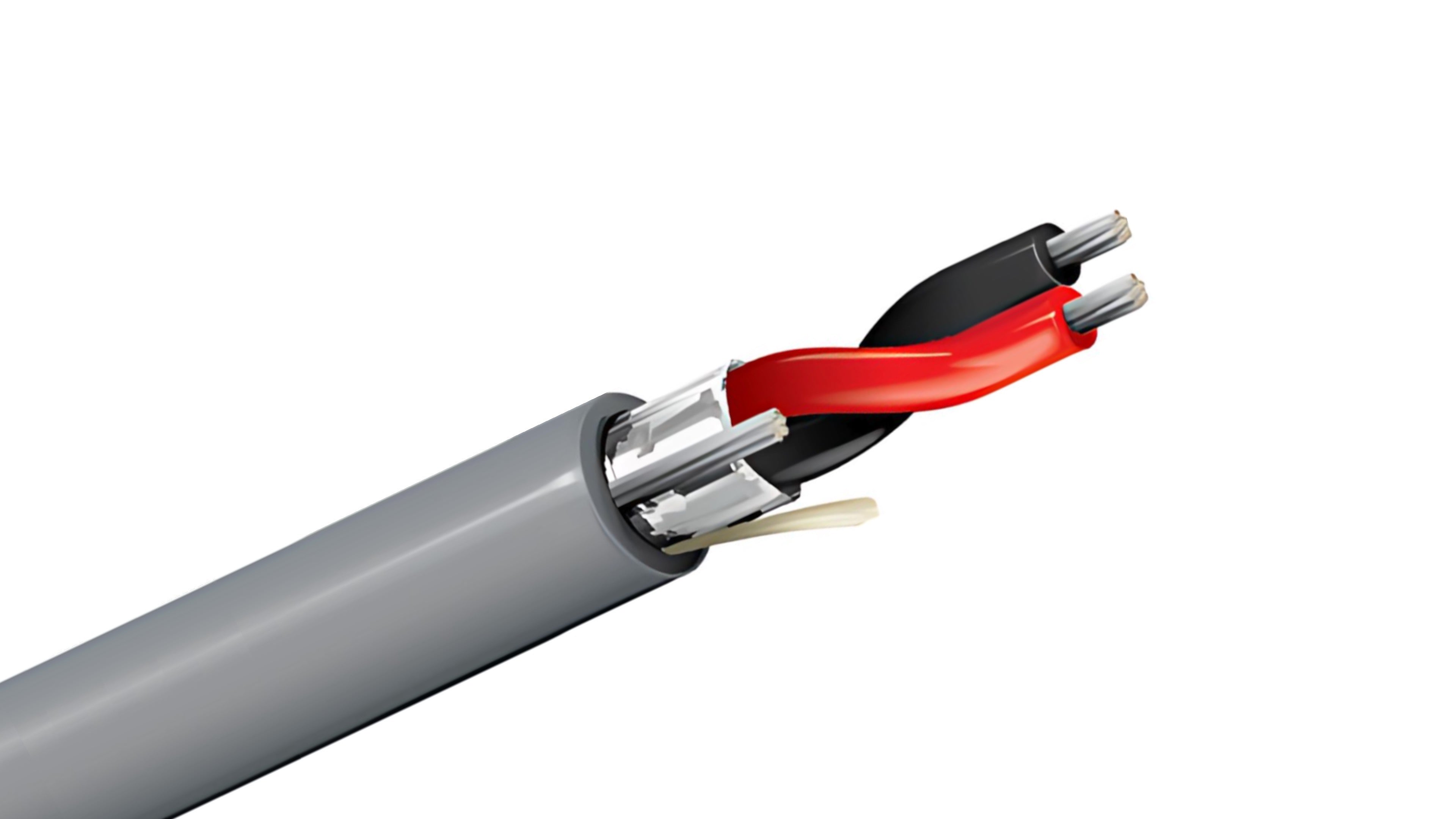

The cable is constructed with two stranded tinned copper conductors insulated with Polyvinyl Chloride (PVC). The assembly is wrapped in the overall Beldfoil shield and encased in a durable Gray PVC jacket. It has a very slim nominal outside diameter of approximately 0.126 inches. This small footprint allows for high-density wiring in crowded conduits and control panels.
