Parent SKU : BDN5407FE
SKU : BDN5407FE-500
| Wire Size (AWG/MCM) | 20 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.220 in. |
| Jacket Type | PVC |
| Conductor Count | 9 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 2.6 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor UL1666 Riser, FT4 Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5407FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.045 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5407FE is a multi-conductor shielded cable designed for high-density commercial sound, security, and control systems. With nine 20 AWG conductors, it is ideal for applications like complex access control panels (connecting multiple readers or sensors), multi-zone paging systems, and building automation controllers. The 20-gauge size is a "sweet spot" for many installers—offering more power-carrying capacity than 22 AWG while remaining easier to terminate in dense panels than 18 AWG.
No. The 5407FE carries a CMR (Riser) rating per UL1666. This rating means the cable is tested to resist the vertical spread of fire in building shafts (risers). It is approved for in-wall use and vertical runs between floors but is not permitted in environmental air plenums. If your project requires routing through a plenum-rated ceiling or duct, you must use the plenum-rated equivalent, Belden 6407FE.
This cable features an overall Beldfoil® shield (aluminum foil-polyester tape) providing 100% coverage. In a 9-conductor cable, shielding is vital to protect sensitive data signals from external electromagnetic interference (EMI) and to minimize internal crosstalk between the various signal paths. It also includes a tinned copper drain wire to ensure a consistent and easy-to-terminate ground connection for the shield.
The 9-conductor configuration allows for highly versatile wiring, enabling an installer to provide power, ground, and multiple signal/data returns for several devices in a single pull. The 20 AWG (American Wire Gauge) stranded bare copper conductors offer lower electrical resistance than standard 22 AWG wire, helping to mitigate voltage drop over moderate distances. This ensures that security hardware like keypads and card readers receive stable voltage for reliable operation.

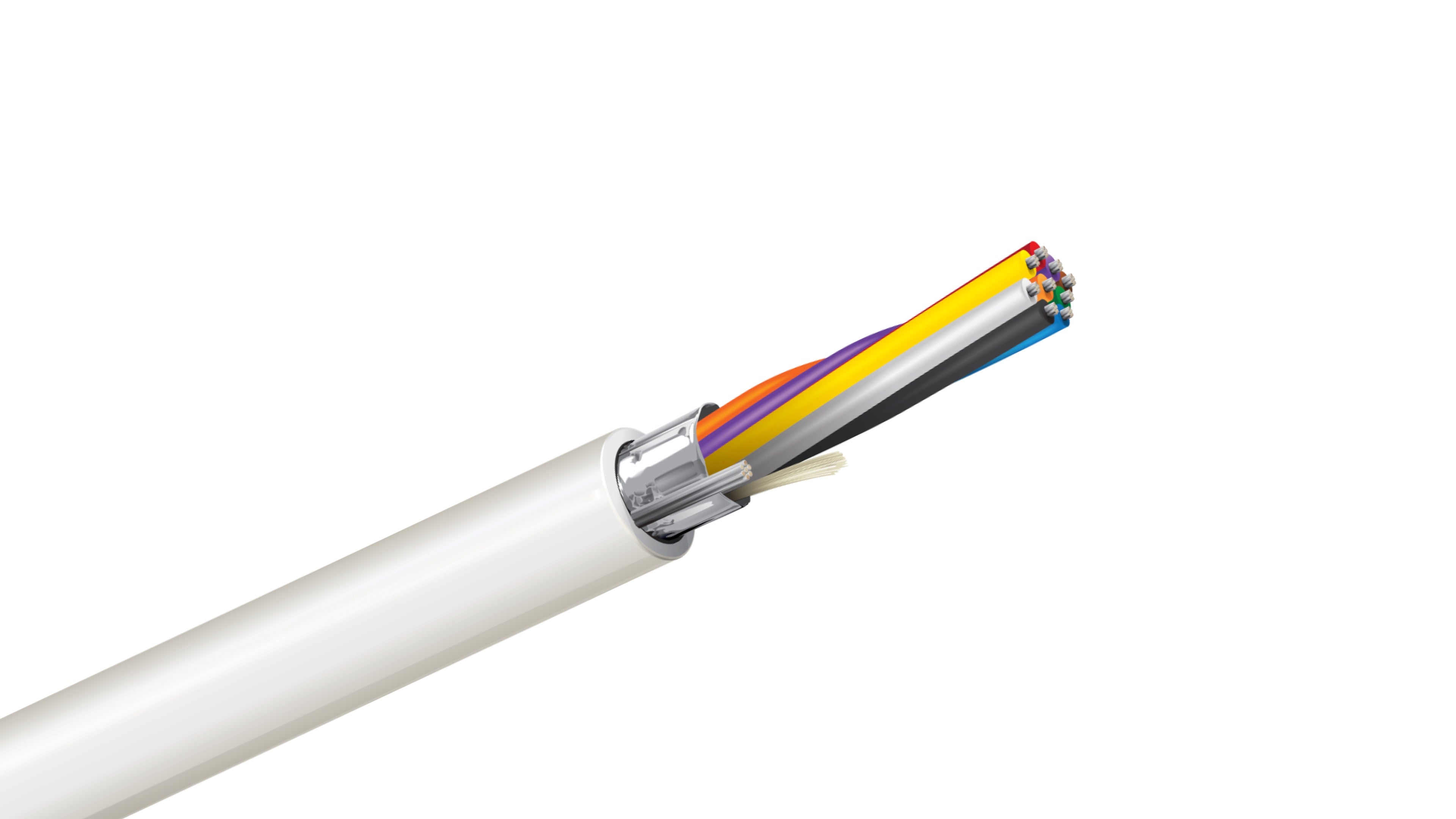

The 5407FE is constructed with nine stranded bare copper conductors insulated with polypropylene (PP). The assembly is wrapped in the overall Beldfoil shield and encased in a durable PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.231 inches. Despite the high conductor count, the 7x28 stranding ensures the cable remains flexible enough for efficient pulls through conduit and around tight turns in building infrastructure.
