Parent SKU : BDN5402FE
SKU : BDN5402FE-500
| Wire Size (AWG/MCM) | 20 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.163 in. |
| Jacket Type | PVC |
| Conductor Count | 4 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 6.4 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, IEEE 1202 FT4 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark UKCA Mark |
| Miscellaneous Information | Because pricing for the Belden 5402FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.024 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||

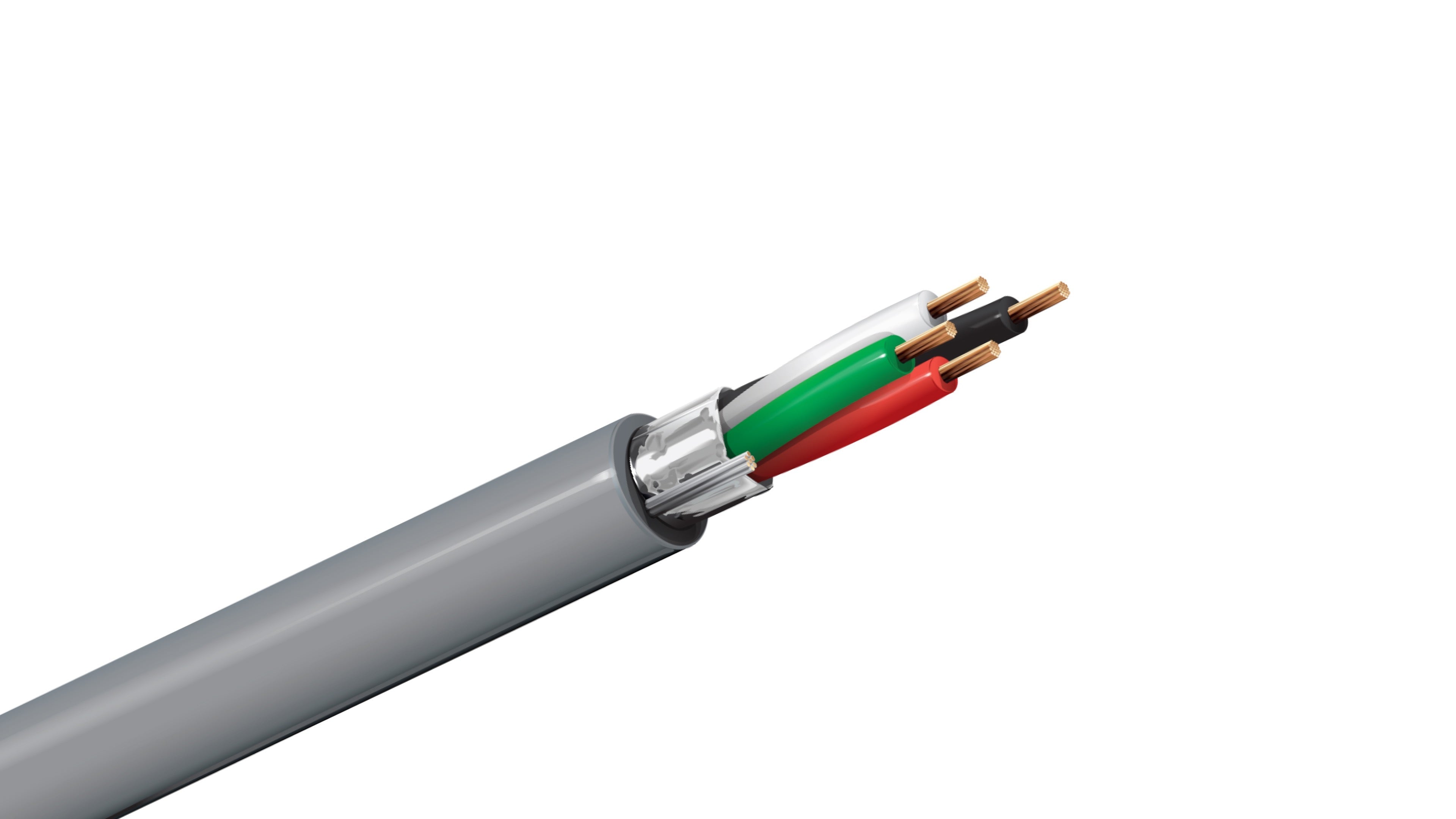

The Belden 5402FE is a multi-conductor shielded cable optimized for commercial security and professional audio environments. With four 20 AWG conductors, it is a "step up" in power capacity from standard 22 AWG wire, making it perfect for access control hardware, motorized camera controls, and high-fidelity intercom systems. It is commonly used where you need to run both power and data/signal to a single device.
No. The 5402FE is CMR (Riser) rated per UL1666. This indicates the cable is designed to resist the spread of fire vertically between floors and is suitable for general in-wall use. However, it lacks the low-smoke and low-flame properties required for environmental air plenums. If your installation requires routing through plenum ceilings or HVAC spaces, you must use the plenum-rated Belden 6402FE.
This cable features Belden’s patented Beldfoil® shield, an aluminum foil-polyester tape that provides 100% coverage. This is essential for protecting your signals from electromagnetic interference (EMI) and radio frequency interference (RFI) that can be generated by nearby fluorescent lighting or power lines. A 24 AWG tinned copper drain wire is included, allowing for a fast and reliable ground connection to drain off electrical noise.
The 20 AWG (American Wire Gauge) stranded bare copper conductors offer lower electrical resistance than 22 AWG. This results in less voltage drop, which is critical for ensuring that devices like magnetic door locks or electronic keypads receive the proper voltage at the end of a long run. The 20-gauge size also provides more physical tensile strength, reducing the risk of conductor breakage during difficult pulls through conduit.
The cable is built with four stranded bare copper conductors insulated with polypropylene (PP). These are wrapped in the overall Beldfoil shield and encased in a durable Gray PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.175 inches. This slim profile ensures the cable remains flexible and easy to "fish" through wall cavities or pull through crowded conduits.
