Parent SKU : BDN5343FE
SKU : BDN5343FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.318 in |
| Jacket Type | PVC |
| Conductor Count | 4 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 3.5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5343FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.068 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5343FE is a high-performance multi-pair cable designed for sophisticated commercial sound, security, and data control systems. Unlike standard multi-conductor cables, this features four twisted pairs (8 conductors total). It is the ideal choice for high-end access control systems, RS-422/RS-485 data communication, and multi-zone audio where reducing signal crosstalk is a primary concern. The 18 AWG conductors provide excellent power delivery for peripheral devices over long cable runs.
No. The 5343FE is CMR (Riser) rated per UL1666. This rating means the cable is designed to prevent the spread of fire vertically between floors in a building's riser shafts. It is not approved for use in environmental air plenums (such as the space above a drop ceiling used for HVAC return air). For plenum installations, you should specify the plenum-rated equivalent, Belden 6343FE.
The 5343FE uses twisted-pair geometry, which is specifically designed to cancel out electromagnetic interference and reduce crosstalk between the pairs. Combined with the overall Beldfoil® shield (100% coverage), this cable provides superior signal protection. This dual-layer defense is critical for high-speed data signals or low-level audio that must pass through environments with high electrical noise from lighting or machinery.
While standard data cables (like Cat5e or Cat6) use 23 or 24 AWG, the 18 AWG conductors in the 5343FE have significantly more copper. This lower resistance allows for much higher current capacity and less voltage drop. This is vital for "long-haul" security runs where the cable must provide both high-speed data and enough power to operate door locks, heaters for outdoor cameras, or high-output paging speakers.

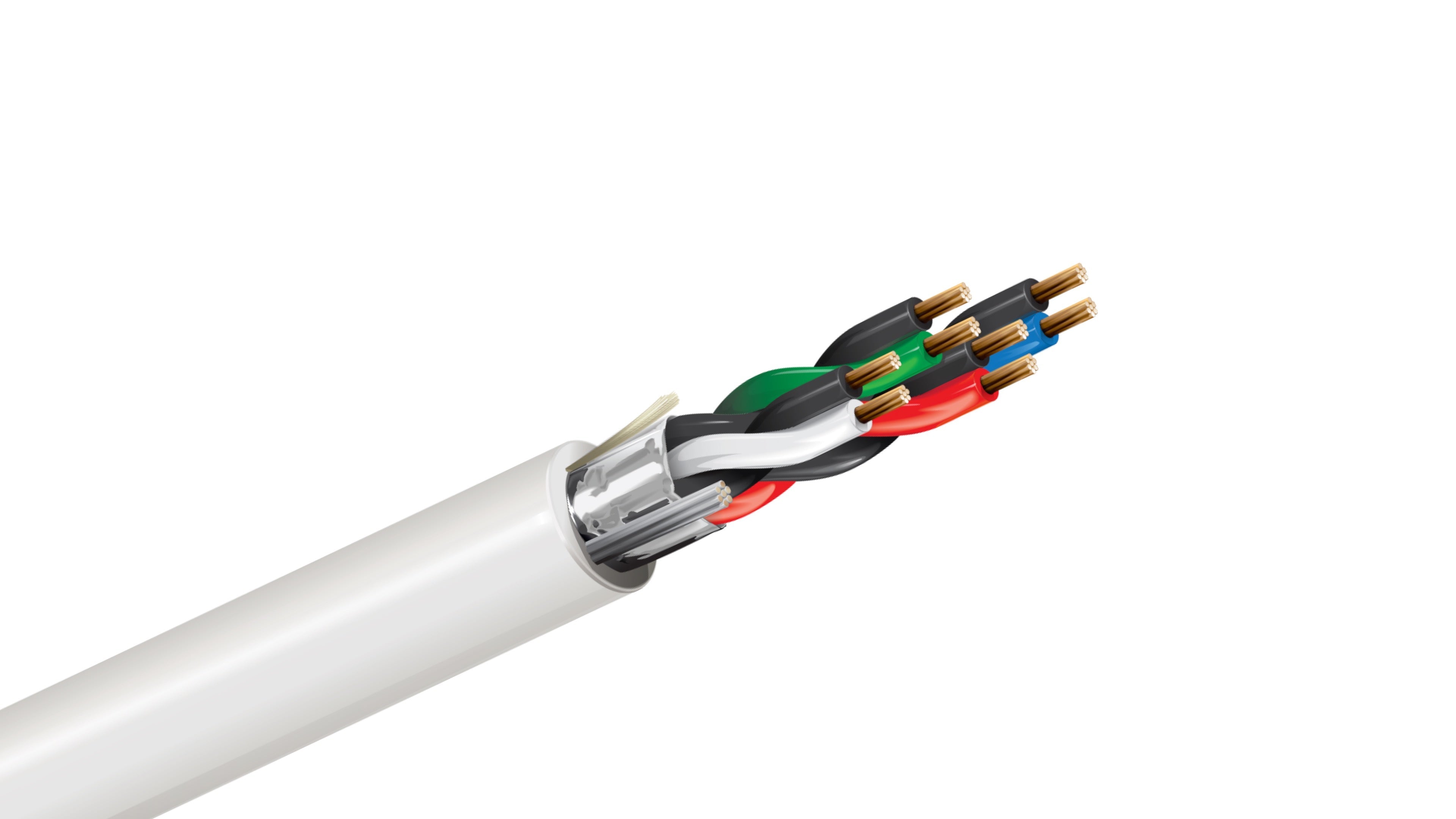

The cable is constructed with eight stranded bare copper conductors organized into four color-coded pairs. The pairs are insulated with Polyvinyl Chloride (PVC), wrapped in the overall Beldfoil shield, and encased in a durable PVC jacket. It has a nominal outside diameter of approximately 0.354 inches. Despite its higher conductor count, the stranded design ensures it remains flexible enough for pulling through commercial conduit systems.
