Parent SKU : BDN5342FE
SKU : BDN5342FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.275 in |
| Jacket Type | PVC |
| Conductor Count | 3 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 3.5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +105°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5342FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.048 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5342FE is a multi-pair shielded cable engineered for high-reliability commercial sound, security, and control applications. Featuring three twisted pairs (6 conductors total), it is commonly used for RS-422 and RS-485 data protocols, multi-zone audio systems, and access control hardware that requires separate pairs for data, power, and auxiliary signals. The 18 AWG gauge is specifically chosen for longer runs where voltage drop and signal strength are primary concerns.
No. The 5342FE carries a CMR (Riser) rating per UL1666. This rating signifies that the cable is designed to resist the spread of fire in vertical shafts between floors and is suitable for general in-wall use. However, it does not meet the strict low-smoke and low-flame requirements for environmental air plenums. For installations requiring a plenum-rated cable, you should use Belden 6342FE.
This cable utilizes a twisted-pair design, where each pair of wires is twisted together to cancel out electromagnetic interference (EMI) and reduce "crosstalk" between the different signals inside the jacket. This is further enhanced by Belden’s Beldfoil® shield (100% coverage), which blocks external radio frequency interference (RFI). This combination is essential for maintaining the integrity of data transmissions or low-level audio signals in environments with high electrical noise.
While 22 AWG is standard for short security runs, 18 AWG provides significantly more copper cross-section. This results in lower electrical resistance, allowing for higher current capacity and minimal voltage drop over long distances. In practical terms, this ensures that card readers, electronic locks, or paging speakers at the end of a 500-foot run receive the same consistent voltage as those closer to the control panel.

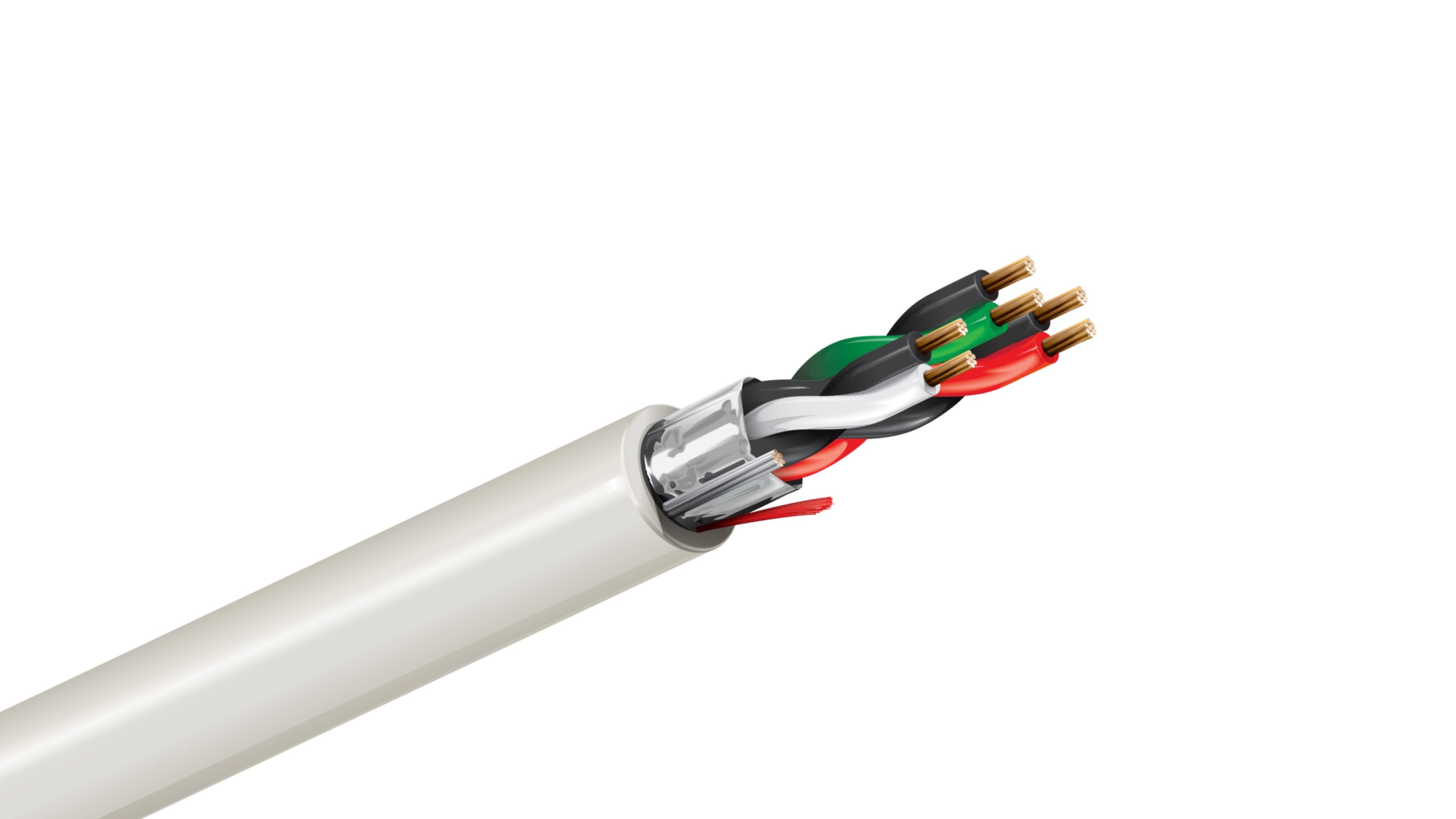

The 5342FE is constructed with six stranded bare copper conductors arranged in three color-coded twisted pairs. The conductors are insulated with Polyvinyl Chloride (PVC) and protected by an overall aluminum foil-polyester shield (Beldfoil). The entire assembly is encased in a durable PVC jacket with a nominal outside diameter of approximately 0.316 inches. The stranded conductor design ensures the cable remains flexible and easy to handle during complex conduit pulls.
