Parent SKU : BDN5320FE
SKU : BDN5320FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.155 in. |
| Jacket Type | PVC |
| Conductor Count | 2 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 0°C To +75°C |
| Standards | Indoor - Riser, Indoor UL1666 Riser, FT4 Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5320FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.018 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5320FE is a specialized shielded cable designed for commercial sound, security, and low-voltage control circuits. Unlike the more common stranded versions, this cable features solid conductors, making it an excellent choice for permanent installations where the cable will be terminated into IDC (Insulation Displacement Connector) blocks or screw terminals. It is frequently used for security sensors, intercom systems, and power-limited control circuits.
No. The 5320FE carries a CMR (Riser) rating, which means it is designed for vertical installations in building shafts (risers) and general-purpose in-wall use. It is not approved for use in environmental air plenums. If your installation requires the cable to run through plenum-rated ceilings or HVAC ducts, you must use the plenum-rated equivalent, Belden 6320FE.
This cable is equipped with Belden’s proprietary Beldfoil® shield (aluminum foil-polyester tape), providing 100% coverage. This shielding is essential for blocking electromagnetic interference (EMI) and radio frequency interference (RFI) that can cause signal noise or data errors. Because it uses a solid conductor, the shield maintains a very consistent profile. A 24 AWG tinned copper drain wire is included to facilitate a reliable and easy ground termination.
The use of solid 18 AWG bare copper conductors provides several advantages in specific environments. Solid wire has slightly lower DC resistance than stranded wire of the same gauge, which helps minimize voltage drop over very long runs. Additionally, solid conductors are much easier to punch down into terminal blocks and provide a more stable connection in permanent installations where the cable will not be subjected to frequent bending or vibration.

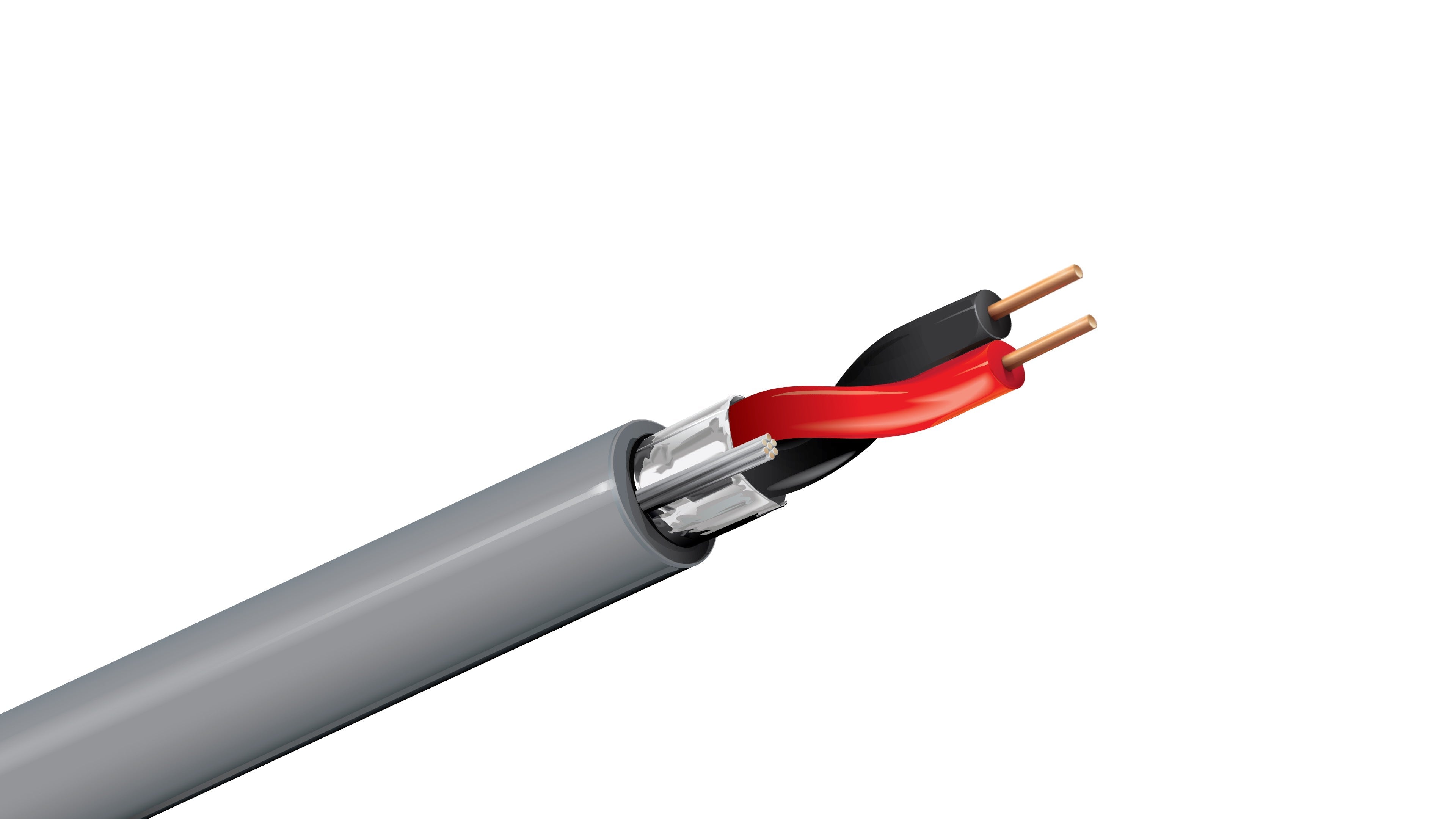

The 5320FE is constructed with two solid bare copper conductors insulated with polypropylene (PP). The assembly is wrapped in the overall Beldfoil shield and encased in a durable Gray PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.162 inches. The solid core makes the cable slightly stiffer than its stranded counterparts, which can actually assist in "fishing" the wire through wall cavities and short conduit runs.
