Parent SKU : BDN5306FE
SKU : BDN5306FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.245 in. |
| Jacket Type | PVC |
| Conductor Count | 8 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 3.5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5306FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.06 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5306FE is a multi-conductor shielded cable designed for commercial sound, security, and control systems. With eight 18 AWG conductors, it is specifically intended for applications requiring multiple signal and power paths, such as complex access control systems, multi-zone intercoms, and building automation controllers. The 18-gauge conductors provide enough current-carrying capacity to power peripheral devices like card readers and door strikes over moderate distances.
No. The 5306FE is CMR (Riser) rated, meaning it is designed for vertical installations in building shafts (risers) and general in-wall use. It is not rated for use in environmental air plenums. If your project requires the cable to be run in a plenum-rated ceiling or air-handling space, you must use the plenum-rated equivalent, Belden 6306FE.
This cable features Belden’s patented Beldfoil® shield, which is an aluminum foil-polyester tape providing 100% coverage. In an 8-conductor cable, this shielding is critical for preventing electromagnetic interference (EMI) from disrupting sensitive data signals and minimizing crosstalk between the internal conductors. A tinned copper drain wire is included to facilitate a quick and reliable ground for the shield.
The 18 AWG (American Wire Gauge) stranded bare copper conductors offer lower electrical resistance compared to standard 22 AWG wire. This allows for reduced voltage drop on power-carrying lines, ensuring that security and audio devices function correctly at the end of longer cable runs. The stranded construction maintains the cable's flexibility, even with the higher conductor count, making it easier to pull through conduit and around bends.

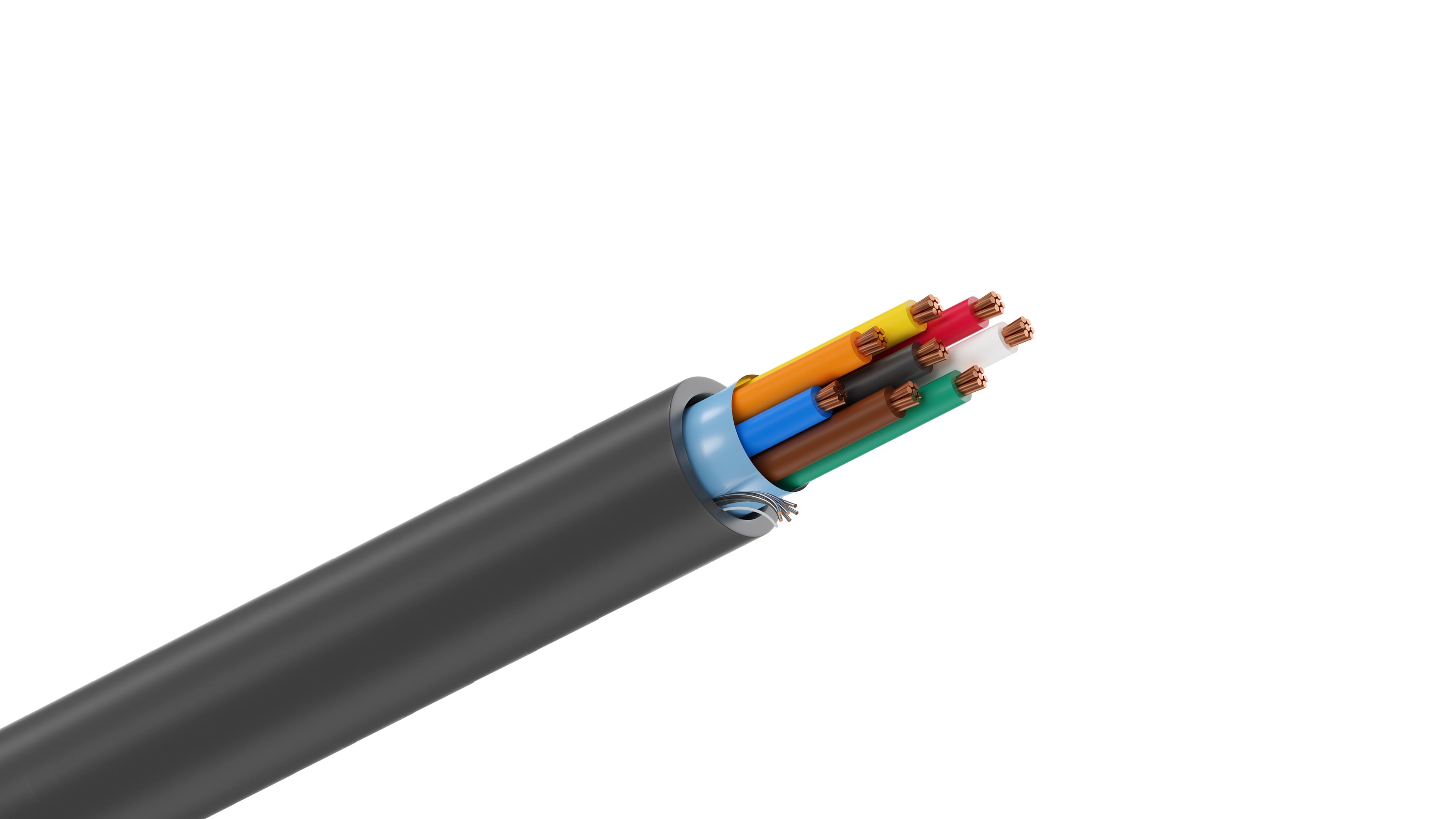

The 5306FE consists of eight stranded bare copper conductors insulated with polypropylene. These are wrapped in the overall Beldfoil shield and encased in a durable Gray PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.245 inches. The jacket is designed to be easily stripped while providing adequate protection against the physical stresses of professional installation.
