Parent SKU : BDN5304FE
SKU : BDN5304FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.215 in. |
| Jacket Type | PVC |
| Conductor Count | 6 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PO - Polyolefin |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 9.8 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5304FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.045 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||

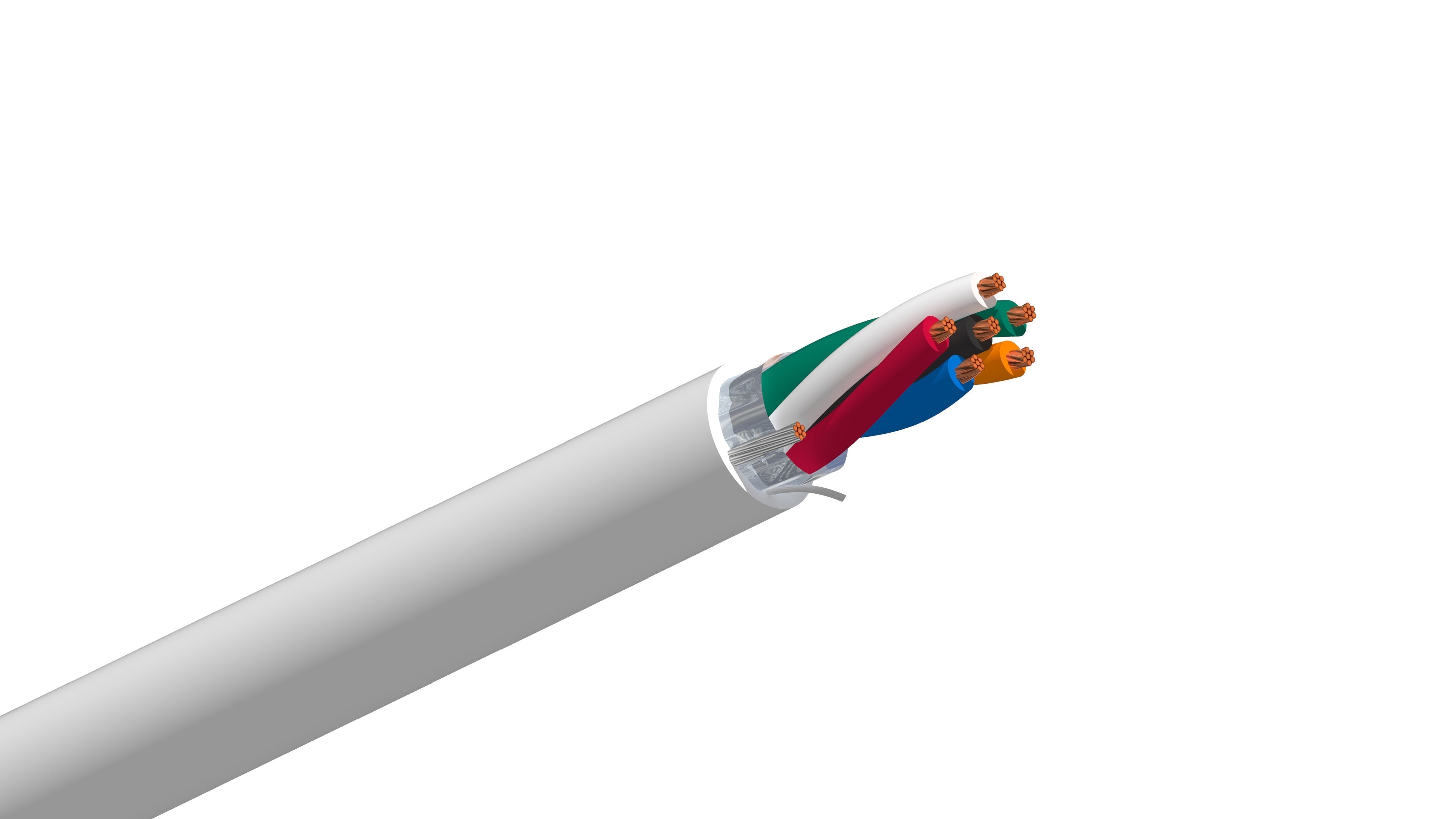

The Belden 5304FE is a multi-conductor shielded cable designed for commercial sound, security, and control systems. With six 18 AWG conductors, it is an excellent choice for applications that require multiple data or power paths, such as access control systems, multi-zone paging, and sophisticated building automation. The 18-gauge size is robust enough to provide power to card readers, sensors, and low-voltage actuators while maintaining signal integrity.
No. The 5304FE is CMR (Riser) rated, which means it is designed for vertical installations in building shafts (risers) and general-purpose in-wall use. It has been tested to prevent the spread of fire between floors, but it does not meet the strict low-smoke and low-flame requirements for environmental air plenums. For installations in plenum ceilings or ducts, you must use the plenum-rated equivalent, Belden 6304FE.
This cable features Belden’s patented Beldfoil® shield, an aluminum foil-polyester tape that provides 100% coverage. In a 6-conductor configuration, this shielding is critical for preventing electromagnetic interference (EMI) from distorting audio signals or causing data errors in control circuits. The cable also includes a tinned copper drain wire to simplify the grounding of the shield, ensuring a clean electrical environment for sensitive electronics.
The 18 AWG (American Wire Gauge) stranded bare copper conductors offer significantly lower electrical resistance compared to standard 22 AWG wire. This reduces voltage drop, which is vital for ensuring that devices at the end of a long cable run receive the correct amount of power. The six-conductor layout allows for versatile wiring, such as providing power, ground, and multiple signal returns for a single zone or device in one pull.
The cable is constructed with six stranded bare copper conductors insulated with polypropylene (PP). These conductors are protected by the overall Beldfoil shield and encased in a PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.214 inches. This profile is thin enough to remain flexible for pulls through conduit while being durable enough for professional commercial installations.
