Parent SKU : BDN5302FE
SKU : BDN5302FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.180 in. |
| Jacket Type | PVC |
| Conductor Count | 4 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PO - Polyolefin |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 4 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5302FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.036 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5302FE is one of the most popular multi-conductor cables for commercial security and professional audio. With four 18 AWG conductors, it is the standard choice for access control systems (connecting card readers and door contacts), pan-tilt-zoom (PTZ) camera telemetry, and high-performance speaker runs. The 18-gauge wire provides a robust path for both signal and low-voltage power over significant distances.
No. The 5302FE carries a CMR (Riser) rating, which means it is designed for vertical runs between floors and general in-wall applications. It has been fire-tested to ensure it does not easily carry a flame between floors, but it does not meet the strict low-smoke and low-flame requirements for environmental air plenums. For plenum installations, the Belden 6302FE is the correct alternative.
This cable uses Belden’s patented Beldfoil® shield, which consists of an aluminum foil-polyester tape providing 100% coverage. In a 4-conductor setup, shielding is vital to protect sensitive data signals from electromagnetic interference (EMI) caused by nearby lighting or power cables. The included tinned copper drain wire allows for easy and reliable grounding of the shield to eliminate unwanted noise or signal interference.
The 18 AWG (American Wire Gauge) stranded bare copper conductors offer significantly lower electrical resistance than standard 22 AWG security wire. This reduction in resistance prevents voltage drop, ensuring that electronic locks, motion sensors, or speakers receive the necessary power at the end of a long run. Having four conductors in one jacket allows for two separate circuits or a combination of power and data to be pulled simultaneously, saving labor costs.

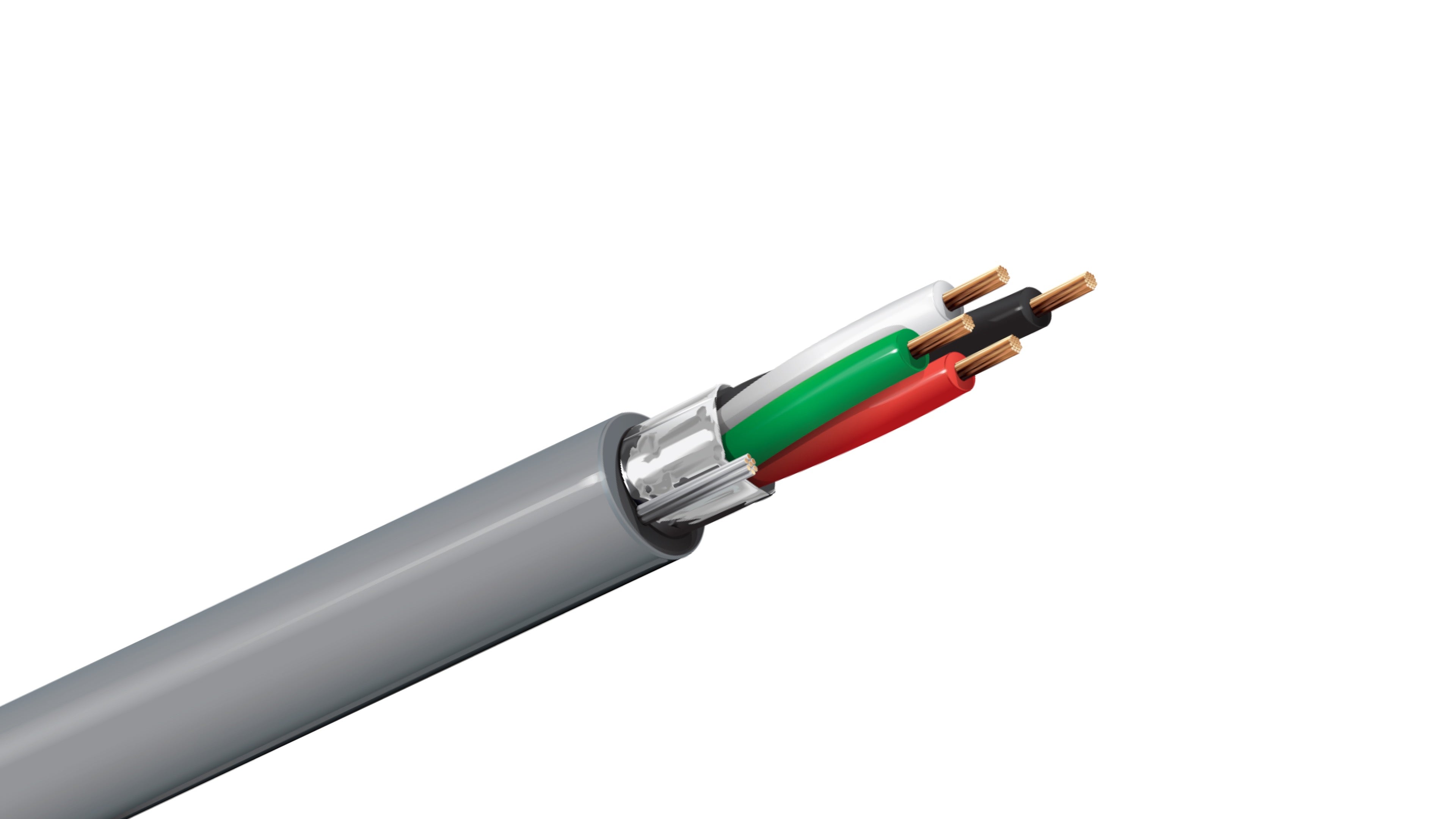

The cable is constructed with four stranded bare copper conductors insulated with polypropylene (PP). These are protected by the overall foil shield and encased in a durable PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.188 inches. This slim, flexible profile is designed for easy pulling through conduit and maneuvering within crowded electrical boxes or wall cavities.
