Parent SKU : BDN5300FE
SKU : BDN5300FE-500
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.162 in. |
| Jacket Type | PVC |
| Conductor Count | 2 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PO - Polyolefin |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 5 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5300FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.019 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||

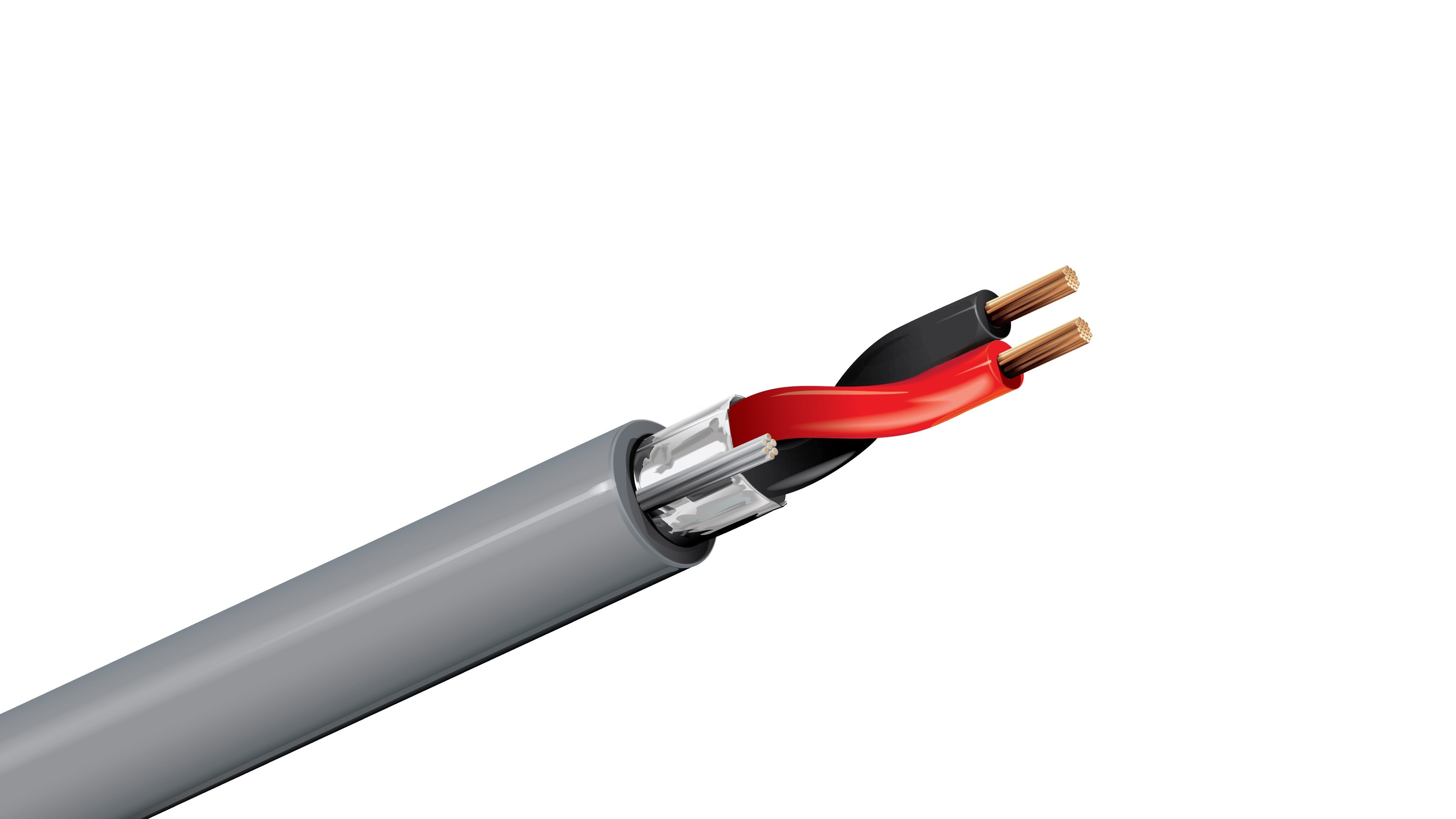

The Belden 5300FE is one of the most widely used shielded cables for commercial security and professional audio systems. Its 18 AWG conductors make it the "standard" choice for general-purpose applications such as smoke detector circuits, intercom and PA systems, and security control signals. It provides a reliable balance of flexibility and power-carrying capacity for low-voltage devices.
No. The 5300FE is CMR (Riser) rated, which means it is designed for vertical installations between floors and general in-wall use. It is not rated for use in environmental air plenums. If your project requires the cable to be run in a plenum-rated ceiling or air-handling space, you must use the plenum-rated equivalent, Belden 6300FE.
This cable features Belden’s patented Beldfoil® shield, an aluminum foil-polyester tape that provides 100% coverage around the two conductors. This shielding is essential for blocking electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring that audio remains clear and data signals remain stable. It also includes a tinned copper drain wire to facilitate a quick and reliable ground termination.
The 18 AWG (American Wire Gauge) stranded bare copper conductors offer significantly lower electrical resistance compared to 22 AWG "station wire." This reduction in resistance is vital for preventing voltage drop over longer cable runs, ensuring that security sensors or speakers at the end of a run receive the necessary power. The 18-gauge size also provides more physical strength, making it more resilient during the pulling process through wall studs or conduit.
The 5300FE is constructed with two stranded bare copper conductors insulated with polypropylene (PP). These are protected by the overall foil shield and encased in a durable Gray PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.162 inches. This slim profile, combined with the flexibility of the 7x26 stranding, allows for easy installation in tight spaces and around sharp bends in building infrastructure.
