Parent SKU : BDN5201FE
SKU : BDN5201FE-500
| Wire Size (AWG/MCM) | 16 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.191 in. |
| Jacket Type | PVC |
| Conductor Count | 3 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PO - Polyolefin |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 6.25 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5201FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.036 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5201FE is a robust 16 AWG cable designed for professional sound and security installations. The 3-conductor configuration is particularly useful for balanced line audio, intercom systems, and security sensors that require a power, ground, and signal wire. Its 16-gauge thickness makes it a preferred choice for mid-to-long distance runs where signal degradation and voltage drop must be kept to a minimum.
No. The 5201FE carries a CMR (Riser) rating, which signifies it is tested for vertical installations in building shafts (risers) and general-purpose in-wall use. It is not approved for use in environmental air plenums. If your installation requires the cable to run through plenum-rated ceilings or ducts, you will need to specify the Belden 6201FE.
This cable features Belden’s proprietary Beldfoil® shield, an aluminum foil-polyester tape that provides 100% coverage around the three conductors. This shielding is essential for blocking electromagnetic interference (EMI) and radio frequency interference (RFI) which can cause "hum" in audio systems or false triggers in security hardware. A 24 AWG tinned copper drain wire is included to facilitate a quick and effective ground termination.
While 22 AWG is common for basic sensors, 16 AWG provides significantly more copper mass, resulting in much lower electrical resistance. This is crucial for powering high-current devices like magnetic locks (Maglocks), motorized PTZ cameras, or high-fidelity paging speakers. Using 16 AWG ensures that the device at the end of a long run receives the necessary voltage to operate reliably.

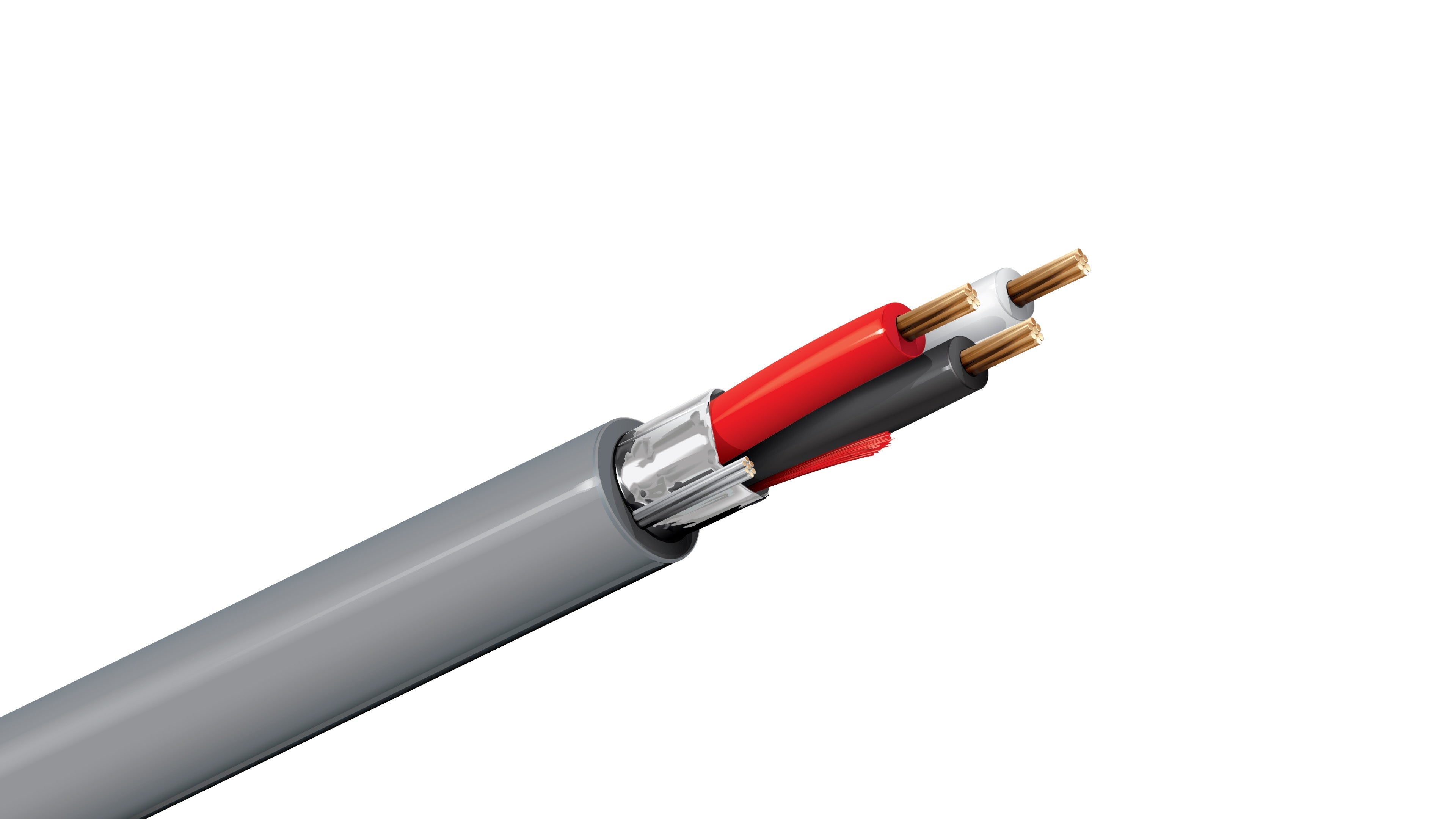

The cable is built with three stranded bare copper conductors insulated with polypropylene. The assembly is wrapped in the Beldfoil shield and protected by a Gray PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.190 inches. This thin profile, combined with the flexible stranded conductors, allows for easier pulls through conduit and tight wall cavities compared to solid-conductor alternatives.
