Parent SKU : BDN5200FE
SKU : BDN5200FE-500
| Wire Size (AWG/MCM) | 16 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.180 in. |
| Jacket Type | PVC |
| Conductor Count | 2 |
| Shield Coverage % | 1 |
| Shield Type | Bi-Laminate (Alum+Poly) |
| Shield | Shielded |
| Riser Rating | true |
| Insulation Type | PP - Polypropylene |
| UL Listing Numbers | UL1666 |
| Voltage Rating | 300V |
| Ampacity Rating | 6.25 |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | -20°C To +75°C |
| Standards | Indoor - Riser, Indoor UL 1666 Riser, FT4, IEC 60332-1-2 CPR Euroclass: Eca Article 800, CMR CMG EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UKCA Mark China RoHS II (GB/T 26572-2011) |
| Miscellaneous Information | Because pricing for the Belden 5200FE fluctuates based on copper market spot prices and volume requirements, we provide custom quotes to ensure you get the most competitive project rate. |
| RoHS Compliance | Yes |
| Primary Applications | Commercial Security Systems, Intercom & PA Systems, Access Control, Background Music (BGM), High-Rise Security Grids, Card Access Headers, Industrial Monitoring. |
| Common Uses |
|
| Weight per Foot | 0.031 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
The Belden 5200FE is a high-quality shielded cable used extensively in commercial sound and security systems. The 16 AWG thickness is ideal for applications that require a balance between power and signal, such as high-output speaker runs, door security hardware (like electric strikes), and long-distance intercom or paging systems where signal loss must be minimized.
No. The 5200FE is CMR (Riser) rated, which means it is designed for vertical installations in building shafts (risers) and general in-wall use. It is not approved for environmental air plenums. If your installation requires routing through a plenum-rated ceiling or air handling space, the Belden 6200FE is the appropriate plenum-rated equivalent.
This cable features Belden’s patented Beldfoil® shield (an aluminum foil-polyester tape) providing 100% coverage. This shielding protects the signal from electromagnetic interference (EMI) and radio frequency interference (RFI), which is critical for maintaining clear audio in noisy environments. It also includes a tinned copper drain wire to simplify the process of grounding the shield.
The 16 AWG (American Wire Gauge) stranded bare copper conductors provide lower electrical resistance than standard 18 or 22 AWG wires. This is essential for preventing voltage drop over long distances. In audio applications, it ensures that paging and music systems maintain their volume and clarity, while in security applications, it ensures that devices like magnetic locks receive the consistent power they need to operate.

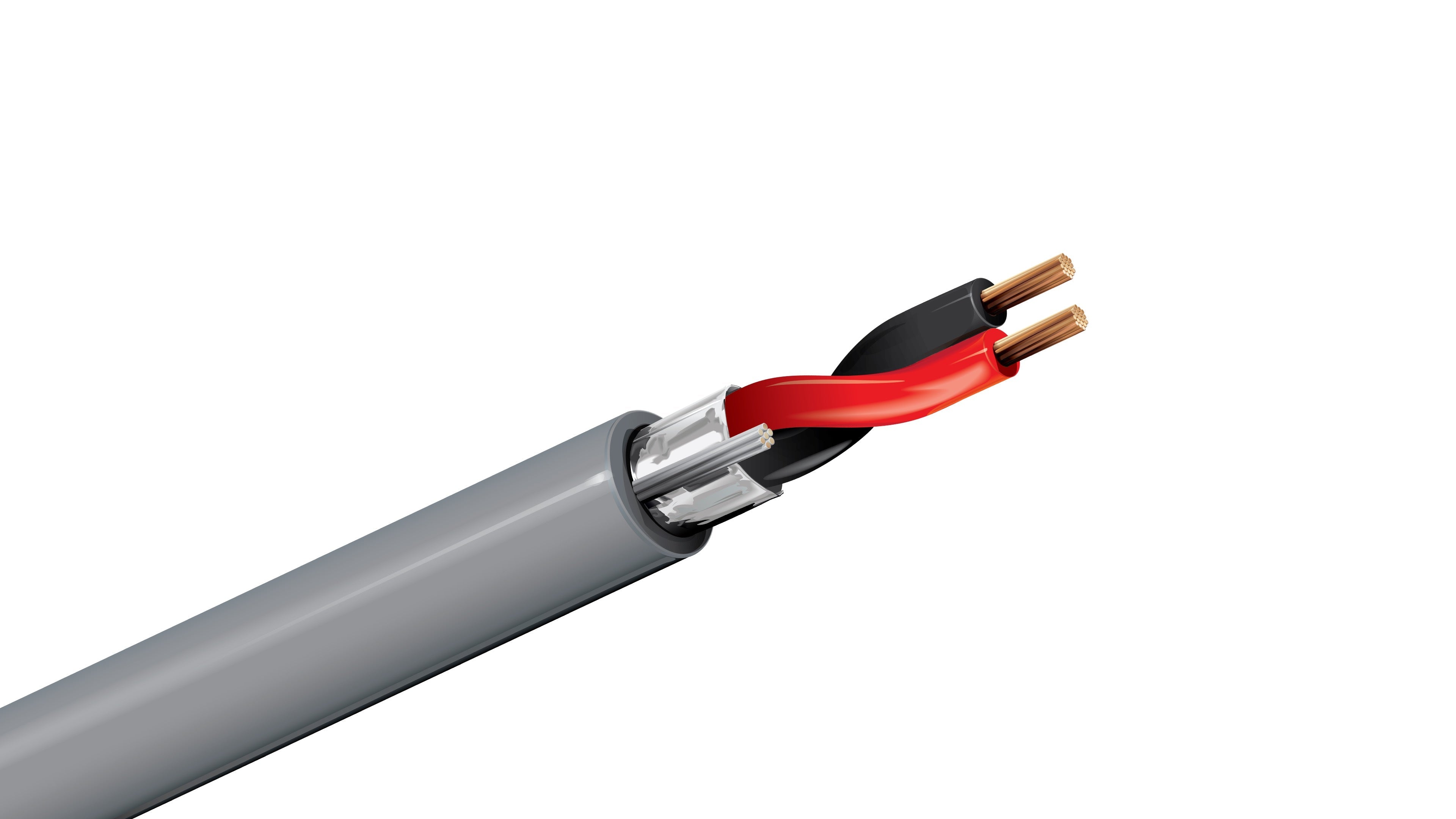

The cable is constructed with two stranded bare copper conductors insulated with polypropylene. These are protected by the overall foil shield and encased in a Gray PVC (Polyvinyl Chloride) jacket. It has a nominal outside diameter of approximately 0.184 inches, making it durable yet flexible enough for easy pulling through conduits or wall cavities.
