927.2 MCM Greely AAAC 6201-T81 All Aluminum Alloy Conductor

Name: 927.2 MCM Greely AAAC 6201-T81 All Aluminum Alloy Conductor
Brand: Wire America
SKU: GRE-AAAC-250
Availability: InStock

Parent SKU : GRE-AAAC

SKU : GRE-AAAC-250

6201-T81 ALUMINUM ALLOY • HIGH STRENGTH-TO-WEIGHT • CUT-TO-LENGTH

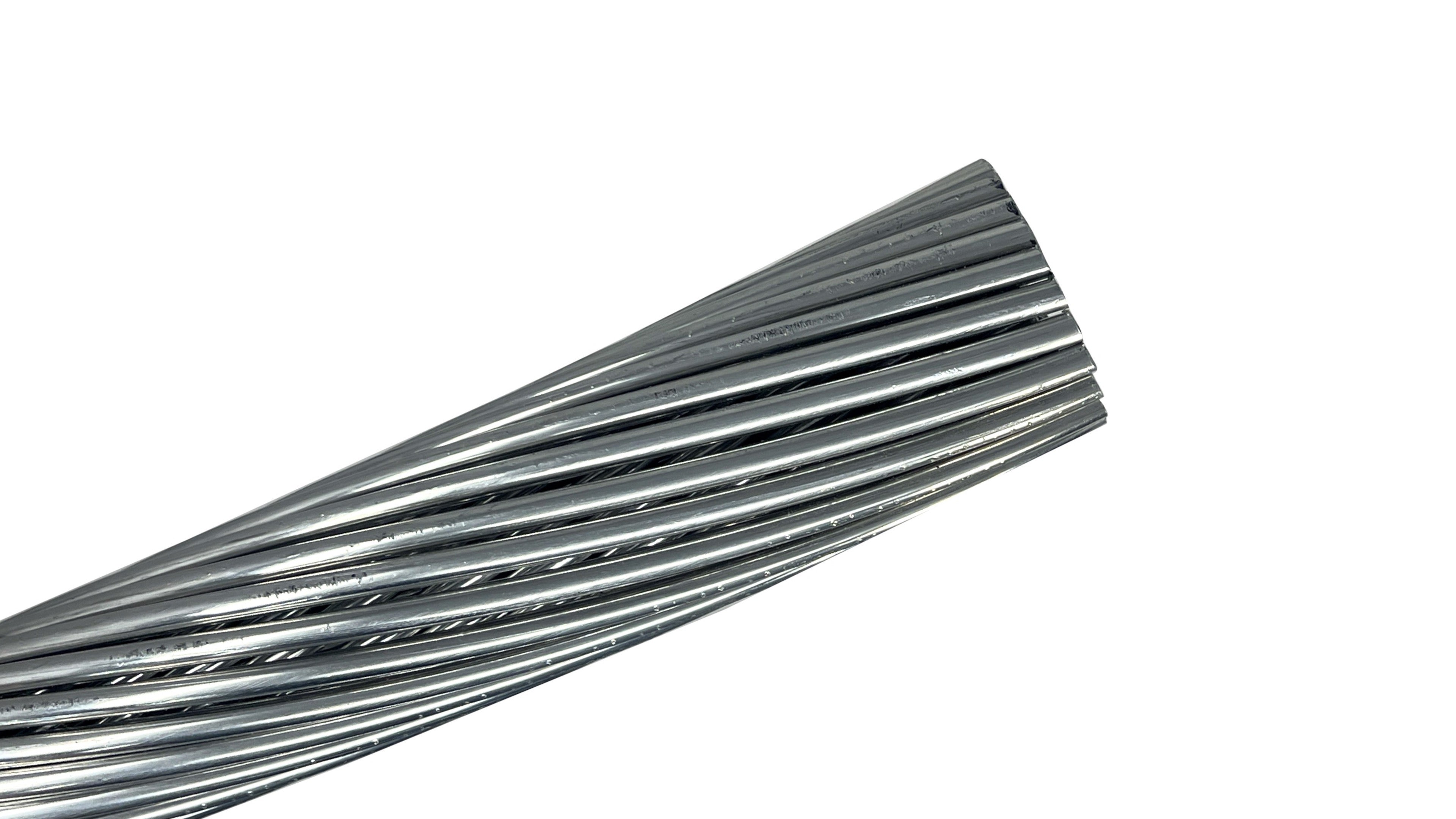

927.2 MCM Greely AAAC Conductor, 6201-T81 All Aluminum Alloy, 37 Strands, High Strength Overhead Transmission Wire.

Wire Size 927.2 MCM

Conductor Material Aluminum

Strand Count 37

Outer Diameter 1.108 in. / 28.14 mm

Ampacity Rating 908

Weight per Foot 0.865 lb

Get Product Details

APPLICATION:
AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.

CONDUCTOR:
Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentriclay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy

CONDUCTOR STRANDING:
37 Strands

INDIVIDUAL STRAND DIAMETER:
0.1583 in.

CROSS SECTIONAL AREA:
0.7282 Sq. in.

RATED BREAKING STRENGTH:
30,500 lbs.

RESISTANCE (Ohms/kft):
DC @ 20ºC - 0.0217
AC @ 75ºC - 0.0263

AMP RATING:
908 Amps

EQUIVALENT ACSR:
795.0 MCM Drake (26/7 Stranding)

All values are nominal and subject to correction. * Current ratings are based on 75ºC conductor temperature, 25ºC ambient, 2ft/s wind, in sun, .05 coefficients of emissivity and absorption. ** Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 52.5% IACS, AC resistance at 60 Hz.

See Full Specifications

Physical Specifications

Wire Size (AWG/MCM)	927.2 MCM
Conductor Material	Aluminum
Conductor Type	Stranded
Strand Count	37
Outer Diameter (OD) (in/mm)	1.108 in. / 28.14 mm
Conductor Count	1
Shield	Unshielded

Technical Specifications

Ampacity Rating	908
Submersible	No
Sunlight Resistance Rating	Yes
Standards	ASTM B-398 Aluminum-Alloy 6201-T81 and 6201-T83 Wire for Electrical Purposes ASTM B-399 Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors Requirements of the National Electrical Code RUS accepted
Miscellaneous Information	All values are nominal and subject to correction. Current ratings are based on 75ºC conductor temperature, 25ºC ambient, 2ft/s wind, in sun, .05 coefficients of emissivity and absorption. Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 52.5% IACS, AC resistance at 60Hz.

Usage & Installation

Primary Applications

Overhead Power Distribution, Railway and Metro Systems, Urban and Short-Span Distribution, Coastal and Corrosive Environments.

Packaging & Dimensions:

Weight per Foot

0.865 lb
