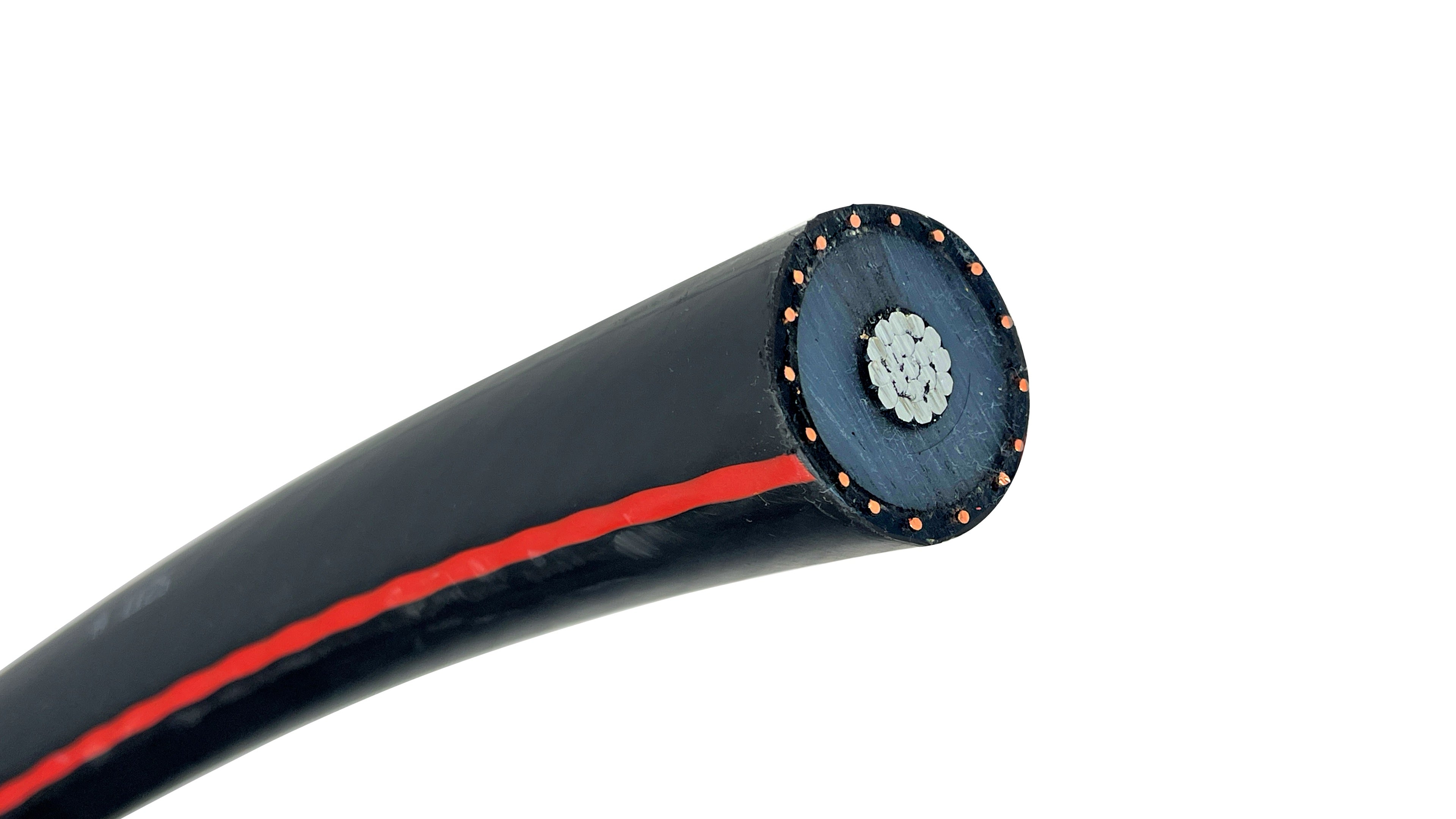

600 MCM Aluminum URD Cable 35kV 100% Insulation | Water Block 1/3 Neutral

"Industrial-scale primary power distribution—engineered with tree-retardant XLPE and dual-layer water blocking for maximum grid stability in ultra-high-load 35kV underground circuits."

Why Utilities Specify the 600 MCM 35kV URD

The 600 MCM 35kV URD cable is a specialized primary conductor engineered for applications where maximum ampacity is the priority. This gauge is a common choice for heavy industrial feeders and high-capacity utility interconnects that require more current density than the standard 500 MCM series can provide.

• Dual-Layer Water Block Protection: Moisture protection is critical for high-load conductors. This cable features a water-blocking compound within the conductor strands and water-swellable agents in the neutral layer, providing a complete longitudinal moisture seal to prevent "water treeing" over decades of service.

• Tree-Retardant XLPE (TR-XLPE): The 345-mil insulation wall is comprised of premium TR-XLPE. This material is chemically engineered to resist the electrochemical stressors that cause microscopic cracks in standard insulation, ensuring the cable survives in saturated or chemically active soil.

• 1/3 Concentric Neutral: Featuring 19 x #12 AWG (or equivalent conductivity) annealed bare copper wires, the 1/3 neutral configuration provides a high-capacity ground-fault path and excellent electrical stress control for ultra-high-load systems.

• Compact Stranded 1350-H19 Aluminum: The 600 kcmil aluminum core is compact-stranded to reduce the overall diameter and air gaps, allowing this high-capacity cable to be pulled through standard 5" or 6" primary duct banks.

Common 35kV Applications

• Major Industrial Interconnects: Providing 35kV primary service to large-scale refineries, steel mills, and heavy manufacturing campuses.

• High-Capacity Utility Hubs: Connecting primary substations to major localized distribution nodes in high-demand urban areas.

• Renewable Energy Infrastructure: Serving as a primary collector cable for the highest-capacity wind farms and solar arrays.

Technical Specifications

ENGINEERING OVERVIEW: 600 MCM HIGH CAPACITY DISTRIBUTION The 600 MCM 35kV URD cable is optimized for primary distribution applications requiring extreme current density and environmental resilience. With a robust nominal outer diameter of approximately 2.13", this cable is built for heavy-duty performance in primary ducts or direct burial installations.

APPLICATION: Aluminum Conductor MV-105 35kV water-blocked URD cable is primarily used for primary underground power distribution. It is suitable for use in wet or dry locations, installed in underground ducts or via direct burial.

CONDUCTORS: 600 MCM (600 kcmil) Compact or compressed aluminum 1350-H19 in Class B stranding.

CONDUCTOR WATER BLOCK: Water block compound filled conductor or water swellable tape over the conductor.

INSULATION: TR-XLPE (Tree-Retardant Cross-Linked Polyethylene) in 100% insulation level (345 Mils).

CONCENTRIC NEUTRAL WATER BLOCK: Semi-conducting water-swellable tape over the insulation shield or water-swellable powder between the concentric neutral strands.

CONCENTRIC NEUTRAL: 12 x #8 AWG Annealed bare copper wires (1/3 neutral conductivity).

JACKET: Sunlight resistant XLPE, black with three red stripes for easy high-voltage phase identification.

INDUSTRY STANDARDS & COMPLIANCE:

• UL 1072: Listed as Type MV-105

• ICEA S-94-649: Concentric Neutral Cables Rated 5 through 46kV

• AEIC CS8: Shielded Power Cables Rated 5 through 46kV

• Temperature Ratings: 105°C (Normal), 140°C (Emergency), 250°C (Short Circuit)

CABLE MARKING: PRIORITY WIRE AL TR-XLPE 35KV 100% INSUL LEVEL 345 MILS (UL) E364254 TYPE MV-105 XLPE WB SUN RES.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
