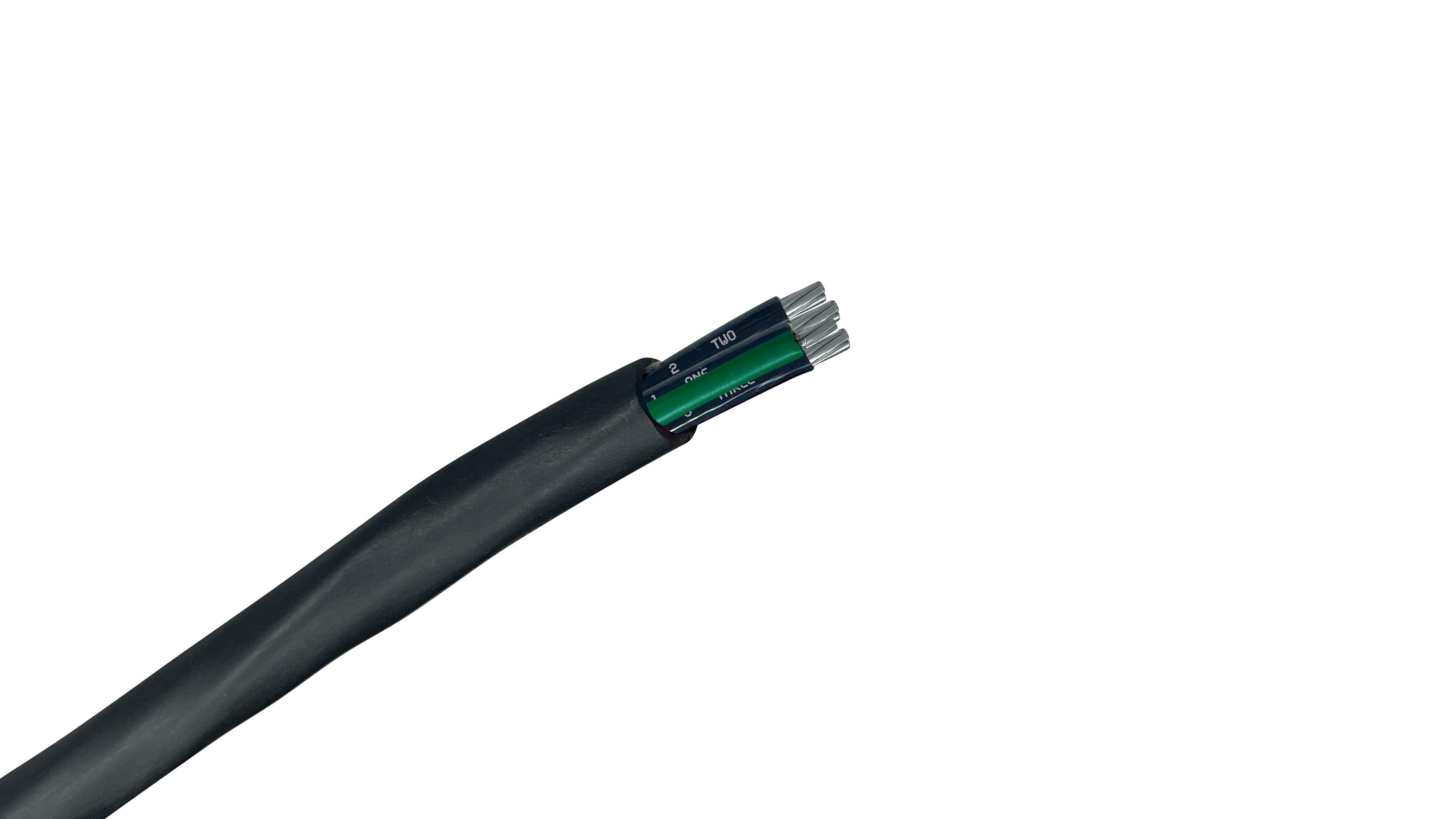

6 AWG 3C Aluminum Tray Cable with Ground Type TC-ER (XHHW-2 PVC)

An excellent choice for heavy industrial power distribution, commercial control systems, and residential generator or sub-panel feeds. Engineered as a Type TC-ER-JP (Exposed Run & Joist Pull) certified assembly, this 3-conductor plus insulated ground system features 600/1000V dual-rated cross-linked polyethylene (XHHW-2) insulated conductors protected by a sunlight-resistant Polyvinyl Chloride (PVC) outer jacket.

This specialized design allows installation crews to transition directly from open cable trays or pull the wire straight through residential framing joists. By removing the need for traditional, rigid protective conduit piping, this cable dramatically slashes both labor and material expenses on site.

Why Professionals Choose 6 AWG Aluminum TC-ER-JP Tray Cable

When wiring industrial plants, automated equipment, or utility substations, balancing material costs and labor time is paramount. The 6 AWG 3-Conductor Aluminum Tray Cable offers a highly cost-effective, lightweight alternative to heavy copper building wires.

Fabricated with Class B compact stranded AA-8000 series aluminum alloy, the assembly features individual Flame-Retardant Cross-Linked Polyethylene (FR-XLPE) insulated wires protected under a heavy-duty Polyvinyl Chloride (PVC) outer jacket. It functions effortlessly under extreme heat, continuous moisture, and aggressive chemical exposure, delivering high performance in wet, dry, or directly buried applications while preserving excellent installation flexibility.

• Exposed Run & Joist Pull (TC-ER-JP) Rating: Meets the stringent crush and impact requirements of UL 1277, allowing the cable to drop freely from open tray systems to machinery, or be pulled directly through framing wood or steel joists without conduit piping.

• Premium AA-8000 Conductors: Built with compact-stranded 8000-series aluminum alloy to guarantee maximum electrical conductivity, minimal weight strain during complex structural pulls, and effortless flexibility.

• XHHW-2 Core Insulation: Individual phase conductors are insulated with cross-linked polyethylene (XLPE / XHHW-2), ensuring full 90°C performance and superior resistance to thermal degradation, oils, and chemical exposure.

• Dual 600V/1000V Engineering: Rated for heavy industrial thresholds up to 1000 Volts, making it highly preferred for large utility panels, commercial HVAC setups, and factory power grids.

Technical Specifications: 6 AWG 3-Conductor Aluminum Tray Cable

• ENGINEERING OVERVIEW: 6 AWG 3-Conductor Aluminum Tray Cable with Ground (Type TC-ER-JP)

• Conductor Configuration: 3 Insulated Phase Conductors + 1 Insulated Ground Wire (4 Total Insulated Conductors)

• Cable Classification: Type TC-ER-JP / UL 1277 (Electrical Power and Control Tray Cables)



• Conductor Size: 6 AWG

• Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy

• Conductor Insulation: Flame retardant Cross-linked Polyethylene (FR-XLPE). XHHW-2 per UL 44

• Conductor Colors: Black insulation with ICEA Method 4 printed numbers, plus a Green insulated ground conductor.

• Ground Wire Size: 6 AWG (Green Insulated Conductor)

• Outer Jacket Material: Black Polyvinyl Chloride (PVC) - Sunlight & Moisture Resistant

• Voltage Rating: 600 Volts / 1000 Volts (1kV Dual Rated)

• Temperature Rating: 90°C (Wet or Dry Locations)

• Amp Rating (@ 75°C Terminals): 50 Amps

• Amp Rating (@ 90°C Terminals): 55 Amps

• Compliance Standards: UL 1277 (Type TC-ER-JP), UL 44 (Type XHHW-2), ASTM B800 & B801, NEC Article 336, Approved for Joist Pull applications per NEC guidelines, IEEE 1202/FT4 70,000 BTU/HR Vertical Tray Flame Test, Direct Burial rated, and Sunlight Resistant (UV) certified.

Common 6 AWG Aluminum Tray Cable Applications

• Industrial & Commercial Feeders: Widely specified to route primary power and distribution feeders through factory cable trays, raceways, and outdoor storage fields.

• Direct Burial Sub-Panels: Fully code-approved for direct burial in the earth, making it an exceptionally cost-effective alternative for feeding 50-Amp sub-panels in detached buildings or utility substations.

• Residential Generator Hookups: The "JP" rating makes this a preferred option for wiring home backup generators, allowing crews to pull the wire right through floor joists effortlessly.

• Wet & Harsh Environments: Engineered to excel in highly demanding environments including chemical processing facilities, wastewater treatment units, and petro-chemical plants.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes. Reference NEC Article 336 for specific Type TC installation guidelines.

Ampacity Note: Values calculated based on the National Electrical Code (NEC) Section 310.16 table. Because most standard commercial electrical panels, breakers, and terminal lugs feature 75°C termination points, circuits should be designed based on the conservative 50-Amp standard. The 55-Amp rating at 90°C is typically utilized for ampacity adjustment and correction factors.
