22-12C Unshielded Plenum Fire Alarm Cable

Parent SKU :  FAP-UNSHD22-12

SKU :  FAP-UNSHD22-12-500

UNSHIELDED FPLP PLENUM RATED FIRE ALARM CABLE. LOW SMOKE PVC JACKET.
Download Spec Sheet

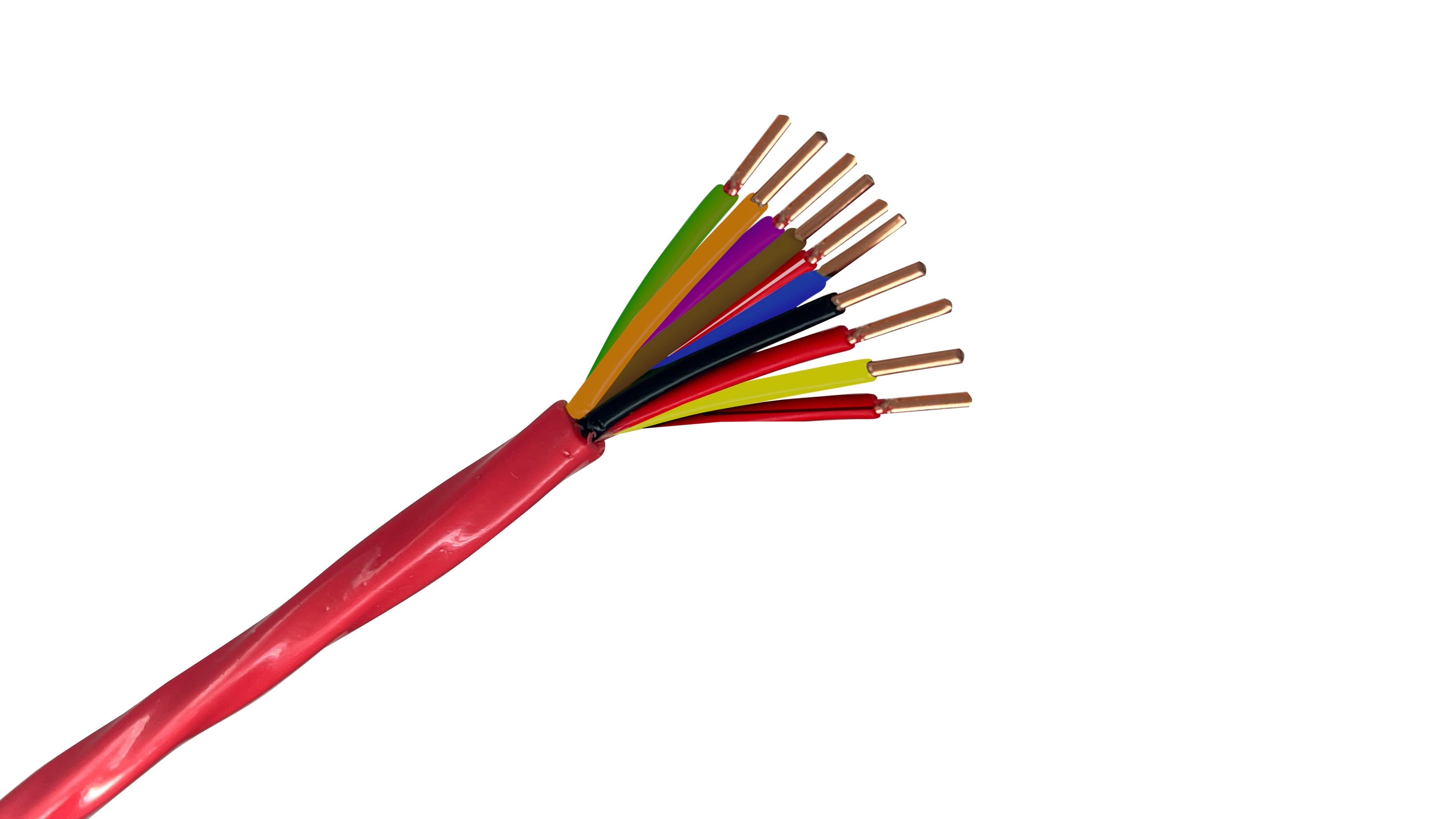

22-12 Unshielded Plenum Fire Alarm Cable, UL listed for low-smoke, fire-resistant signal and control installations, FPLP
Wire Size 22
Conductor Material Copper
Conductor Type Solid
Outer Diameter 0.225 in. / 5.72 mm
Conductor Count 12
Voltage Rating 300V
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Unshielded Plenum Rated Fire Alarm Cable is suitable for use in fire alarms, smoke detectors, burglar alarms, voice communications, power limited circuits, in air return plenums, and indoor nonconduit applications per NEC.

CONDUCTORS:
Solid soft drawn bare copper conductors.

CONDUCTOR COLORS:
Black, Red, Brown, Blue, Orange, Yellow, Purple, Green, Red/Black, Red/White, Red/Green, and Red/Blue

JACKET:
Overall red polyvinyl chloride (PVC) jacket, which is rated for use in temperatures from -20°C to +75°C

JACKET COLOR:
Red

INSULATION:
Color coded polyvinyl chloride (PVC) insulation rated 60°C.




All values are nominal and subject to correction.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 22
Conductor Material Copper
Conductor Type Solid
Strand Count 1
Outer Diameter (OD) (in/mm) 0.225 in. / 5.72 mm
Jacket Type PVC
Conductor Count 12
Shield Unshielded
Insulation Type PVC
UL Listing Numbers UL 1424
Plenum Rating true

Technical Specifications

Voltage Rating 300V
Submersible No
Flexibility Rating Very Good
Temperature Rating 75ºC
Standards UL 1424 Type FPLP
NEC Article 760 & Riser Rated
Meets California State Fire Marshal requirements
Meets New York State Fire Prevention & Building Code 15
ASTM B3, B260
Miscellaneous Information All values are nominal and subject to correction.

Usage & Installation

Common Uses
  • Fire Alarms
  • Smoke Detectors
  • Voice Communications
  • Burglar Alarms

Packaging & Dimensions:

Weight per Foot 0.045 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

PLENUM RATED FIRE ALARM CABLE

Wire America | Wire Flexibility Series

This video shows the construction, jacket and flexibility of the 16-1 Pair and 16-2 Pair Unshielded Plenum Rated Fire Alarm, NY Certified Cables.

22-12C Unshielded Plenum Fire Alarm Cable

Parent SKU :  FAP-UNSHD22-12

SKU :  FAP-UNSHD22-12-500

UNSHIELDED FPLP PLENUM RATED FIRE ALARM CABLE. LOW SMOKE PVC JACKET.
Contact us for price
Ships in 1-2 days

Parent SKU :  FAP-UNSHD22-12

SKU :  FAP-UNSHD22-12-500

$0/ea.
$0/ea.
Please select an option
Get A Fast Quote
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Get Product Details

Get Product Details
APPLICATION:
Unshielded Plenum Rated Fire Alarm Cable is suitable for use in fire alarms, smoke detectors, burglar alarms, voice communications, power limited circuits, in air return plenums, and indoor nonconduit applications per NEC.

CONDUCTORS:
Solid soft drawn bare copper conductors.

CONDUCTOR COLORS:
Black, Red, Brown, Blue, Orange, Yellow, Purple, Green, Red/Black, Red/White, Red/Green, and Red/Blue

JACKET:
Overall red polyvinyl chloride (PVC) jacket, which is rated for use in temperatures from -20°C to +75°C

JACKET COLOR:
Red

INSULATION:
Color coded polyvinyl chloride (PVC) insulation rated 60°C.




All values are nominal and subject to correction.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 22
Conductor Material Copper
Conductor Type Solid
Strand Count 1
Outer Diameter (OD) (in/mm) 0.225 in. / 5.72 mm
Jacket Type PVC
Conductor Count 12
Shield Unshielded
Insulation Type PVC
UL Listing Numbers UL 1424
Plenum Rating true

Technical Specifications

Voltage Rating 300V
Submersible No
Flexibility Rating Very Good
Temperature Rating 75ºC
Standards UL 1424 Type FPLP
NEC Article 760 & Riser Rated
Meets California State Fire Marshal requirements
Meets New York State Fire Prevention & Building Code 15
ASTM B3, B260
Miscellaneous Information All values are nominal and subject to correction.

Usage & Installation

Common Uses
  • Fire Alarms
  • Smoke Detectors
  • Voice Communications
  • Burglar Alarms

Packaging & Dimensions:

Weight per Foot 0.045 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Video thumbnail
PLENUM RATED FIRE ALARM CABLE

Wire America | Wire Flexibility Series

This video shows the construction, jacket and flexibility of the 16-1 Pair and 16-2 Pair Unshielded Plenum Rated Fire Alarm, NY Certified Cables.
22-12C Unshielded Plenum Fire Alarm Cable
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 22
Conductor Material Copper
Conductor Type Solid
Strand Count 1
Outer Diameter (OD) (in/mm) 0.225 in. / 5.72 mm
Jacket Type PVC
Conductor Count 12
Shield Unshielded
Insulation Type PVC
UL Listing Numbers UL 1424
Plenum Rating true

Technical Specifications

Voltage Rating 300V
Submersible No
Flexibility Rating Very Good
Temperature Rating 75ºC
Standards UL 1424 Type FPLP
NEC Article 760 & Riser Rated
Meets California State Fire Marshal requirements
Meets New York State Fire Prevention & Building Code 15
ASTM B3, B260
Miscellaneous Information All values are nominal and subject to correction.

Usage & Installation:

Common Uses
  • Fire Alarms
  • Smoke Detectors
  • Voice Communications
  • Burglar Alarms

Packaging & Dimensions:

Weight per Foot 0.045 lb
