Parent SKU : THRM20-5
SKU : THRM20-5-250-WT
| Wire Size (AWG/MCM) | 20 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.148 in. |
| Jacket Type | PVC |
| Conductor Count | 5 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.024 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : THRM20-5
SKU : THRM20-5-250-WT
Parent SKU : THRM20-5
SKU : THRM20-5-250-WT
| Wire Size (AWG/MCM) | 20 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.148 in. |
| Jacket Type | PVC |
| Conductor Count | 5 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.024 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||

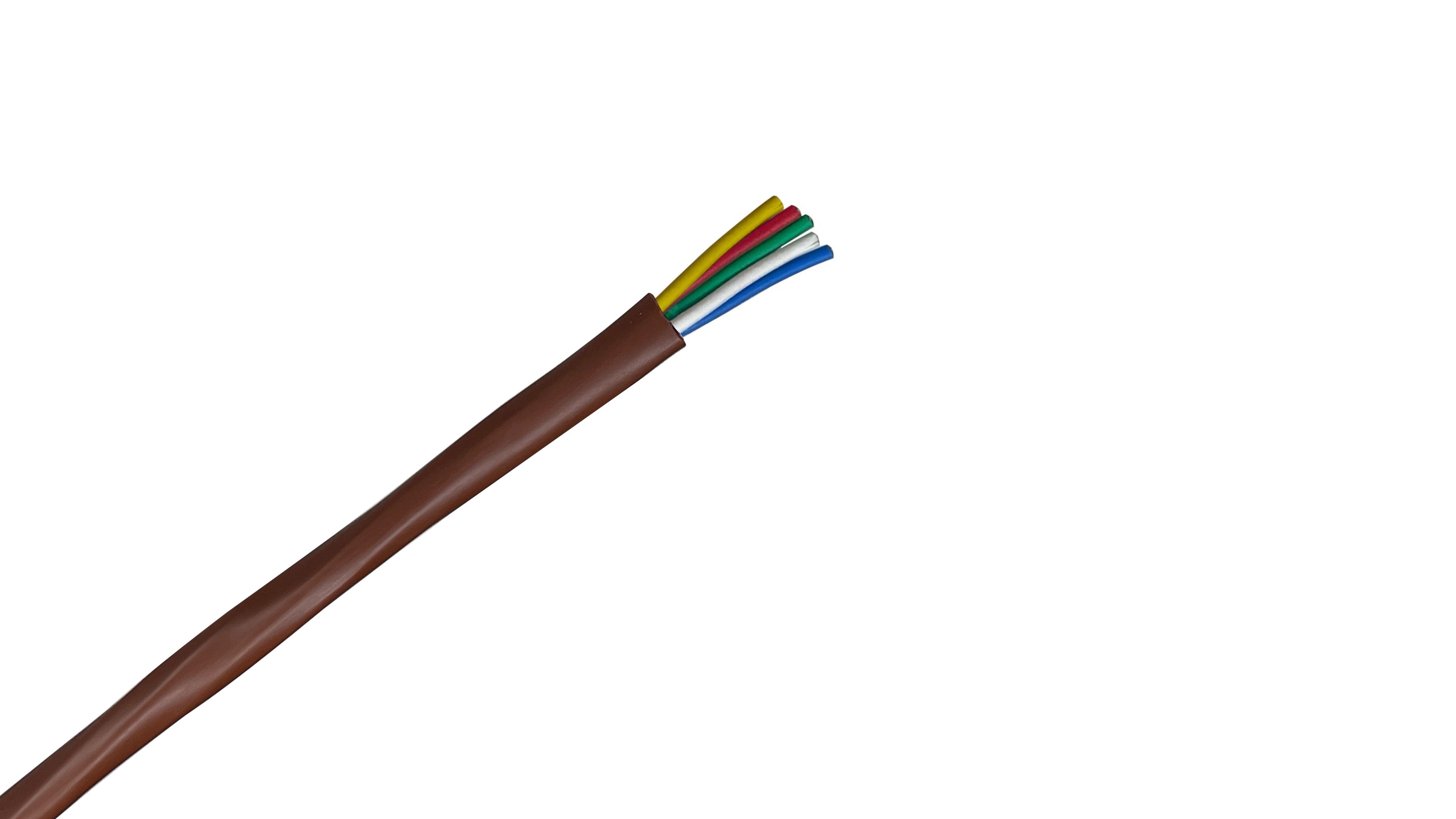

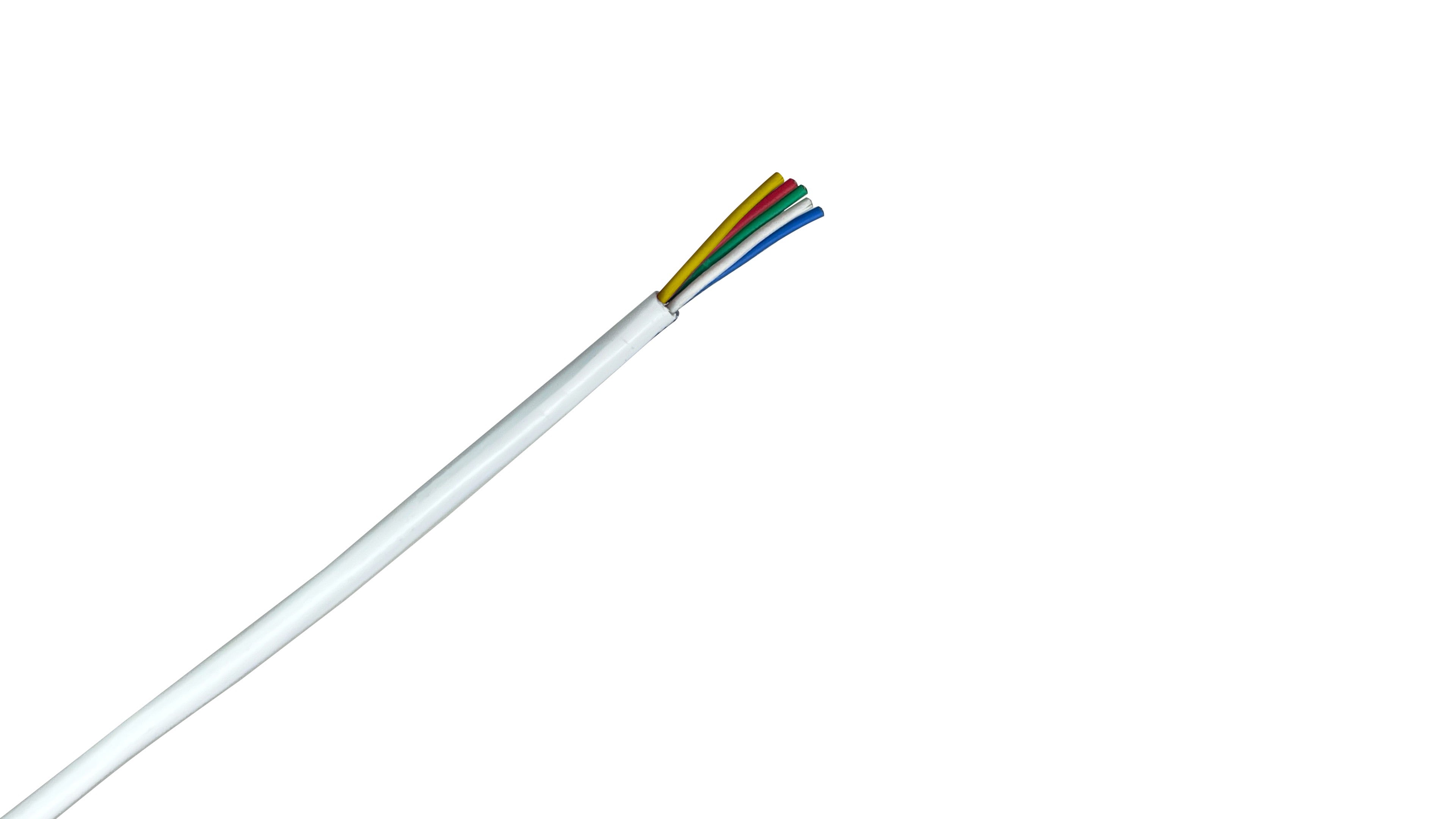

20-5C Thermostat Wire is a type of electrical cable specifically designed for low-voltage power limited circuits. It features five 20 AWG solid copper conductors, each insulated with colored PVC, and an overall PVC jacket. This wire is commonly used for controlling HVAC systems, alarm systems, and other remote control units.
This 20-5C Thermostat Wire is primarily used for power limited circuits in applications such as thermostats, air conditioning, and heat pump systems. It is also suitable for bell and alarm systems, signal systems, doorbells, and remote control units. The wire transmits control signals between devices where the voltage does not exceed 300 volts.
In "20-5C Thermostat Wire," "20" refers to the American Wire Gauge (AWG) size of the conductors, indicating a 20 AWG wire. "5C" means that the cable contains 5 individual conductors. This configuration is common for many modern HVAC systems requiring multiple control signals.
This 20-5C Thermostat Wire is rated for power limited circuits where the voltage does not exceed 300 volts. This makes it suitable for typical low-voltage HVAC control systems and other signaling applications.
