2 AWG 3C Prysmian Airguardâ„¢ 5kV 133% MV-105 Power Cable

Parent SKU :  PAGMV105-5KEPR-2

SKU :  PAGMV105-5KEPR-2-250

ULTRA-RUGGED • CHEMICAL & MOISTURE IMPERVIOUS • MV-105 RATED • CUT TO LENGTH
Download Spec Sheet

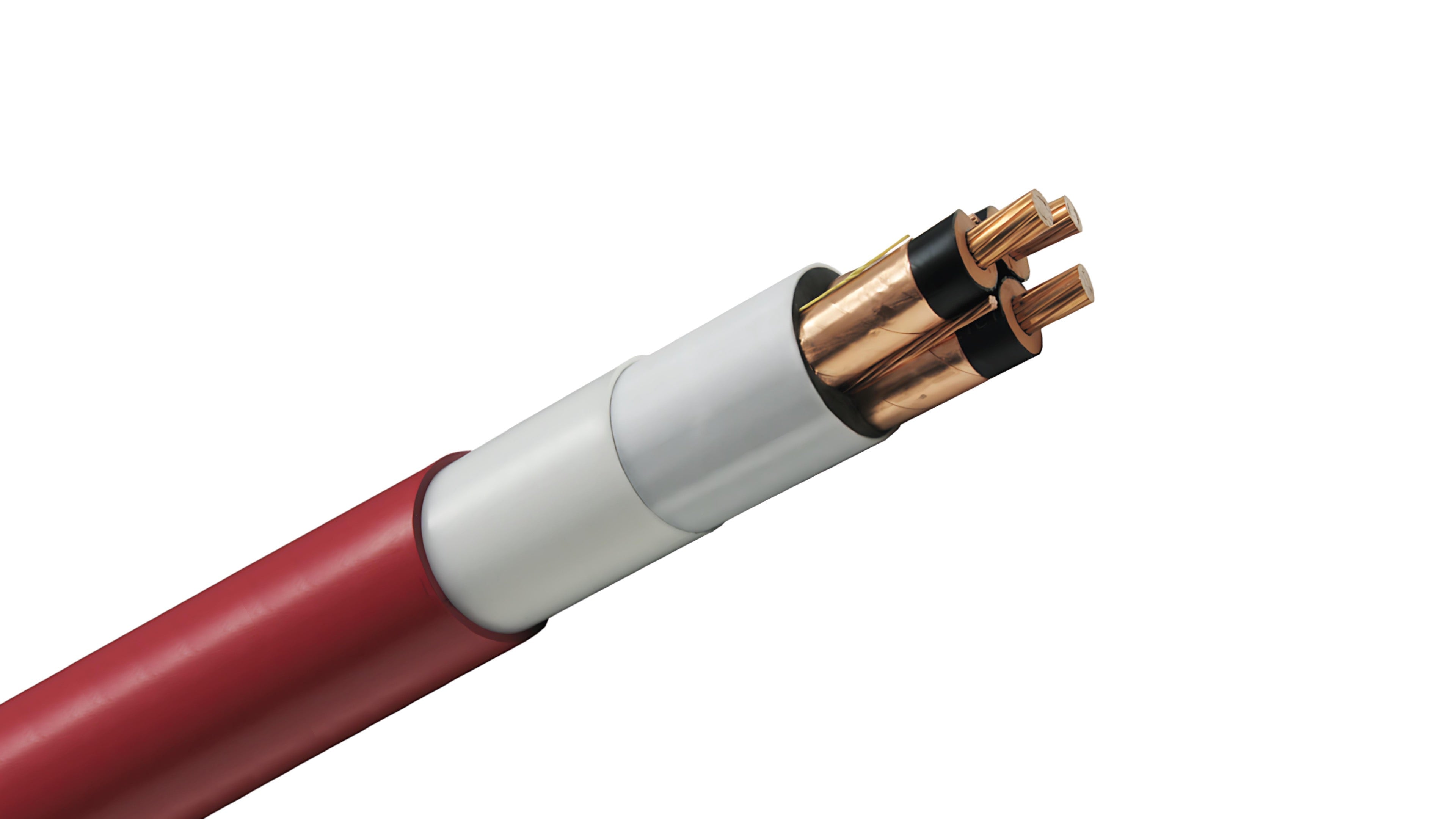

Prysmian Airguard 2 AWG 3C 5kV Power Cable, MV-105 Armored, EPR Insulation, 133% Insulation Level, Industrial Rated.
Wire Size 2 AWG
Conductor Material Copper
Outer Diameter 1.85 in. / 46.99 mm
Conductor Count 3
Ampacity Rating 185
Weight per Foot 2.182 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Prysmian’s patented AIRGUARD cable is a direct replacement for continuously corrugated and welded aluminum armored cables (*in Class 1 Div 2 locations) with 5X the impact performance and up to 3X the sidewall bearing pressure limit (at 3000 lbs per rad-ft) This enables longer pulls than with CCW type cables.Three conductor cable with stranded copper conductors, extruded insulation system consisting of a thermosetting semiconducting conductor shield, high dielectric strength EPROTENAX™ EPR insulation, thermosetting semiconducting insulation shield, helically applied bare copper tape shield, cabled with fillers and grounding conductors, overall binder tape, foamed polymeric AIR BAG™layer for superior mechanical protection, longitudinally applied aluminum tape, extruded oil and hydrocarbon resistant polymeric DRYLAM™ layer, and overall sunlight resistant PVC jacket. Suitable for Class I Division 2 locations.

CONDUCTORS:
Class B Compact concentric strand soft drawn annealed copper per ASTM.

CONDUCTOR SHIELD:
Extruded thermosetting semiconducting shield which is free stripping from the conductor and bonded to the insulation.

INSULATION:
Natural high dielectric strength EPROTENAXâ„¢ EPR-based insulation, combined with other materials and agents that enhance the electrical and mechanical characteristics assuring extended cable life.

INSULATION SHIELD:
Extruded thermosetting semiconducting shield with controlled adhesion to the insulation providing the required balance between electrical integrity and ease of stripping.

METALLIC SHIELD:
Helically applied non-magnetic copper tape(s) over the insulation shield with a nominal overlap of 25%. A mylar ribbon is longitudinally applied under the copper tape shield for phase identification - 1C w/ Red, 1C w/ Blue, and 1C w/ Black.

GROUNDING CONDUCTORS:
Bare stranded copper conductor per UL, ICEA, and ASTM.

ASSEMBLY:
Phase identified conductors cabled with fillers and grounding conductors, forming a firm and cylindrical cable core. A binder tape is applied to maintain core symmetry and mechanical stability.

MECHANICAL PROTECTION:
High strength and high crush resistant AIR BAG layer extruded over the core assembly.

CHEMICAL PROTECTION:
A layer of DRYLAMâ„¢ which consists of a 6mil longitudinally applied aluminum tape and a chemical resistant extruded polymer layer is applied.

JACKET:
Black jacket of linear lows density polyethylene (LLDPE), which is sunlight, abrasion and heat resistant. The jacket has 3 red stripes, the NESC lightning bolt and sequential footage markings.

GROUND WIRES:
3 - #10

AMP RATINGS:
In Air / Tray @ 105°C - 185 Amps

In Duct @ 105°C - 160 Amps

Minimum Bending Radius:
12 in.

Impedance:
Pos/Neg Seq - 212 + j42
Zero Seq - 1134 + j26

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 1.85 in. / 46.99 mm
Jacket Type PVC
Conductor Count 3
Shield Shielded
Insulation Type (EPR) Ethylene-Propylene Rubber
UL Listing Numbers UL 1072, UL 1277

Technical Specifications

Voltage Rating 5kV/8kV
Ampacity Rating 185
Direct Burial Rating Yes
Sunlight Resistance Rating Yes
Temperature Rating 105ºC
Standards ICEA S-93-639 (NEMA WC74)
UL 1072 Type MV-105, For CT USE, Direct Buried/Sunlight Resistant
IEEE, Flame Retardant
UL 1277 TC-ER, Exposed Run Rating
CSA, CSA FT4 Flame Test, CSA Cold Impact/Bend Test (-40C)
MSHA, Type MP and Type MP-GC
IEEE 1580, Marine Shipboard Cable Rating
ABS, American Bureau of Shipping Type Approval
Miscellaneous Information Three Phase Operation In Duct: Cable in underground electrical ducts; one cable per duct; based on ambient temperature of 20°C; 2017 NEC Table 310.60(C)(79) Air: Cable isolated in air and an ambient temperature of 40°C; per 2017 NEC Table 310.60(C)(71) In Cable Tray: Per 2017 NEC Article 392.80(B)(1)(b), where multi-conductor cables installed in a single layer in an uncovered cable tray, with maintained spacing of not less than one cable diameter between cables, the ampacities shall not exceed the allowable ampacities stated in Table 310.60(C)(71) (Copper). ‡EPROTENAX™ EPR-insulated cables are capable of operating at 105°C. However, the maximum operating temperature of the cable should be based on the maximum operating temperature of the cable accessories tobe used. ††Impedance based on 105°C operating temperature, shields short-circuited with no return in earth. At 90°C, the resistive portion of the impedances can be estimated at 96% of the values at 105°C, the reactive portions remain unchanged.

Usage & Installation

Primary ApplicationsIndustrial Power Distribution, Substation Connections, Renewable Energy Projects, Harsh & Hazardous Locations, Urban Infrastructure.
Common Uses
  • Direct Burial
  • Cable Trays
  • Underground Ducts & Conduit
  • Aerial & Isolated in Air

Packaging & Dimensions:

Weight per Foot 2.182 lb
