Parent SKU : THRM18-6
SKU : THRM18-6-250-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.184 in. |
| Jacket Type | PVC |
| Conductor Count | 6 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.04 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : THRM18-6
SKU : THRM18-6-250-WT
Parent SKU : THRM18-6
SKU : THRM18-6-250-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.184 in. |
| Jacket Type | PVC |
| Conductor Count | 6 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.04 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||

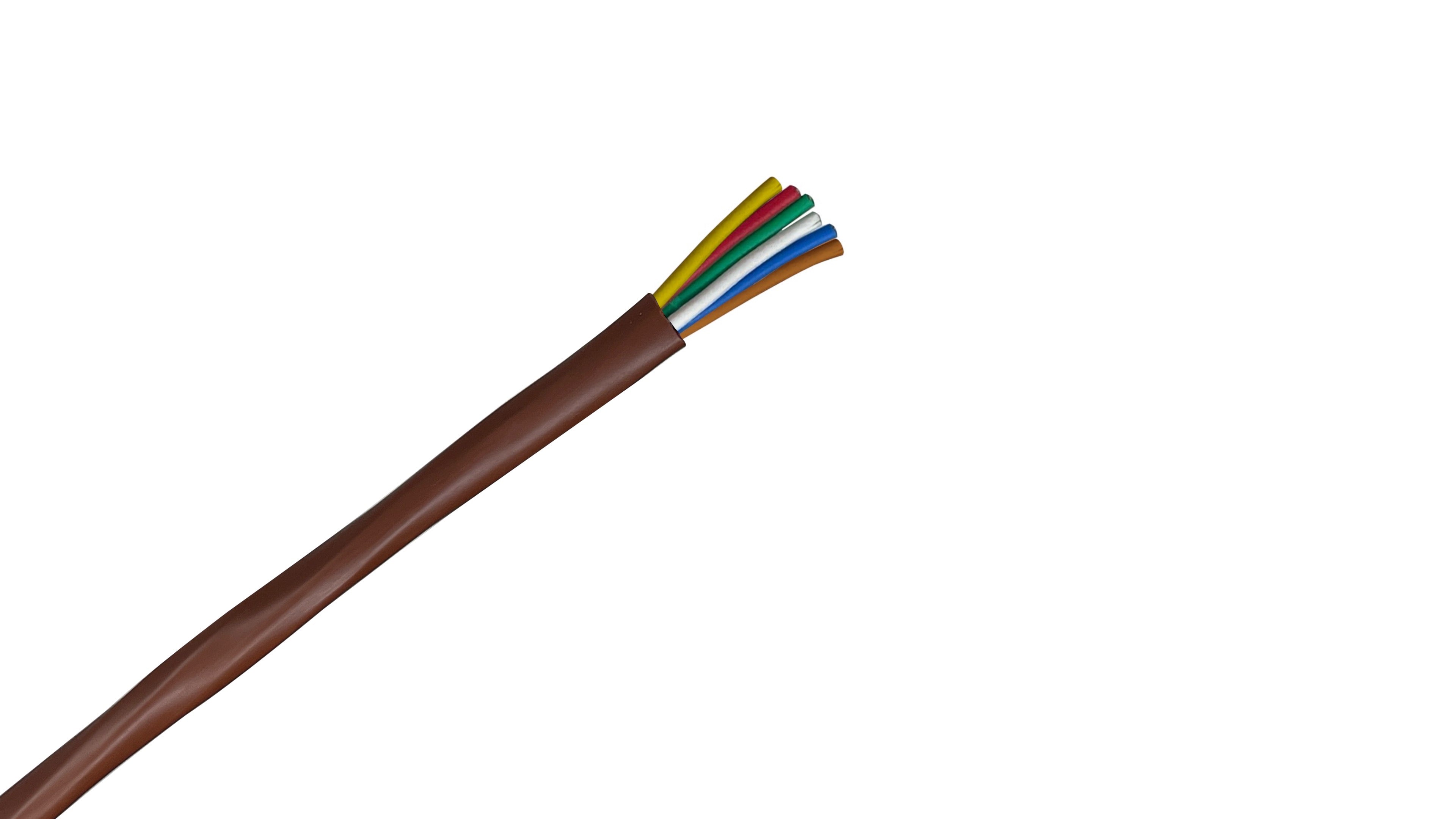

18-6C Thermostat Wire is a low-voltage cable designed for power-limited circuits. It connects your thermostat to your HVAC system and other control units, transmitting signals rather than high power. This specific wire features 18 AWG conductors and includes 6 individual conductors within its jacket.
The "18" in 18-6C refers to the wire's gauge, specifically 18 AWG (American Wire Gauge), which indicates its thickness. The "6C" signifies that the cable contains 6 conductors, meaning there are six individual insulated wires bundled together within the outer jacket.
This thermostat wire is primarily used for power-limited circuits in various control systems. Common applications include: - Thermostats and HVAC systems (air conditioning, heat pumps) - Bell and alarm systems - Signal systems - Door bells and remote control units
Here are the key specifications for this 18-6C Thermostat Wire: - Application: Power limited circuits - Voltage Rating: Up to 300 volts (though typically used in 24V HVAC systems) - Temperature Rating: -20°C to +60°C - Conductor Material: Solid soft drawn copper - Insulation Material: Heat and moisture resistant colored PVC - Jacket Material: Heat, moisture, and sunlight resistant PVC - Jacket Colors: Brown or White - Conductor Colors: White, Red, Green, Blue, Yellow, Brown
This 18-6C Thermostat Wire has a voltage rating that does not exceed 300 volts. However, it is primarily used in low-voltage applications such as HVAC systems, where the control circuits typically operate at 24 volts AC.
