From $0.20/ft
128 Products
-
Solid THHN/THWN-2 WireFrom $0.20/ft -
Solid THHN/THWN-2 WireFrom $0.20/ft - Solid THHN/THWN-2 WireFrom $0.20/ft
- Solid THHN/THWN-2 WireFrom $0.20/ft
Parent SKU : THRMPL18-3
SKU : THRMPL18-3-500-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.147 in. |
| Jacket Type | PVC |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 13, UL 444 |
| Plenum Rating | true |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2P UL 444, CM NEC Article 725, 800 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.022 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : THRMPL18-3
SKU : THRMPL18-3-500-WT
Parent SKU : THRMPL18-3
SKU : THRMPL18-3-500-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.147 in. |
| Jacket Type | PVC |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 13, UL 444 |
| Plenum Rating | true |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2P UL 444, CM NEC Article 725, 800 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.022 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||

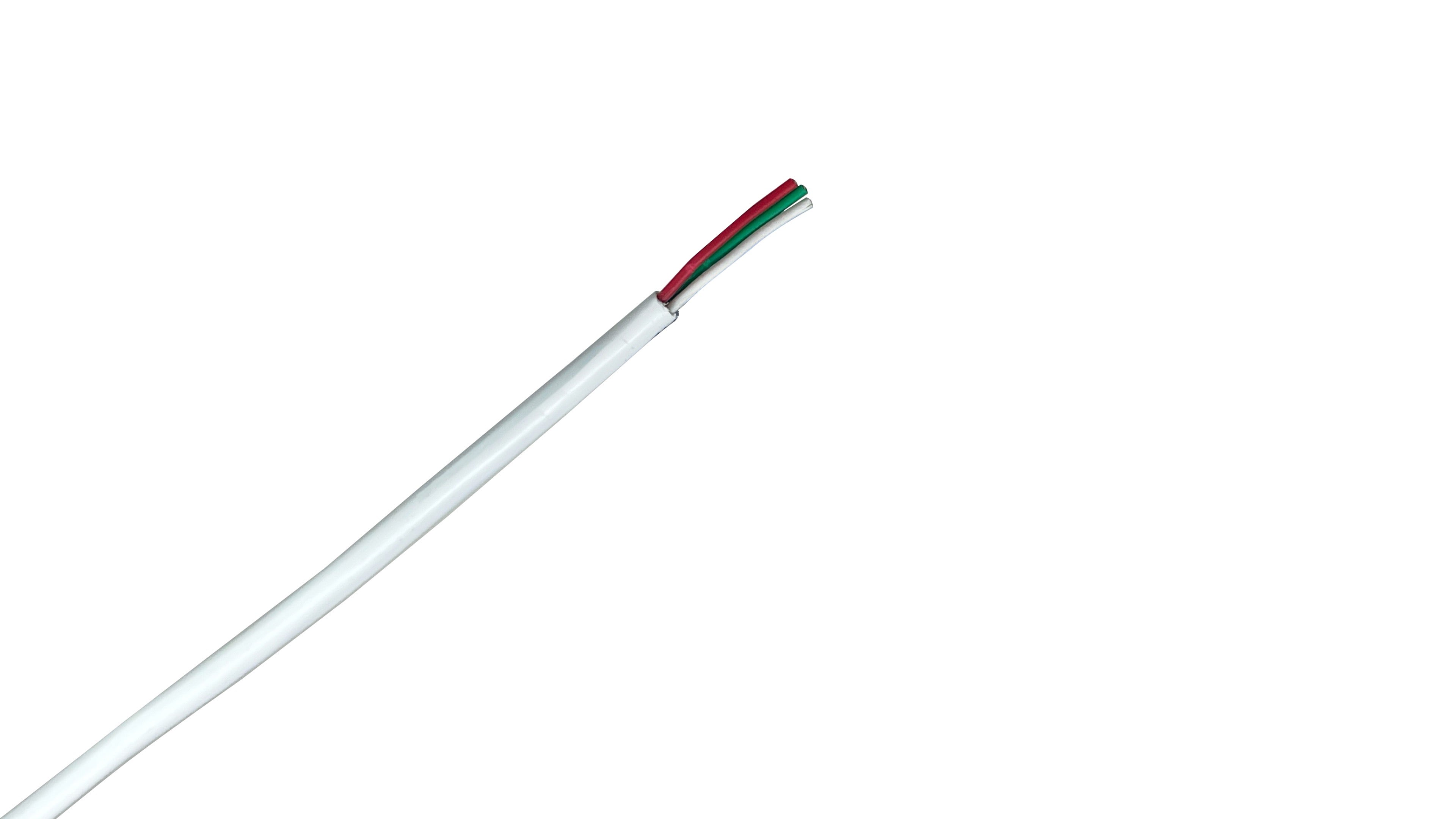

This is a specialized low-voltage cable designed for control circuits in HVAC systems and other applications. The "Plenum" rating means it's engineered with a fire-resistant, low-smoke jacket, making it safe for installation in air-handling spaces like drop ceilings and raised floors where fire safety codes are stringent.
"18" refers to the wire's gauge, indicating it is 18 American Wire Gauge (AWG). "3C" signifies that the cable contains three individual conductors within its outer jacket. This configuration is common for many basic to moderately complex thermostat and control systems.
This wire is primarily used for power-limited circuits in HVAC systems, connecting thermostats to air conditioning units and heat pumps. It's also suitable for bell and alarm systems, signal systems, doorbells, and remote control units where the voltage does not exceed 150 volts.
A plenum space is an enclosed area within a building used for air circulation, such as above suspended ceilings or under raised floors, often part of HVAC systems. Plenum-rated wire is required because these spaces can rapidly spread fire and toxic smoke. This wire features a special jacket designed to resist flame spread and produce minimal smoke and toxic fumes in a fire, adhering to strict safety codes like UL 910 and NFPA 262.
