Parent SKU : TCTFN18-3
SKU : TCTFN18-3-250

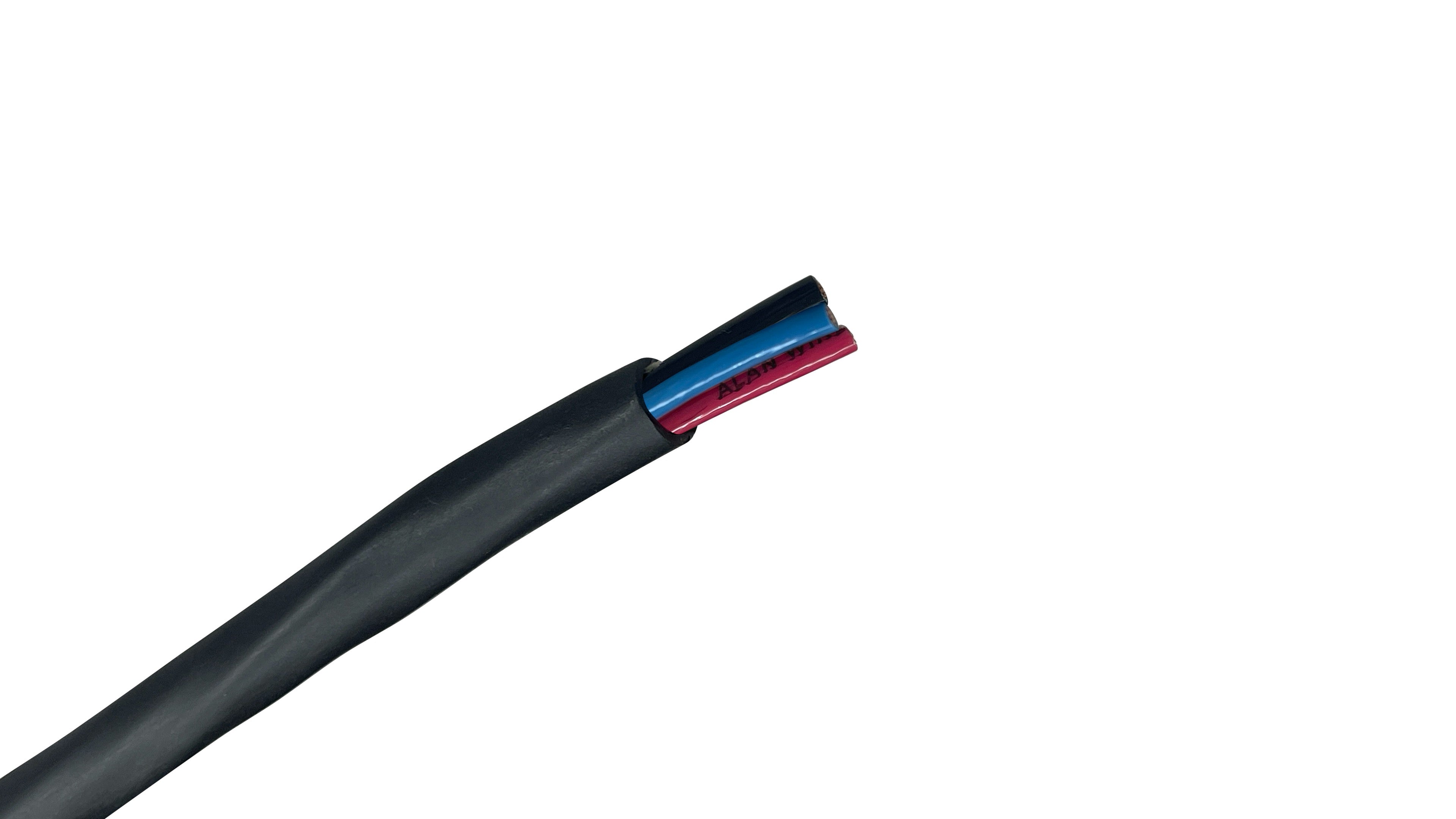

"A high-performance cable engineered for industrial automation panels, signal monitoring loops, and commercial communication infrastructure. Housing three precision-insulated 18 AWG conductors in a compact, round configuration under a heavy-duty PVC outer jacket, this 600V Type TC-ER cable easily routes through crowded containment trays, factory raceways, and structural conduit pathways where space is at a premium."
When wiring intricate enclosures, machine stations, or packed trays, physical reliability equals efficiency. The 18/3 VNTC balances a compact physical footprint with industrial-grade durability. Featuring stranded copper TFFN conductors encased in a flame-retardant, UV-resistant PVC jacket, its compact round core design maximizes containment space, handles tight corners effortlessly, and slashes installation time.
Exposed Run (TC-ER) Certified: Fully code-listed to transit safely outside of protective cable trays or conduits in unprotected open-air spans directly to mechanical enclosures when properly supported.
Versatile Routing Approvals: Fully code-compliant for deployment in open-air trays, supported by messenger wire, pulled through structural conduits, or laid in deep under-floor ducts.
Direct Burial & Outdoor Rated: Built with a sunlight-resistant, moisture-proof outer shield that permits direct underground trenching and exposed outdoor installation.
Compact Round Core Assembly: Features conductors cabled tightly together with or without fillers and finished with a protective binder tape to form a perfectly round profile for smooth pulls.
TFFN Conductors: Individual conductors feature fine copper stranding to deliver superior bend radii and defend control circuits against physical fatigue from machinery vibration.
ENGINEERING OVERVIEW
Conductor Configuration: 3 Conductors (Cabled together with binder tape, Unshielded)
Conductor Size: 18 AWG
Conductor Material: Fully annealed bare copper Class B compressed strand per ASTM B3 and B8
Conductor Insulation: Heat & Moisture Resistant PVC with a Polyamide Nylon Outer Skin (Type TFFN)
Conductor Color Coding: Black, Red, Blue
Outer Jacket Material: Flame-Retardant, Sunlight-Resistant Black Polyvinyl Chloride (PVC)
Voltage Threshold: 600 Volts
Thermal Range Limits: 90°C Dry / 75°C Wet Exposure
Ampacity Performance: 6 Amps (@ 90°C Continuous Load)
UL Listings & Code Compliances: UL 66, UL 83, UL 1277, UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test Approved as Type TC-ER, Sunlight Resistant, Direct Burial, ASTM B3, ASTM B8, NEC Article 336, Article 501, Article 725 for class 1 circuits.
Industrial Automation & PLC Signaling: The trade benchmark for routing dedicated data inputs, automated sensor lines, and emergency stop arrays back to central programmable logic controllers (PLCs).
Open-Air Machinery Drops: Deployed heavily to jump directly from structural overhead cable trays down to floor-mounted machinery terminal boxes without using rigid pipes.
Commercial Building Automation: Deployed heavily to wire institutional lighting grids, localized smart thermostats, ventilation dampeners, and terminal control units.
Hazardous Environment Infrastructure: Fully certified by the National Electrical Code for safe deployment inside Class 1, Division 2 chemical processing facilities and industrial spray booths.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.290 in. / 7.37 mm |
| Jacket Type | (PVC) Polyvinyl Chloride |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (PVC) TFN |
| UL Listing Numbers | UL 66, UL 83, UL1277, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 8 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 66, UL 83, UL1277 UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial ASTM B3, ASTM B8 NEC Article 336, Article 501, Article 725 for class 1 circuits. |
| Miscellaneous Information | All values are nominal and subject to correction. Flat Construction is NOT TC-ER rated. Pair cables are Black, Red and numbered. Triad cables are Black, Red, Blue and numbered. Colors repeats after 36 conductors. There are no Green or White conductors or stripes |
| Primary Applications | Industrial Power and Control Systems, Building Automation and Energy Management, Utility and Substation Wiring, Instrumentation and Process Control, Cable Tray Installations, Outdoor and Direct Burial. |
| Common Uses |
|
| Weight per Foot | 0.045 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : TCTFN18-3
SKU : TCTFN18-3-250
Parent SKU : TCTFN18-3
SKU : TCTFN18-3-250
"A high-performance cable engineered for industrial automation panels, signal monitoring loops, and commercial communication infrastructure. Housing three precision-insulated 18 AWG conductors in a compact, round configuration under a heavy-duty PVC outer jacket, this 600V Type TC-ER cable easily routes through crowded containment trays, factory raceways, and structural conduit pathways where space is at a premium."
When wiring intricate enclosures, machine stations, or packed trays, physical reliability equals efficiency. The 18/3 VNTC balances a compact physical footprint with industrial-grade durability. Featuring stranded copper TFFN conductors encased in a flame-retardant, UV-resistant PVC jacket, its compact round core design maximizes containment space, handles tight corners effortlessly, and slashes installation time.
Exposed Run (TC-ER) Certified: Fully code-listed to transit safely outside of protective cable trays or conduits in unprotected open-air spans directly to mechanical enclosures when properly supported.
Versatile Routing Approvals: Fully code-compliant for deployment in open-air trays, supported by messenger wire, pulled through structural conduits, or laid in deep under-floor ducts.
Direct Burial & Outdoor Rated: Built with a sunlight-resistant, moisture-proof outer shield that permits direct underground trenching and exposed outdoor installation.
Compact Round Core Assembly: Features conductors cabled tightly together with or without fillers and finished with a protective binder tape to form a perfectly round profile for smooth pulls.
TFFN Conductors: Individual conductors feature fine copper stranding to deliver superior bend radii and defend control circuits against physical fatigue from machinery vibration.
ENGINEERING OVERVIEW
Conductor Configuration: 3 Conductors (Cabled together with binder tape, Unshielded)
Conductor Size: 18 AWG
Conductor Material: Fully annealed bare copper Class B compressed strand per ASTM B3 and B8
Conductor Insulation: Heat & Moisture Resistant PVC with a Polyamide Nylon Outer Skin (Type TFFN)
Conductor Color Coding: Black, Red, Blue
Outer Jacket Material: Flame-Retardant, Sunlight-Resistant Black Polyvinyl Chloride (PVC)
Voltage Threshold: 600 Volts
Thermal Range Limits: 90°C Dry / 75°C Wet Exposure
Ampacity Performance: 6 Amps (@ 90°C Continuous Load)
UL Listings & Code Compliances: UL 66, UL 83, UL 1277, UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test Approved as Type TC-ER, Sunlight Resistant, Direct Burial, ASTM B3, ASTM B8, NEC Article 336, Article 501, Article 725 for class 1 circuits.
Industrial Automation & PLC Signaling: The trade benchmark for routing dedicated data inputs, automated sensor lines, and emergency stop arrays back to central programmable logic controllers (PLCs).
Open-Air Machinery Drops: Deployed heavily to jump directly from structural overhead cable trays down to floor-mounted machinery terminal boxes without using rigid pipes.
Commercial Building Automation: Deployed heavily to wire institutional lighting grids, localized smart thermostats, ventilation dampeners, and terminal control units.
Hazardous Environment Infrastructure: Fully certified by the National Electrical Code for safe deployment inside Class 1, Division 2 chemical processing facilities and industrial spray booths.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.290 in. / 7.37 mm |
| Jacket Type | (PVC) Polyvinyl Chloride |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (PVC) TFN |
| UL Listing Numbers | UL 66, UL 83, UL1277, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 8 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 66, UL 83, UL1277 UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial ASTM B3, ASTM B8 NEC Article 336, Article 501, Article 725 for class 1 circuits. |
| Miscellaneous Information | All values are nominal and subject to correction. Flat Construction is NOT TC-ER rated. Pair cables are Black, Red and numbered. Triad cables are Black, Red, Blue and numbered. Colors repeats after 36 conductors. There are no Green or White conductors or stripes |
| Primary Applications | Industrial Power and Control Systems, Building Automation and Energy Management, Utility and Substation Wiring, Instrumentation and Process Control, Cable Tray Installations, Outdoor and Direct Burial. |
| Common Uses |
|
| Weight per Foot | 0.045 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
An 18/3 Tray Cable is engineered to transmit low-amperage command signals, sensor data, and communication relays rather than supply raw machinery power. It is heavily utilized to link industrial control buttons, emergency shutoffs, automated valves, and facility thermostats back to central processing panels and PLC boxes.
Following the standard industrial triad layout (ICEA Method 1, Table E-2), this 3-conductor cable contains one Black, one Red, and one Blue conductor, with each wire numbered for fast field matching. Please note that this specific tray cable configuration contains no white neutral wires, green grounding wires, or colored stripes.
Yes, absolutely. The dual-layer protection of the tough PVC/Nylon wire coatings combined with the specialized outer Polyvinyl Chloride (PVC) jacket makes this cable fully certified for direct burial in underground trenches, wet settings, or concrete encasements. It features a robust sunlight-resistant rating, meaning the jacket will not degrade, crack, or bake when exposed to harsh outdoor UV rays.
This 18 AWG copper conductor carries an absolute maximum allowable ampacity of 6 Amps at a continuous 90°C thermal threshold. Because control lines are engineered strictly for low-load data pulses and system triggers, continuous operational equipment draw should always be capped safely below this 6-Amp ceiling.
