18-24 Pair TC-ER Instrumentation Cable, Overall Shield, 600V

Parent SKU :  TC18-24P-OSH

SKU :  TC18-24P-OSH-250

TRAY CABLE (TC-ER). INDOOR/OUTDOOR. SUNLIGHT-RESISTANT. DIRECT BURIAL APPROVED.
Download Spec Sheet

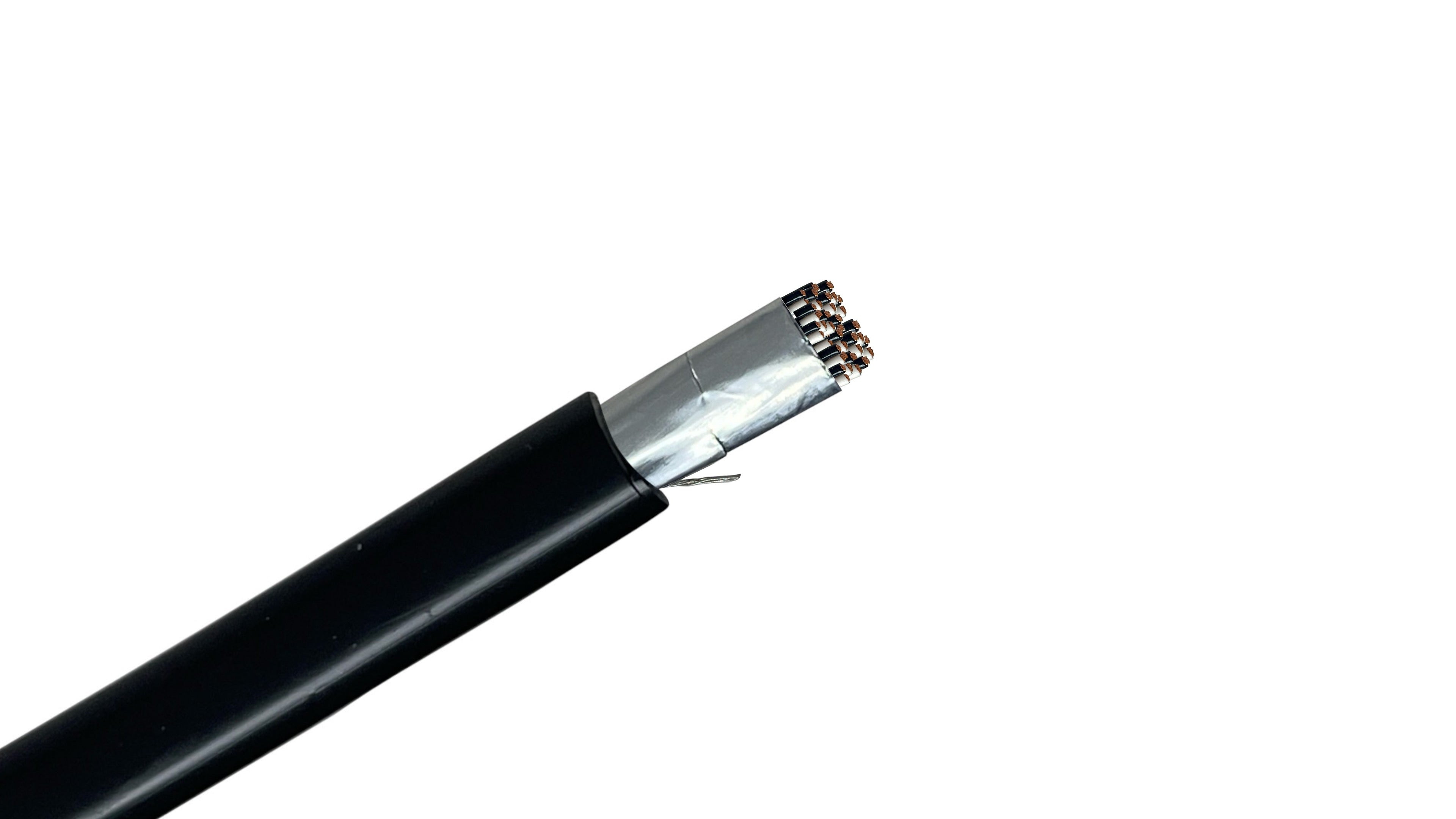

24PR TC-ER 600V cable with overall shield, designed for noise-free signal power transmission in exposed industrial runs.
Wire Size 18 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 1.018 in. / 25.86 mm
Conductor Count 48
Voltage Rating 600V
Weight per Foot 0.544 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Tray Cable Exposed Run Instrumentation Cables (TC-ER) are suitable for control, instrumentation and process control circuits, where protection against electrostatic interference is needed. The cables are suitable for wet or dry applications, direct burial, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits and for applications up to 600 volt and temperatures up to 90°C. TC-ER Overall Shield (OS) Instrumentation Cables are suitable for use in Class 1 Division 2 Hazardous locations per NEC.

CONDUCTORS:
Stranded soft drawn bare copper conductor, per ASTM B3 & B-8

INSULATION:
Polyvinyl Chloride (PVC) insulation with a nylon overcoat

JACKET:
Black Polyvinyl Chloride (PVC) jacket, which is water, chemical, sunlight and abrasion resistant

COLOR CODE:
Pairs: Black and White Numbered

SHIELD:
Aluminum polyester foil with 100% coverage and in contact with a tinned copper drain wire



All values are nominal and subject to correction

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 18 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 1.018 in. / 25.86 mm
Jacket Type (PVC) Polyvinyl Chloride
Conductor Count 48
Shield Coverage % 100
Shield Type Aluminum Polyester Foil
Shield Overall Shield
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL 62, UL 83, UL 1277, UL 1581

Technical Specifications

Voltage Rating 600V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL type TC-ER
UL 62, 83, 1277, 1581
IEEE 383 70, 000 BTU flame test
NEC Article 336, 392, 501, 725
Miscellaneous Information All values are nominal and subject to correction

Usage & Installation

Primary ApplicationsIndustrial Process Control & Automation, Oil & Gas (Refineries, Offshore Rigs), Chemical and Petrochemical Plants, Power Generation Facilities, Water and Wastewater Treatment Plants, Motor Control Circuits (Sensitive Feedback).
Common Uses
  • Sensors
  • Transmitters
  • Transducers
  • Temperature Sensors (RTDs
  • Thermocouples
  • Pressure Transmitters
  • Flow Meters
  • Level Indicators
  • PLCs (Programmable Logic Controller)
  • DCS (Distributed Control Systems)

Packaging & Dimensions:

Weight per Foot 0.544 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Overall Shielded PVC Instrumentation Cable

Wire America | Wire Flexibility Series

This video shows the construction, jacket, shield and flexibility of the 16-1 Pair and 16-4 Pair Instrumentation Cables.

18-24 Pair TC-ER Instrumentation Cable, Overall Shield, 600V

Parent SKU :  TC18-24P-OSH

SKU :  TC18-24P-OSH-250

TRAY CABLE (TC-ER). INDOOR/OUTDOOR. SUNLIGHT-RESISTANT. DIRECT BURIAL APPROVED.
In Stock
Ships in 1-2 days

Parent SKU :  TC18-24P-OSH

SKU :  TC18-24P-OSH-250

$2,010/ea.
$4,020/ea.
$8,040/ea.
$18,825/ea.
$8.04/ft.
Please select an option
Min: 250 ft., Max: 10,000 ft.
Spool (250 ft.)
$2,010.00
Please select an option
Maximum reached, contact us for custom orders
Contact Us
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Get Product Details

Get Product Details
APPLICATION:
Tray Cable Exposed Run Instrumentation Cables (TC-ER) are suitable for control, instrumentation and process control circuits, where protection against electrostatic interference is needed. The cables are suitable for wet or dry applications, direct burial, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits and for applications up to 600 volt and temperatures up to 90°C. TC-ER Overall Shield (OS) Instrumentation Cables are suitable for use in Class 1 Division 2 Hazardous locations per NEC.

CONDUCTORS:
Stranded soft drawn bare copper conductor, per ASTM B3 & B-8

INSULATION:
Polyvinyl Chloride (PVC) insulation with a nylon overcoat

JACKET:
Black Polyvinyl Chloride (PVC) jacket, which is water, chemical, sunlight and abrasion resistant

COLOR CODE:
Pairs: Black and White Numbered

SHIELD:
Aluminum polyester foil with 100% coverage and in contact with a tinned copper drain wire



All values are nominal and subject to correction

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 18 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 1.018 in. / 25.86 mm
Jacket Type (PVC) Polyvinyl Chloride
Conductor Count 48
Shield Coverage % 100
Shield Type Aluminum Polyester Foil
Shield Overall Shield
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL 62, UL 83, UL 1277, UL 1581

Technical Specifications

Voltage Rating 600V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL type TC-ER
UL 62, 83, 1277, 1581
IEEE 383 70, 000 BTU flame test
NEC Article 336, 392, 501, 725
Miscellaneous Information All values are nominal and subject to correction

Usage & Installation

Primary ApplicationsIndustrial Process Control & Automation, Oil & Gas (Refineries, Offshore Rigs), Chemical and Petrochemical Plants, Power Generation Facilities, Water and Wastewater Treatment Plants, Motor Control Circuits (Sensitive Feedback).
Common Uses
  • Sensors
  • Transmitters
  • Transducers
  • Temperature Sensors (RTDs
  • Thermocouples
  • Pressure Transmitters
  • Flow Meters
  • Level Indicators
  • PLCs (Programmable Logic Controller)
  • DCS (Distributed Control Systems)

Packaging & Dimensions:

Weight per Foot 0.544 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Video thumbnail
Overall Shielded PVC Instrumentation Cable

Wire America | Wire Flexibility Series

This video shows the construction, jacket, shield and flexibility of the 16-1 Pair and 16-4 Pair Instrumentation Cables.
18-24 Pair TC-ER Instrumentation Cable, Overall Shield, 600V
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 18 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 1.018 in. / 25.86 mm
Jacket Type (PVC) Polyvinyl Chloride
Conductor Count 48
Shield Coverage % 100
Shield Type Aluminum Polyester Foil
Shield Overall Shield
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL 62, UL 83, UL 1277, UL 1581

Technical Specifications

Voltage Rating 600V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL type TC-ER
UL 62, 83, 1277, 1581
IEEE 383 70, 000 BTU flame test
NEC Article 336, 392, 501, 725
Miscellaneous Information All values are nominal and subject to correction

Usage & Installation:

Primary ApplicationsIndustrial Process Control & Automation, Oil & Gas (Refineries, Offshore Rigs), Chemical and Petrochemical Plants, Power Generation Facilities, Water and Wastewater Treatment Plants, Motor Control Circuits (Sensitive Feedback).
Common Uses
  • Sensors
  • Transmitters
  • Transducers
  • Temperature Sensors (RTDs
  • Thermocouples
  • Pressure Transmitters
  • Flow Meters
  • Level Indicators
  • PLCs (Programmable Logic Controller)
  • DCS (Distributed Control Systems)

Packaging & Dimensions:

Weight per Foot 0.544 lb
