18-20 Pair TC-ER Instrumentation Cable, Individual/Overall Shield, 600V

Parent SKU :  TC18-20P-SPOS

SKU :  TC18-20P-SPOS-250

TRAY CABLE (TC-ER). INDOOR/OUTDOOR. SUNLIGHT-RESISTANT. DIRECT BURIAL APPROVED.
Download Spec Sheet

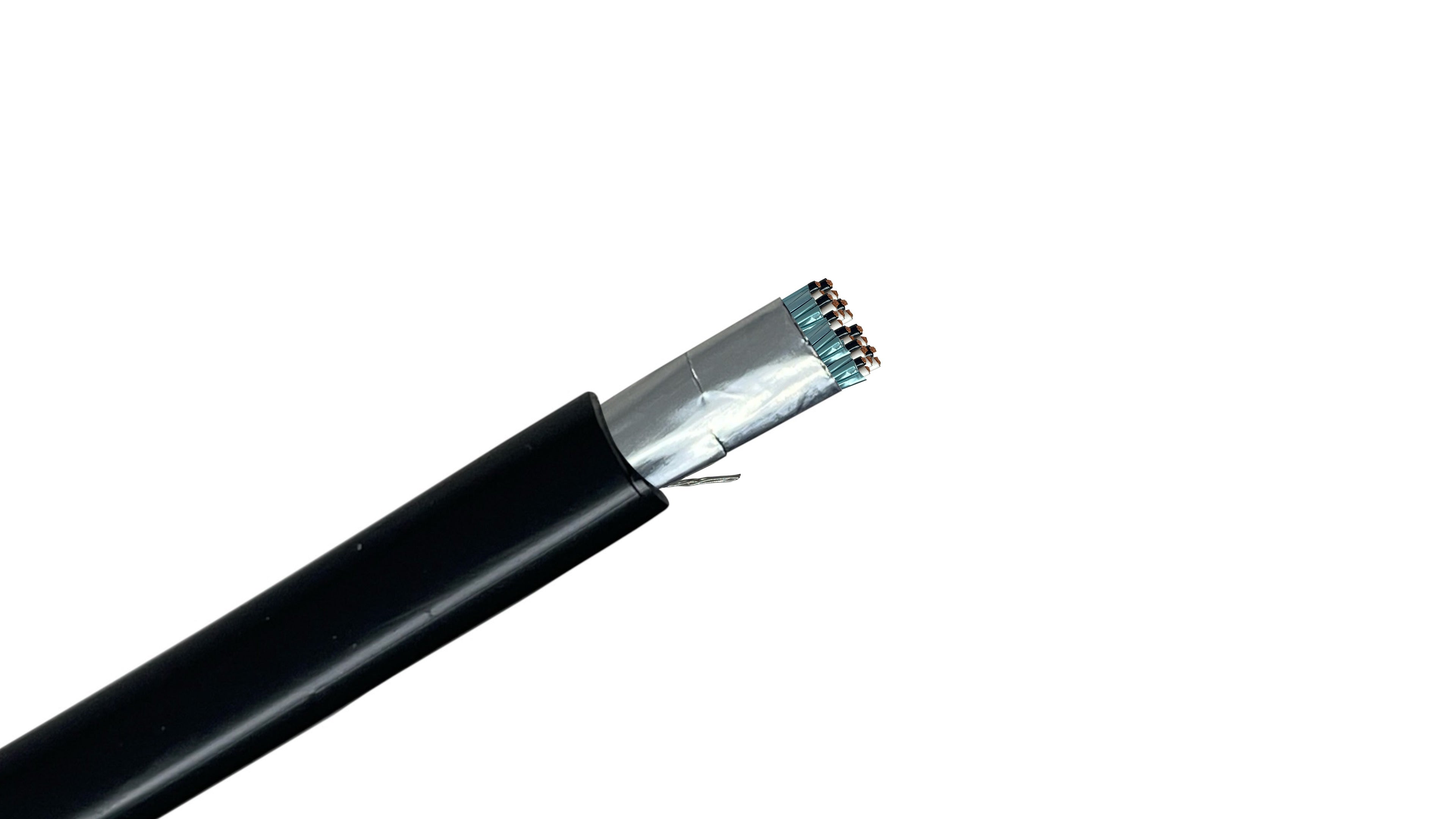

20/PR TC-ER 600V cable w/ individual and overall shields for maximum EMI protection in industrial exposed run installations.
Wire Size 18 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 1.085 in. / 27.56 mm
Conductor Count 40
Voltage Rating 600V
Weight per Foot 0.592 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Tray Cable Exposed Run Instrumentation Cables (TC-ER) are suitable for control, instrumentation and process control circuits, where protection against electrostatic interference from both outside of the cable and from pair to pair is needed. TC-ER Shielded Pairs with Overall Shield (SPOS) cables are suitable for wet or dry applications, direct burial, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits and for applications up to 600 volt and temperatures up to 90°C. TC-ER SPOS Instrumentation Cables are suitable for use in Class 1 Division 2 Hazardous locations per NEC.

CONDUCTORS:
Stranded soft drawn bare copper conductor, per ASTM B3 & B-8

INSULATION:
Polyvinyl Chloride (PVC) insulation with a nylon overcoat

JACKET:
Polyvinyl Chloride (PVC) jacket, which is water, chemical, sunlight and abrasion resistant

COLOR CODE:
Black & White numbered pairs

SHIELD:
Aluminum polyester foil with 100% coverage on each pair, with an overall aluminum polyester foil with 100% coverage with a tinned copper drain wire in contact with all shields



All values are nominal and subject to correction

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 18 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 1.085 in. / 27.56 mm
Jacket Type (PVC) Polyvinyl Chloride
Conductor Count 40
Shield Coverage % 100
Shield Type Aluminum Polyester Foil
Shield Individual and Overall Shield
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers TC-ER, UL 62, UL 83, UL 1277, UL 1581

Technical Specifications

Voltage Rating 600V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL type TC-ER
UL 62, 83, 1277, 1581,
IEEE 383 70,000 BTU flame test
NEC Article 336, 392, 501, 725
Miscellaneous Information All values are nominal and subject to correction

Usage & Installation

Primary ApplicationsIndustrial Process Control & Automation, Oil & Gas (Refineries, Offshore Rigs), Chemical and Petrochemical Plants, Power Generation Facilities, Water and Wastewater Treatment Plants, Motor Control Circuits (Sensitive Feedback).
Common Uses
  • Sensors
  • Controls
  • Pumps
  • Valves
  • Transducers
  • Logic Controllers (PLCs)
  • Distributed Control Systems (DCS)
  • and Remote Terminal Units
  • Motor Encoders
  • Resolvers.

Packaging & Dimensions:

Weight per Foot 0.592 lb
