18-12C Unshielded Riser Fire Alarm Cable

Parent SKU :  FAR-UNSHD18-12

SKU :  FAR-UNSHD18-12-500

UNSHIELDED FPLR RISER FIRE ALARM CABLE. PVC JACKET.
Download Spec Sheet

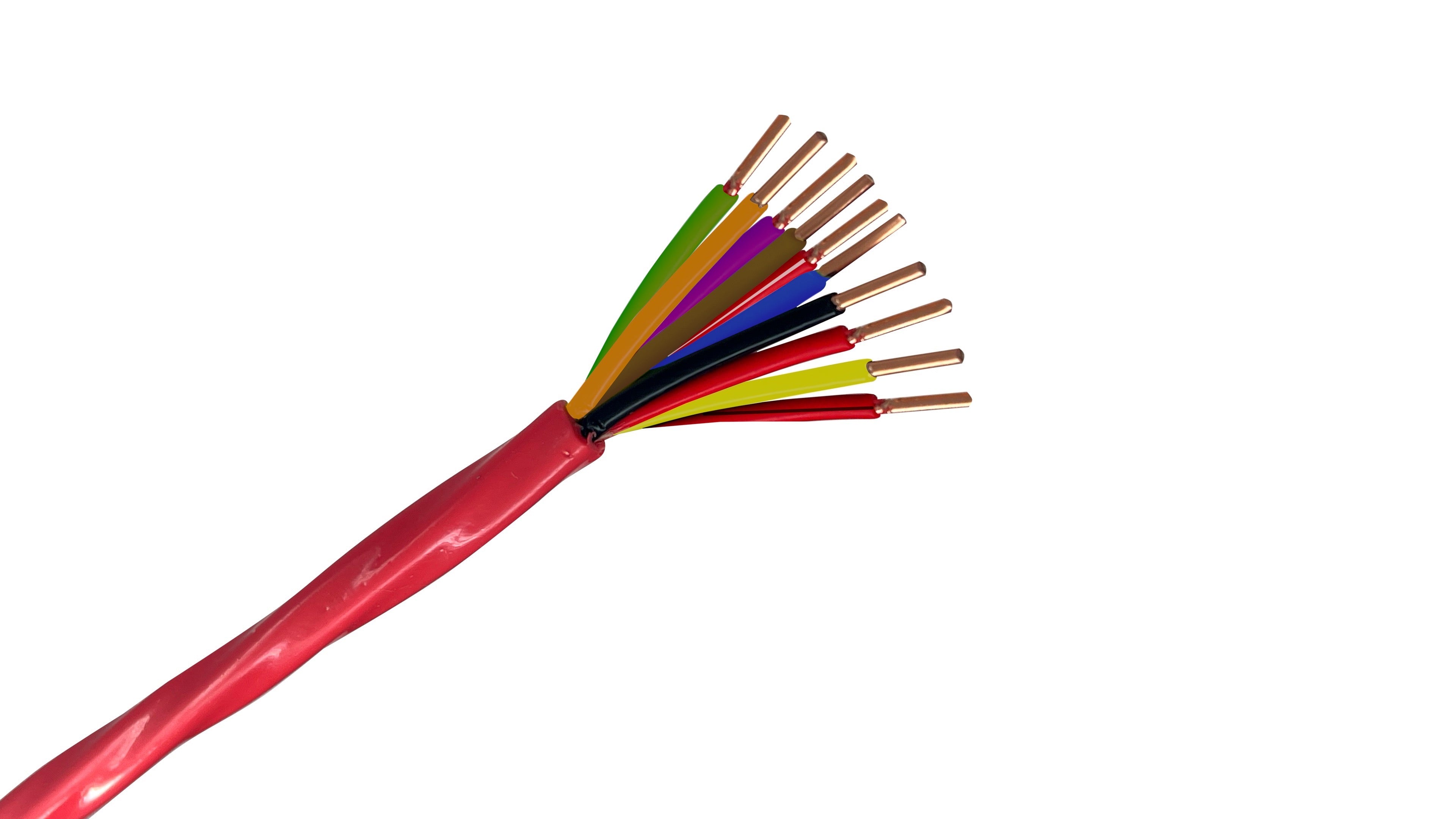

18 AWG 12 Conductor Unshielded Riser Fire Alarm Cable, FPLR rated for vertical floor-to-floor fire signaling systems.
Wire Size 18
Conductor Material Copper
Conductor Type Solid
Outer Diameter 0.272 in. / 6.91 mm
Conductor Count 12
Voltage Rating 300V
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Unshielded Riser Rated PVC Fire Alarm Cable is suitable for use on fire alarms, smoke detectors, burglar alarms, voice communications, power limited circuits and indoor non-conduit applications per NEC. Applications not to exceed 300 volts.

CONDUCTORS:
Solid soft drawn bare copper conductors.

CONDUCTOR COLORS:
Black, Red, Brown, Blue, Orange, Yellow, Purple, Green, Red/Black, Red/White, Red/Green, and Red/Blue

JACKET:
Overall red polyvinyl chloride (PVC) jacket, which is rated for use in temperatures from -20°C to +75°C

JACKET COLOR:
Red

INSULATION:
Color coded polyvinyl chloride (PVC) insulation rated 60°C.




All values are nominal and subject to correction.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 18
Conductor Material Copper
Conductor Type Solid
Strand Count 1
Outer Diameter (OD) (in/mm) 0.272 in. / 6.91 mm
Jacket Type PVC
Conductor Count 12
Shield Unshielded
Riser Rating true
Insulation Type PVC
UL Listing Numbers UL 1424, UL1666

Technical Specifications

Voltage Rating 300V
Submersible No
Flexibility Rating Very Good
Temperature Rating 75ºC
Standards UL 1424 Type FPLR
UL 1666 Flame Test
NEC Article 760 & Riser Rated
Meets California State Fire Marshal requirements
Meets New York State Fire Prevention & Building Code 15
ASTM B3, B258
Miscellaneous Information All values are nominal and subject to correction.

Usage & Installation

Common Uses
  • Fire Alarms
  • Smoke Detectors
  • Voice Communications
  • Burglar Alarms

Packaging & Dimensions:

Weight per Foot 0.084 lb
