Parent SKU : THRM18-12
SKU : THRM18-12-250-BN

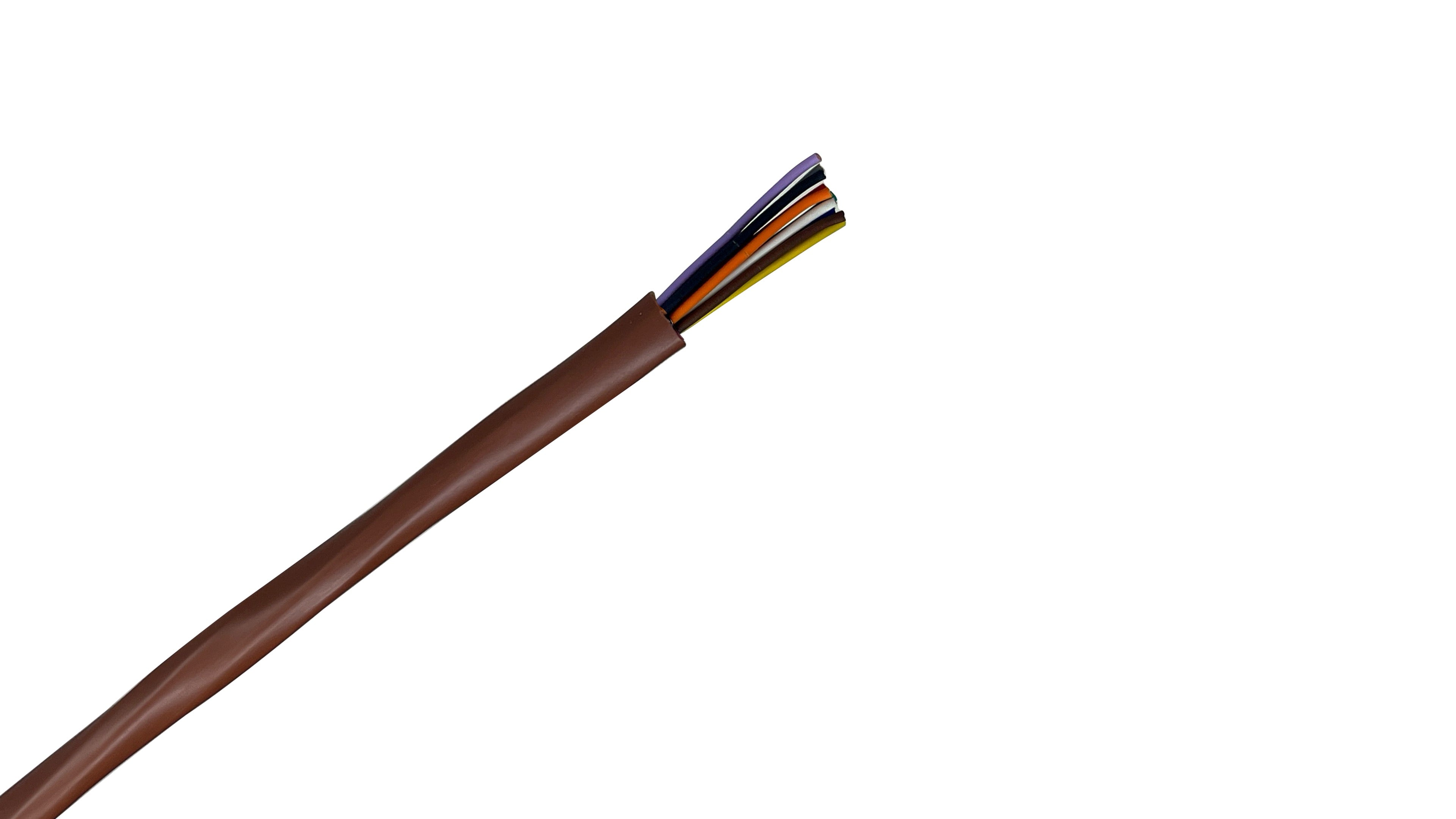

APPLICATION:
Thermostat Wire is primarily used for power limited circuits such as thermostats, air conditioning, heat pumps, bell and alarm systems, signals systems, door bells and remote control units where the voltage does not exceed 300 volts. Temperature rating is -20°C to +60°C.
CONDUCTOR:
Solid soft drawn copper, per ASTM B3 and B258.
INSULATION:
Heat and moisture resistant colored polyvinyl chloride (PVC) insulation.
JACKET:
Outer jacket of polyvinyl chloride (PVC), which is heat, moisture and sunlight resistant.
JACKET COLOR:
Brown
CONDUCTOR COLORS:
White, Red, Green, Blue, Yellow, Brown, Orange, Black, Purple, Gray, Pink and Tan.
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.245 in. |
| Jacket Type | PVC |
| Conductor Count | 12 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.074 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : THRM18-12
SKU : THRM18-12-250-BN
Parent SKU : THRM18-12
SKU : THRM18-12-250-BN
APPLICATION:
Thermostat Wire is primarily used for power limited circuits such as thermostats, air conditioning, heat pumps, bell and alarm systems, signals systems, door bells and remote control units where the voltage does not exceed 300 volts. Temperature rating is -20°C to +60°C.
CONDUCTOR:
Solid soft drawn copper, per ASTM B3 and B258.
INSULATION:
Heat and moisture resistant colored polyvinyl chloride (PVC) insulation.
JACKET:
Outer jacket of polyvinyl chloride (PVC), which is heat, moisture and sunlight resistant.
JACKET COLOR:
Brown
CONDUCTOR COLORS:
White, Red, Green, Blue, Yellow, Brown, Orange, Black, Purple, Gray, Pink and Tan.
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.245 in. |
| Jacket Type | PVC |
| Conductor Count | 12 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.074 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||
18-12C Thermostat Wire is a low-voltage cable designed for power-limited circuits. It features 18 AWG solid copper conductors and 12 color-coded conductors, making it suitable for a variety of control applications in residential and commercial settings. This wire is commonly used to connect thermostats to HVAC systems, as well as for bell, alarm, and signal systems.
This 18-12C Thermostat Wire is primarily used for power-limited circuits in various systems. Its applications include connecting thermostats to air conditioning and heat pump units, as well as wiring for bell and alarm systems, signal systems, doorbells, and remote control units. It is ideal for situations where the voltage requirements do not exceed 300 volts.
The 18-12C Thermostat Wire contains 12 distinct conductor colors: White, Red, Green, Blue, Yellow, Brown, Orange, Black, Purple, Gray, Pink, and Tan. While specific functions can vary by HVAC system, common conventions include Red for power, White for heating, Yellow for cooling, Green for the fan, and Blue or Black often serving as a common (C) wire.
This thermostat wire is designed for power-limited circuits where the voltage does not exceed 300 volts. While typical HVAC control systems often operate at 24 volts, this wire is rated to safely handle up to 300 volts, providing a robust solution for various low-voltage applications.
