From $0.20/ft
128 Products
-
Solid THHN/THWN-2 WireFrom $0.20/ft -
Solid THHN/THWN-2 WireFrom $0.20/ft - Solid THHN/THWN-2 WireFrom $0.20/ft
- Solid THHN/THWN-2 WireFrom $0.20/ft
Parent SKU : THRM18-10
SKU : THRM18-10-250-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.227 in. |
| Jacket Type | PVC |
| Conductor Count | 10 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.063 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : THRM18-10
SKU : THRM18-10-250-WT
Parent SKU : THRM18-10
SKU : THRM18-10-250-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.227 in. |
| Jacket Type | PVC |
| Conductor Count | 10 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2 UL 444, CM NEC Article 725 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.063 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||

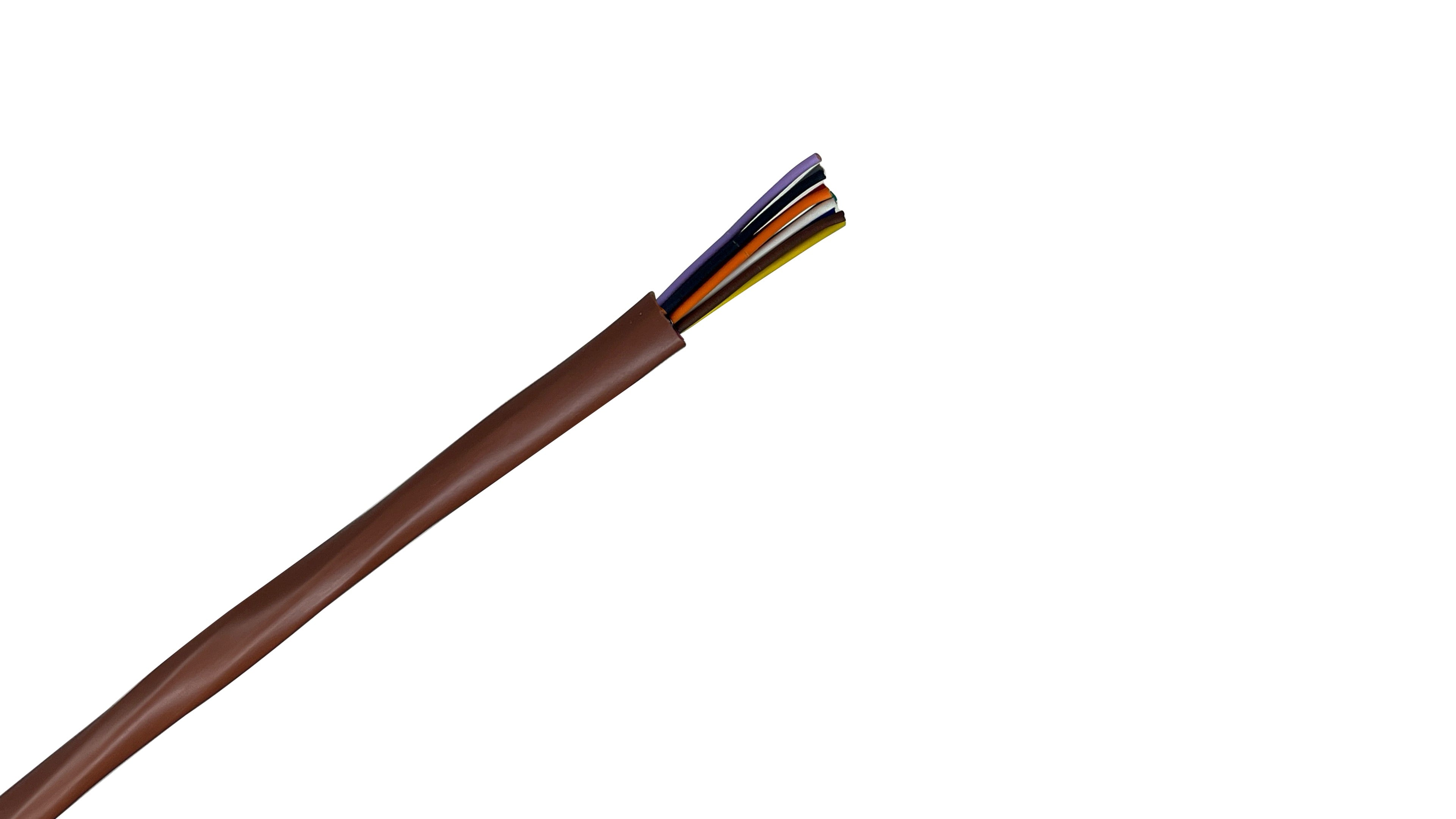

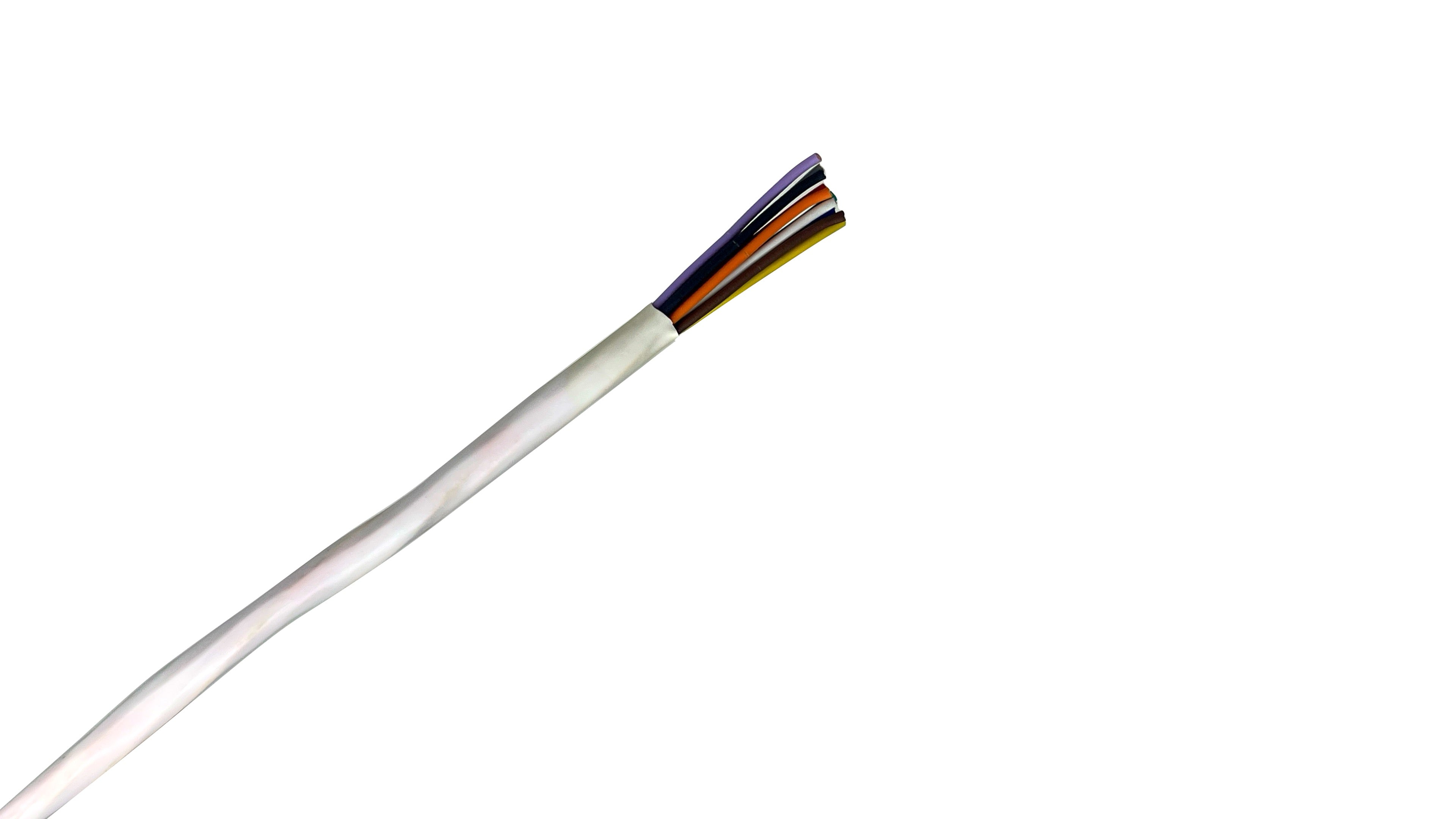

18-10C Thermostat Wire is a multi-conductor cable specifically designed for low-voltage, power-limited circuits. It features 18 AWG solid copper conductors and is commonly used in HVAC systems, alarm systems, and other control applications. Its durable PVC jacket provides robust protection for both indoor and outdoor installations.
This thermostat wire is ideal for power-limited circuits in various systems, including thermostats, air conditioning units, heat pumps, bell and alarm systems, signal systems, doorbells, and remote control units. It is suitable for applications where the voltage does not exceed 300 volts.
This 18-10C Thermostat Wire features 10 conductors. While basic systems might use fewer, 10 conductors provide ample capacity for complex HVAC setups, multi-stage heating/cooling, heat pumps with auxiliary heat, or systems integrating humidifiers, dehumidifiers, or zoning controls. Running extra conductors can also future-proof your installation for potential upgrades.
The 18-10C Thermostat Wire has a voltage rating that does not exceed 300 volts. While control signals in HVAC systems typically operate at 24 volts, this higher rating ensures superior insulation and a high safety margin for low-voltage applications.
