Parent SKU : TC16-2T-STOS
SKU : TC16-2T-STOS-250
APPLICATION:

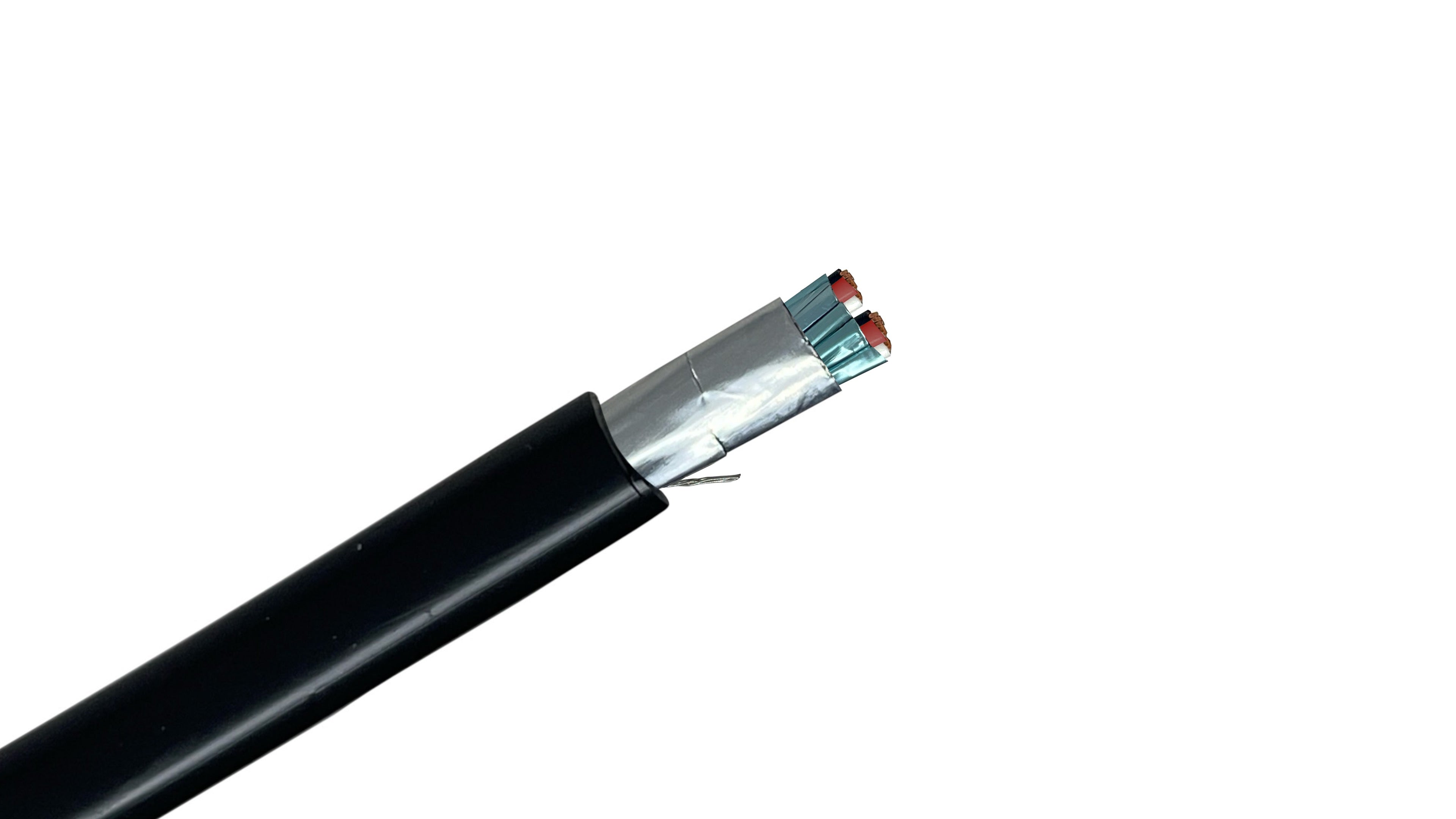

Our 16/2 Triad (6-Conductor) Shielded TC-ER Instrumentation Cable (600V) is suitable for control, instrumentation and process control circuits, where protection against electrostatic interference from both outside of the cable and from pair to pair is needed. TC-ER Shielded Pairs with Overall Shield (SPOS) cables are suitable for wet or dry applications, direct burial, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits.Â
Conductor Count:
6 Conductors (2 Individually Shielded Triads)
Wire Gauge:
16 AWG Stranded soft-drawn bare copper
Shielding:
Individual & Overall Aluminum/Mylar foil (100% coverage) + Drain Wire
Insulation:
Flame-retardant PVC with a protective Nylon overcoat (90°C Dry / 75°C Wet)
Jacket:
Rugged Black PVC — Water, Oil, Chemical, and UV resistant
Color Code:Â
Triads numbered 1 & 2 (Black, White, Red) for fast termination
Long-Distance Process Control: Ideal for remote sensors located far from the main control cabinet where signal strength is critical.
Heavy Industrial Vibration: The beefier 16 AWG conductors offer better mechanical strength in environments with constant machinery vibration.
Petrochemical Refineries: Managing dual-motor feedback or multi-zone monitoring in hazardous areas.
Water Treatment Facilities: Durable enough for the high-moisture and chemical exposure of modern treatment plants.
Â
All values are nominal and subject to correction
| Wire Size (AWG/MCM) | 16 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.552 in. / 14.02 mm |
| Jacket Type | (PVC) Polyvinyl Chloride |
| Conductor Count | 6 |
| Shield Coverage % | 100 |
| Shield Type | Aluminum Polyester Foil |
| Shield | Individual and Overall Shield |
| Insulation Type | (PVC) Polyvinyl Chloride |
| UL Listing Numbers | TC-ER, UL 62, UL 83, UL 1277, UL 1581 |
| Voltage Rating | 600V |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL type TC-ER UL 62, 83, 1277, 1581, IEEE 383 70,000 BTU flame test NEC Article 336, 392, 501, 725 |
| Miscellaneous Information | All values are nominal and subject to correction |
| Primary Applications | Industrial Process Control & Automation, Oil & Gas (Refineries, Offshore Rigs), Chemical and Petrochemical Plants, Power Generation Facilities, Water and Wastewater Treatment Plants, Motor Control Circuits (Sensitive Feedback). |
| Common Uses |
|
| Weight per Foot | 0.14 lb |
