16-2 Pair TC-ER Instrumentation Cable, Overall Shield, 600V

Parent SKU :  TC16-2P-OSH

SKU :  TC16-2P-OSH-250

TRAY CABLE (TC-ER). INDOOR/OUTDOOR. SUNLIGHT-RESISTANT. DIRECT BURIAL APPROVED.
Download Spec Sheet

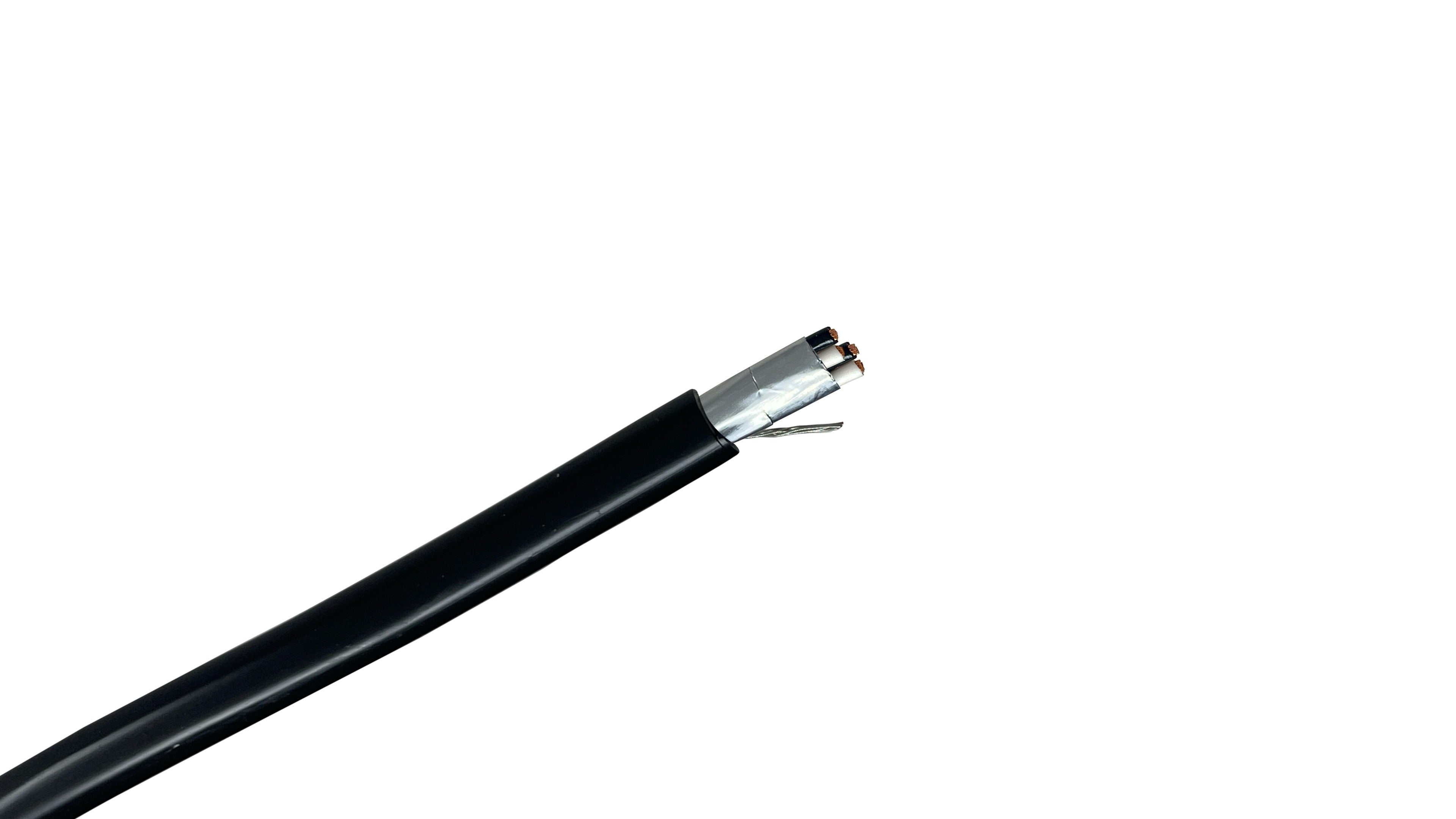

2PR TC-ER 600V cable with overall shield, designed for noise-free signal power transmission in exposed industrial runs.
Wire Size 16 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 0.377 in. / 9.58 mm
Conductor Count 4
Voltage Rating 600V
Weight per Foot 0.103 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Tray Cable Exposed Run Instrumentation Cables (TC-ER) are suitable for control, instrumentation and process control circuits, where protection against electrostatic interference is needed. The cables are suitable for wet or dry applications, direct burial, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits and for applications up to 600 volt and temperatures up to 90°C. TC-ER Overall Shield (OS) Instrumentation Cables are suitable for use in Class 1 Division 2 Hazardous locations per NEC.

CONDUCTORS:
Stranded soft drawn bare copper conductor, per ASTM B3 & B-8

INSULATION:
Polyvinyl Chloride (PVC) insulation with a nylon overcoat

JACKET:
Black Polyvinyl Chloride (PVC) jacket, which is water, chemical, sunlight and abrasion resistant

COLOR CODE:
Pairs: Black and White Numbered

SHIELD:
Aluminum polyester foil with 100% coverage and in contact with a tinned copper drain wire



All values are nominal and subject to correction

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 16 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 0.377 in. / 9.58 mm
Jacket Type (PVC) Polyvinyl Chloride
Conductor Count 4
Shield Coverage % 100
Shield Type Aluminum Polyester Foil
Shield Overall Shield
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL 62, UL 83, UL 1277, UL 1581

Technical Specifications

Voltage Rating 600V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL type TC-ER
UL 62, 83, 1277, 1581
IEEE 383 70, 000 BTU flame test
NEC Article 336, 392, 501, 725
Miscellaneous Information All values are nominal and subject to correction

Usage & Installation

Primary ApplicationsIndustrial Process Control & Automation, Oil & Gas (Refineries, Offshore Rigs), Chemical and Petrochemical Plants, Power Generation Facilities, Water and Wastewater Treatment Plants, Motor Control Circuits (Sensitive Feedback).
Common Uses
  • Sensors
  • Transmitters
  • Transducers
  • Temperature Sensors (RTDs
  • Thermocouples
  • Pressure Transmitters
  • Flow Meters
  • Level Indicators
  • PLCs (Programmable Logic Controller)
  • DCS (Distributed Control Systems)

Packaging & Dimensions:

Weight per Foot 0.103 lb
