16-16 Triads PLTC Instrumentation Cable, Overall Shield, 300V

Parent SKU :  PLTC16-16T-OSH

SKU :  PLTC16-16T-OSH-250

POWER LIMITED TRAY CABLE. INDOOR/OUTDOOR. SUNLIGHT-RESISTANT. DIRECT BURIAL APPROVED.
Download Spec Sheet

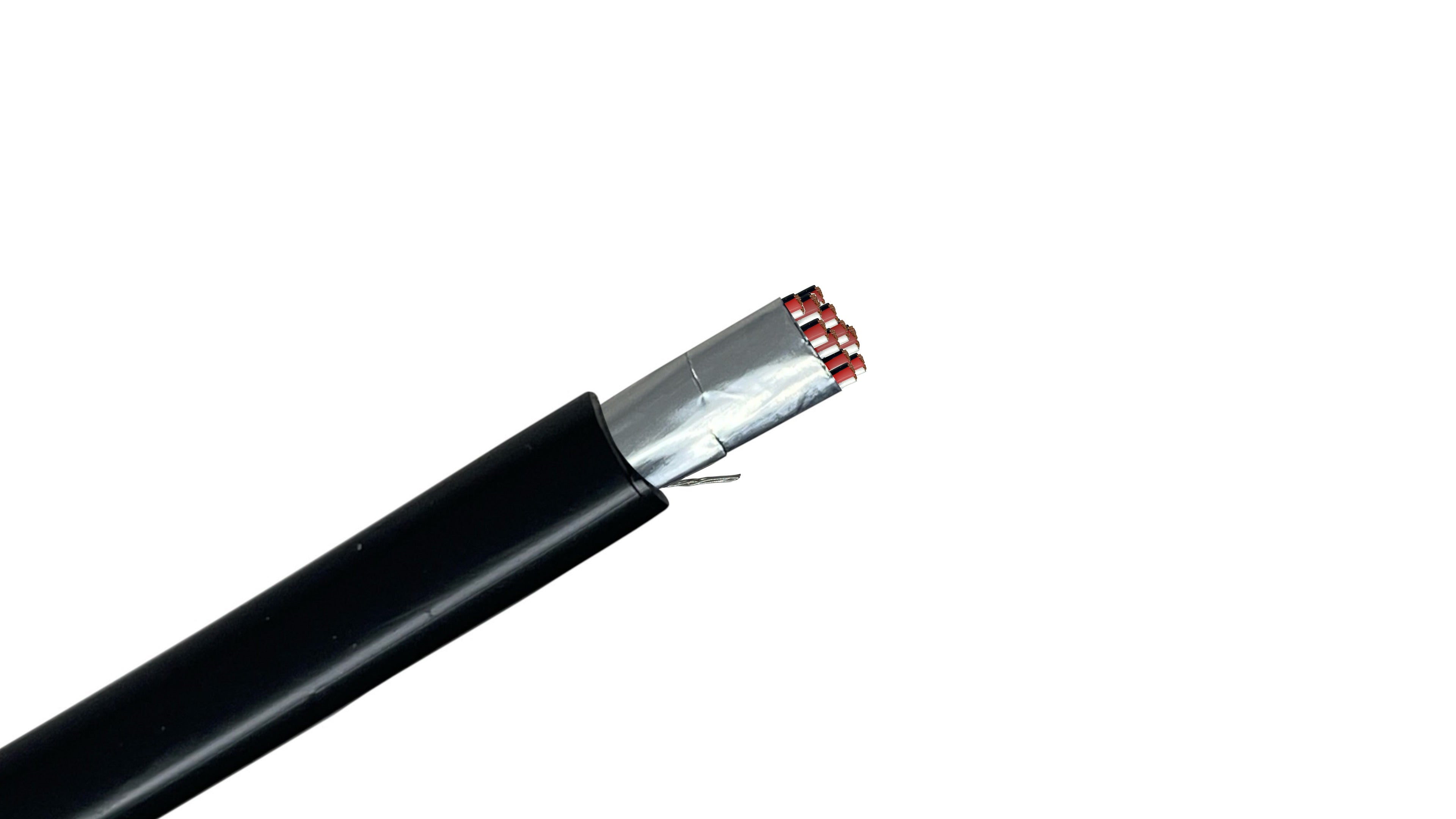

16 AWG 16 Triads shielded PLTC cable for noise-protected signal transmission in power-limited tray systems.
Wire Size 16 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 0.981 in. / 24.92 mm
Conductor Count 48
Voltage Rating 300V
Weight per Foot 0.661 lb
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Power Limited Tray Cable Instrumentation Cables (PLTC) are suitable for control, instrumentation and process control circuits, where protection against electrostatic interference is needed. PLTC Overall Shield (OS) Instrumentation Cables are suitable for wet or dry applications, indoor or outdoor locations, installed in cable trays, ducts, aerially or conduits, direct burial and for applications up to 300 volt and temperatures up to 105°C.

CONDUCTORS:
Stranded soft drawn bare copper conductor, per ASTM B3 & B-8

INSULATION:
Polyvinyl Chloride (PVC) insulation

JACKET:
Polyvinyl Chloride (PVC) jacket, which is water, chemical, sunlight and abrasion resistant

COLOR CODE:
Triads: Black, White, and Red Numbered

SHIELD:
Aluminum polyester foil with 100% coverage and in contact with a tinned copper drain wire



All values are nominal and subject to correction

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 16 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 0.981 in. / 24.92 mm
Jacket Type (PVC) Polyvinyl Chloride
Conductor Count 48
Shield Coverage % 100
Shield Type Aluminum Polyester Foil
Shield Overall Shield
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL 13, UL 2250

Technical Specifications

Voltage Rating 300V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 105ºC
Standards UL 13
UL 2250,
NEC Article 727 for ITC
EPA 40 CFR, part 261
Miscellaneous Information All values are nominal and subject to correction

Usage & Installation

Primary ApplicationsIndustrial Process Control Systems, Instrumentation and Data Acquisition, Hazardous (Class I & II, Division 2) Locations, Cable Tray Installations, Noise-Sensitive Environments, Security and Access Control Systems, Fire Alarm Systems.
Common Uses
  • Sensors
  • Transmitters
  • Transducers
  • Temperature Sensors (RTDs
  • Thermocouples
  • Pressure Transmitters
  • Flow Meters
  • Level Indicators
  • PLCs (Programmable Logic Controller)
  • DCS (Distributed Control Systems)

Packaging & Dimensions:

Weight per Foot 0.661 lb
