Parent SKU : XHW14
SKU : XHW14-250-BK
| Wire Size (AWG/MCM) | 14 AWG |
| Conductor Material | Stranded Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.13 in. / 3.302 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 25 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 UL 1685 RoHS Compliant ASTM B3, B8 ANSI/ICEA S-95-658/NEMA WC-70 NFPA 70 NEC XLPE -40°C FT1 Federal Spec A-A-59544 |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC. |
| RoHS Compliance | Yes |
| Primary Applications | Main service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits. |
| Common Uses |
|
| Weight per Foot | 0.018 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||

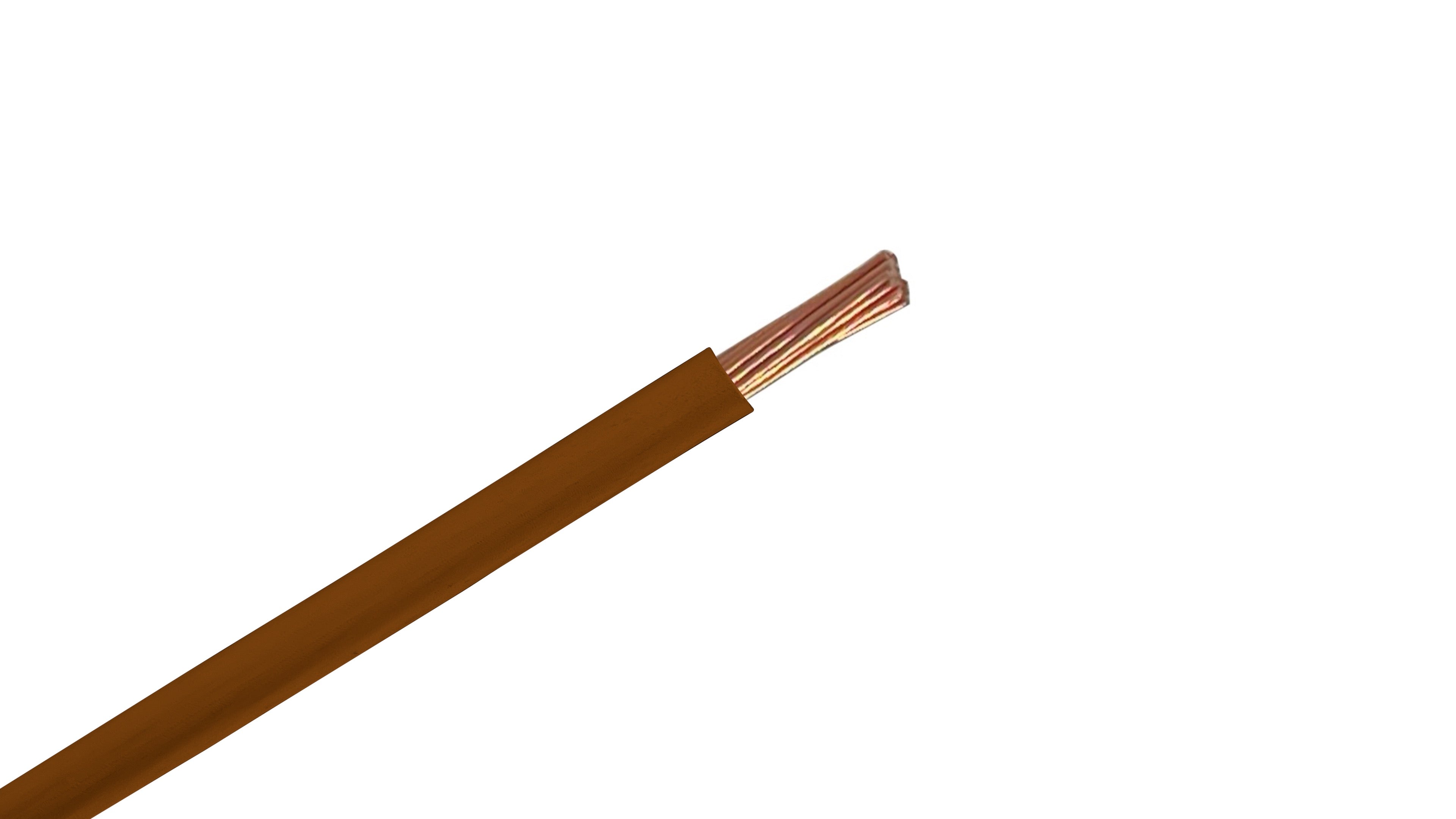

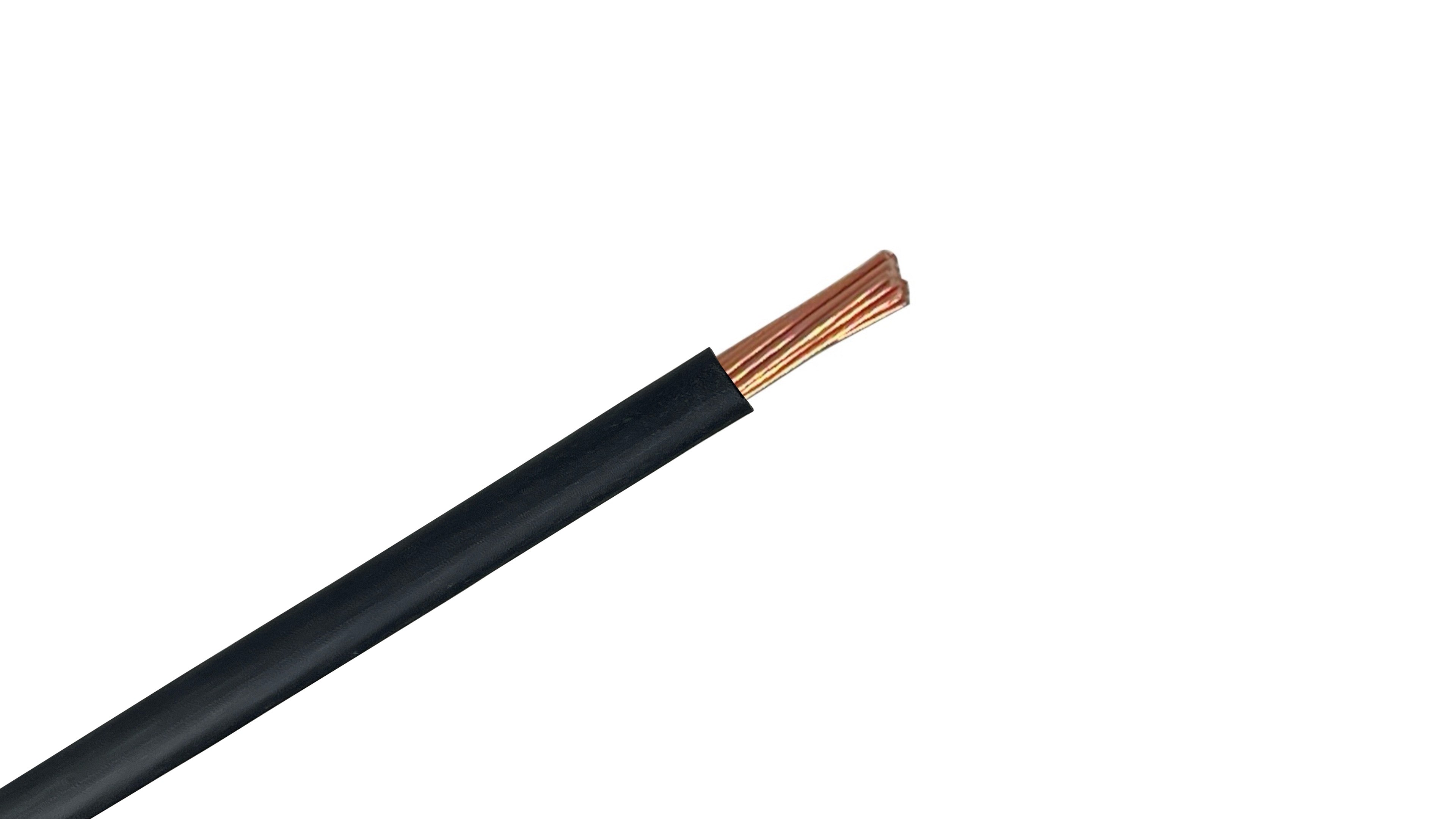

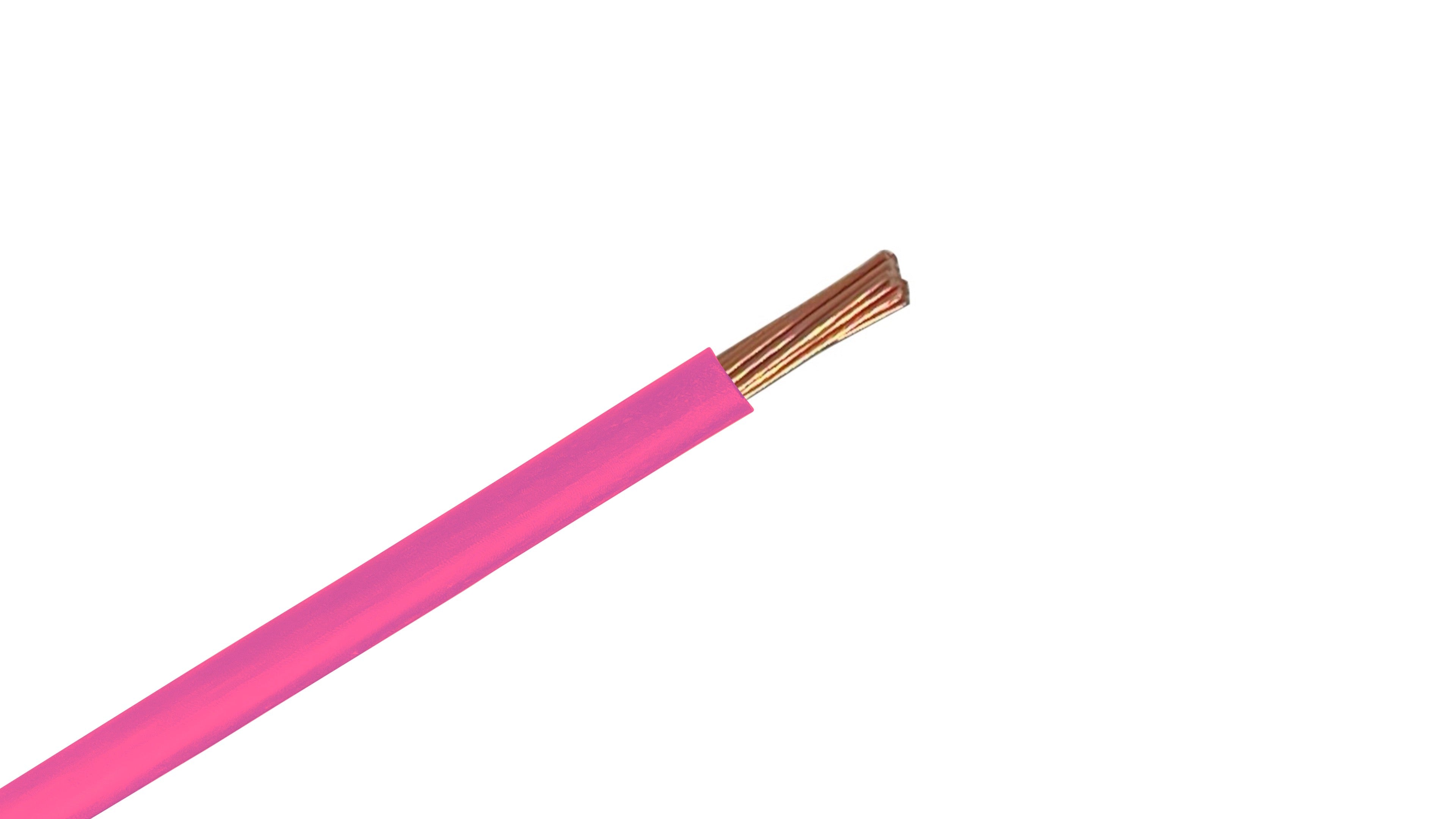

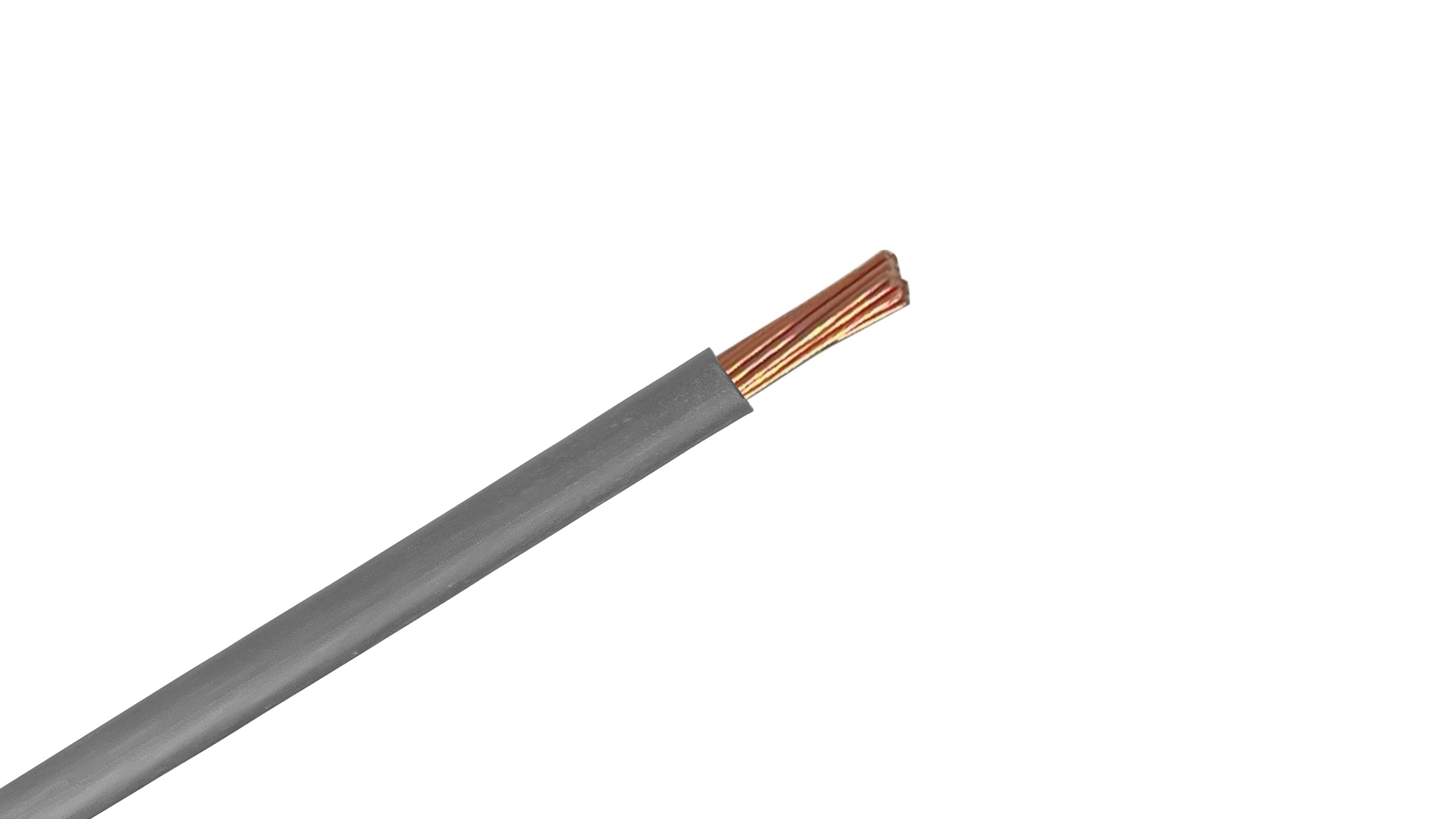

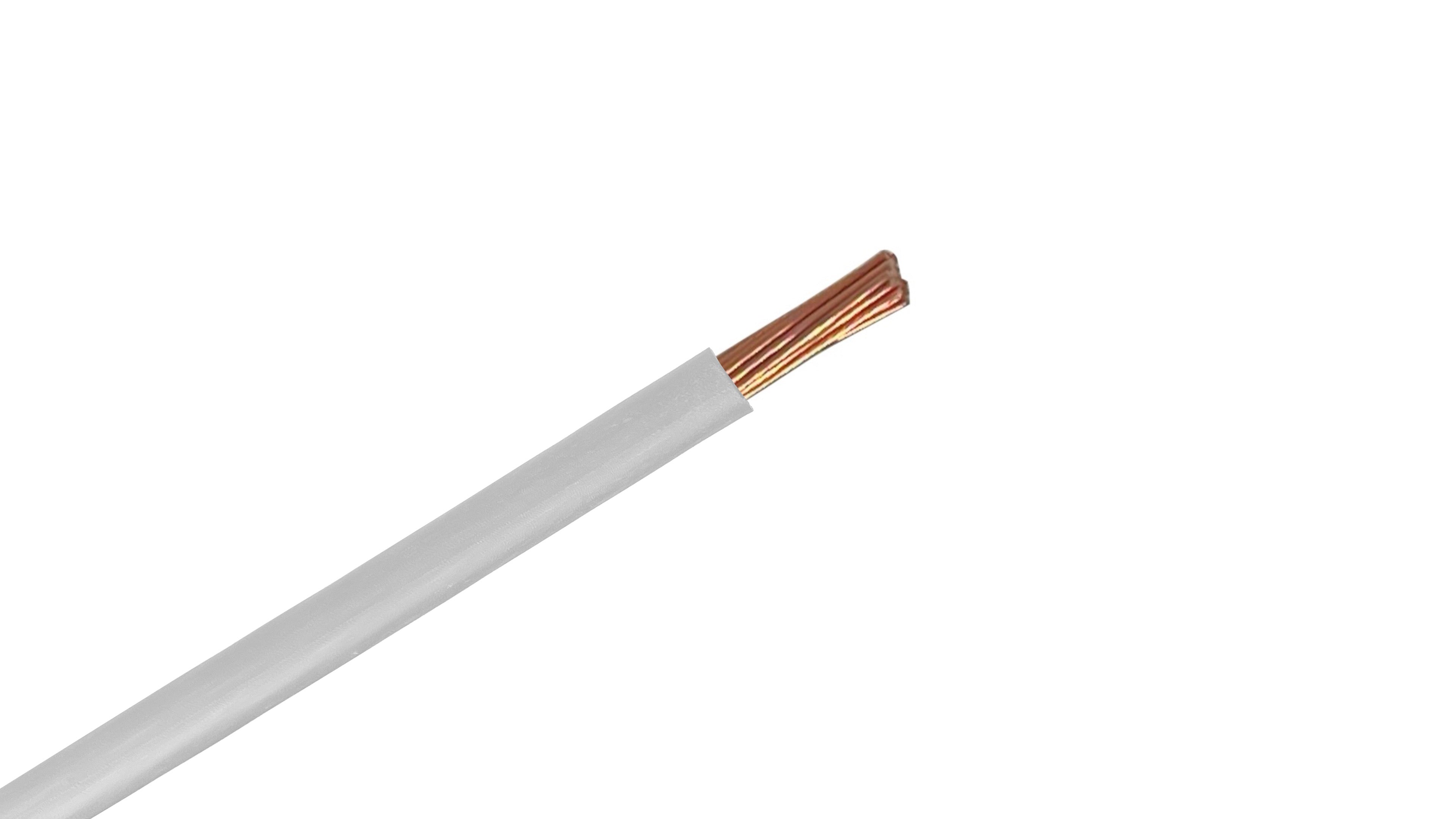

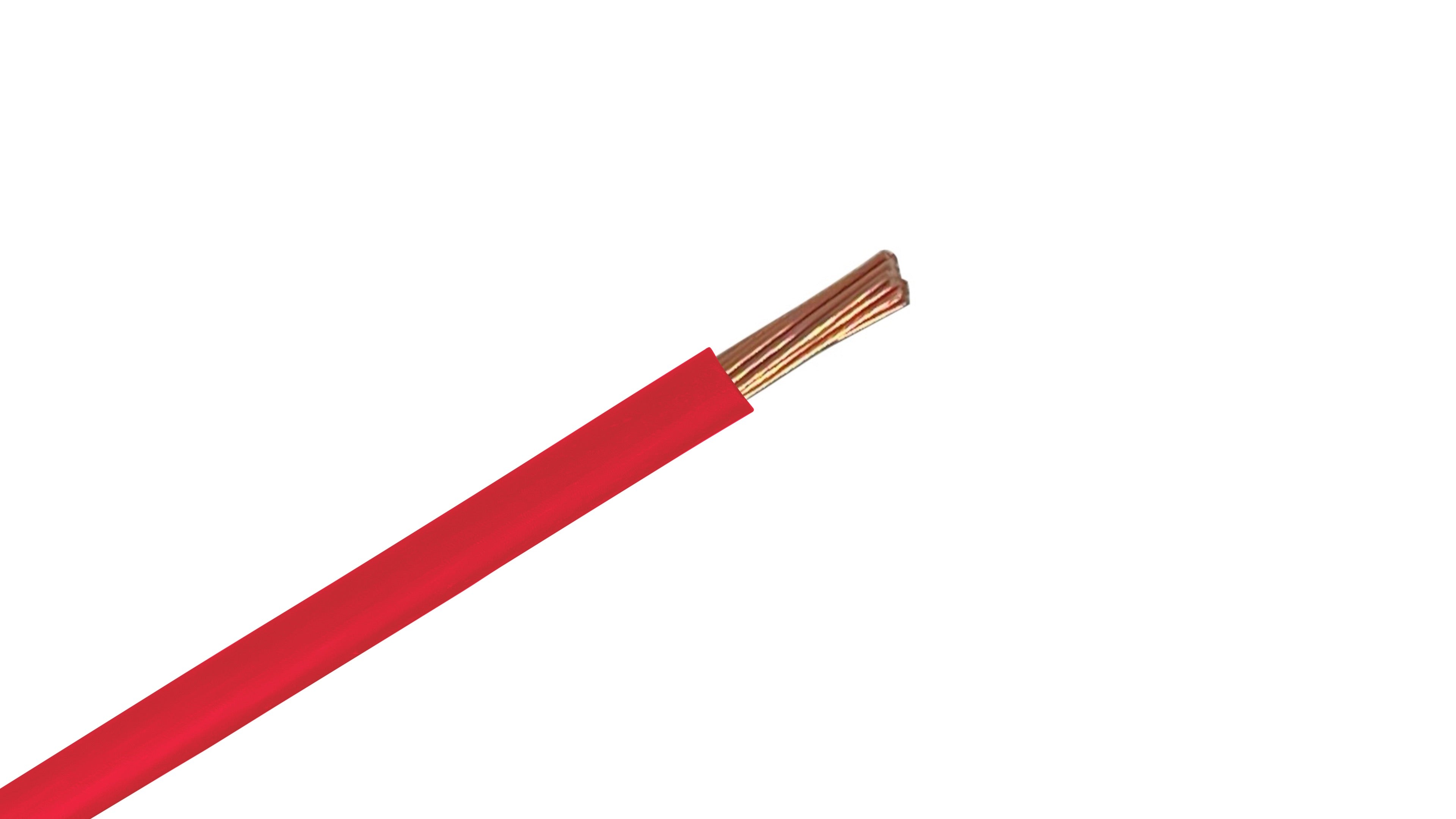

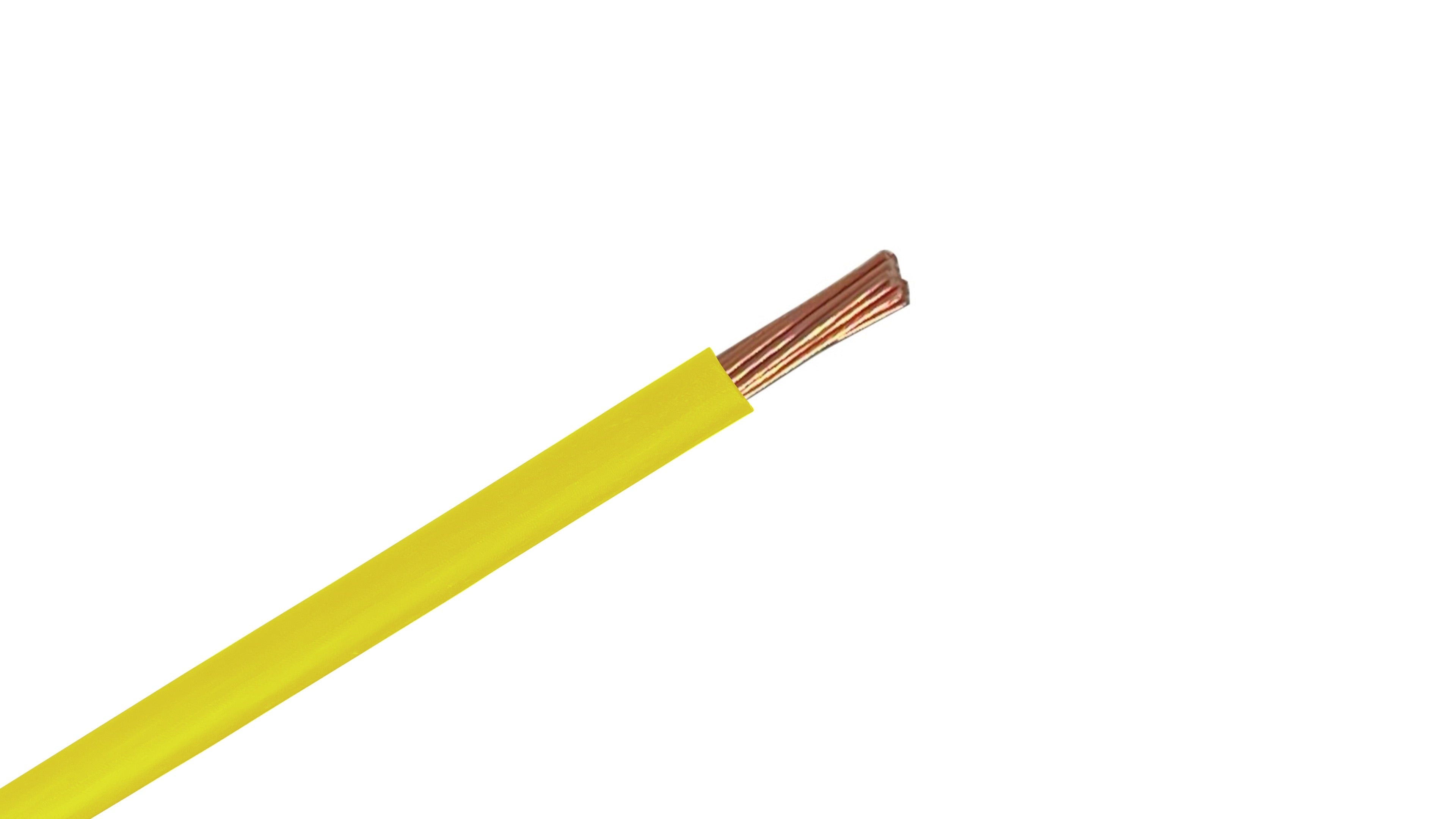

Our #14 AWG Copper XHHW-2 Building Wire is a high-performance electrical conductor designed for power distribution. It features a soft drawn bare copper conductor with robust cross-linked polyethylene (XLP) insulation, offering excellent resistance to abrasion, heat, and moisture. This wire is suitable for a wide range of electrical installations, ensuring reliable and safe power delivery.
The acronym XHHW-2 breaks down the key characteristics of the wire's insulation and performance: - X: Cross-linked polyethylene (XLPE) insulation. - HH: High Heat-resistant. - W: Water-resistant. - -2: Indicates that the wire is rated for 90°C in both wet and dry locations, signifying enhanced performance over previous versions.
This #14 AWG Copper XHHW-2 wire is primarily used for power distribution in various electrical systems. Its common applications include: - Services, feeders, and branch circuit wiring as specified in the National Electrical Code (NEC). - Installation in conduit or other recognized raceways. - Use in both residential, commercial, and industrial construction projects.
The key specifications for our #14 AWG Copper XHHW-2 Building Wire are: - AWG Size: #14 AWG. - Conductor: Soft drawn bare copper in compressed stranding. - Insulation: Abrasion, heat, and moisture resistant cross-linked polyethylene (XLP). - Voltage Rating: Dual-rated for 600V or 1000V. - Temperature Rating: 90°C in wet or dry locations. - Ampacity @ 90°C: 25 Amps. - Overcurrent Protection: Not to exceed 15 amps per NEC for #14 AWG.
Yes, #14 AWG Copper XHHW-2 wire is specifically designed and rated for use in both wet and dry locations. Its advanced cross-linked polyethylene (XLP) insulation ensures consistent performance and safety at temperatures not exceeding 90°C in either environment.
