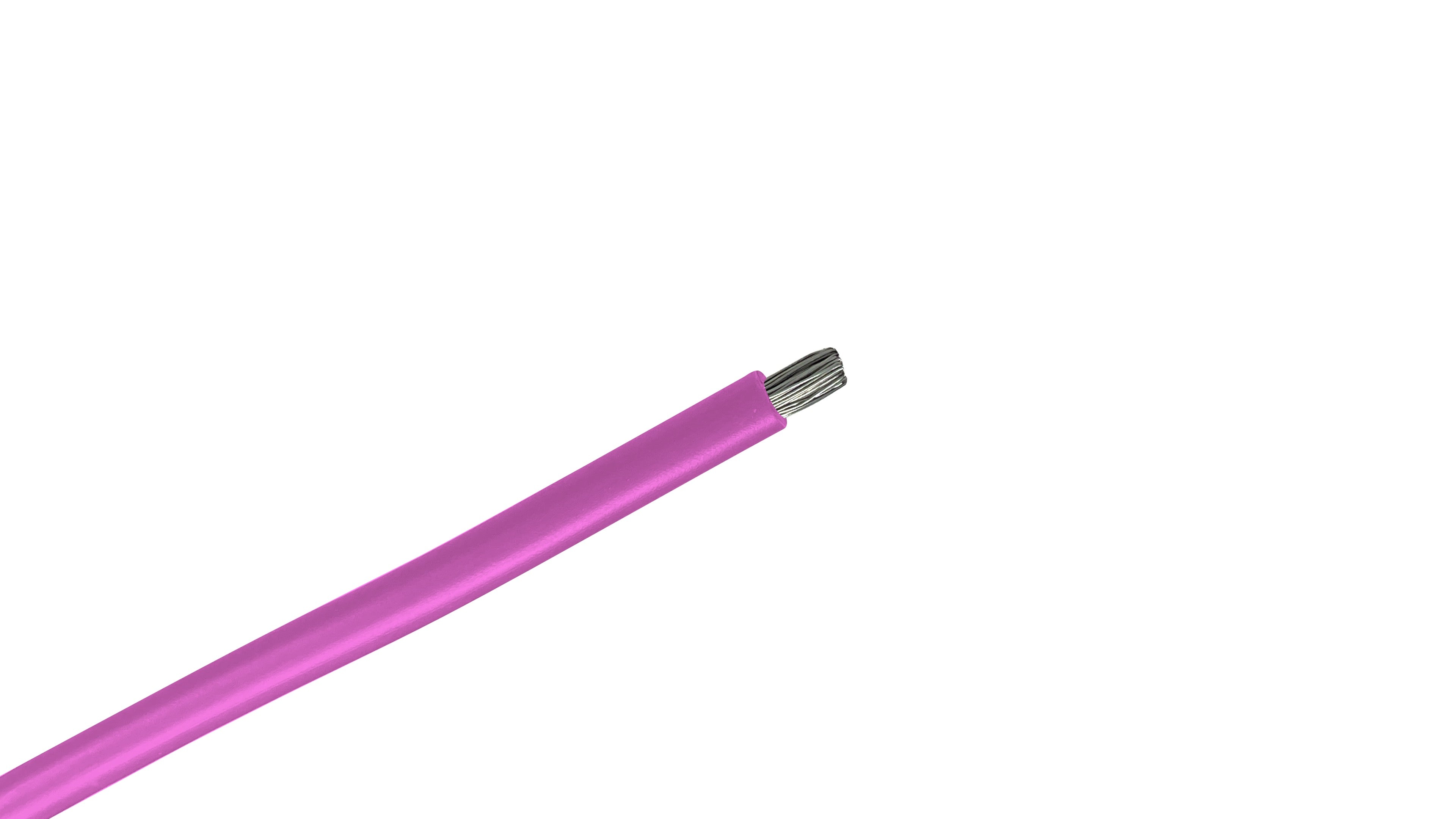

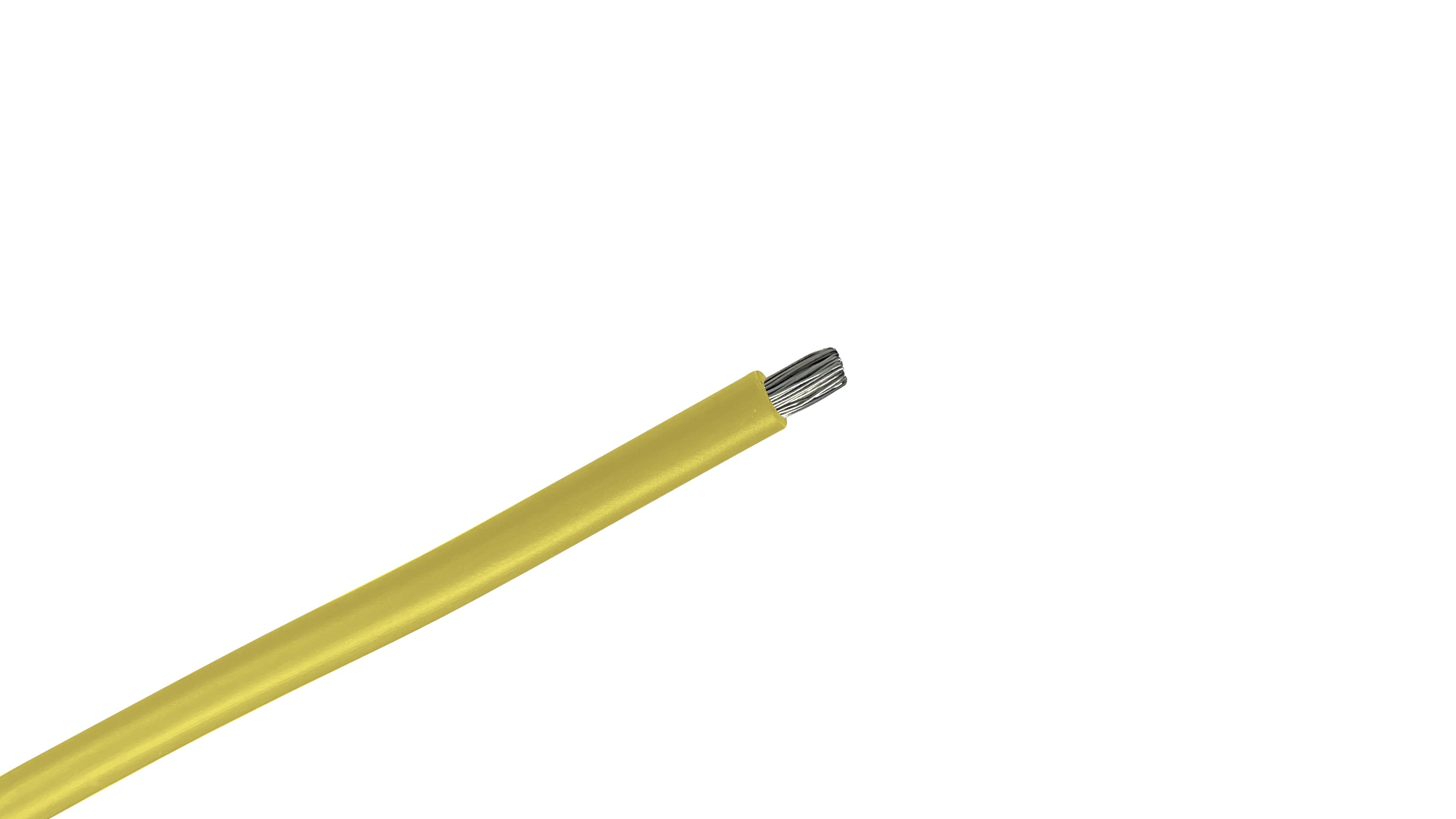

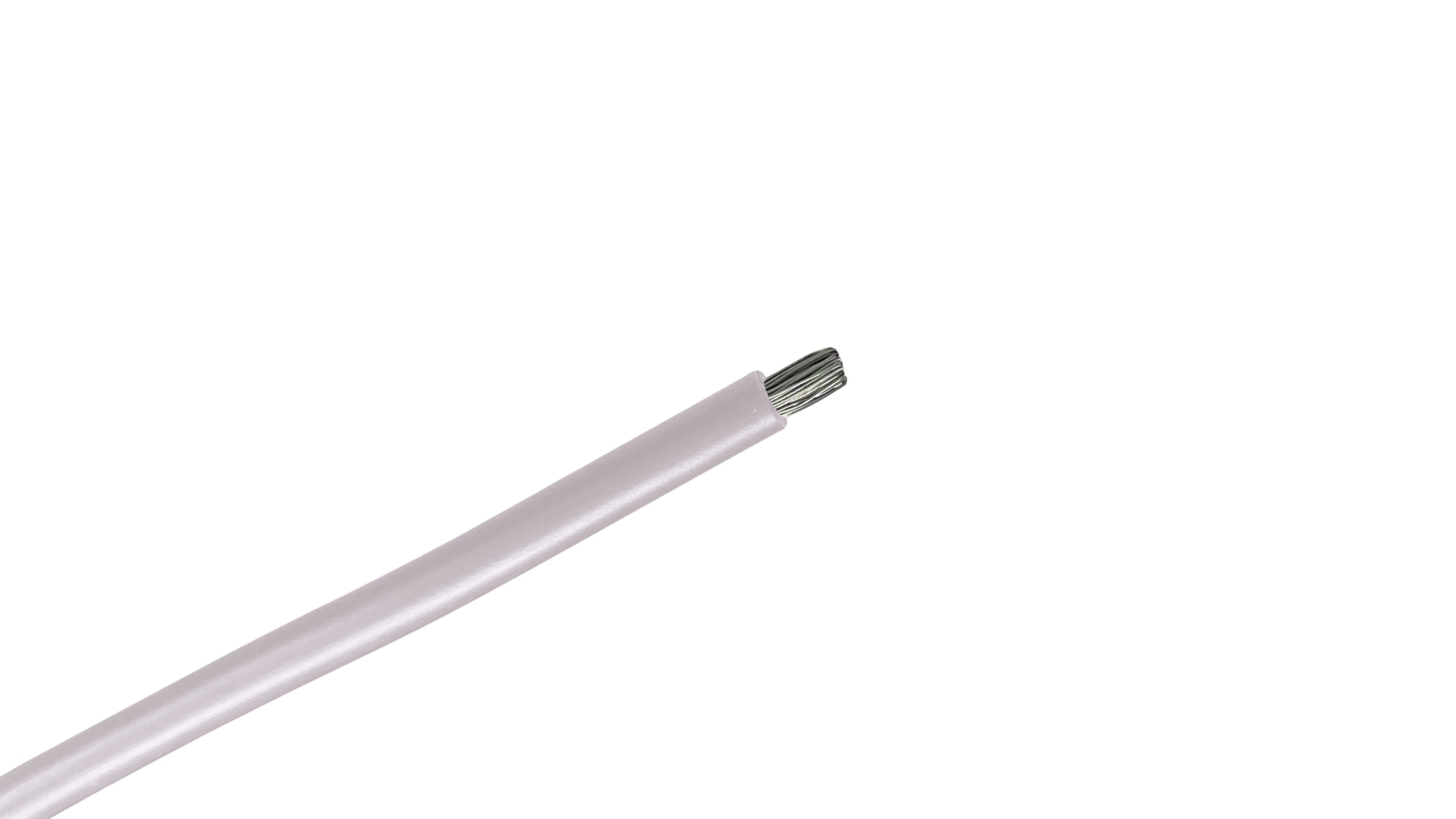

14 AWG UL 3173 Hook-Up Wire | 125°C 600V XLPE Tinned Copper

This 14 AWG UL 3173 hook-up wire is a high-performance internal wiring solution built for reliability in demanding thermal and mechanical environments. By utilizing chemically cross-linked polyethylene (XLPE) insulation, this wire provides a rugged, "thermoset" jacket that maintains its integrity under high heat, resisting the melting and flowing common with standard thermoplastic wires.

Why Choose 14 AWG UL 3173 Hook-Up Wire?

UL 3173 is the industry standard for lead wire in motors, transformers, and electrical appliances where durability is non-negotiable. The 14-gauge conductor offers a versatile mid-range ampacity, making it a "workhorse" for power leads and heavy control circuits. Because XLPE insulation does not shrink back or deform when exposed to soldering heat, it ensures safer, cleaner terminations during the manufacturing process.

• Advanced XLPE Insulation: The chemically cross-linked polyethylene insulation offers superior dielectric strength and will not soften at high temperatures.

• 125C Thermal Endurance: Rated for continuous operation in environments up to 125C (257F).

• Tinned Copper Conductor: Annealed tinned copper strands provide high conductivity and exceptional resistance to corrosion, particularly at terminal connections.

• Exceptional Toughness: Highly resistant to abrasion, cut-through, and mechanical impact, ensuring the wire stands up to vibration in industrial settings.

• Chemical & Moisture Resistance: The XLPE jacket is impervious to most industrial oils, acids, alkalis, and moisture ingress.

• Triple Certification: Complies with UL Style 3173, UL Style 3195, and CSA Type CL1251.

Technical Specifications: 14 AWG UL 3173

• Conductor Size: 14 AWG

• Stranding: 41/30 (High Flexibility)

• Voltage Rating: 600V

• Temperature Rating: 125C (257F)

• Insulation Material: Cross-linked Polyethylene (XLPE)

• Insulation Thickness: 0.030 inches (0.762 mm)

• Nominal Outer Diameter: 0.137 inches (3.48 mm)

• Approvals: UL 3173, UL 3195, CSA CL1251

Common Applications

• Internal Motor Leads: Specifically designed for internal connections in motors where thermal stability is critical.

• Transformer and Coil Wiring: Ideal for dry-type transformer lead-outs and coils.

• Industrial Control Cabinets: Used for power distribution and control wiring where space and reliability are priorities.

• Heating and HVAC Equipment: Suitable for internal wiring of appliances exposed to consistent heat cycles.

Technical Note: All dimensions and stranding counts are nominal. UL 3173 is intended for the internal wiring of equipment and is not approved for use as a portable cord or for structural building wiring.

SPECIFICATION: UL Style 3173 / CSA CL1251
