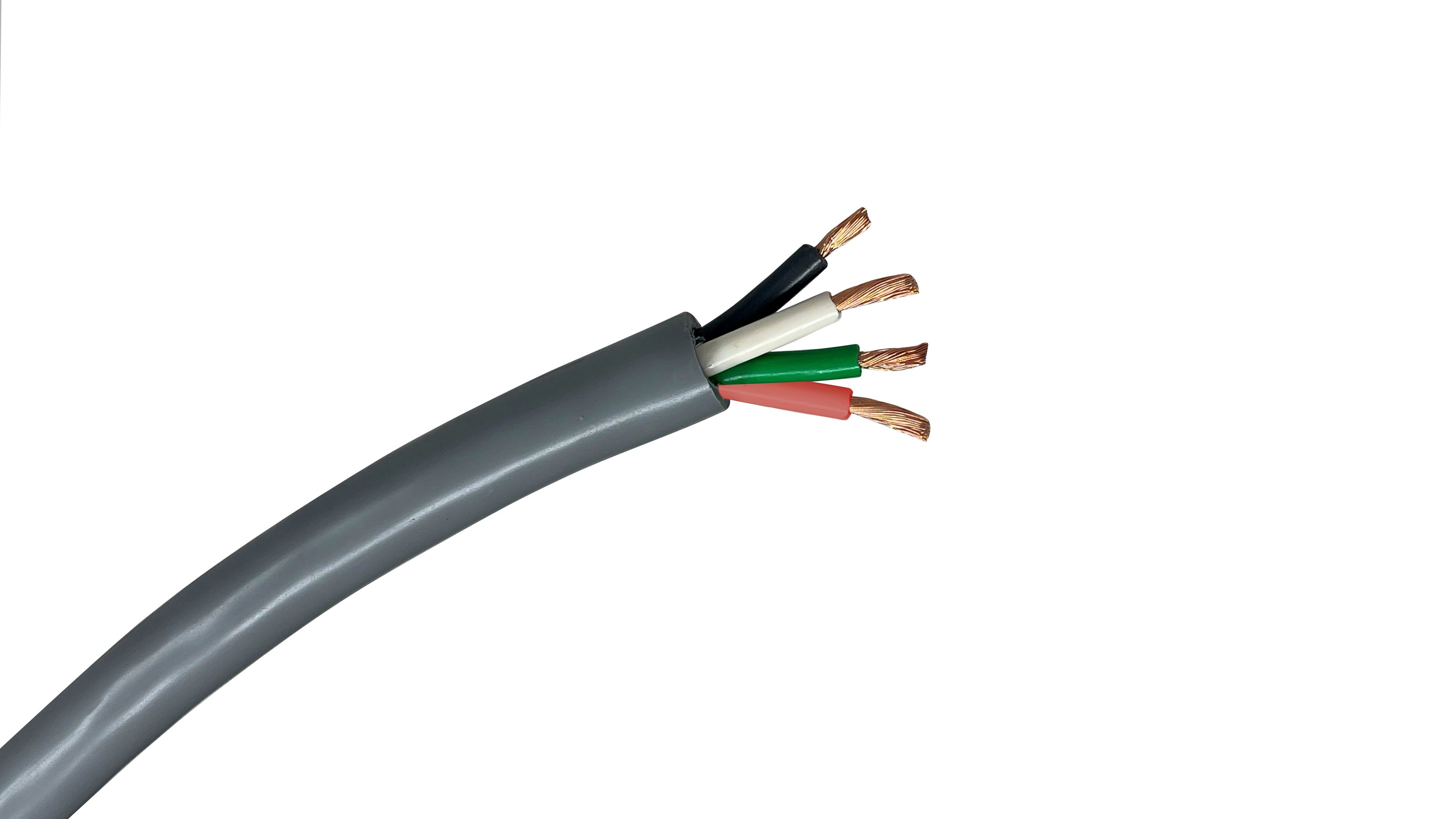

14/4 STOW Flexible Cord | 600V

Parent SKU :  STOW14-4

SKU :  STOW14-4-250-GY

OIL, WATER & SUN-LIGHT RESISTANT. UL/CSA LISTED. -20°C TO 60°C TEMP RATING.
Download Spec Sheet
1/2
Wire Size 14 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 0.581 in. / 14.757 mm
Conductor Count 4
Voltage Rating 600V
Ampacity Rating 15
Download Spec Sheet

Get Product Details

Get Product Details
STOW FLEXIBLE 600V CORD is used with portable tools; motors; floor maintenance, hospital and sound equipment; washing machines; portable lights, lamps and similar equipment. The acronym indicates it is a Service, Thermoplastic, Oil-resistant, and Weather-resistant cord. Characterized by a robust PVC jacket, STOW is flexible and resists oil, moisture, and abrasion and is popular for use in wet environments. For applications up to 600 volts and temperatures from -20°C to 60°C.

INSULATION:
Industrial grade Polyvinyl Chloride (PVC) insulation.

4 CONDUCTOR COLORS:
Black, White, Red and Green.

JACKET:
Industrial grade Polyvinyl Chloride (PVC) jacket, which is oil, water and sunlight resistant. Gray or yellow jacket colors are normally available.

AMPS:
15



All values are nominal and subject to correction ** Amps shown are for current carrying conductors per NEC table 400.5(A)(1). A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 14 AWG
Conductor Material Copper
Conductor Type Stranded
Strand Count 41/30
Outer Diameter (OD) (in/mm) 0.581 in. / 14.757 mm
Jacket Type PVC
Conductor Count 4
Shield Unshielded
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL/CSA

Technical Specifications

Voltage Rating 600V
Ampacity Rating 15
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating 60ºC
Standards UL 62 Flexible Cords and Cables
CSA C22.2 No. 49 Flexible Cords and Cables
OSHA accepted
Miscellaneous Information All values are nominal and subject to correction ** Amps shown are for current carrying conductors per NEC table 400.5(A)(1). A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsPortable tools, motors, floor maintenenance, hospital equipment, sound equipment, washing machines, portable lights, lamps, construction.
Common Uses
  • Heavy-duty extension cords
  • industrial machinery
  • power tools
  • and equipment on construction sites or factory floors.

Packaging & Dimensions:

Weight per Foot 0.188 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

STOW Flexible 600V Cord

Wire America | Wire Flexibility Series

This video shows the flexibility, size, jacket detail, conductor material and stranding of the Gray 12-3 STOW Flexible 600V Cord.

14/4 STOW Flexible Cord | 600V

Parent SKU :  STOW14-4

SKU :  STOW14-4-250-GY

OIL, WATER & SUN-LIGHT RESISTANT. UL/CSA LISTED. -20°C TO 60°C TEMP RATING.
In Stock
Ships in 1-2 days

Parent SKU :  STOW14-4

SKU :  STOW14-4-250-GY

Please select
Please select an option
$380/ea.
Please select an option
Min: 250 ft., Max: 20,000 ft.
Spool (250 ft.)
$380.00
Please select an option
Maximum reached, contact us for custom orders
Contact Us
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Get Product Details

Get Product Details
STOW FLEXIBLE 600V CORD is used with portable tools; motors; floor maintenance, hospital and sound equipment; washing machines; portable lights, lamps and similar equipment. The acronym indicates it is a Service, Thermoplastic, Oil-resistant, and Weather-resistant cord. Characterized by a robust PVC jacket, STOW is flexible and resists oil, moisture, and abrasion and is popular for use in wet environments. For applications up to 600 volts and temperatures from -20°C to 60°C.

INSULATION:
Industrial grade Polyvinyl Chloride (PVC) insulation.

4 CONDUCTOR COLORS:
Black, White, Red and Green.

JACKET:
Industrial grade Polyvinyl Chloride (PVC) jacket, which is oil, water and sunlight resistant. Gray or yellow jacket colors are normally available.

AMPS:
15



All values are nominal and subject to correction ** Amps shown are for current carrying conductors per NEC table 400.5(A)(1). A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 14 AWG
Conductor Material Copper
Conductor Type Stranded
Strand Count 41/30
Outer Diameter (OD) (in/mm) 0.581 in. / 14.757 mm
Jacket Type PVC
Conductor Count 4
Shield Unshielded
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL/CSA

Technical Specifications

Voltage Rating 600V
Ampacity Rating 15
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating 60ºC
Standards UL 62 Flexible Cords and Cables
CSA C22.2 No. 49 Flexible Cords and Cables
OSHA accepted
Miscellaneous Information All values are nominal and subject to correction ** Amps shown are for current carrying conductors per NEC table 400.5(A)(1). A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsPortable tools, motors, floor maintenenance, hospital equipment, sound equipment, washing machines, portable lights, lamps, construction.
Common Uses
  • Heavy-duty extension cords
  • industrial machinery
  • power tools
  • and equipment on construction sites or factory floors.

Packaging & Dimensions:

Weight per Foot 0.188 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Video thumbnail
STOW Flexible 600V Cord

Wire America | Wire Flexibility Series

This video shows the flexibility, size, jacket detail, conductor material and stranding of the Gray 12-3 STOW Flexible 600V Cord.
14/4 STOW Flexible Cord | 600V
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 14 AWG
Conductor Material Copper
Conductor Type Stranded
Strand Count 41/30
Outer Diameter (OD) (in/mm) 0.581 in. / 14.757 mm
Jacket Type PVC
Conductor Count 4
Shield Unshielded
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL/CSA

Technical Specifications

Voltage Rating 600V
Ampacity Rating 15
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating 60ºC
Standards UL 62 Flexible Cords and Cables
CSA C22.2 No. 49 Flexible Cords and Cables
OSHA accepted
Miscellaneous Information All values are nominal and subject to correction ** Amps shown are for current carrying conductors per NEC table 400.5(A)(1). A grounding conductor, or one which carries only the unbalanced current from other conductors, is NOT counted in determining current carrying capacity.
RoHS Compliance Yes

Usage & Installation:

Primary ApplicationsPortable tools, motors, floor maintenenance, hospital equipment, sound equipment, washing machines, portable lights, lamps, construction.
Common Uses
  • Heavy-duty extension cords
  • industrial machinery
  • power tools
  • and equipment on construction sites or factory floors.

Packaging & Dimensions:

Weight per Foot 0.188 lb
