12-2C Plenum Security Cable, Unshielded

Parent SKU :  SAP-UNSHD12-2

SKU :  SAP-UNSHD12-2-500

CMP/CL3P PLENUM RATED. STRANDED COPPER CONDUCTORS. 300V.
Download Spec Sheet

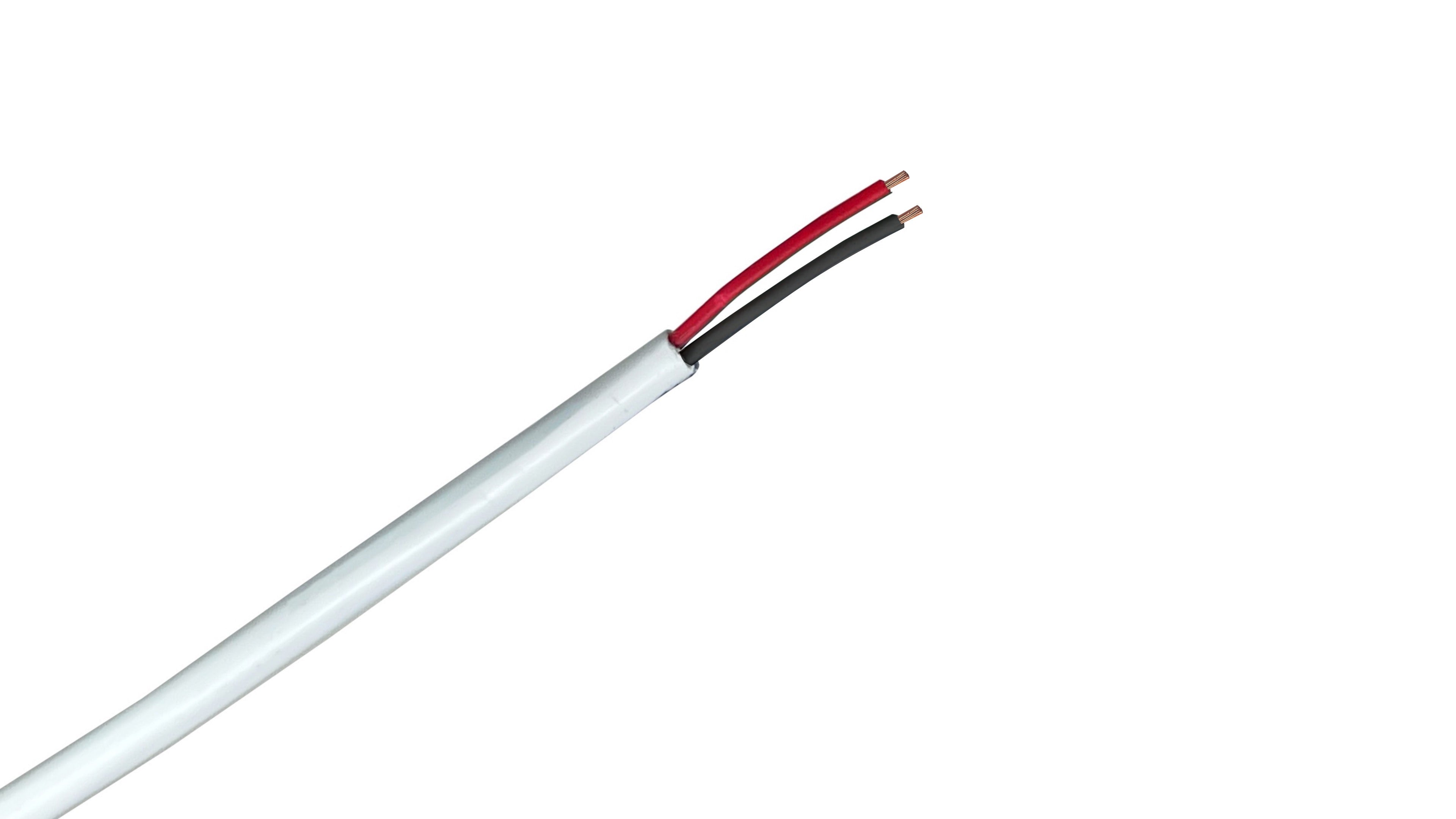

12/2 Security Cable, 12 AWG 2-Conductor Stranded, CMP Plenum Rated, Unshielded Low Voltage Power and Control Wire.
Wire Size 12 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 0.254 in. / 6.45 mm
Conductor Count 2
Voltage Rating 300V
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Unshielded Plenum Broadcast & Security Cable is suitable for use on public address systems, intercoms, audio, internal telephones, remote controls, sound circuits and burglar/security systems. CL3P rated cable is for applications installed in air return plenums or where the limiting of smoke transmission is required and with voltages not to exceed 300 volts.

CONDUCTORS:
Stranded soft drawn bare copper conductor.

CONDUCTOR COLORS:
Black, and Red.

JACKET COLOR:
White

JACKET:
Low smoke polyvinyl chloride (PVC) jacket suitable for use from -20°C to +60°C

INSULATION:
Low smoke polyvinyl chloride (PVC) color coded insulation




All values are nominal and subject to correction.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 12 AWG
Conductor Material Copper
Conductor Type Stranded
Strand Count 19
Outer Diameter (OD) (in/mm) 0.254 in. / 6.45 mm
Jacket Type PVC
Conductor Count 2
Shield Unshielded
Insulation Type Low Smoke (PVC) Polyvinyl Chloride
UL Listing Numbers UL 13, UL 44
Plenum Rating true

Technical Specifications

Voltage Rating 300V
Submersible No
Temperature Rating 60ºC
Standards UL Type CMP & CL3P
UL 13, UL 44
NEC Article 725, 800
ASTM B3, B8, B258
Miscellaneous Information All values are nominal and subject to correction

Usage & Installation

Common Uses
  • Public Address Systems
  • Intercoms
  • Audio
  • Internal Telephones
  • Remote Controls
  • Sound Circuits
  • Burglar/Security Systems

Packaging & Dimensions:

Weight per Foot 0.06 lb
